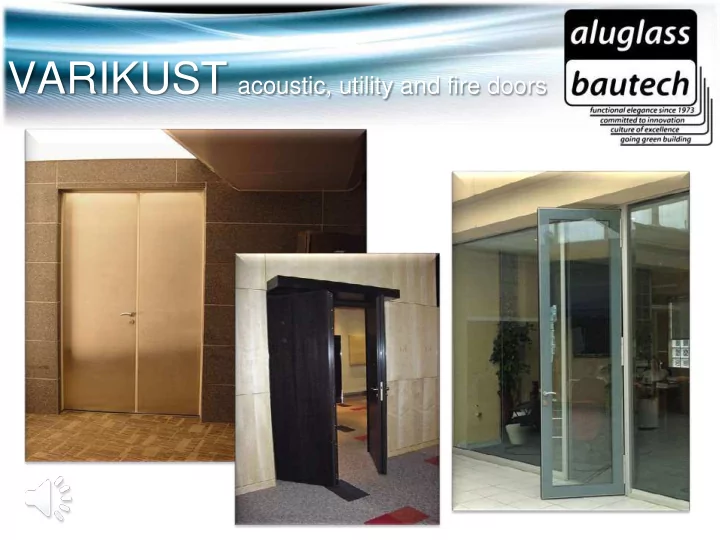

VARIKUST acoustic, utility and fire doors

Index

Introduction – General notes – Special features Acoustic selection table VK range selection table Typical configurations Hardware & components example Typical cross section : VK62, VK83 & VK105 Optional extras

Index

Wall fixing details H-frame detail Bottom seal types Applications Finishes Handles Manual and automatic door closures Push/pull door operation Single & double door operation

Introduction

• Varikust ACOUSTIC doors are multi-rebated doors with

an internal handle activated sealing mechanism between the bottom of the door leaf and the threshold

• This system allows for uninterrupted floor finish
• Sound Insulation doors ranging from 30dB to 51dB
• Complimentary product to the Variflex system
• Easy operation
• Effective sealing mechanism
• Available as gas/ dustproof fire doors fitted with escape

gear

General notes

• Auto Seal doors typically require heavy duty door closures.
• Lockable handle features specially keyed pad lock.
• Double maglock requires Auto Seal
• Panic bar requires Auto Seal
• Elektromechanical solenoid requires Auto Seal

Special features

• All exposed steel ironmongery- SS304
• All aluminum typically architectural grade natural anodised–15 micron
• Vesconite hinge pins in dirty environments
• All latches and bolts are steel- not brass

Varikust @ MTN 14th Ave

Acoustic selection table

VK range selection table

Typical configurations

Single right hand VK door Single left hand VK door

Typical configurations

Double door with unequal leaves, right hand active Double door with unequal leaves, left hand active

Typical configurations

Double door with equal leaves, right hand active Double door with equal leaves, left hand active

Hardware & components example

Examples of VK44U

Typical cross section VK62

Typical cross section VK83

Typical cross section VK105

Typical cross section VK105F

Typical cross section VK105F

Typical cross section VK105E

Typical cross section VK105E

B

B

Optional extras

• Viewing Panel
• Panic Bar
• Lockable Handle (Opposite Panic Bar)
• Door closer
• Double Maglock
• Electro Mechanical Solenoid Latch
• Pull Handle
• Auto Trigger Seal

Wall fixing details

into dry wall into plastered

• pening

into rebated

• pening

H-frame detail

Bottom seal types

WIPER-SEAL RETRACTABLE THRESHOLD SEAL

Applications

• Home Theater Studios
• Entrance Door to Hotel Rooms
• Radio and Television Studios
• Office doors
• Auditoria
• Meeting and Conference rooms
• Plant and Control Rooms

• MDF sealed
• Formica finishes
• Marine ply (for external finishes)
• 1.2mm galv steel (for fire side)
• 430 Grade SS Rigidized 5WL or 6WL
• Glass (only VK62)

Finishes (min 1200mm wide)

• Valcromat
• Bamboo
• Natural wood veneers: Ash, American Walnut,

Beech, Cherrywood, Crown Mahogany, Maple, Oak (other finishes available on request)

Handles

FADEX HANDLE SP.CRM F223MCRC55 (15.00.07) S/STEEL HANDLE SET

• ASSY. (VK) (15.00.05)

VK LOCKABLE UTILITY HANDLE SS (15.00.08) PULL HANDLE 300x200x32 BTB S/S (15.00.09) EMERGANCY EXIT PUSH BAR FADEX HANDLE in a RECESS PLATE

Door closures

Manual door closer Automatic door closer

Push/pull handle operation

EXITING the room: grip the top end of the handle bar and PULL the handle bar towards you. ENTERING the room: grip the top end of the handle bar and PUSH towards the door

Single & double door operation

Push locking pin downwards. Grip handle bar

Push the handle

• downwards. Push or

pull to open door Double door: With main door leaf open, release the locking pin located in the side leaf. (About halfway up the door) With the locking pin facing

• downward. The

door is ready to be opened.

Push door to open
