SLIDE 1
Improved mixing bounds for the anti-ferromagnetic Potts model on Z 2 - - PowerPoint PPT Presentation
Improved mixing bounds for the anti-ferromagnetic Potts model on Z 2 - - PowerPoint PPT Presentation

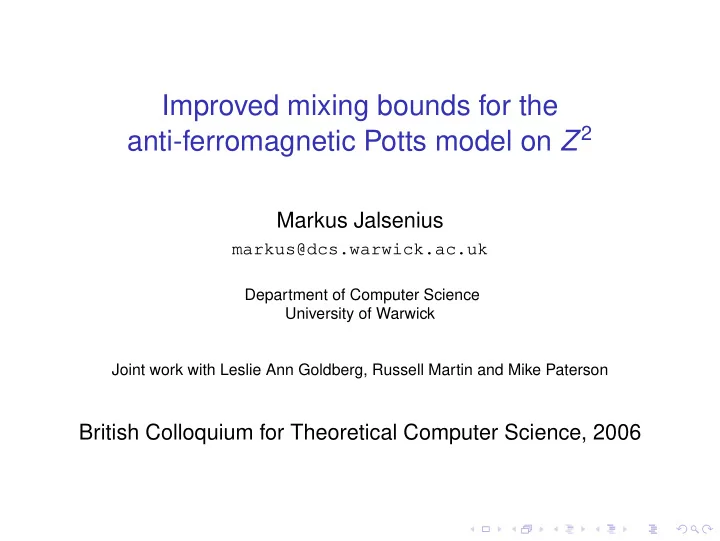

Improved mixing bounds for the anti-ferromagnetic Potts model on Z 2 Markus Jalsenius markus@dcs.warwick.ac.uk Department of Computer Science University of Warwick Joint work with Leslie Ann Goldberg, Russell Martin and Mike Paterson British
SLIDE 2
SLIDE 3
Anti-ferromagnetic Potts model
Two parameters
◮ q, number of colours ◮ 0 ≤ λ ≤ 1
Weight of colouring = λnumber of monochromatic edges
SLIDE 4
Anti-ferromagnetic Potts model
Two parameters
◮ q, number of colours ◮ 0 ≤ λ ≤ 1
Weight of colouring = λnumber of monochromatic edges 9 monochromatic edges, weight of colouring = λ9
SLIDE 5
Distributions of colourings
σ = colouring Prob(σ) = weight(σ) Z Z =
- colourings σ
weight(σ)
SLIDE 6
Distributions of colourings
Uniform distribution of proper colourings all colourings λ = 0 λ = 1 weight(σ) = 1 or 0 weight(σ) = 1
SLIDE 7
Goal
◮ Want to sample from the distribution of colourings.
SLIDE 8
Goal
◮ Want to sample from the distribution of colourings. ◮ For what values of q and λ can we sample efficiently?
SLIDE 9
Goal
◮ Want to sample from the distribution of colourings. ◮ For what values of q and λ can we sample efficiently? ◮ Efficiently means polynomial time, in size of the region.
Method: Markov chains
SLIDE 10
Markov chains
SLIDE 11
Markov chains
SLIDE 12
Markov chains
SLIDE 13
Markov chains
SLIDE 14
Markov chains
SLIDE 15
Markov chains
Stationary distribution
The stationary distribution of the states is identical to the distribution we want to sample colourings from.
SLIDE 16
Markov chains
Stationary distribution
The stationary distribution of the states is identical to the distribution we want to sample colourings from.
Question
How many steps does it take to get close to the stationary distribution?
SLIDE 17
Markov chains
Stationary distribution
The stationary distribution of the states is identical to the distribution we want to sample colourings from.
Question
How many steps does it take to get close to the stationary distribution?
Total variation distance
dtv(D1, D2) < ǫ, where ǫ > 0
SLIDE 18
Markov chains
Stationary distribution
The stationary distribution of the states is identical to the distribution we want to sample colourings from.
Question
How many steps does it take to get close to the stationary distribution?
Total variation distance
dtv(D1, D2) < ǫ, where ǫ > 0
Polynomial number of steps (rapidly mixing)
Want number of steps be polynomial in n and log 1
ǫ
- , where n
is the size of the region.
SLIDE 19
Previous work
Theorem
[L.A. Goldberg, R. Martin and M. Paterson, 2005]
For any triangle-free graph with maximum degree ∆ ≥ 3 we have rapid mixing if q 1.76∆ − 0.47 and λ = 0.
SLIDE 20
Previous work
Theorem
[L.A. Goldberg, R. Martin and M. Paterson, 2005]
For any triangle-free graph with maximum degree ∆ ≥ 3 we have rapid mixing if q 1.76∆ − 0.47 and λ = 0.
The lattize Z 2
∆ = 4 so the theorem above gives rapid mixing for q ≥ 7 and λ = 0. This result has now been improved [L.A. Goldberg, M. Jalsenius,
- R. Martin and M. Paterson, 2006].
SLIDE 21
Path coupling
[R. Bubley and M. Dyer, 1997]
A B B’ A’
SLIDE 22
Path coupling
[R. Bubley and M. Dyer, 1997]
Hamming distance(A, B) = 1
1 < 1 A B B’ A’
Want the expected Hamming distance(A′, B′) < 1
SLIDE 23
Path coupling
Hamming distance 1 Three scenarios can happen when applying the ball.
SLIDE 24
Path coupling
Hamming distance 1 Scenario 1. The discrepancy is outside of the ball. Hamming distance does not change.
SLIDE 25
Path coupling
Hamming distance 1 Scenario 2. The discrepancy is inside the ball. Hamming distance drops to 0.
SLIDE 26
Path coupling
Hamming distance 1 Scenario 3. The discrepancy is on the boundary of the ball. Hamming distance can increase. How much?
SLIDE 27
Spatial mixing
SLIDE 28
Spatial mixing
SLIDE 29
Spatial mixing
SLIDE 30
Strong spatial mixing
r r
SLIDE 31
Strong spatial mixing
r r
◮ Probability of a different colour at distance r decreases
exponentially with r.
SLIDE 32
Strong spatial mixing
r r
◮ Probability of a different colour at distance r decreases
exponentially with r.
◮ Expected total number of introduced discrepancies in
shaded region is bounded by a constant.
SLIDE 33
Path coupling
d −1 d +k
SLIDE 34
Path coupling
d −1 d +k
New expected Hamming distance = = 1 − 1 × |Ball volume| |Region| + k × |Ball boundary| |Region|
SLIDE 35
Path coupling
d −1 d +k
New expected Hamming distance = = 1 − 1 × |Ball volume| |Region| + k × |Ball boundary| |Region| |Ball boundary| |Ball volume| ∈ Θ(d) Θ(d2) = Θ( 1 d )
SLIDE 36
Path coupling
d −1 d +k
New expected Hamming distance = = 1 − 1 × |Ball volume| |Region| + k × |Ball boundary| |Region| < 1 |Ball boundary| |Ball volume| ∈ Θ(d) Θ(d2) = Θ( 1 d )
SLIDE 37
