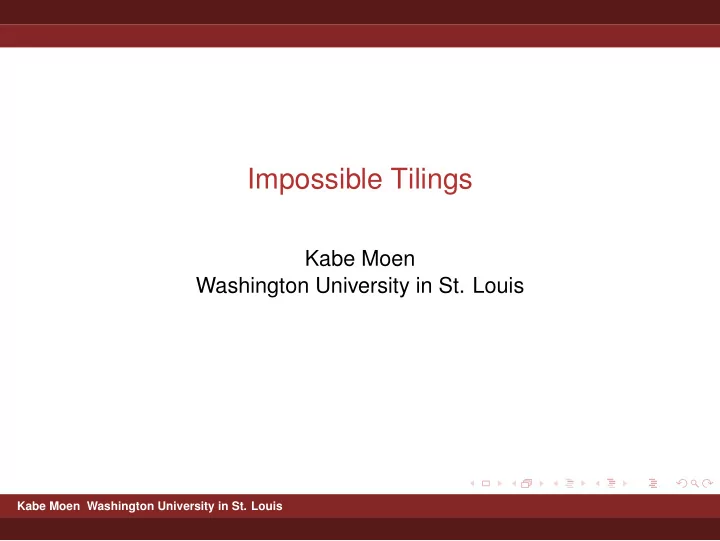

Impossible Tilings

Kabe Moen Washington University in St. Louis

Kabe Moen Washington University in St. Louis

slide-2
SLIDE 2

What is a Tiling?

Kabe Moen Washington University in St. Louis

slide-3
SLIDE 3

What is a Tiling?

Kabe Moen Washington University in St. Louis

slide-4
SLIDE 4

What is a Tiling?

Kabe Moen Washington University in St. Louis

slide-5
SLIDE 5

What is a Tiling?

Kabe Moen Washington University in St. Louis

slide-6
SLIDE 6

What is a Tiling?

Kabe Moen Washington University in St. Louis

slide-7
SLIDE 7

What is a Tiling?

Kabe Moen Washington University in St. Louis

slide-8
SLIDE 8

What is a Tiling?

Kabe Moen Washington University in St. Louis

slide-9
SLIDE 9

Tilings are the insperation for the some of the artwork of M.C. Escher.

Kabe Moen Washington University in St. Louis

slide-10
SLIDE 10

We will answer the following questions. How do we make a tiling? What shapes will make a tiling? How can we use tilings to make beautiful artwork?

Kabe Moen Washington University in St. Louis

slide-11
SLIDE 11

A regular polygon is a shape whose sides and angles are all equal. n ✏ 3 n ✏ 4 n ✏ 5 n ✏ 6 n ✏ 7 n ✏ 8

Kabe Moen Washington University in St. Louis

slide-12
SLIDE 12

Jargon: Pentagon

angle side Vertex

Kabe Moen Washington University in St. Louis

slide-13
SLIDE 13

A regular tiling is made up of one regular polygon whose vertices touch.

Kabe Moen Washington University in St. Louis

slide-14
SLIDE 14

A regular tiling is made up of one regular polygon whose vertices touch. Regular tilings Not regular

Kabe Moen Washington University in St. Louis

slide-15
SLIDE 15

Can we make regular tiling out of any regular polygon? For example can we make a tiling out of a pentagon?

Kabe Moen Washington University in St. Louis

slide-16
SLIDE 16

If we drop to word regular we can make tilings out of

  • pentagons. Here are a few.

Kabe Moen Washington University in St. Louis

slide-17
SLIDE 17

If we drop to word regular we can make tilings out of

  • pentagons. Here are a few.

A ! C ! 90° a ! b, c ! d A ! 60°,C ! 120° a ! b, c ! d B " E ! 180° a ! c Kabe Moen Washington University in St. Louis
