Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

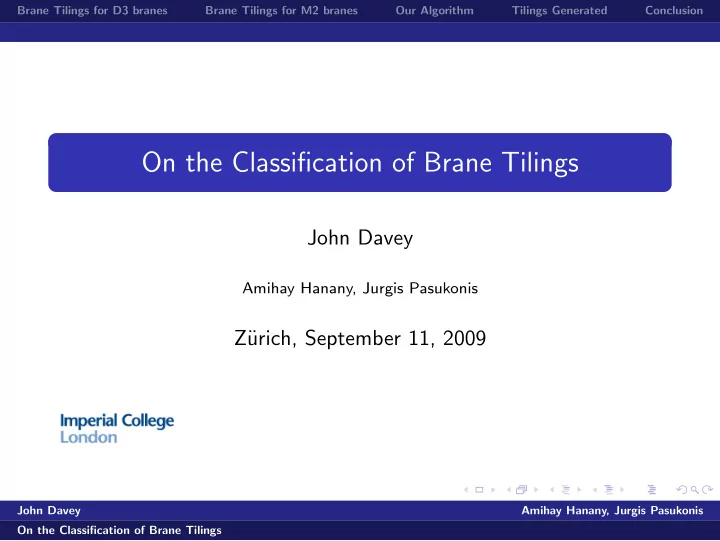

On the Classification of Brane Tilings

John Davey

Amihay Hanany, Jurgis Pasukonis

Z¨ urich, September 11, 2009

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-2
SLIDE 2

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

1 Brane Tilings for D3 branes 2 Brane Tilings for M2 branes 3 Our Algorithm 4 Tilings Generated 5 Conclusion

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-3
SLIDE 3

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Motivation for Tilings

First developed to help understand the SUSY gauge theory living on D3 branes probing Toric Calabi-Yau singularities Gauge theory dual of Type IIB string theory on AdS5 × X5 Tiling gives gauge symmetry as well as superpotential data of theory living on D3 branes Tiling easily computed with knowledge of either gauge theory

  • r Calabi-Yau singularity

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-4
SLIDE 4

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

So . . . What is a Brane Tiling (Dimer Model)?

Periodic Bipartite Tiling on the Plane Each white (black) node represents a positive (negative) superpotential term Each face corresponds to a gauge group Each edge represents a bifundamental chiral field Tilings correspond to Supersymmetric Quiver Gauge Theories

1 1 2 3 1 2 3 2 3 1 3 1 2 3 2 3 1 1 2 3 1 2 3 2 1 1 John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-5
SLIDE 5

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

What is a Quiver Gauge Theory

A quiver gauge theory is a special supersymmetric gauge theory that has a matter content that can be represented by a graph called a quiver A quiver is simply a directed graph Nodes of the quiver represent gauge groups Edges of the quiver represent bifundamental chiral superfields Superpotential information is not encoded in the quiver

1 2 3

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-6
SLIDE 6

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Brane Tilings and Quiver Gauge Theories

One can easily read off the quiver gauge theory with knowledge of the tiling Periodic quiver is graph dual to brane tiling

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-7
SLIDE 7

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Some Features of Brane Tilings

Can find vacuum moduli space of the theory via the fast forward algorithm (FFA) Space can be identified with the CY singularity probed by D3

  • branes. Best described using the language of toric geometry

Inverse algorithm also exists to find tiling (and gauge theory) corresponding to generic toric CY singularities

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-8
SLIDE 8

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Warning!

Not all periodic bipartite tilings of the plane correspond to consistent brane tilings in 3+1 dimensions Failure of current methods

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-9
SLIDE 9

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Brane Setup

Recent work shows that brane tilings can also be used to describe supersymmetric quiver Chern-Simons (CS) theories These theories are thought to describe M2 branes probing the singular tip of toric CY 4-fold singularities

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-10
SLIDE 10

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Similarities between the two interpretations

Periodic Bipartite Tiling on the Plane Each white (black) node represents a positive (negative) superpotential term Each face corresponds to a gauge group Each edge represents a bifundamental chiral field

1 1 2 3 1 2 3 2 3 1 3 1 2 3 2 3 1 1 2 3 1 2 3 2 1 1

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-11
SLIDE 11

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Differences between the two interpretations

Each face represents a Chern Simons term A set of CS levels must be chosen There is no known consistency condition

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-12
SLIDE 12

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Differences between the two interpretations

Each face represents a Chern Simons term A set of CS levels must be chosen There is no known consistency condition

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-13
SLIDE 13

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Differences between the two interpretations

There are many simple tilings that have not been studied so far and may be relevant for M2 branes A classification of tilings is important

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-14
SLIDE 14

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Our Aim

We would like an algorithm that generates brane tilings The algorithm should be computationally feasible The generation should be exhaustive

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-15
SLIDE 15

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

The Algorithm

Generate ‘Irreducible’ Quivers satisfying ‘Calabi-Yau’ Condition ↓ Generate ‘Toric’ Superpotentials ↓ Check For Tiling

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-16
SLIDE 16

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Irreducibility

An ‘Irreducible’ gauge theory is one that has no nodes in the quiver of order two Any reducible quiver gauge theory can be formed by adding such nodes to an irreducible quiver

1 1 2 1 2 3 1 2 3 4 1 2 5 1 2 5 3 1 2 5 3 4

... ... ...

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-17
SLIDE 17

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Calabi-Yau Condition

Nodes of quivers corresponding to brane tilings must have equal numbers of incoming and outgoing arrows. This is known as the ‘Calabi-Yau condition’ and corresponds to an anomaly cancellation condition in 3+1 dimensions Without this observation, our algorithm would be computationally infeasible

1

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-18
SLIDE 18

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Toric Condition

A theory satisfying the toric condition has each field appearing in the superpotential exactly twice - once in a positive term and once in a negative term We also insist upon having no superpotential terms of order 2

1 1 2 3 1 2 3 2 3 1 3 1 2 3 2 3 1 1 2 3 1 2 3 2 1 1 John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-19
SLIDE 19

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Order Parameters

It is fairly easy to find good parameters to order our generation of brane tilings. Suitable parameters turn out to be: NT - the number of superpotential terms G - the number of gauge groups (or nodes in the quiver) The number of fields is related to these two parameters by the Euler condition E = NT + G.

1 1 2 3 1 2 3 2 3 1 3 1 2 3 2 3 1 1 2 3 1 2 3 2 1 1

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-20
SLIDE 20

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Generation of Quivers

We would like to perform an exhaustive search of all (irreducible) quivers given a pair of order parameters (NT, G) To achieve this we make the following observation: A quiver diagram satisfies the Calabi Yau (in-out) condition iff it can be formed from a sum of cycles

1 2 3 4

  • 1

2 3

  • 1

2 4

  • 3

4

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-21
SLIDE 21

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Generation of Superpotentials

Each term in the superpotential is gauge invariant Can be written in terms of cycles These cycles have already been generated in the algorithm

1 2 3 4

  • 1

2 3

  • 1

2 4

  • 3

4

Compute positive then negative superpotential terms

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-22
SLIDE 22

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Tiling Check

Try to combine superpotential terms into a fundamental domain of the periodic quiver

Φ1 X12 X21 1 1 2 Φ1 X13 X31 1 1 3 X12 X23 X32 X21 1 2 3 2 X13 X32 X23 X31 1 3 2 3

X12 Φ1 X23 X32 X21 X12 X13 X31 X23 X32 X31 1 2 3 2 1 3 2 3

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-23
SLIDE 23

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Tiling Check

Attempt to use this candidate fundamental domain to tile the plane

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-24
SLIDE 24

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Comments

Exhaustive Computationally cheap - can compute all tiles with 6 superpotential terms easily (well . . . fairly easily)

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-25
SLIDE 25

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Two Superpotential Terms

1 1 1 1 1 1 1 1 1 1 1 2 2 2 1 2 1 2 1 2 1 1 1 John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-26
SLIDE 26

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Four Superpotential Terms

1 1 2 1 2 1 2 1 1 1 1 3 3 3 3 3 1 2 1 2 3 1 2 3 1 2 3 3 1 2 1 2 1 2 1 2 2 4 4 4 4 2 1 2 3 1 2 3 4 1 2 3 4 1 2 3 4 4 1 2 1 2 3 1 2 3 1 2 3 1 3 2 3 2 3 2 3 1 1 2 3 4 1 2 3 4 2 3 4 1 1 2 3 4 1 2 3 4 2 3 4 John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-27
SLIDE 27

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Six Superpotential Terms (1)

1 2 3 1 2 3 1 2 3 1 2 3 2 3 1 1 1 1

1 1 2 3 1 2 3 2 3 1 3 1 2 3 2 3 1 1 2 3 1 2 3 2 1 1

1 2 4 1 2 4 1 2 4 1 2 4 2 4 1 3 1 3 1 3 1 3 1

1 3 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 2 4 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 4 2 3 4 2 3 4 1 4 1 2 3 4 1 2 3 4 1 1 2 3 4 1 2 3 4 2 1 1

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-28
SLIDE 28

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Six Superpotential Terms (2)

1 2 1 2 4 5 1 2 4 5 1 2 4 5 1 2 4 5 4 5 1 3 1 3 1 3 1 3 1 3 3 4 5 3 4 5 3 4 5 1 2 4 5 1 2 3 4 5 1 2 3 4 5 1 5 1 2 3 4 5 1 2 3 4 5 3 1 2 3 1 2 3 5 6 1 2 3 5 6 1 2 3 5 6 1 2 3 5 6 3 5 6 4 1 2 4 1 2 4 1 2 4 1 2 4 1 2 4

2 5 2 5 5 3 6 1 2 3 4 5 6 1 2 3 4 5 2 3 4 6 1 2 3 4 5 6 1 2 3 4 5 1 2 3 4 6 1 2 3 4 5 6 1 2 5 6 1 3 4 6 1 3 4 6 1 1 3 5 6 1 3 4 5 6 3 4 5 1 2 6 1 2 3 4 5 6 3 4 5 6 4 1 2 1 2 3 4 5 6 1 2 3 4 5 6 3 4 5 2 2

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings

slide-29
SLIDE 29

Brane Tilings for D3 branes Brane Tilings for M2 branes Our Algorithm Tilings Generated Conclusion

Conclusion

Brane tilings are a tool that have allowed us to find a large class of SCFTs with AdS duals Can be useful to describe D3 and M2 branes Our algorithm allows an exhaustive generation of brane tilings Inconsistent tilings generated are thought to be useful in the M2 brane story More relationships between tilings can be explored (e.g. Higgsing M2-brane Theories hep-th/0908.4033) If nothing else you can generate some really pretty pictures to impress your friends

John Davey Amihay Hanany, Jurgis Pasukonis On the Classification of Brane Tilings
