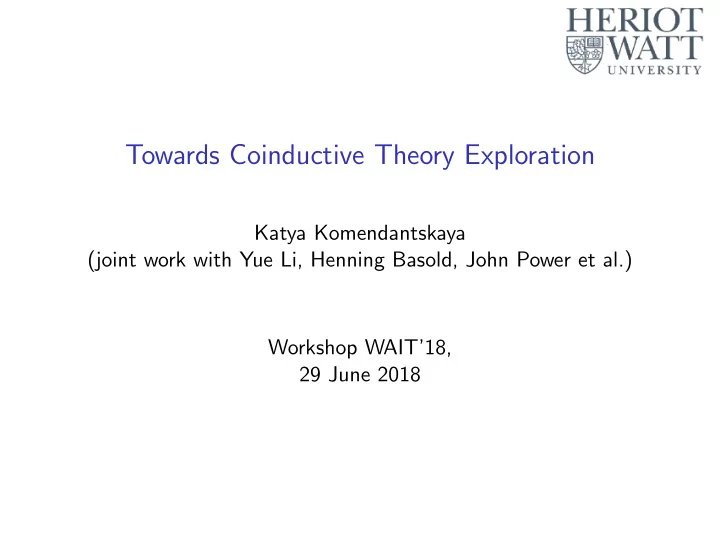

Towards Coinductive Theory Exploration

Katya Komendantskaya (joint work with Yue Li, Henning Basold, John Power et al.) Workshop WAIT’18, 29 June 2018

Outline

Problem statement Solution Technical details

FOL, Coinductively

◮ Any theory expressed in FOL may be seen inductively or

coinductively,

◮ Depending on the chosen semantics

For example...

Given a theory in Horn Clause syntax:

G ::= ⊤ | A | G ∧G | G ∨G | ∃Var G D ::= A | G ⊃ D | D ∧D | ∀Var D

Given a theory in Horn Clause syntax:

G ::= ⊤ | A | G ∧G | G ∨G | ∃Var G D ::= A | G ⊃ D | D ∧D | ∀Var D

Coinductive models of theories in Horn Clause logic

◮ Take the sets of (finite and/or infinite) ground terms ◮ The coinductive model is the largest set of such terms such that it

satisfies the given theory

◮ (The Inductive model is the smallest such set) ◮ Usually these models are given by fixed point (Knaster-Tarski)

construction

Given a theory in Horn Clause syntax:

G ::= ⊤ | A | G ∧G | G ∨G | ∃Var G D ::= A | G ⊃ D | D ∧D | ∀Var D

Coinductive models of theories in Horn Clause logic

◮ Take the sets of (finite and/or infinite) ground terms ◮ The coinductive model is the largest set of such terms such that it

satisfies the given theory

◮ (The Inductive model is the smallest such set) ◮ Usually these models are given by fixed point (Knaster-Tarski)

construction least fixed point greatest fixed point finite terms Least Herbrand models Greatest Herbrand models finite and infi- nite terms Least Complete Herbrand models Greatest Complete Herbrand models

Example 1

◮ Both inductive and coinductive semantics may suit

Example

κ1 : ∀x,nat x ⊃ nat (s x) κ2 : nat 0

least fixed point greatest fixed point finite terms {nat 0,nat(s 0),...} {nat 0,nat(s 0),...} finite and infinite terms {nat 0,nat(s 0),...} {nat 0,nat(s 0),...,sω}

Example 2

◮ ... only coinductive semantics may suit

Example

κ1 : ∀x,streamZ x ⊃ streamZ (scons 0 x)

least fixed point greatest fixed point finite terms / / finite and infinite terms / {streamZ(scons 0(scons 0 ...))}

Example 3

◮ Either semantics may work well for certain fragment of the

theory

Example

κ1 : ∀x,nat x ⊃ nat (s x) κ2 : nat 0 κ3 : ∀x,nat x ∧streamN y ⊃ streamN (scons x y)

least fixed point greatest fixed point finite terms {nat 0,nat(s 0),...} {nat 0,nat(s 0),...} finite and infinite terms {nat 0,nat(s 0),...} {nat 0,nat(s 0),...,sω, streamN(scons 0(scons 0 ...)), streamN(scons 0(scons 1 ...)), streamN(scons 1(scons 0 ...)), streamN(scons 1(scons 1 ...)), ...}

Operational semantics:

◮ State of the art is automated invariant discovery by means of

loop detection

Example

∀x,streamZ x ⊃ streamZ (scons 0 x) Resolution-based search: streamZ x x/(scons 0 x′) streamZ x′

◮ Terminate the loop with x = (scons 0 x). ◮ It is the coinductive invariant.

Operational semantics:

◮ State of the art is automated invariant discovery by means of

loop detection

Example

∀x,streamZ x ⊃ streamZ (scons 0 x) Resolution-based search: streamZ x x/(scons 0 x′) streamZ x′

◮ Terminate the loop with x = (scons 0 x). ◮ It is the coinductive invariant.

Recall:

least fixed point greatest fixed point finite terms / / finite and infinite terms / {streamZ(scons 0(scons 0 ...))}

However, loop detection

◮ ... is not a very satisfactory solution

Why unsatisfactory?

1 it fails too often

Example

∀x,from (s x) y ⊃ from x (scons x y) Resolution-based search: from 0 x x/(scons 0 x′) from (s 0) x′

◮ No unifier exists, ◮ loop detection fails to find coinductive invariant

Why unsatisfactory?

1 it fails too often

Example

∀x,from (s x) y ⊃ from x (scons x y) Resolution-based search: from 0 x x/(scons 0 x′) from (s 0) x′

◮ No unifier exists, ◮ loop detection fails to find coinductive invariant

least fixed point greatest fixed point finite terms / / finite and infinite terms / {from 0(scons 0(scons (s0) ...))}

Why unsatisfactory?

2 it is a bad indicator for coinductive meaning of the theory (Works well with existential, but not universal coinductive models )

Universal Coinductive Models

Example

κ1 : ∀x,p(f x) ⊃ p x

least fixed point greatest fixed point finite terms / {p a,p(f a),p(f f a),...} finite and infinite terms / {p a,p(f a),p(f f a),... p f ω }

Universal Coinductive Models

Example

κ1 : ∀x,p(f x) ⊃ p x

least fixed point greatest fixed point finite terms / {p a,p(f a),p(f f a),...} finite and infinite terms / {p a,p(f a),p(f f a),... p f ω }

Invariant search: p x → p(f x) → p(f f x) → ...

◮ The answer is: x = f x. ◮ However, f ω is not all that there is in the model!

Universal Coinductive Models

Example

κ1 : ∀x,p(f x) ⊃ p x

least fixed point greatest fixed point finite terms / {p a,p(f a),p(f f a),...} finite and infinite terms / {p a,p(f a),p(f f a),... p f ω }

Invariant search: p x → p(f x) → p(f f x) → ...

◮ The answer is: x = f x. ◮ However, f ω is not all that there is in the model!

p a → p(f a) → p(f f a) → ...

◮ fails to find a loop

Outline

Problem statement Solution Technical details

Solution?

◮ Recast the problem of invariant search as a problem of

coinductive theory exploration

Example 1

Example

∀x,streamZ x ⊃ streamZ (scons 0 x) Resolution-based search: streamZ x x/(scons 0 x′) streamZ x′

◮

✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭ ✭

Terminate the loop with x = (scons 0 x).

◮

✭✭✭✭✭✭✭✭✭✭✭✭✭ ✭

It is the coinductive invariant.

◮ Find and prove streamZ(zstream) ◮ for zstream = fixλ x.scons 0 x

Example 2

Example

κ1 : ∀x,p(f x) ⊃ p x p a → p(f a) → ...

◮ ✭✭✭✭✭✭✭✭

✭

fails to find a loop

◮ Find and prove ∀ x, p x ◮ Get p a as a corollary

Outline

Problem statement Solution Technical details

Uniform proofs [Miller et al.]

◮ give proof-theoretic interpretation to goal-oriented proof

search

◮ Uniform: – one rule applies at every stage of the proof ◮ Proven to be a fragment of intuitionistic logic

Uniform proofs [Miller et al.]

◮ give proof-theoretic interpretation to goal-oriented proof

search

◮ Uniform: – one rule applies at every stage of the proof ◮ Proven to be a fragment of intuitionistic logic

FOHH and HOHH

G ::= ⊤ | A | G ∧G | G ∨G | ∃Var G | D ⊃ G | ∀Var G D ::= A | G ⊃ D | D ∧D | ∀Var D

FOHC and HOHC

G ::= ⊤ | A | G ∧G | G ∨G | ∃Var G D ::= A | G ⊃ D | D ∧D | ∀Var D

Logical rules

Σ;P − → ⊤ ⊤R Σ;P − → G1 Σ;P − → G2 Σ;P − → G1 ∧G2 ∧R Σ;P − → G1 Σ;P − → G1 ∨G2 ∨R Σ;P − → G2 Σ;P − → G1 ∨G2 ∨R Σ;P,D − → G Σ;P − → D ⊃ G ⊃R c : τ,Σ;P − → G [x := c] Σ;P − → ∀τx G ∀R Σ;P − → G [x := N] Σ;P − → ∃τx G ∃R

Backchaining (resolution) rules

. . . Σ;P

D

− → A Σ;P − → A Decide Σ;P

D

− → A Σ;P − → G Σ;P G⊃D − → A ⊃ L Σ;P

D[x:=N]

− → A Σ, / 0 ⊢ N : τ Σ;P ∀τx D − → A ∀L

COFIX rule for uniform proofs

Σ;P,M − → M Σ;P M cofix

COFIX rule for uniform proofs

Σ;P,M − → M Σ;P M cofix the guarding modality M must be discharged to get M (this can be done if M is resolved (= pattern matched) against a clause in P). The successful proof ends with Σ;P,M − → M.

Lucky case: trivial coinductive invariant

Example

κ1 : ∀x,p x ⊃ p x Find invariant for: p a − → p a − → ...?

Lucky case: trivial coinductive invariant

Example

κ1 : ∀x,p x ⊃ p x Find invariant for: p a − → p a − → ...?

least fixed point greatest fixed point finite terms / {p a} finite and infinite terms / {p a}

Lucky case: trivial coinductive invariant

Example

κ1 : ∀x,p x ⊃ p x Find invariant for: p a − → p a − → ...?

Initial

P;p a

p a

− → p a

Initial

P;p a

p a

− → p a

⊃ L

P;p a

p a⊃p a

− → p a

∀L

P;p a

∀x,p x⊃p x

− → p a

DECIDE

P;p a − → p a

COFIX

P p a

Lucky case: trivial coinductive invariant

Example

κ1 : ∀x,p x ⊃ p x Find invariant for: p a − → p a − → ...?

Initial

P;p a

p a

− → p a

Initial

P;p a

p a

− → p a

⊃ L

P;p a

p a⊃p a

− → p a

∀L

P;p a

∀x,p x⊃p x

− → p a

DECIDE

P;p a − → p a

COFIX

P p a

QUIZ: which logic does this coinductive hypothesis and prove live in?

Not so lucky case: universal coinductive invariant

Example

κ1 : ∀x,p(f x) ⊃ p x Find invariant for: p(a) − → p(f a) − → p(f f a) − → ...?

Not so lucky case: universal coinductive invariant

Example

κ1 : ∀x,p(f x) ⊃ p x Find invariant for: p(a) − → p(f a) − → p(f f a) − → ...?

Initial

P;p a

p a

− → p(a)

???

P;p a − → p(f a)

⊃ L

P;p a

p(f a)⊃p a

− → p a

∀L

P;p a

∀x,p(f x)⊃p x

− → p a

DECIDE

P;p a − → p a

COFIX

P p a

Not so lucky case: universal coinductive invariant

Example

κ1 : ∀x,p(f x) ⊃ p x Find invariant for: p a − → p(f a) − → ...?

Initial

P;∀x,p x

p a

− → p a

Initial

P;∀x,p x

p (f a)

− → p (f a)

∀L

P;∀x,p x

∀x,p x

− → p (f a)

DECIDE

P;∀x,p x − → p (f a)

⊃ L

P;∀x,p x

p (f a)⊃p a

− → p a

∀L

P;∀x,p x

∀x,p(f (x))⊃p x

− → p a

DECIDE

P;∀x,p x − → p a

∀R

P;∀x,p x − → ∀x,p x

co-fix

P ∀x,p x

Not so lucky case: universal coinductive invariant

Example

κ1 : ∀x,p(f x) ⊃ p x Find invariant for: p a − → p(f a) − → ...?

Initial

P;∀x,p x

p a

− → p a

Initial

P;∀x,p x

p (f a)

− → p (f a)

∀L

P;∀x,p x

∀x,p x

− → p (f a)

DECIDE

P;∀x,p x − → p (f a)

⊃ L

P;∀x,p x

p (f a)⊃p a

− → p a

∀L

P;∀x,p x

∀x,p(f (x))⊃p x

− → p a

DECIDE

P;∀x,p x − → p a

∀R

P;∀x,p x − → ∀x,p x

co-fix

P ∀x,p x

Finally, get (p a) as a corollary. ... QUIZ!

Unlucky case: implicative coinductive invariant

Example

κ1 : ∀x,p(f x)∧q x ⊃ p x κ2 : q(a); κ3 : ∀x,q x ⊃ q(f x) Find invariant for: p a

apply κ1

− → p(f a)∧q a

apply κ2

− → p(f a)

apply κ1

− → p(f f a)∧q(f a)

apply κ3

− → p(f f a)∧q a − → ...?

Unlucky case: implicative coinductive invariant

Example

κ1 : ∀x,p(f x)∧q x ⊃ p x κ2 : q(a); κ3 : ∀x,q x ⊃ q(f x) Find invariant for: p a

apply κ1

− → p(f a)∧q a

apply κ2

− → p(f a)

apply κ1

− → p(f f a)∧q(f a)

apply κ3

− → p(f f a)∧q a − → ...?

least fixed point greatest fixed point finite terms {q a,q(f a), q(f f a),...} {p a,p (f a),p(f f a),... q a,q(f a), q(f f a),...} finite and infinite terms {q a,q(f a), q(f f a),...} {p a,p (f a),p(f f a),... p(f ω),q a,q(f a), q(f f a), ...q f ω }

Unlucky case: implicative coinductive invariant

Example

κ1 : ∀x,p(f x)∧q x ⊃ p x κ2 : q(a); κ3 : ∀x,q x ⊃ q(f x) Find invariant for: p a

apply κ1

− → p(f a)∧q a

apply κ2

− → p(f a)

apply κ1

− → p(f f a)∧q(f a)

apply κ3

− → p(f f a)∧q a − → ...?

least fixed point greatest fixed point finite terms {q a,q(f a), q(f f a),...} {p a,p (f a),p(f f a),... q a,q(f a), q(f f a),...} finite and infinite terms {q a,q(f a), q(f f a),...} {p a,p (f a),p(f f a),... p(f ω),q a,q(f a), q(f f a), ...q f ω }

The only working coinductive invariant is ∀x,q x ⊃ p x, QUIZ!!!

Final example

◮ frStr = fix λ f x.scons x (f (s x)) = fix λ f x.[ x,(f (s x))] INIT

P;CH

from C [C,frStr(s C)]

− → from C [C,frStr(s C)]

INIT

P;CH

from (s C) (frStr(s C))

− → from(s C) (frStr(s C))

∀L

P;CH CH − → from (s C)(frStr(s C))

DECIDE

P;CH − → from (s C) (frStr(s C))

⊃ L

P;CH

from (s C) (frStr(s C))⊃from C [C,frStr(s C)]

− → from C [C,frStr(s C)]

∀L

P;CH

∀x y,from(s x) y⊃from x [x,y]

− → from C [C,frStr(s C)]

DECIDE

P;CH − → from C [C,frStr(s C)]

fixβ-conversion

P;CH − → from C(frStr C)

∀R

P;CH − → ∀x,from x, (frStr x)

cofix

P − → ∀x,from x (frStr x)

Final example

◮ frStr = fix λ f x.scons x (f (s x)) = fix λ f x.[ x,(f (s x))] INIT

P;CH

from C [C,frStr(s C)]

− → from C [C,frStr(s C)]

INIT

P;CH

from (s C) (frStr(s C))

− → from(s C) (frStr(s C))

∀L

P;CH CH − → from (s C)(frStr(s C))

DECIDE

P;CH − → from (s C) (frStr(s C))

⊃ L

P;CH

from (s C) (frStr(s C))⊃from C [C,frStr(s C)]

− → from C [C,frStr(s C)]

∀L

P;CH

∀x y,from(s x) y⊃from x [x,y]

− → from C [C,frStr(s C)]

DECIDE

P;CH − → from C [C,frStr(s C)]

fixβ-conversion

P;CH − → from C(frStr C)

∀R

P;CH − → ∀x,from x, (frStr x)

cofix

P − → ∀x,from x (frStr x)

◮ get from 0 (frStr 0) as a corollary

QUIZ!!!

Current progress:

Analysis of coinductive properties of theories based on the language in which their coinductive invariants are expressed:

Current progress:

Analysis of coinductive properties of theories based on the language in which their coinductive invariants are expressed:

Miller and Nadathur:

HOHH: Higher-order Hereditary Harrop Logic FOHH: First-order Hereditary Harrop Logic HOHH: Higher-order Horn Clause Logic FOHC: First-order Horn clause logic

Current progress:

Analysis of coinductive properties of theories based on the language in which their coinductive invariants are expressed:

co-HOHH: Coinductive Higher-order Hereditary Harrop Logic co-FOHH: Coinductive First-order Hereditary Harrop Logic co-HOHC: Coinductive Higher-order Horn Clause Logic co-FOHC: Coinductive First-order Horn clause logic

Coinductive Theory exploration

Universal Implicative shape with fixpoint terms 2018, Work in progress Universal implicative shape, no fixpoint terms [Fu et al., 2016] Atomic formula with fixpoint terms Loop detection [Guptaet al.,2007 ] Trivial shape E.g. p a [Lammel& Peyton Jones, 2005 ]

Coinductive Theory exploration

Universal Implicative shape with fixpoint terms 2018, Work in progress Universal implicative shape, no fixpoint terms [Fu et al., 2016] Atomic formula with fixpoint terms Loop detection [Guptaet al.,2007 ] Trivial shape E.g. p a [Lammel& Peyton Jones, 2005 ]

• QUIZ: where CoHipster’s lemmas would live?

Thanks for your attention!
