ILS Council San Diego, 2015-09-24 NAGSMA 1 NATO UNCLASSIFIED AGS - - PowerPoint PPT Presentation

1

NATO UNCLASSIFIED

NAGSMA

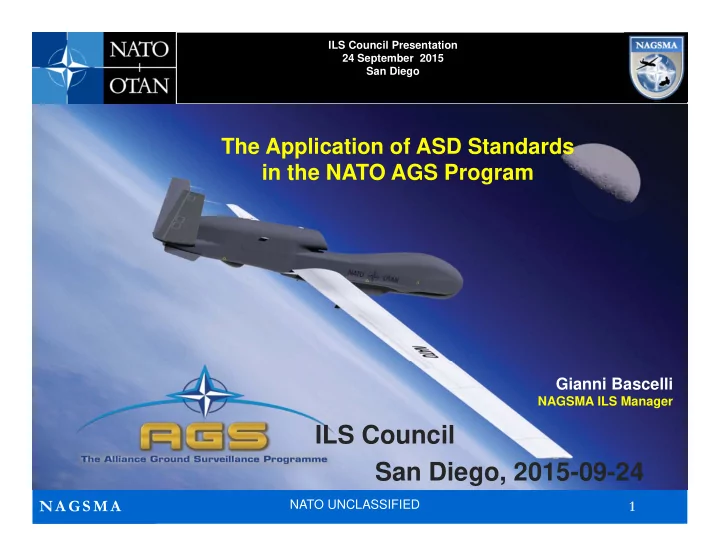

ILS Council Presentation 24 September 2015 San Diego

The Application of ASD Standards in the NATO AGS Program

Gianni Bascelli

NAGSMA ILS Manager

ILS Council San Diego, 2015-09-24

2

NATO UNCLASSIFIED

NAGSMA

AGS Core System

“The Assets Under Procurement”

Additional Remote Workstations

Pilot Trainers Mission Crew Trainer System-Wide Simulation Capability Training Management

Support Air Ground

5 UAVs with MP-RTIP Radar & AIS

Fixed – MOB Sigonella, Italy Deployable NATO AGS Operations Centre (NAOC) (2 Operations Areas)

1 Air Vehicle Mission Command & Control (AVMC2) 1 Mission Operations Support (MOS) 2 Deployable UAV Control Element (DUCE) 2 Transportable General Ground Stations (TGGS)

(comprising TGGS Exploitation and Mobile Ground Comms Components)

6 Mobile General Ground Stations (MGGS)

(comprising Mobile Ground Exploitation and Comms Components)

MGCC MGCC MGEC

3

NATO UNCLASSIFIED

NAGSMA

NATO AGS System Architecture

3

NAME-08-0000

ISR Data Dissemination UAV C2 Clear UHF Voice ATC Communications NATO Secret WAN LOS WBDL

Ku SatCom INMARSAT NAEW UHF SatCom National Air Assets ATC Interoperable National Ground Stations CSOP TGGS MGGS RWS

NATO-09-002B

National Airborne ISR

4

NATO UNCLASSIFIED

NAGSMA

AGS Mission

“…provide NATO decision makers, from the political down to the tactical level, with near real‐time, continuous unrestricted, unfiltered surveillance information in all weather conditions concerning friendly, neutral and

• pposing forces, from a stand‐off position.”

5

NATO UNCLASSIFIED

NAGSMA

S-Series Standard Application



The NATO AGS Design and Development phase requires the application of the:



S1000D v 4.0.1



S2000M v 4.0



S3000L v 1.0  v 1.1



Application of the S1000D and S2000M followed normal tailoring and application process.



S2000M:



Chapter 1A applicable for the provisioning data during Design and Development



NATO will implement also the other chapters to manage the provisioning process during system lifecycle

6

NATO UNCLASSIFIED

NAGSMA

S3000L Application



NATO AGS is one of the first program that include the S3000L in the specification, therefore there is no much experience in its application.



To apply the S3000L the following steps have been carried on:



Participation to S3000L committee to acquire information on the evolution of the standard



Organization of workshops involving AGS Program’s Prime and Sub Contractors and consultants identified to have experience in LSA database implementation and on S3000L use cases



Organization of workshops to produce the tailoring document of the S3000L for the NATO AGS (v 1.0 and v 1.1)



Management of interim deliveries for LSA not in line with the S3000L



Identification of tools to be used to implement the S3000L



Mapping of the existing data towards the S3000L data model



Definition of processes for the generation of the S3000L dataset

7

NATO UNCLASSIFIED

NAGSMA

S3000L Application



The application of the LSA for AGS is not an easy process due to:



Complex tailoring of the standard.

 Even if the LSA process remain similar to previous standards, S3000L has

a different approach in identifying relationship on data elements

 Tailoring requires a deep analysis also to verify DE relationships and

applicability It would be useful to have a Business Process to guide in the tailoring which may also be used as guideline for data validation



Support to Design Review:

 No development and review process described in the S3000L

It would be useful to identify the mandatory steps to be accomplished by LSA during the design and development phase in conjunction with the other ILS disciplines

8

NATO UNCLASSIFIED

NAGSMA

S3000L Application



Reuse of existing LSA analyses:

 Normally LSA data bases are already in house for developed items and

the data set for COTS and NDI produced from various suppliers need to be integrated

 Mapping of the existing data elements into the S3000L is not sufficient,

additional data need to be added to have an S3000L consistent set of data A data element mapping among S3000L and the ones of the main used standard would be useful to have a seamless use of the DEDs. This may also address the additional S3000L required DEDs for the implementation of the database

9

NATO UNCLASSIFIED

NAGSMA

S3000L Application



Lack of availability of commercial tools that fully implement the S3000L:

 Currently the application of the S3000L requires adaptation of the LSA

database to accommodate its tailoring

 Building of the LSA database required the data mapping of the existing

data elements produced under different standards (MIL-STD-1388/ DEF STD 00-60) and proper verification Validation rules of the imported/migrated LSA data into the S3000L is not defined but is essential. It would be useful to define the validation rules as part of the standard considering the use of the DEDs by different standards



The definition of data exchange schemas is the key for relation among the S3000L and other standards and data bases

 The definition of the data exchange schema requires a tailoring activity of

the S3000L but that has to take into account the use of the DEDs for other standards and support processes Definition of data exchange schemas among ASD standards should be part

• f a dedicated activity

10

NATO UNCLASSIFIED

NAGSMA

S3000L Application

Configuration Management and LSA:



BEI is utilised also as CI number for the CM



The BEI are managed within the LSA database that becomes the reference database for both Physical and Functional Breakdown



During Operation and Support, the “as Maintained” configuration need to be managed



The LSA database become the reference also for CM as it can manage various types of breakdown



For AGS, 2 different BEIs are used to manage Physical and Functional Breakdowns

ERP

Physical Breakdown Air Entities Physical Breakdown Ground Entities Prime/ Integrator Subs

Product (Physical) Breakdown

BEI

11

NATO UNCLASSIFIED

NAGSMA AGS Program comprises of 2 phases:



Acquisition Phase – AGS Core and Support Assets Acquisition



Operation and Support (O&S) Phase – I-ISS, ISS and Operations

AGS Life Cycle Overview

MOB Infrastructure Delivery

AGS System Delivery

Steady-State O&S

Design Development & Production

20 Years

NATO Ownership & Operation

Initial In-Service Support In-Service Support

12

NATO UNCLASSIFIED

NAGSMA

AGS Life Cycle Scenario

Deployed Location

Main Operative Base

Support performed by:

• NATO Force
• Support Agency NSPA

Support Contracts and Support Agreements to consider the Support Scenario and System Management:

• AWC - DMS – Field Services – Change Management – KPIs – SLA - ……..

13

NATO UNCLASSIFIED

NAGSMA

AGS Life Cycle Scenario

Design & Development

FMECA LOG FMEA System breakdown Technical Analysis SMA (MSG-3, RCM) MTA SW Support Analysis Support Equipment Materiel Support Technical Publication Personnel and Training Infrastructure and Facilities Software Support

CSDB

Logistic database

Life Cycle Management of System and Support

Maintenance and Field Services Aiworthiness and Safety Configuration Management Personnel and Training Infrastructure and Facilities Software Support Engineering Support Waerhouse Life Cycle Cost Support Performances (KPI) Supply Chain Assets Deployment and Planning

14

NATO UNCLASSIFIED

NAGSMA

S-Series Implementation Consideration

 The S3000L is considered very powerful but still difficult to be

• implemented. From User prospective, suggestion for improvement

are:

 To include Validation rules for data imported/migrated  To include a Business Process for its implementation  To include a mapping of DEDs among S3000L and the main used

standard for LSA (1388/DEF STD)

 Integration among the ASD standards is not complete. To be able to

use them it is essential to develop common data exchange schema

 It would be useful to define the validation rules also for the data used

and exchanged among different ASD standards databases
