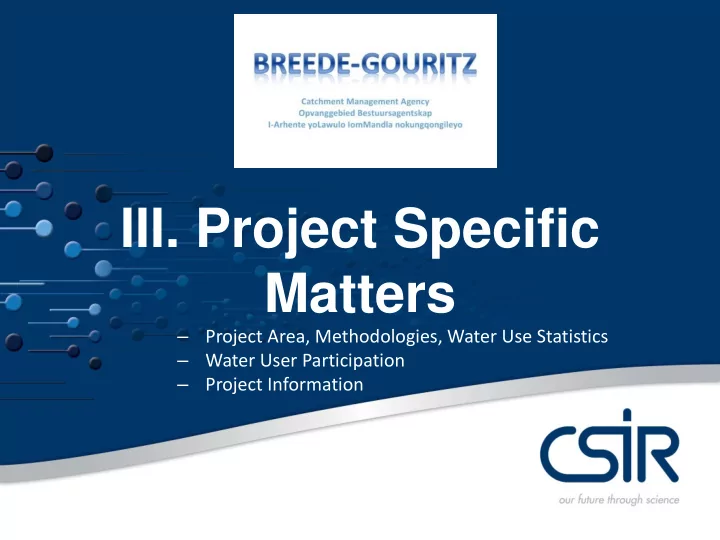

• III. Project Specific

Matters

– Project Area, Methodologies, Water Use Statistics – Water User Participation – Project Information

STRATEGIC MANAGEMENT OPERATIONAL MANAGEMENT

Project Team

Project Area Location

Project Area

Project Area

Project Area - Catchments

WMA 16: Gouritz - Base Map

Project Area: Main Catchments

PRIMARY CATCHMENT TERTIARY AND QUATERNARY CATCHMENTS TOWNS IN THE CATCHMENT

H

(Gouritz)

H80A, H80B, H80C, H80D, H80E and H80F H90A, H90B, H90C, H90D and H90E Heidelberg Stilbaai and Riversdale

J

(Gouritz & Olifants)

J31A, J31B, J31C and J31D J32A, J32B, J32C, J32D and J32E J33A, J33B, J33C, J33D, J33E and J33F J34A, J34B, J34C, J34D, J34E and J34F J35A, J35B, J35C, J35D, J35E and J35F J40A, J40B, J40C, J40D and J40E

Uniondale Oudshoorn

Albertina and Gouritsmond

K

(Coastal)

K10A, K10B, K10C and K10D K30A, K30B, K30C and K30D K40A, K40B, K40C, K40D and K40E K50A and K50B K60A, K60B, K60C, K60D, K60E, K60F and K60G K70A and K70B Mossel Bay

George Knysna

Plettenberg Bay

Priority Catchment

J12L

Barrydale (Doring Catchment)

Project Priority Area – J12L

1. Addresses ELU (QP water use) and not current use or unlawful water uses. 2. The project identifies users with or without registered use entitlements, whether claims for registered uses are correct, under-estimated, over-estimated or false 3. 2737 WARMS registered users in 3 Primary, 14 Tertiary and 68 Quaternary Catchments. 4. Expect another 30% unregistered users. 5. Quaternary J12L is a priority catchment – Ministerial instruction arising from court actions between users. Complete determinations end-March 2018. Currently in the verification phase. 6. V&V projects are multi-disciplinary / multi-faceted and have very high project management and coordination requirements – internally and externally. 7. User engagement (minimises ELU determination disputes) and BGCMA involvement (post-project continuity) are critical success factors.

8. Where an ELU has not been confirmed, the use becomes unlawful (s35(5)).

Summary: Project Specifications & Features

1. Project Team expectation – everything goes as planned. There are many project variables (internal and external) so planning is for a robust design that incorporates flexibility in approach. 2. User expectation – ELU engagements take place and determinations are available immediately or shortly after project commencement. 3. Generally – the elapsed time period creates several issues (e.g. property ownership and water user changes; uncertainty over extent of WU in the QP; missing / outdated information). Approach to mitigate: engage with users & property owners; work on confidence limits regarding determinations.

4. ELU determinations are NOT absolute and are approximations guided by evidence (visual or documentary) and legal principles.

Managing Expectations

Project Process Flow and Progress

Lemoenshoek

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 21 22 23 24 Main Tasks Phase 1: Inception and Establishment Phase 2: Implementation 2.1. Validation 2.1.1. Internal Validation 2.1.2. External Validation 2.2 Verification Sections 32-35 Phased by Area 2.3 Current Water Use Patterns Phase 3: Project Termination Skills Transfer and Capacity Building Project Management and Administration

Months from Appointment

WORK PROGRAMME

Project Programme - Summary

YEAR MONTH NUMBER 2017 2018 2019

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

Nov Dec Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Jan Feb Mar Apr May Jun Jul Aug Sep Oct

FY 2017/18 FY 2018/19 FY2019/20 EXTERNAL VALIDATION AND VERIFICATION

User Information Workshop(s) User Interaction Meetings Feedback Review & ELU Determination Section 35 Verification commencement Section 33 Verification commencement Manage Sections 33 & 35 Responses Sections 33 & 35 ELU Finalised

CLOSE

• OUT

Internal Lessons-Learnt Workshop Stakeholder Close-Out Workshop(s) Close-Out Report & Project Hand-Over

TASKS MONTH

Project Programme - Expanded

Methodology – Summary

• The process includes identifying land and non-land based water uses (industrial, mining

and bulk potable water supplies, irrigation, crop types and impoundments) using remote sensing (RS)

techniques for the qualifying period.

• Crop irrigation requirements are estimated using the South African Procedure for

estimating irrigation WATer requirements (SAPWAT), version 4.

• The Gush Curves are used to quantify Stream Flow Reduction Activities (SFRAs) -

commercially afforested areas, converting areas to volume.

• The boundaries of farm reservoirs are delineated from RS and the volumes calculated

using a regression approach.

• Estimates of the irrigation water requirements, SFRAs and reservoir volumes form the

basis for interaction between the project team and water users to confirm their uses; and subsequently, to update the Water Authorisation and Registration Management System (WARMS), a database of water users.

Dr Abel Ramoelo & Team Dr Evison Kapangaziwiri & Dr Seb Dzikiti Dr Mark Gush Dr Jean-Marc Mwenge Kahinda Project Office Staff

– Satellite and Aerial imagery (specific dates & multi-seasons) – Property & Ownership data – WARMS Registration data – Property and Field Surveys – Water User Interaction – SAPWAT Model: Crop Water Use determinations – Dam Volumes: surface area to volume calculations – Stream Flow Reduction Activity: area to volume determinations – Acknowledge local conditions/practices

How is Water Use Validated?

How is Water Use Validated?

Consolidated Maps

Results – SAPWAT Crop Water Requirements

Summary of the water use (ET) and gross irrigation requirements for crops in the H90C Quaternary.

Quat CropName PlantDt CropDays Rotation IrrigSys Weather station Crp wat. Req (m3/ha/yr) Gross irrig (m3/ha/yr) Rain (mm/yr) Soil texture Depletion (%) Depth (mm)

H90C APPLES 100.00MICRO SPRAY H90C 10440 7040 379Sandy 70 50.00

H90C APPLES 100.00Drip H90C

10500 6810 375Sandy

70 50.00 H90C APPLES 100.00Micro sprinkler H90C

10380 7080 352Sandy

70 50.00 H90C APPLES 100.00Flood H90C

10140 9790 382Sandy

70 50.00 H90C APRICOTS 01-Jan 365 100.00SPRINKLER: QUICK-COUPLING H90C 8180 6650 366Sandy 70 50.00 H90C APRICOTS 01-Jan 365 100.00SPRINKLER: DRAGLINE H90C

8220 7030 344Sandy

70 50.00 H90C APRICOTS 01-Jan 365 100.00CENTRE PIVOT H90C

8330 7130 352Sandy

70 50.00 H90C APRICOTS 01-Jan 365 100.00SPRINKLER: MICRO SPRAY H90C

8310 6550 433Sandy

70 50.00 H90C APRICOTS 01-Jan 365 100.00SPRINKLER: BIG GUN H90C

8330 7070 365Sandy

70 50.00 H90C APRICOTS 01-Jan 365 100.00SPRINKLER: BOOM H90C

8240 6660 360Sandy

70 50.00 H90C APRICOTS 01-Jan 365 100.00SPRINKLER: HOP ALONG H90C

8350 6600 409Sandy

70 50.00 H90C APRICOTS 01-Jan 365 100.00SPRINKLER: PERMANENT H90C

8360 7160 355Sandy

70 50.00 H90C APRICOTS 01-Jan 365 100.00SPRINKLER: TRAVELLING BOOM H90C

8190 6750 384Sandy

70 50.00 H90C APRICOTS 01-Jan 365 100.00FLOOD: FURROW H90C

8100 6750 392Sandy

70 50.00 H90C CABBAGE 100.00SPRINKLER: QUICK-COUPLING H90C 2880 3510 91Sandy 70 25.00 H90C CABBAGE 100.00SPRINKLER: DRAGLINE H90C

2980

3300 112Sandy 70 25.00 H90C CABBAGE 100.00CENTRE PIVOT H90C

2920

3750 84Sandy 70 25.00 H90C CABBAGE 100.00SPRINKLER: MICRO SPRAY H90C

2900

3380 98Sandy 70 25.00 H90C CABBAGE 100.00SPRINKLER: BIG GUN H90C

2880

3600 91Sandy 70 25.00 H90C CABBAGE 100.00SPRINKLER: BOOM H90C

2910

3580 98Sandy 70 25.00 H90C CABBAGE 100.00SPRINKLER: HOP ALONG H90C

2890

3380 91Sandy 70 25.00 H90C CABBAGE 100.00SPRINKLER: PERMANENT H90C

2900

3750 84Sandy 70 25.00 H90C CABBAGE 100.00SPRINKLER: TRAVELLING BOOM H90C

2900

3790 91Sandy 70 25.00 H90C CABBAGE 100.00FLOOD: FURROW H90C

2910

4230 84Sandy 70 25.00 H90C FESCUE-GRAZING 30-Jun 270 90.00SPRINKLER: DRAGLINE H90C 11710 10330 443Sandy 70 50.00 H90C FESCUE-GRAZING 30-Jun 270 90.00CENTRE PIVOT H90C 11710

9760 511Sandy

70 50.00 H90C FESCUE-GRAZING 30-Jun 270 90.00SPRINKLER: MICRO SPRAY H90C 11710

9090 461Sandy

70 50.00 H90C FESCUE-GRAZING 30-Jun 270 90.00FLOOD: FURROW H90C 11710

12540 472Sandy

70 50.00

Results – SFRA Water Requirements

Gush Curves for converting SFRA areas to volumes

Results – Farm Dams

Results – Farm Dams

Capacity-area Relationships Established for the Various Reliefs (15) of the Project Area

y = 43.087x0.7964 R² = 0.8045

• 100 000

200 000 300 000 400 000 500 000 600 000 700 000

• 50 000 100 000 150 000 200 000

Open Low Mountains

y = 1E-05x2 + 2.0548x + 46805 R² = 0.7838

200000 400000 600000 800000 1000000 1200000 1400000 100000 200000 300000

Open High Hills or Ridges

y = 3.3519x1.031 R² = 0.8193

500000 1000000 1500000 2000000 2500000 100000 200000 300000

Open Hills or Ridges

• 1. Review of permits, government notices, authorisations, Water

Court orders, etc.

• 2. Preliminary ELU determination
• 3. (a) User is requested to apply, i.t.o. Section 35

(b) Users can make representations

• 4. Final ELU determination
• 5. Final determinations can be appealed

How is Water Use Verified?

Verification:

Stompdrift-Kamanassie WUA Information

Section 35 Workflow

Section 33 Workflow

Section 35 Workflow Example Letters:

• Section 33
• Section 35(1)
• Section 35(4)

Project Correspondence

• 55 000 individual farm portions
• 2737 individual water use registrations
• There are 5690 dams, of which 25 have a capacity exceeding

500 000 m³

• 7 IBs/WUAs
• Total project objective – 4500 users (registered & unregistered)
• Irrigation is the dominant use (>90% of all registered

abstraction)

Project Area Statistics

Project Area Statistics

PRIMARY CATCHMENT TERTIARY CATCHMENT

• NO. WARMS

REGISTERED

H

(Gouritz)

80 104 90 303

J

(Gouritz & Olifants)

31 47 32 45 33 232 34 324 35 573 40 229

K

(Coastal)

10 114 30 369 40 130 50 63 60 139 70 24

J (Doring)

12L 41 TOTAL 2737

Registered Water Uses

• Level 1 – Project Information Meetings (April – October 2018)
• Level 2 – Water User Representatives (April – June 2018)
• Level 3 – Water Users (may be combined with Level 1; April –

October 2018)

• Level 4 – Project Information Sharing and Dissemination

(letters, information documents, pamphlets)

Interactions with Water Users

• Localities – Barrydale, Riversdale, Oudtshoorn, George, Knysna and

Uniondale

• Water User Associations/Irrigation Boards – Separate individual

meetings with the management

• Water Users with more than 10 properties – Separate individual

meetings with the property owner(s)

• Water Services Authorities & Providers – Separate individual

meetings with officials

• Level 4 – Project Information Sharing and Dissemination (letters,

information documents, pamphlets)

Water User Meetings

Planning 01:

General Information Roadshow Sessions for both s33 and s35 WUsers

Meeting Number

Locality Venue Address / Co-ordinates Date 1 George George Town Hall

71 York Street, George

• 33.961062, 22.454267

Tuesday, 21 August 2018 2 Uniondale Uniondale Town Hall

39 Voortrekker Street, Uniondale

• 33.656357, 23.127327

Wednesday, 22 August 2018 3 Oudtshoorn Boeresaal, Klein Karoo Koöperasie

Koöperasie Street (off Park Road), Oudtshoorn,

• 33.596094, 22.188227

Thursday, 23 August 2018 4 Barrydale Municipal Library Hall

Bain Street, Barrydale

• 33.903741, 20.722086

Tuesday, 28 August 2018 5 Riversdale Thusong Centre

53 Van Den Berg Street, Riversdale

• 34.093604, 21.260390

Thursday, 30 August 2018 6 Knysna Knysna Town Hall

Clyde Street, Knysna

• 34.037526, 23.049829

31 August 2018

Planning 02:

Water User Meeting Programme: WUA/Scheduled Users

Meeting Number

WUA/IB Venue Locality

Estimated User Numbers

Date

1

Stompdrift- Kamanassie WUA Boeresaal, Klein Karoo Kooperasie J35C, Oudtshoorn

150 19 July 2018 2

Jan Fourieskraal WUA Gamkarivier IB TBC J35F, Oudtshoorn

??? TBC 3

Korente Vette IB Grootbosberg IB TBC J40D, Riversdale H90C, Riversdale

??? TBC 5

Maalgate WUA Modderrivier IB??? TBC K30C, George K30B

??? TBC 6

Duiwenhoksrivier IB TBC H80A, Heidelberg

??? TBC ?

Meirings River Irrigation District??? GN 125 of 1969 Oudtshoorn

??? TBC

Planning 03:

Water User Meeting Programme: Municipalities / Water Services Authorities and Providers

Meeting Number

Municipality Venue Quaternary Catchments Estimated Volumes Proposed Date 1 Mossel Bay (WC043) TBC 2 Hessequa (WC042) TBC 3 Oudtshoorn (WC045) TBC 4 George (WC044) TBC 5 Bitou (WC047) TBC 6 Knysna (WC048) TBC

Planning 04:

Water User Meeting Programme: Multiple Property Owners Meeting Number Locality Venue Quaternary Catchments Estimated User Numbers Proposed Date 1 Barrydale TBC J12L 70

Mid-July 2018

2 Riversdale TBC H80, H90, J40 650

Late-July to early- August 2018

3 Oudtshoorn TBC J33, J34, J35, J40 1300

Late-August 2018

4 George TBC J34, J35, K10, K30, K40 600 5 Uniondale TBC J31, J33, J34, K60 600

Mid- to late- September 2018

6 Knysna TBC K30, K40, K50, K60, K70 250

(1) Provide tangible evidence of your QP water uses (documents, photographs, etc) (2) Note and adhere to the deadlines stipulated in your s35(1) letters when you receive these. (3) WUsers risk losing their WU entitlements should they not have their WUses verified. Continuation of the unverified use would then be unlawful. (4) WUsers are requested and advised to please contact the project team using the project email address if they have not provided the project team with their contact details or have not been contacted by the project team.

Take Home Messages
