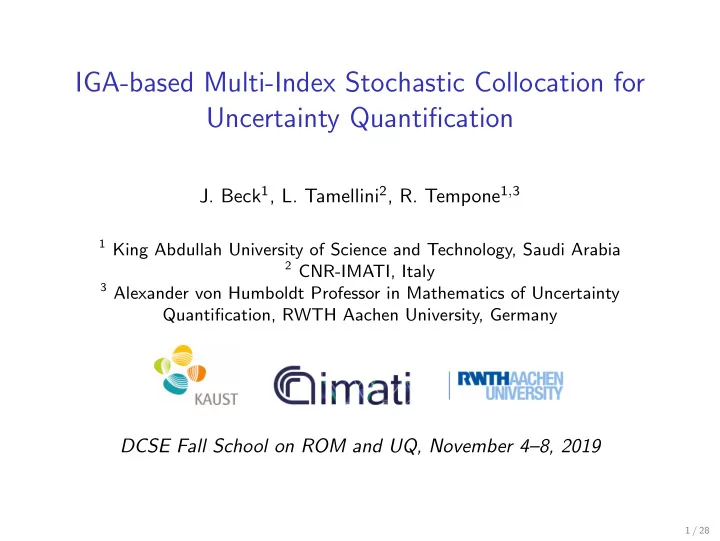

IGA-based Multi-Index Stochastic Collocation for Uncertainty Quantification J. Beck 1 , L. Tamellini 2 , R. Tempone 1 , 3 1 King Abdullah University of Science and Technology, Saudi Arabia 2 CNR-IMATI, Italy 3 Alexander von Humboldt Professor in Mathematics of Uncertainty Quantification, RWTH Aachen University, Germany DCSE Fall School on ROM and UQ, November 4–8, 2019 1 / 28

Outline Introduction to Uncertainty Quantification Multi-Index Stochastic Collocation (MISC) method Numerical tests Conclusions 2 / 28

Outline Introduction to Uncertainty Quantification Multi-Index Stochastic Collocation (MISC) method Numerical tests Conclusions 3 / 28

The uncertainty quantification problem → PDE solution u ( x ) PDE solution u ( x , y ) ◮ The parameter y = [ y 1 , y 2 , y 3 . . . ] is a set of model parameters, e.g., in the equation, external forces, geometry, initial and boundary conditions, ◮ The values of y are uncertain (experimental measures, limited knowledge on system properties). ◮ y can be modeled as a random vector and with N components ⇒ u is a random function , u ( y ). Goal (forward UQ): Compute statistical quantities for u , e.g., to assess how the uncertainty on y reflects on u : E [ u ], V ar [ u ], Pr ( u > u 0 ). 4 / 28

Working example: elliptic PDE with a random coefficient Mathematical model: � − div[ a ( x ) ∇ u ( x )] = f ( x ) x ∈ B , u ( x ) = 0 x ∈ ∂ B , Quantity of Interest: u at some ˆ x 5 / 28

Working example: elliptic PDE with a random coefficient Parameters y: N independent uniform rand. var on [ − 1 , 1] describe randomness in diffusion coefficient (more later) Mathematical model: � − div[ a ( x , y ) ∇ u ( x , y )] = f ( x ) x ∈ B , u ( x , y ) = 0 x ∈ ∂ B , Quantity of Interest: E y [ u (ˆ x , y )], i.e., the expected value of u at ˆ x ∈ B 5 / 28

Working example: elliptic PDE with a random coefficient Parameters y: N independent uniform rand. var on [ − 1 , 1] describe randomness in diffusion coefficient (more later) Mathematical model: � − div[ a ( x , y ) ∇ u ( x , y )] = f ( x ) x ∈ B , u ( x , y ) = 0 x ∈ ∂ B , Quantity of Interest: E y [ u (ˆ x , y )], i.e., the expected value of u at ˆ x ∈ B Challenge: N can be VERY large 5 / 28

Solve PDE using IGA Say we want to compute the heat diffusion in a body shaped as shown Need to define the mesh : Solve PDE using IGA on a grid with discretization level α = ( α 1 , α 2 , . . . , α d ), i.e., having 2 α 1 × 2 α 2 × · · · 2 α d elements. Here d = 3. 6 / 28

Random input data Let us assume the body is not homogeneous due to imperfections , which are not known precisely, and so we describe thermal conductivity as random fluctuations around some nominal value. Below are three possible realizations of such random conductivity: Here, y enters in the description of the thermal conductivity as: a ([ ρ, θ, z ] , y ) = 5+ y 1 sin (2 θ ) sin ( π ( ρ − 1)) sin ( π z ) + 0 . 8 y 2 sin (4 θ ) sin ( π ( ρ − 1)) sin ( π z ) + 0 . 7 y 3 sin (6 θ ) sin ( π ( ρ − 1)) sin ( π z ) + . . . 0 . 2 y 8 sin (16 θ ) sin ( π ( ρ − 1)) sin ( π z ) + . . . The more parameters included, the more complex fluctuations can be modeled. 7 / 28

Naive method to compute E [ u (ˆ x , · )] - Full tensorization E [ · ] is an integral, and if u varies smoothly wrt to y ( u ( y ) is an analytic func.) → use Gauss quadrature with M 1 × M 2 × . . . × M N points ( “stochastic collocation” ) M 1 × M 2 × ... � E [ u (ˆ x , · )] ≈ ω j u α (ˆ x , y j ) j =1 ◮ Exploits an interpolant of u ( y ) on the collocation points { y j } 1 0.8 0.6 0.4 0.2 0 −0.2 −0.4 −0.6 −0.8 −1 −1 −0.8 −0.6 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 collocation points y j mesh for the PDE Expensive for large N : Cost ∼ O ( � N j =1 M j ) 8 / 28

Outline Introduction to Uncertainty Quantification Multi-Index Stochastic Collocation (MISC) method Numerical tests Conclusions 9 / 28

Idea: use successive corrections PDE solver accuracy F ◮ C , coarse discretization P ◮ Q , refine stochastic collocation only ◮ P , refine PDE mesh only ◮ F , fine discretization in C Q both ← our goal Stochastic Collocation 10 / 28

Idea: use successive corrections Write a telescopic equality: F = F PDE solver accuracy + C − C F P + C − C + P − P + Q − Q C Q Stochastic Collocation 11 / 28
