IGA BEM for Maxwell Eigenvalue Problems RICAM Workshop Analysis and Numerics of Acoustic and Electromagnetic Problems Stefan Kurz, Sebastian Schps, Felix Wolf Computational Electromagnetics Laboratory and Graduate School Computational

slide-1

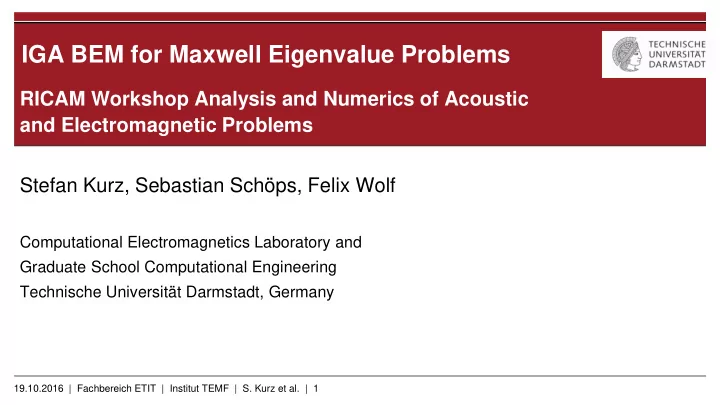

SLIDE 1

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 1

RICAM Workshop Analysis and Numerics of Acoustic and Electromagnetic Problems

IGA BEM for Maxwell Eigenvalue Problems

Stefan Kurz, Sebastian Schöps, Felix Wolf

Computational Electromagnetics Laboratory and Graduate School Computational Engineering Technische Universität Darmstadt, Germany

slide-2
SLIDE 2

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 2

Outline

  • Motivation
  • IGA BEM
  • Spaces
  • Convergence
  • Contour Integral Method
  • „Fast Methods”
  • Conclusions and Outlook
slide-3
SLIDE 3

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 3

Outline

  • Motivation
  • IGA BEM
  • Spaces
  • Convergence
  • Contour Integral Method
  • „Fast Methods”
  • Conclusions and Outlook
slide-4
SLIDE 4

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 4

Motivation Particle Accelerators

LHC: 27 km Source: CERN Aerial image of Geneva region with LHC ring indicated in red

slide-5
SLIDE 5

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 5

Motivation Superconducting Radiofrequency Cavity

TESLA 9-cell cavity Source: Fermilab Nice photograph of TESLA 9-cell cavity

slide-6
SLIDE 6

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 6

Motivation Fields and Design of a TESLA 9-Cell Cavity

slide-7
SLIDE 7

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 7

Motivation Maxwell Eigenvalue Problem

Curvilinear Lipschitz polyhedron (at least) Relative accuracy 10−9 for the resonance frequency of the accelerating mode required

!

slide-8
SLIDE 8

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 8

Outline

  • Motivation
  • IGA BEM
  • Spaces
  • Convergence
  • Contour Integral Method
  • „Fast Methods”
  • Conclusions and Outlook
slide-9
SLIDE 9

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 9

IGA BEM Why Boundary Element Method (BEM)?

+ Only boundary geometry needed + Ideally suited to the problem: simple material, fundamental solution − Dense matrices − Eigenvalue problem becomes nonlinear − (Nasty analysis)

slide-10
SLIDE 10

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 10

IGA BEM Electric Field Integral Equation

Find and such that

slide-11
SLIDE 11

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 11

IGA BEM Why Isogeometric Analysis (IGA)?

1) Non-Uniform Rational B-Splines

FEM NURBS

F

+ NURBS1) mapping F → exact geometry + CAD systems use NURBS + B-Splines efficient in terms of DOFs − Volumetric spline geometries need to be constructed manually

  • J. Corno et al., Isogeometric simulation of Lorentz detuning in superconducting

accelerator cavities, 2015

slide-12
SLIDE 12

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 12

IGA BEM Why Isogeometric Analysis (IGA)?

1) Non-Uniform Rational B-Splines

+ NURBS1) mapping F → exact geometry + CAD systems use NURBS + B-Splines efficient in terms of DOFs − Volumetric spline geometries need to be constructed manually

  • J. Corno et al., Isogeometric simulation of Lorentz detuning in superconducting

accelerator cavities, 2015 Error IGA FEM FEM Degree 1e-07 18 304 158 050 1 1e-08 47 520 381 036 1 1e-08 4 480 15 618 2 1e-10 30 628 135 246 2 DOFs required for given accuracy

slide-13
SLIDE 13

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 13

IGA BEM Definition of B-Splines (1)

deg p = 1, dim k = 4 deg p = 2, dim k = 7

slide-14
SLIDE 14

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 14

IGA BEM Definition of B-Splines (2)

  • p-open knot vector
  • Basis functions

defined recursively;

  • NURBS basis: weighted by

and normalized,

  • Derivatives of B-Splines are B-Splines (not for NURBS)
  • Tensor product constructions
slide-15
SLIDE 15

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 16

Outline

  • Motivation
  • IGA BEM
  • Spaces
  • Convergence
  • Contour Integral Method
  • „Fast Methods”
  • Conclusions and Outlook
slide-16
SLIDE 16

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 17

Spaces The Hilbert-de Rham Complex

slide-17
SLIDE 17

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 18

Spaces Conforming Discretization

Spline spaces on the unit square

  • A. Buffa & R. Vázquez, Isogeometric analysis for electromagnetic

scattering problems, 2014

removing first and last element

slide-18
SLIDE 18

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 19

Spaces Mapping to the Physical Domain

  • Pullbacks for single-patch domain:
  • Extension to multi-patch domain:

Piola NURBS

slide-19
SLIDE 19

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 20

Spaces The Buffa Spline Complex (1)

slide-20
SLIDE 20

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 21

Spaces The Buffa Spline Complex (2)

The diagram commutes.

  • L. Beirao da Veiga et al., Mathematical analysis of variational

isogeometric methods, 2014

quasiinterpolant single-patch domain

slide-21
SLIDE 21

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 22

Outline

  • Motivation
  • IGA BEM
  • Spaces
  • Convergence
  • Contour Integral Method
  • „Fast Methods”
  • Conclusions and Outlook
slide-22
SLIDE 22

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 23

Convergence Approximation Property (1)

Consider

  • single patch domain Γ, quasi-uniform knot vector
  • spline space of minimal degree p
  • Then
slide-23
SLIDE 23

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 24

Convergence Approximation Property (2)

Consider

  • f sufficient regularity
  • as its
  • orthogonal approximation

Then With these results a discrete inf-sup condition can be established, as in

  • A. Buffa & R. Hiptmair, The electric field integral equation on Lipschitz

screens: definitions and numerical approximation, 2002

slide-24
SLIDE 24

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 28

Convergence Numerical Test: Plane Wave on a Sphere

DOFs 102 103 104 105 10- 4 10- 3 10- 2 10- 1 100 L2 Error DOFs 102 103 104 105 10- 6 10- 4 10- 2 100 L2 Error deg p = 2 deg p = 3 B-Splines Raviart-Thomas x-3 x-4 Save ~ 61.000 DOFs

slide-25
SLIDE 25

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 29

Outline

  • Motivation
  • IGA BEM
  • Spaces
  • Convergence
  • Contour Integral Method
  • „Fast Methods”
  • Conclusions and Outlook
slide-26
SLIDE 26

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 30

Contour Integral Method Problem Definition

Galerkin discretization  nonlinear eigenvalue problem:

Find and such that holomorphic, eigenvalues in We are going to reduce this to an equivalent linear eigenvalue problem

!

slide-27
SLIDE 27

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 31

Contour Integral Method Beyn‘s Version of Keldysh’s Theorem T as before, holomorphic

. Then

with normalized left and right eigenvectors

W.-J. Beyn, An integral method for solving nonlinear eigenvalue problems, 2012

# eigenvalues in contour

slide-28
SLIDE 28

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 32

Contour Integral Method Beyn‘s Method Construct a diagonalizable matrix B computable from T with same eigenvalues as within D

1. Find such that has maximal rank 2. Compute SVD1) of 3. Compute 4. is given by

1) Singular Value Decomposition

slide-29
SLIDE 29

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 33

Contour Integral Method Beyn’s Method (cont’d)

contour points # eigenvalues in contour

slide-30
SLIDE 30

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 37

Contour Integral Method Adaptive Method: Introduction

  • 1

1

  • 1

1

  • 1

1

  • 1

1

  • 1

1

  • 1

1

  • BEM solution is

expensive

  • Solve sloppily,

with few contour points

  • Limited accuracy
  • Increase number
  • f contour points
  • Expensive
  • Accuracy

saturates

  • Adaptive method
  • Compute distance
  • f points
  • Solve for disjoint

domains, containing

  • nly one EV1) each

1) Eigenvalue

slide-31
SLIDE 31

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 38

Contour Integral Method Adaptive Method: Performance

100 150 200 250 300 350 10-15 10-13 10-11 10-9 direct adaptive Error Evaluations of polynomial

  • Matrix-valued

polynomial,

  • rder m = 60,

polynomial degree 5

  • Octave‘s

polyeig as reference

slide-32
SLIDE 32

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 39

Outline

  • Motivation
  • IGA BEM
  • Spaces
  • Convergence
  • Contour Integral Method
  • „Fast Methods”
  • Conclusions and Outlook
slide-33
SLIDE 33

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 40

„Fast Methods“ Calderón Preconditioning

  • Matrix T rapidly ill-conditioned for
  • EFIE1) operator preconditions itself,

eigenvalues accumulate around -1/4

  • Need a Gram matrix to link domain and range of
  • Discrete div- and curl-conforming spaces in stable L2 duality
  • Classical BEM: Raviart-Thomas ↔ Buffa-Christiansen
  • IGA BEM: Suitable B-Spline spaces under investigation

Li et al., Subdivision based isogeometric analysis technique for electric field integral equations for simply connected structures, 2016, Fig. 20

1) Electric Field Integral Equation

  • Fig. 20 from

Li2016: Relative residual versus number of GMRES iterations. Calderón vastly

  • utperforms

diagonal preconditioning

slide-34
SLIDE 34

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 41

„Fast Methods“ Adaptive Cross Approximation (ACA)

  • Represent T by a hierarchical matrix
  • Block-partition T in such a way that index offset

corresponds to geometric distance

  • Consider bounding boxes Q containing supports of

B-Spline basis functions as geometric objects

  • Create a geometrically balanced binary cluster tree
  • Approximate admissible blocks adaptively

by low-rank matrices

  • B. Marussig et al., Fast isogeometric boundary element

method based on independent field approximation, 2015, Fig. 8

  • Fig. 8 from

Marussig2015: NURBS curve, two B-Spline basis functions, control polygon of Bézier segments, bounding boxes of basis functions’ supports

slide-35
SLIDE 35

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 42

  • B. Marussig et al.

2015, Figs. 24, 25

„Fast Methods“ ACA: Crankshaft Example

  • Fig. 24 from Marussig2015:

Image of considered crankshaft

  • Fig. 25 from Marussig2015: Compression rate

versus order m of T, for different ACA approximation qualities. For m= 107, a compression by about a factor of 10 can be

  • achieved. The curves show the expected n log n

asymptotic behavior.

slide-36
SLIDE 36

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 43

Outline

  • Motivation
  • IGA BEM
  • Spaces
  • Convergence
  • Contour Integral Method
  • „Fast Methods”
  • Conclusions and Outlook
slide-37
SLIDE 37

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 44

Conclusions and Outlook

  • IGA-BEM seems natural to reconcile CAD1) and CAE2)
  • Benefit from the smoothness of geometry and fields in

accelerator applications

  • Convert nonlinear into linear eigenvalue problem by

Contour Integral Method Outlook:

  • Implement and investigate integration with fast methods
  • Complete numerical analysis for multi-patch domains

1)Computer-Aided Design 2)Computer-Aided Engineering

slide-38
SLIDE 38

19.10.2016 | Fachbereich ETIT | Institut TEMF | S. Kurz et al. | 45

Further References

1.

  • J. Asakura et al., A numerical method for nonlinear eigenvalue problems using contour

integrals, 2009 2.

  • A. Buffa et al., Isogeometric methods for computational electromagnetics: B-spline and T-

spline discretizations, 2014 3.

  • A. Buffa et al., Approximation estimates for isogeometric spaces in multi-patch geometries,

2015 4.

  • G. Unger, Convergence orders of iterative methods for nonlinear eigenvalue problems, 2013

5.

  • G. Unger, Numerical analysis of boundary element methods for time-harmonic Maxwell’s

eigenvalue problems, 2016 6.

  • C. Wieners & J. Xin, Boundary element approximation for Maxwell's eigenvalue problem,

2013 7.

  • J. Xiao et al., Solving large‐scale nonlinear eigenvalue problems by rational interpolation and

resolvent sampling based Rayleigh‐Ritz method, 2016
