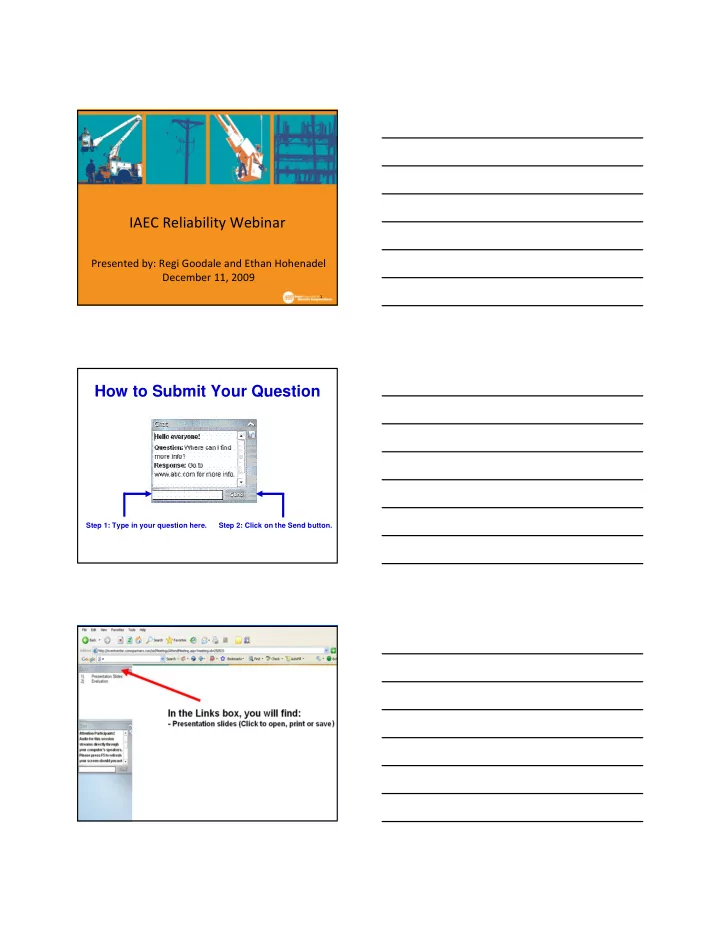

IAEC Reliability Webinar

Presented by: Regi Goodale and Ethan Hohenadel December 11, 2009

1

How to Submit Your Question

Step 2: Click on the Send button. Step 1: Type in your question here.

Agenda

• Reliability Planning
• Recording Interruptions
• Computing Indices
• Reliability Reporting

4

Federal and State Regulations

• Federal

– RUS Bulletin 1730A-119

• State

– IAC 199-20.18 Service reliability requirements for electric utilities – IAC 25.3 Inspection and maintenance plans

5

Reliability Overview

• IAC 20.18 General Requirements
• “Reliable electric service is of high importance

to the health, safety, and welfare of the citizens of Iowa.”

6

Reliability General Obligations

• a. Reasonable efforts to avoid and prevent

interruptions of service

• b. Transmission and distribution facilities shall be

designed, constructed, maintained, and electrically reinforced and supplemented as required to perform reliably

• c. Effective preventive maintenance program
• d. IUB will consider the condition of the physical

property and the size, training, supervision, availability, equipment, and mobility of the maintenance forces

7

Reliability General Obligations

• e. Keep records of interruptions of service on its

primary distribution system and shall make an analysis of the records

• f. Make reasonable efforts to reduce the risk of

future interruptions

• g. If unable to comply with applicable provisions

file waiver request

8

Reliability Planning

• 20.18(8)a. Reliability plan

– Required to be adopted by local board and filed with IUB. – Original plan was to be filed before July 1, 2003. – Must be updated by not less than annually.

– For instructions on how to file electronically with the IUB click here.

9

Reliability Planning

• IAC 20.18(8)a. Plan must describe:

– Current reliability programs, including:

• Tree trimming cycle, including descriptions and explanations
• f any changes to schedules and procedures reportable in

accordance with 199 IAC 25.3(3)“c”;

• Animal contact reduction programs, if applicable;
• Lightning outage mitigation programs, if applicable; and
• Other programs the electric utility may identify as reliability-

related.

– Current ability to track and monitor interruptions. – How the electric utility plans to communicate its plan with customers/consumer owners.

10

Reliability Planning

• IAEC resources

– IAEC model reliability plan – IAEC reliability web page

11

Recording Interruptions

• Review RUS Bulletin 1730A-119

12

Polling Question

Did you participate in the NRECA webinar on RUS Bulletin 1730A-119? A.Yes B.No

13

Definitions

• Interruption – A loss of electricity for any

period longer than 5 minutes

• Outage – The state of a component when it is

not available to perform its intended function as a result of an event directly associated with that component.

14

Interruption Exemptions

1. Interruptions intentionally initiated pursuant to the provisions of an interruptible service tariff or contract and affecting only those customers taking electric service under such tariff or contract; 2. Interruptions due to nonpayment of a bill; 3. Interruptions due to tampering with service equipment; 4. Interruptions due to denied access to service equipment located on the affected customer’s private property;

15

Interruption Exemptions

5. Interruptions due to hazardous conditions located on the affected customer’s private property; 6. Interruptions due to a request by the affected customer; 7. Interruptions due to a request by a law enforcement agency, fire department, other governmental agency responsible for public welfare, or any agency or authority responsible for bulk power system security; 8. Interruptions caused by the failure of a customer’s equipment; the

• peration of a customer’s equipment in a manner inconsistent with

law, an approved tariff, rule, regulation, or an agreement between the customer and the electric utility; or the failure of a customer to take a required action that would have avoided the interruption, such as failing to notify the company of an increase in load when required to do so by a tariff or contract.

Interruption Category Definitions

• Power Supply – Any interruption originating from the

transmission system, sub-transmission system, or the substation, regardless of ownership

• Planned – Any interruption scheduled by the

distribution system to safely perform routine maintenance

• Major Event – An interruption or group of

interruptions caused by conditions that exceed the design and operational limits of a system. See IEEE Standard 1366-2003 and RUS Bulletin 1730A-119 Exhibit E

• All Other – All interruptions excluding above categories

17

Computing Reliability Indices

• SAIFI – System Average Interruption

Frequency Index

• SAIDI – System Average Interruption Duration

Index

• CAIDI – Customer Average Interruption

Duration Index

18

Computing Reliability Indices

SAIFI = Total Number of Customer Interruptions/Total Number of Customers Served Average number of interruptions per customer during the year

19

Computing Reliability Indices

SAIDI = Sum of all Customer Interruption Durations/Total Number of Customers Served Average Interruption Duration per Customer served during the year Same as Reported on Form 7

20

Computing Reliability Indices

CAIDI = Sum of All Customer Interruption Durations/Total Number of Customer Interruptions Average Interruption Duration for those Customers who experience interruptions during the year CAIDI = SAIDI/SAIFI

21

Indices Example

Electric utility serving a total number of 2,000 customers (meters). Date Duration (Minutes)

• No. of

Customers 17-Mar 8.17 200 1,634.00 5-May 71.30 600 42,780.00 12-Jun 30.30 25 757.50 20-Aug 267.20 90 24,048.00 31-Aug 120.00 700 84,000.00 3-Sep 10.00 1,500 15,000.00 27-Oct 40.00 100 4,000.00 Sum 546.97 3,215 172,219.50 CAIDI 172,219.50 / 3,215 = 53.567 minutes SAIDI 172,219.50 / 2,000 = 86.11 minutes SAIFI 3,215 / 2,000 = 1.6075 interruptions per customer

22

Major Event

• Replaces Major Storm
• Determined by statistical formula to find Major

Event days that the daily system SAIDI exceeds the threshold (T).

• Collect daily SAIDI for five sequential years

ending on the last day of the last complete reporting period. If fewer than five years use all available data until five years of historical data are available

e T MED

β α 5 . 2 +

=

23

Major Event

• Only Include those days that have a positive

SAIDI index

• Find the natural logarithm of each daily SAIDI
• Find α (Alpha) = Average of the logarithms
• Find β (Beta) = Standard Deviation of the

logarithms

e T MED

β α 5 . 2 +

=

24

Major Event

• Use Calculation below to determine the

threshold

• Any daily SAIDI for the current reporting year

that is greater than the threshold is considered a major event day

e T MED

β α 5 . 2 +

=

25

Reliability Reporting

• NRECA model template for computing
• IAEC Example
• IAEC general web page

26

Reliability Reporting

• RUS
• IUB

– Annual Reliability Report – Notification and reporting of outages – IAEC Outage Map

27

Reliability Reporting

• RUS Borrowers that borrow funds from RUS are required to report

the system average annual interruption minutes per consumer on Form 7 and Form 300. Shown in Table 1 is Part G of Form 7. Form 7 calls for four separate SAIDIs, as well as the total interruption time.

• IAC 20.18(8)b. Annual Reliability Report

– Must be reviewed and approved by your local board by April 1 each year. – Must be filed with the IUB after board approval – Must include previous 5 years reliability indices (SAIFI, SAIDI, CAIDI)

• IAC 20.19 Notification and reporting of outages

– Current Rules

• Notification
• Outage Report

– Pending Rule Making at IUB (RMU-2009-0004)

28

IAEC Outage Map

• Purpose
• IAEC role
• REC role
• outages.iowarec.org

29

Reliability Reporting

• IAEC resources

– IAEC model reliability report – IAEC reliability web page – IAEC annual REC specific reliability report – IOU Reliability reports (click here)

30

Review

• Reliability General Guidelines
• Reliability Plans
• Recording Interruptions
• Computing Indices
• Reporting

31

How to Submit Your Question

Step 2: Click on the Send button. Step 1: Type in your question here.

Reliability Reporting

Thank you for participating in today’s Web conference! Please complete the evaluation.
