Hydrographic Surveying Introduction of Speaker Definition Applications Echo sounding Sounding equipment Survey vessels Dredging equipment Software Data Processing Tidal Datums Projects Education

slide-1

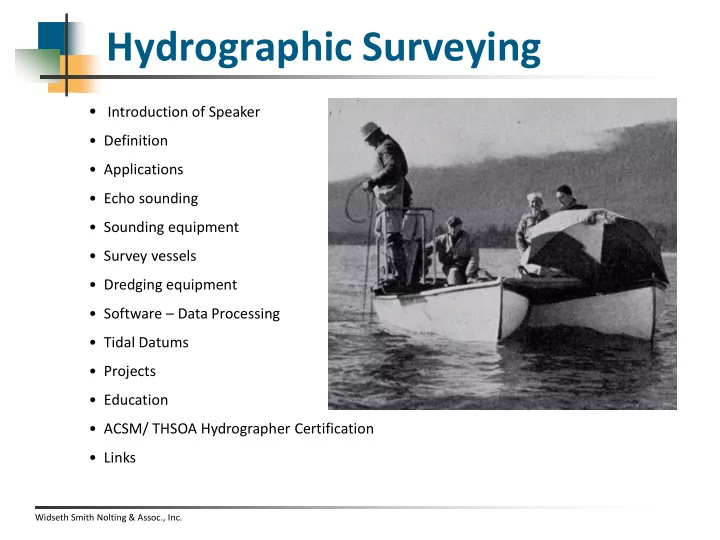

SLIDE 1

Widseth Smith Nolting & Assoc., Inc.

Hydrographic Surveying

  • Introduction of Speaker
  • Definition
  • Applications
  • Echo sounding
  • Sounding equipment
  • Survey vessels
  • Dredging equipment
  • Software – Data Processing
  • Tidal Datums
  • Projects
  • Education
  • ACSM/ THSOA Hydrographer Certification
  • Links
slide-2
SLIDE 2

Widseth Smith Nolting & Assoc., Inc.

Introduction of Speaker

Juergen Brunkhorst Hometown: Rotenburg (W.) College: Hamburg Employment: Wilhelmshaven and Rostock

slide-3
SLIDE 3

Widseth Smith Nolting & Assoc., Inc.

Definition

Hydrography is the branch of applied sciences which deals with the measurement and description of the physical features of oceans, seas, coastal areas, lakes and rivers, as well as with the prediction of their change

  • ver time, for the primary purpose of safety of navigation and in support of all other marine activities,

including economic development, security and defence, scientific research, and environmental protection. (International Hydrographic Organization ) The scientific description and analysis of the physical conditions, boundaries, flow, and related characteristics

  • f the earth's surface waters.

The mapping of bodies of water. Bathymetry The measurement of the depth of bodies of water

  • Underwater topo
  • Features and breaklines not visible
slide-4
SLIDE 4

Widseth Smith Nolting & Assoc., Inc.

Applications

  • Safe and efficient operation of maritime traffic control
  • Charting
  • Port management
  • Dredging and coastal engineering (Navigation,

Cleanup – Fox River, WI)

  • Beach Replenishment
  • Exploration and Exploitation of Marine Resources
  • Utility lines – offshore wind farm
  • Marine archaeology
  • Other marine scientific purposes
  • Coastal Zone Management
  • Environmental Protection
  • Maritime Defense
slide-5
SLIDE 5

Widseth Smith Nolting & Assoc., Inc.

Conventional

slide-6
SLIDE 6

Widseth Smith Nolting & Assoc., Inc.

Echo sounding

Principle

  • Sonar
  • Transducer
  • Depth = Speed of Sound x Travel time x 0.5
  • Speed of Sound in Water is approx. 1,500 m/s (salinity, temperature)
  • Compare to Air: 340 m/s
  • Probe or Bar check

Equipment

  • Single-beam
  • Multibeam
  • Sub-bottom profiler
  • Side scan sonar
slide-7
SLIDE 7

Widseth Smith Nolting & Assoc., Inc.

Survey Methods

slide-8
SLIDE 8

Widseth Smith Nolting & Assoc., Inc.

Single-beam

Single-beam echo sounders collect discrete data points along survey track lines.

  • Commonly available
  • Low cost
  • Portable
  • Easy deployment
  • Dual frequency (200 kHz/33kHz)
  • Highly accurate
  • 200 kHz – 1cm (0.1% of depth value)
  • 33 kHz – 10cm (0.1% of depth value)

HydroLite-TM

(Professional Surveyor Magazine Sep 2010)

slide-9
SLIDE 9

Widseth Smith Nolting & Assoc., Inc.

Multibeam

slide-10
SLIDE 10

Widseth Smith Nolting & Assoc., Inc.

Sub-bottom profiler

Identify and measure various marine sediment layers that exist below the sediment/water interface.

slide-11
SLIDE 11

Widseth Smith Nolting & Assoc., Inc.

Side scan sonar

slide-12
SLIDE 12

Widseth Smith Nolting & Assoc., Inc.

Survey Boats/Vessels

POB - March 28, 2011

slide-13
SLIDE 13

Widseth Smith Nolting & Assoc., Inc.

Backhoe Dredger

slide-14
SLIDE 14

Widseth Smith Nolting & Assoc., Inc.

Backhoe Dredger

  • Up to 65 meters long
  • Bucket capacity of up to 40 m3
  • Maximum digging depth of 32 m
slide-15
SLIDE 15

Widseth Smith Nolting & Assoc., Inc.

Mechanical Dredge

slide-16
SLIDE 16

Widseth Smith Nolting & Assoc., Inc.

Bucket Dredger

slide-17
SLIDE 17

Widseth Smith Nolting & Assoc., Inc.

Cutter Dredger

slide-18
SLIDE 18

Widseth Smith Nolting & Assoc., Inc.

Trailing Suction Hopper Dredger

slide-19
SLIDE 19

Widseth Smith Nolting & Assoc., Inc.

Trailing Suction Hopper Dredger

slide-20
SLIDE 20

Widseth Smith Nolting & Assoc., Inc.

Software - Survey

Data Input

  • Position
  • Depth
  • Heading
  • Tide
  • Heave

Background

  • DXF
  • Chart
  • Planned lines
slide-21
SLIDE 21

Widseth Smith Nolting & Assoc., Inc.

Software - Processing

  • Filter Outliers
  • Apply Sound Velocity, Tide, Draft, Heave
slide-22
SLIDE 22

Widseth Smith Nolting & Assoc., Inc.

Data Processing

Motion Sensors Gyros and accelerometers for real time motion measurements. Vertical Datum – Tide Readings LAT = Lowest Astronomical Tide

slide-23
SLIDE 23

Widseth Smith Nolting & Assoc., Inc.

Tidal Datums

LAT = Lowest Astronomical Tide (vs. NAVD 88/NGVD 29)

slide-24
SLIDE 24

Widseth Smith Nolting & Assoc., Inc.

Software – Backhoe Dredger

slide-25
SLIDE 25

Widseth Smith Nolting & Assoc., Inc.

Software – Cutter Dredger

slide-26
SLIDE 26

Widseth Smith Nolting & Assoc., Inc.

Software – Hopper Dredger

slide-27
SLIDE 27

Widseth Smith Nolting & Assoc., Inc.

Project – Cape Town

slide-28
SLIDE 28

Widseth Smith Nolting & Assoc., Inc.

Project – Terschelling

slide-29
SLIDE 29

Widseth Smith Nolting & Assoc., Inc.

Project – Terschelling

slide-30
SLIDE 30

Widseth Smith Nolting & Assoc., Inc.

Project – Rostock

slide-31
SLIDE 31

Widseth Smith Nolting & Assoc., Inc.

Project – Minden

slide-32
SLIDE 32

Widseth Smith Nolting & Assoc., Inc.

Education

University of New Brunswick, Fredericton, NB, Canada The University of Southern Mississippi, Hattiesburg, MS Durham, NH

Ocean Mapping options on the Master of Science and Doctor of Philosophy degrees in Ocean Engineering and Earth Sciences One-year program - Master's degree in hydrographic science

slide-33
SLIDE 33

Widseth Smith Nolting & Assoc., Inc.

Hydrographer Certification

ACSM/THSOA Hydrographer Certification is well-recognized and considered by many Federal, State and local agencies as well as private firms, seeking subcontractors when evaluating technical proposals for marine engineering, surveying, and construction. These include port authorities, NOAA and the Corps of Engineers. The certification program is also endorsed by The Hydrographic Society of America which provides financial support through annual contributions. Designed for hydrographers with five years of experience, ACSM/THSOA Certification authenticates your work experience and gives credence to your resume. Earn certification through examinations offered throughout the year. American Congress on Surveying & Mapping (ACSM)

  • NSPS Certified Survey Technician (CST)
  • BLM Certified Federal Surveyor (CFeds)
  • Certified Floodplain Surveyor (CFS)
slide-34
SLIDE 34

Widseth Smith Nolting & Assoc., Inc.

Links

The Hydrographic Society of America (THSOA) http://www.thsoa.org Western Dredging Association (WEDA) http://www.westerndredging.org International Hydrographic Organization (IHO) http://www.iho.int

Category A – Most advanced standard of training Category B – Aimed at technician level

slide-35
SLIDE 35

Widseth Smith Nolting & Assoc., Inc.

Contact

Juergen Brunkhorst, LS, CH

juergen.brunkhorst@wsn.us.com

Widseth Smith Nolting 610 Fillmore St Alexandria, MN 56308

slide-36
SLIDE 36

Widseth Smith Nolting & Assoc., Inc.
