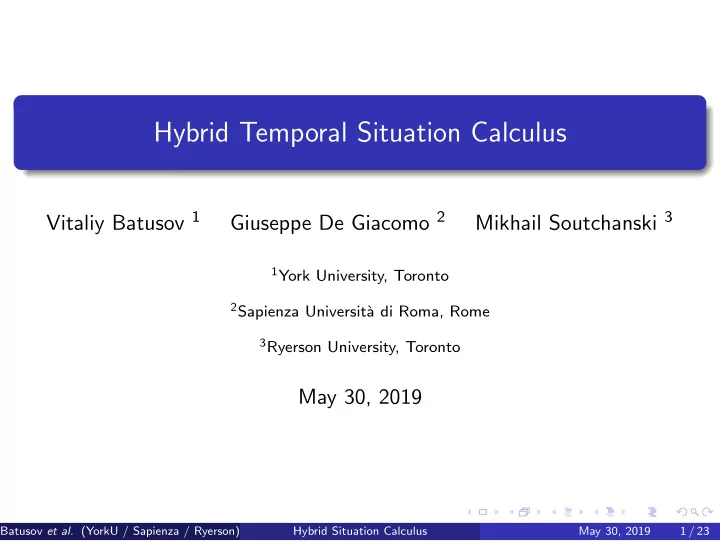

Hybrid Temporal Situation Calculus

Vitaliy Batusov 1 Giuseppe De Giacomo 2 Mikhail Soutchanski 3

1York University, Toronto 2Sapienza Universit`

a di Roma, Rome

3Ryerson University, Toronto

May 30, 2019

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 1 / 23

Overview

1

Background Dynamical Systems Formalisms Situation Calculus

2

Hybrid Situation Calculus General Considerations Methodology Hybrid Action Theories Features

3

Conclusions

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 2 / 23

Dynamical Systems

Dynamical systems: systems that undergo change of some kind Examples: pendulum, animal populations, digital circuits Also: A model which represents a part of the world relevant to the questions we want to answer Have states and transitions between them

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 3 / 23

Kinds of change

Continuous (macroscopic physical world) Discrete (quantum world; approximations of macroscopic world) In modelling, a mix of the two is often necessary ⇒ Hybrid Example: computer-controlled machinery

self-driving cars chemical plant high-speed train system

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 4 / 23

Formalisms

Need a language to describe and analyse dynamical systems Various formalisms for different applications are available Hybrid Automata: disrete automata with differential equations for each state Come from physics and engineering. Good for continuous dynamics, can’t express rich relational states Situation Calculus: “system as a logical theory” Comes form KRR. Good for relational states with internal structure, limited in continuous dynamics PDDL+: a planning formalism Comes from automated planning. Offers a better balance between discrete and continuous, but with limitations on both

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 5 / 23

Our goal

Propose an extension to Raymond Reiter’s version of situation calculus which would organically combine discrete change with true continuous change over real-valued time without compromising too much.

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 6 / 23

Situation Calculus

System is described axiomatically in first-order logic Theory has three sorts: action, situation, domain object actions: symbols which trigger change situations: sequences of actions (world histories) domain objects: everything else (cats, cars, numbers, etc.) Predicates and functions describe properties of objects: Cat(John) Actions are used to construct situations: feed(John) executed in the initial situation S0 yields a new situation do(feed(John), S0) Predicates/functions whose last argument is a situation are called fluents: Happy(x, s) — “x is happy in situation s” Fluents are what changes from one situation to another. Thus, situations are a frame of reference, but fluents are the state.

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 7 / 23

Modelling Systems in Situation Calculus

Basic Action Theories — Reiter (2001) To describe dynamics of fluent F, begin with effect axioms φ+(¯ x, a, s) → F(¯ x, do(a, s)) (positive) φ−(¯ x, a, s) → ¬F(¯ x, do(a, s)) (negative) Example: Cat(x) ∧ ¬Happy(x, s) → Happy(x, do(feed(x), s)) Cat(x) → ¬Happy(x, do(bathe(x), s))

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 8 / 23

Frame problem

Want the theory to unambiguously describe what happens when an action is executed Things that change — effect axioms Things that simply carry over — ? (too many to list)

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 9 / 23

Reiter’s solution

Causal completeness assumption: there is no other source of change to fluent F other than what is asserted in the effect axioms Formally: F(¯ x, s) ∧ ¬F(¯ x, do(a, s)) → φ−(¯ x, a, s) ¬F(¯ x, s) ∧ F(¯ x, do(a, s)) → φ+(¯ x, a, s). Assuming that φ+ and φ− can never happen simultaneously, Reiter derives the successor state axiom F(¯ x, do(a, s)) ↔ φ+(¯ x, a, s) ∨ F(¯ x, s) ∧ ¬φ−(¯ x, a, s) which is logically equivalent to the conjunction of the above axioms.

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 10 / 23

Successor State Axioms

Example: Happy(x, do(a, s)) ↔ a=feed(x) ∧ Cat(x) ∧ ¬Happy(x, s) ∨ Happy(x, s) ∧ ¬[a=bathe(x) ∧ Cat(x)] This concise form is the key feature of BATs Makes regression possible: given a query about a far-away situation, can transform it to equivalent query about S0

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 11 / 23

General considerations

Goal: allow for true continuous change while providing the same kind

• f systematic modelling methodology

Two good ideas:

Autonomous processes: a modelling pattern where the scope of continuous behaviours is limited to a set of well-defined relational states (processes) started and ended by actions. Appears in Pinto (1994), PDDL+. HA too inexpressive to raise this issue. Temporal fluents: fluents whose values are defined for the entire real-valued timeline, and not just the time points of actions. PDDL+ authors Fox & Long (2003): When determining how to achieve a goal a planner must be able to access the values of these continuous quantities at arbitrary points on the time-line of the plan. Example: Reiter’s BATs can’t handle queries about arbitrary timepoints: velocity(Cat, τ, σ) > 10

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 12 / 23

Methodology

Add time arguments to all actions: feed(x) ⇒ feed(x, t) (Reiter) Add temporal fluents — functional fluents with arguments t, s velocity(Cat, t, s) Describe them using temporal change axioms of the form γ(¯ x, s) ∧ δ(¯ x, y, t, s) → f (¯ x, t, s)=y, where γ(¯ x, s) is a discrete “context” and δ(¯ x, y, t, s) encodes a function defining y. Modeller must ensure integrity γ(¯ x, s) → ∃y δ(¯ x, y, t, s)

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 13 / 23

Example

A reaction in beaker b yields a product at rate R(b) whenever b contains a mix of reagents in situation s (Mix(b, s)). Adding one of the catalysts c into b (in(c, b, s)) multiplies the rate by m(c). Pouring the products from two beakers into an empty one creates a new mix and starts another reaction. Amount of product in beaker b at time t in situation s: Mix(b, s) ∧ ¬∃c[in(b, c, s)]

• context γ

∧ y =prod(b, start(s), s) + R(b) × (t − start(s))

• function δ

→ prod(b, t, s)=y The behaviour of atemporal fluents Mix and in is described in the usual way using SSA.

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 14 / 23

Continuous Frame Problem

Must solve a continuous version of the frame problem Given a set of k temporal change axioms for fluent f γ1(¯ x, s) ∧ δ1(¯ x, y, t, s) → f (¯ x, t, s)=y . . . γk(¯ x, s) ∧ δk(¯ x, y, t, s) → f (¯ x, t, s)=y Equivalently express as a single normal-form axiom Φ(¯ x, y, t, s) → f (¯ x, t, s)=y, Assert an explanation closure axiom f (¯ x, t, s) = f (¯ x, start(s), s) → ∃y Φ(¯ x, y, t, s).

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 15 / 23

State Evolution Axioms

Assuming the integrity and consistency of the TCA in normal form,

• btain an equivalent axiom called the state evolution axiom

f (¯ x, t, s)=y ↔ [Φ(¯ x, y, t, s) ∨ y =f (¯ x, start(s), s) ∧ ¬

• 1≤i≤k

γi(¯ x, s)] Compare to SSA: F(¯ x, do(a, s)) ↔ [φ+(¯ x, a, s) ∨ F(¯ x, s) ∧ ¬φ−(¯ x, a, s)] This is the main result of the paper. Note that the SEA talks about a single situation, unlike SSA

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 16 / 23

Example (continued)

Modeller provides temporal change axioms only for non-trivial change Methodology yields a SEA that covers all circumstances: prod(b, t, s)=y ↔ ∃τ.τ = (t − start(s)) ∧

• ∃c[Mix(b, s) ∧ in(b, c, s)
• there is a catalyst

∧y =prod(b, start(s), s) + m(c)R(b)τ] ∨ Mix(b, s) ∧ ¬∃c[in(b, c, s)]

• no catalyst

∧y =prod(b, start(s), s) + R(b)τ ∨ ¬Mix(b, s)

• frame context

∧ y =prod(b, start(s), s)

• trivial evolution
• The frame context is derived from given and covers all other

possibilities Exactly one of the contexts of the SEA holds for every situation

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 17 / 23

Hybrid BATs and Properties

Can formally define a Hybrid BAT Consists of a Reiter’s BAT, a set of SEA, and some consistency conditions to ensure the interactions between the discrete and the continuous sides are well-defined when an action occurs Stratified HBATs: useful fragment with no cyclic dependence between

• temp. fluents by virtue of SEA

If stratified, can easily define regression If stratified, can prove a relative satisfiability property: the question of SAT of the theory is reduced to SAT of the initial state We thus preserve the most important properties of BATs

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 18 / 23

Compared to Hybrid Automata

Recall example. In hybrid BATs, any system with k beakers and n catalysts can be captured concisely by the same theory (save for the initial state, which grows as k + n). An equivalent⋆ hybrid automaton grows at least linearly with k × n in the number of states and at least quadratically in the number of transitions A system with incomplete information further blows up the HA state

• space. This is hard to quantify because it depends on the kind of

incompleteness. A SC action may introduce new objects (beakers, catalysts), dynamically growing the transition graph, which cannot be expressed in HA HBAT offers symbolic reasoning about the future

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 19 / 23

Compared to BATs

In HBATs, we can query fluents at arbitrary time points and so can pose queries on the continuous state directly: ∃t, b1, b2(t > T ∧ prod(b1, t, s)−prod(b2, t, s)<2) To achieve similar behaviour, Reiter’s SC, in place of the temporal fluents above, must express their values in terms of values at start(s), taking continuous evolution into account—a sinister modelling challenge

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 20 / 23

Conclusions

We can show (see paper) that a hybrid automaton can be captured by a hybrid BAT Informed by HA and PDDL+, hybrid situation calculus brings modern treatment of continuous time and a modelling methodology for mixed domains to SC Also brings complex agent actions, unbounded rich relational states with uncertainty, and symbolic reasoning about states to the domain

• f hybrid automata

Also allows to replace complex meta-theoretical semantics of PDDL+ by a logical theory (to appear in ICAPS-2019)

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 21 / 23

Rough map of expressive power

Batusov et al. (YorkU / Sapienza / Ryerson) Hybrid Situation Calculus May 30, 2019 22 / 23
