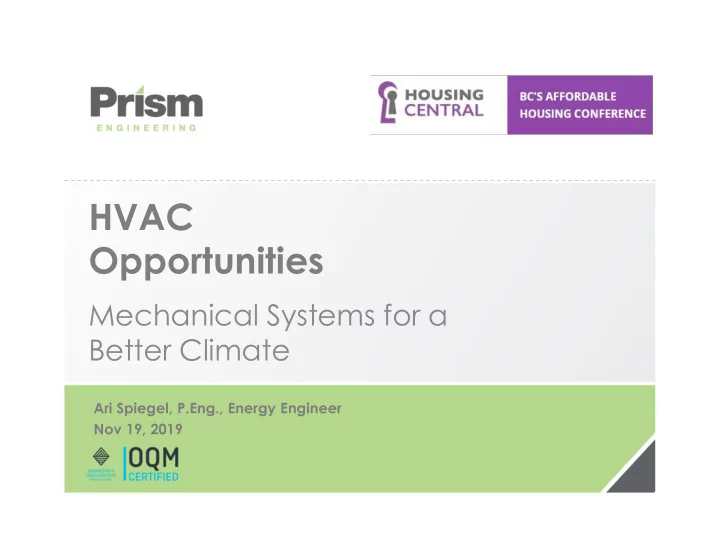

HVAC Opportunities

Mechanical Systems for a Better Climate

Ari Spiegel, P.Eng., Energy Engineer Nov 19, 2019

slide-2
SLIDE 2

2

Introduction to your Presenter

Ari Spiegel’s experience includes:

  • performing energy audits
  • identifying saving opportunities
  • performing energy analysis and saving

calculations He is involved in BC Hydro Continuous Optimization program which focuses on retro-commissioning of building mechanical systems. He has experience with building automation and

  • ptimizing building control systems to improve

performance = quantified energy saving results.

slide-3
SLIDE 3

3

Who We Are

From design to implementation, we provide energy management, electrical and mechanical engineering, utility monitoring and sustainability consulting to help our clients create a greener, more energy efficient world.

slide-4
SLIDE 4

4

Desired Outcomes

  • better understand typical mechanical

systems in multi-unit residential buildings (MURB)

  • introduction to greener opportunities
  • inspire you to take on new challenges
  • motivate you to reduce energy and GHG
slide-5
SLIDE 5

5

Today’s Agenda

  • Sustainability in BC
  • Energy basics
  • Mechanical Systems Overview
  • Energy and Carbon Saving

Opportunities

– Fan systems – Heating – Domestic hot water – Cooling

slide-6
SLIDE 6

6

Sustainability in BC

1

slide-7
SLIDE 7

7

GHG Emissions in BC

Source: Environmental Reporting BC. 2018. Trends in Greenhouse Gas Emissions in B.C. (1990-2016). State of Environment Reporting, Ministry of Environment and Climate Change Strategy, British Columbia, Canada. http://www.env.gov.bc.ca/soe/indicators/sustainability/ghg-emissions.html

slide-8
SLIDE 8

8

CleanBC Announcement

slide-9
SLIDE 9

9

10 20 30 40 50 60 70 80

Million tonnes CO2e

CleanBC’s Targets: 2012 – 6% below 2007 emissions 2030 – 40% 2040 – 60% 2050 – 80% Canada’s Targets: 2012 – 6% below 1990 (Kyoto) 2030 – 30% below 2005 (Paris)

BC GHG Emission Plans and Targets

Kyoto Protocol 1995 BC Plan 2000 Plan 2008 Plan 2016 Plan UNFCCC 1992

slide-10
SLIDE 10

10

CleanBC - Buildings

Source: https://news.gov.bc.ca/files/CleanBC_HighlightsReport_120318.pdf

slide-11
SLIDE 11

11

Available Incentives

Source: https://betterbuildingsbc.ca/incentives/social-housing-retrofit-support-program/

slide-12
SLIDE 12

12

Low Carbon Electrification (LCE)

Definition The reduction of greenhouse gas emissions, by using clean electricity instead of other forms of energy such as gasoline, natural gas and diesel.

slide-13
SLIDE 13

13

High Carbon Grid Example: SaskPower

slide-14
SLIDE 14

14

Clean electricity

slide-15
SLIDE 15

15

Greenhouse Gas Emission Goals

  • Target

BC has a goal to reduce carbon emissions by 40% (baseline 2007) by 2030

  • Solutions

1. Upgrade to high efficiency fuel systems 2. Improved building envelope 3. Switch from fossil fuel power to low carbon electricity

slide-16
SLIDE 16

16

In BC - Efficient Electrification with Heat Pumps

  • HP’s play a huge role in meeting carbon targets
  • Efficient electrification

– It’s not about resistance heating installations!

  • Grid capacity constraints
  • End user energy cost
  • Typical Efficiency

– 2 to 4x as efficient as base board electric

slide-17
SLIDE 17

17

Energy Basics

2

slide-18
SLIDE 18

18

Basic Electricity Terms

  • Power

– When voltage and current work together to do something useful – such as turn a motor or light a

  • lamp. Units are watts (W)
  • Demand

– Peak (maximum) rate of electricity usage, within a billing period, which is drawn by a customer

  • ver any 15 or 30 minute interval.
slide-19
SLIDE 19

19

Power & Energy

Power: Watts = Volts x Amps x Power Factor Kilowatts = Watt/1000 Energy: Energy = Power x Time kWh = kW x hours

slide-20
SLIDE 20

20

Demand Example

Amount of water = Energy High Demand (short fill time) Low Demand (long fill time)

slide-21
SLIDE 21

21

BC Hydro Rates - 2019

  • Residential
  • Medium General Service
  • Large General
slide-22
SLIDE 22

22

Thermal Energy Units and Rates

  • Unit of thermal energy is a Joule (J)

– Typically use MJ or GJ

  • 1 Joule per second = 1 Watt
  • 1 kWh = 3.6 MJ (0.0036 GJ)

22

slide-23
SLIDE 23

What is Efficiency?

Useful Output Input Efficiency = × 100%

Electric heat Atmospheric Boiler Condensing Boiler Heat Pump 100% 50-80% 80-95% 300-500%

  • Elec. – Heat

Gas – Heat Gas – Heat

  • Elec. – Heat / Cool

Device Efficiency Input – Output

slide-24
SLIDE 24

24

Mechanical Systems Overview

3

slide-25
SLIDE 25

25

Systems Overview

slide-26
SLIDE 26

26

Ventilation - Make-up Air Unit (MAU)

slide-27
SLIDE 27

27

Heating – Hydronic Heating

slide-28
SLIDE 28

28

Domestic Hot Water

slide-29
SLIDE 29

29

Heating - Terminal Units

slide-30
SLIDE 30

30

Cooling Systems

slide-31
SLIDE 31

31

Air Source Heat Pump

slide-32
SLIDE 32

32

Energy and Carbon Reduction Opportunities

4

slide-33
SLIDE 33

VENTILATION SYSTEMS

slide-34
SLIDE 34

34

Standard Efficiency MAU

slide-35
SLIDE 35

35

High Efficiency MAU

  • Condensing gas fired ventilation
  • 12% increase in efficiency compared to

conventional

Opportunity #1

slide-36
SLIDE 36

36

High Efficiency Gas Burner

  • Two heat exchangers

– Primary (conventional) – Secondary (condensing)

  • Up to 95% efficiency
  • Condensate management

(neutralize)

slide-37
SLIDE 37

37

37

MUA with Heat Pump

Opportunity #2

slide-38
SLIDE 38

38

Air Source HP

Operational Considerations – Air Temp

Rated to

  • 20°C
  • utdoor

Performance drops with a decrease in outdoor air temperature

slide-39
SLIDE 39

39

Installation Considerations – Air Temp

39

slide-40
SLIDE 40

40

Before After

40

  • Natural Gas Savings of 400 GJ
  • Electrical increase of 28,400 kWh
slide-41
SLIDE 41

41

Cost Breakdown

Like-for-like Replacement Electrification Option Mobilization $1,500 $1,500 Demolition $800 $800 Equipment $21,700 $24,300 Hoisting $1,400 $1,400 Structural $1,500 $1,500 Ductwork $1,000 $1,000 Emergency Devices $0 $0 Electrical $1,500 $1,500 Controls $800 $2,000 Balancing, Commissioning $750 $750 Other $2,800 $2,800 Sub-Total $33,750 $37,550 Overhead and profit 20% Mech & Elect $6,800 $7,510 Contingency 5% $1,800 $1,878 Construction Total $42,350 $46,938

41

Estimated Actual

3 Bids: all bids had heat pump RTU $2,000 to $5,000 lower than high efficiency gas fired RTU

slide-42
SLIDE 42

42

Considerations

  • Low fuel prices make fossil

fuels more financially viable

42

  • Location - low ambient

temperature require natural gas or direct electric backup Increasing carbon tax improves economics

  • Higher capital costs

Heat pump technology is increasingly performing better at low ambient temperatures Policy – building codes

  • Is there available electrical

capacity? Other benefit from an electrical upgrade?

slide-43
SLIDE 43

Q & A

43

slide-44
SLIDE 44

HEATING SYSTEMS

slide-45
SLIDE 45

Boiler Plant Systems

Useful Heat Air Flue Gas Fuel

100 x Energy Fuel Energy Useful Efficiency Boiler 

slide-46
SLIDE 46

46

Efficiency: Boilers & Furnaces

  • Combustion Efficiency

– Instantaneous efficiency of burning fuel example 86% – Represents unburned fuel and/or excess air loss

  • Overall Efficiency

– Instantaneous efficiency of producing hot water (air), steady state, example 80% – Introduces convection & radiation

  • Seasonal Efficiency

– Over time (heating season) efficiency of producing hot water (air): 72% – Incorporates the effect of cycling, stand-by and off cycle losses.

Ref: ASHRAE System and Equipment Handbook, 2000, pg 27.5

slide-47
SLIDE 47

47

Atmospheric Boilers

  • Aka “Natural Draft”
  • Thermal efficiency

typically 80%

  • Seasonal efficiency

lower (50-75%) due to:

  • Radiative (jacket)

losses

  • Draft hood

continues to draw air through boiler even when it is not firing, cooling it down

47

slide-48
SLIDE 48

48

Forced Draft Boilers

Mid-Efficiency

48

  • Fan-assisted combustion
  • Thermal efficiency of 85%
  • Seasonal efficiency is reduced due to

post-purge cycle to clear the flue and burner of combustible gases.

  • If boiler short-cycles, energy losses via

purge cycle can be significant.

Opportunity #3A

slide-49
SLIDE 49

49

Condensing boilers

49

  • Similar burner to Forced Draft.
  • Flue gas passes through heat

exchanger, pre-heating return water as it enters the boiler.

  • Requires low return water

temperature to achieve condensing and high efficiencies.

  • Low return water temperature

(<55°C) allows for flue gases to condense and latent heat to be recovered.

Opportunity #3B

slide-50
SLIDE 50

50

Condensing Requires Low Return Water Temperature

8 5 8 6 8 7 8 8 8 9 9 0 9 1 9 2 9 3 9 4 9 5 9 6 9 7 9 8 9 9 1 0 0 6 0 8 0 1 0 0 1 2 0 1 4 0 1 6 0 1 8 0 R e tu rn W a te r T e m p , F % Efficiency 2 5 % F ir in g R a te 5 0 % F ir in g R a te 7 5 % F ir in g R a te 1 0 0 % F ir in g R a te

50 Source: Laars Heating Systems

slide-51
SLIDE 51

51

Hydronic Circuit

Primary only

51

slide-52
SLIDE 52

52

Hydronic Circuit

Primary - Secondary

52

slide-53
SLIDE 53

53

Air to Water Heat Pump

Opportunity #4A

slide-54
SLIDE 54

54

Water Source Heat Pump

Opportunity #4B

slide-55
SLIDE 55

55

Heat Transfer Fundamentals

  • Heat pumps do not deliver the same high

temperature as natural gas appliances.

  • As a result, larger equipment (like air handling

unit coils) are needed to get the same amount

  • f heat delivered.
  • You can not replace a natural gas boiler with an

electric heat pump without considering the terminal HVAC equipment.

55

slide-56
SLIDE 56

56

Consider temperature

  • Coefficient of performance (COP) can change significantly

depending on the supply temperature (condenser temp)

OAT C

slide-57
SLIDE 57

57

Hydronic Baseboards

Low Temperature vs High Temperature

57

slide-58
SLIDE 58

58

Hydronic Coils

  • Low Temperature vs

High Temperature

58

slide-59
SLIDE 59

59

New Technology –

Gas fired absoption heat pumps (GAHP)

Opportunity #5

slide-60
SLIDE 60

60

GAHP Refrigeration Cycle

slide-61
SLIDE 61

61

High Efficiency Supply Options

Energy in Useful Heat Output Conversion 100 kWh 100 kWh 100% Electric Heat 8.5 GJ 10 GJ 85% Hi-Eff Natural Gas 15% in flue 10 GJ 10 + 6 = 16 GJ Gas fired Heat Pump

6 GJ from outdoor air

COP = 1.6

slide-62
SLIDE 62

Q & A

62

slide-63
SLIDE 63

DOMESTIC HOT WATER SYSTEMS

slide-64
SLIDE 64

64

Domestic Hot Water

  • Electric or gas heater
  • Served by a central system
slide-65
SLIDE 65

65

Domestic Hot Water Heat Pump

  • Air to water heat pump
  • Ambient indoor air used as

source (can help dehumidify space installed within)

  • Or split system with

condenser unit outside

65

Opportunity #6

slide-66
SLIDE 66

66

CO2 Heat Pump

  • Heat from outdoor air
  • Environmentally friendly refrigerant
  • Split system (air to water)
  • Direct exchange (refrigerant line

runs from tank to outdoors)

66

slide-67
SLIDE 67

67

Domestic Hot Water Heat Pump

Remote Health Care Site, Northern Vancouver Island

  • Existing propane

fired DHW heaters

  • High fuel transport

costs

67

slide-68
SLIDE 68

68

CO2 Heat Pump

Advantages:

  • Ability to generate considerably higher leaving water

temperatures (up to 90°C) than conventional heat

  • pumps. Therefore ideal for DHW applications
  • Low global warming potential (GWP) CO2 GWP = 1.

R134a GWP = 1500.

  • Lower health and safety risk in the event of a

refrigerant leak

  • Relatively flat performance (COP) curve over a range
  • f ambient temperature conditions (maintains

efficiency even at low outdoor temperatures)

68

slide-69
SLIDE 69

69

CO2 Heat Pump

Drawbacks:

  • Relatively new technology and not yet widely

adopted in the Canadian market (larger in Europe and Asia)

  • Higher operating pressures, requiring more

robust components

  • Requires low entering water temperatures to

ensure efficient operation (needs to be loaded)

69

slide-70
SLIDE 70

Q & A

70

slide-71
SLIDE 71

COOLING SYSTEMS

slide-72
SLIDE 72

72

Why is Cooling a Topic?

  • Climate Adaptation
  • Benefit of Heat Pump system
slide-73
SLIDE 73

73

Moving Heat … Uphill

Power required

Higher temperature Lower temperature

Condenser Evaporator

F F O O C OC O 50 40 30 20 10 10 20 30 40 50 120 100 80 20 20 40 60 60 40 50 40 30 20 10 10 20 30 40 50 120 100 80 20 20 40 60 60 40 F F O O C OC O

Heat extracted from inside the building Heat discharged outside the building

slide-74
SLIDE 74

74

Power Required to Move Heat

Cooling Effect = 1 Ton ≈ 3.6 kW Heat = 4.8 kW

Reference: GPG 279

Power In = 1.2 kW

slide-75
SLIDE 75

75

End of Life Chiller Replacement

– Case Study

75

Overview

  • The existing chiller and condensing unit were more

than 30 years old and parts were no longer available

  • Chilled water from the chiller is circulated to chilled

water cooling coils in the four air handling units

slide-76
SLIDE 76

76

Chiller Replacement with Heat Pump System

Upgrade

  • The existing chilled water cooling coils in the

four air handling units were removed and replaced with four refrigerant cooling coils

  • The condensing units were selected as heat

pumps to provide supplemental heating in addition to cooling

slide-77
SLIDE 77

77

Control View

77

Cooling coil HP for h/c Cooling coil replaced with HP for h/c Hot water Heating Valve

slide-78
SLIDE 78

78

Before After

78

slide-79
SLIDE 79

79

Results – Electrical & Fuel

79

50% Annual Gas Savings

Reduction in Electrical Savings

slide-80
SLIDE 80

COMPARISON

slide-81
SLIDE 81

81

Energy Cost Comparison Based on Energy INPUT

Excludes end use efficiency

81 0.02 0.04 0.06 0.08 0.1 0.12 0.14 5 10 15 20 25 30 35 40 Natural Gas Propane Electricity $/GJ Energy Carbon Tax

slide-82
SLIDE 82

82

INPUT vs OUTPUT Cost of Energy

Price At Meter Price of Useful Heat Output Conversion 13 ¢/kWh 13 ¢/kWh 100% Electric Heat 4.2 ¢/ekWh 10 $/GJ (3.6 ¢/kWh) 85% Hi-Eff Natural Gas 15% in flue 2.3 ¢/kWh 7 ¢/kWh 2+1 = 3 kWh Ground Source Heat Pump

2 kWh from ground

COP = 3

slide-83
SLIDE 83

83

Energy Cost Comparison Based

  • n Energy OUTPUT

Includes end use efficiency

83 0.02 0.04 0.06 0.08 0.1 0.12 0.14 0.16 0.18 0.2 10 20 30 40 50 60 Natural Gas Propane Electricity - High Demand Electricity - Low Demand $/kWh $/GJ Cost Carbon Tax Efficiency

slide-84
SLIDE 84

84

Emissions Comparison

84

  • 50

100 150 200 250 Electricity Natural Gas Propane

Emissions Tonnes/GWh

slide-85
SLIDE 85

85

Wrap Up

5

slide-86
SLIDE 86

86

Considerations

  • Carbon Reduction Focus vs. Operating Cost

Impact

  • Climate Change Adaptation needs: do you

want to prepare for cooling?

  • What is the life expectancy of your existing

equipment? Look for ways to integrate upgrades into your capital plan

slide-87
SLIDE 87

87

Summary of Opportunities

Each system has limitations that need to be considered when selecting the system type

Opportunity System Technology 1 Ventilation High Efficiency MAU (~95%) 2 Ventilation Heat Pump MAU (~350%) 3A Hydronic Heating Mid Efficiency Boiler (~85%) 3B Hydronic Heating High Efficiency Boiler (~92%) 4A Hydronic Heating Air Source HP (~350%) 4B Hydronic Heating Water Source HP (~450%) 5 Hydronic Heating Gas Fired Heat Pump (~160%) 6 DHW CO2 Heat Pump

slide-88
SLIDE 88

Q & A

88

slide-89
SLIDE 89

89

Thank you.

Prism Engineering Limited www.prismengineering.com

Ari Spiegel, P.Eng., Energy Engineer aris@prismengineering.com 604-298-4858

@Prism_Eng
