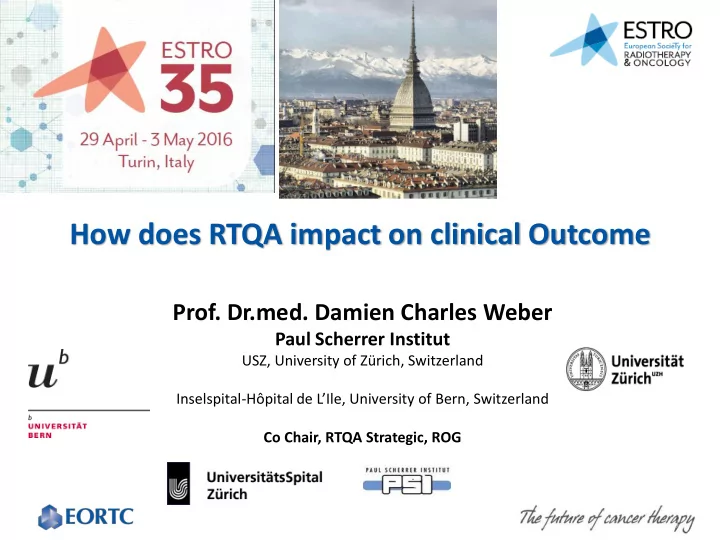

How does RTQA impact on clinical Outcome

• Prof. Dr.med. Damien Charles Weber

Paul Scherrer Institut

USZ, University of Zürich, Switzerland Inselspital-Hôpital de L’Ile, University of Bern, Switzerland Co Chair, RTQA Strategic, ROG

Objectives

• To understand why RTQA is important in/for a

intergroup study/trial

• What are the levels of RTQA
• What is the structure of the RTQA group/platform

within EORTC

• To see the staffing and equipment of European Centers
• To acknowledge the ‘quality’ of RT in Europe (BOA)
• Conclusions

2

3

4

• Tissue contamination
• Storage containers
• Containers filling
• Room temperature
• Malfunctioning equipment
• ….

Started in 2007

University of Minnesota- Veterinary Diagnostic Laboratory in St Paul

5

1977 RTOG initiation of QA program Retrospective analysis of RTQA showing 19% rate of major deviations (37/198) Composed of: 1)On study review (First week of RT) 2)Retrospective review

6

Eur J Cancer 1993;29A(2):181-184

Assess Quality through

• Assessment of structure

(Equipment and Work force)

• Measurement of process
• Patients’ outcome

7

Specific consideration of RTQA for clinical prospective trials

EORTC 22043 BC

Example of Benchmark Case (BC):

Parotid

3D-CRT IMRT

Example of IMRT:

Parotid

10

26081 – Major # 3 ICR evaluations

• Major # 3: Wrong protocol

used (declared “no boost = European way”, used “boost = American way”).

11

12

13

The ‘quality’ of RT developed in (EORTC) trials should be guaranteed, so as not to corrupt the endpoints of the trial.

14

Messages: Non adherence to protocol specified RT is associated with potential reduced OS, LC and increased toxicity

15

Examples of trials where the poor quality of RT did indeed corrupt the primary end point: The Head Start trial.

16

17

18

19

20

21

22

Facility Questionnaire (FQ) External Reference Dosimetry Audit (ERDA) Dummy Run (DR) Limited Individual Case Review (ICR) Extensive Individual Case Review (ICR) Complex Dosimetry Check

1 2 3 4 5

23

Facility Questionnaire (FQ) External Reference Dosimetry Audit (ERDA)

Results from Facility Questionnaire

• One hundred and fifty-six centers from 22 countries

completed a validated FQ.

• Over this 6 year period the summed average number of cases

treated in these centers increased from 2,011 to 2,377.

24

5 10 15 20 25 30 35 40 45

<=1000 1001-1500 1501-2000 2001-2500 2501-3000 3001-3500 >3500

Percentage of Total Centers Number of cases treated per year 1992 2007 2013

Results from Facility Questionnaire

25

0% 5% 10% 15% 20% 25% 30% 35% 40% <=200 201-250 251-300 301-350 >350 Percentage of Total Centers Number of cases treated per radiation oncologist per year 1992 2007 2013

Results from Facility Questionnaire

26

2013 (156 Centers) Mean Median Range SD No cases treated/year 2381.4 1938 (350-12000) 1671.3 No FTE Rad Oncs per dept 10.8 8 (1-41) 7.9 No FTE Physicists per dept 7.4 6 (1-35) 5.3 No RTTs per dept 36.1 23 (3-227) 32.9 No cases per RO 243.2 232 (78-617) 94.7 No cases per Physicists 354.3 320 (114-870) 154.3 No cases per RTT 85.7 77 (7-350) 48.1 No RTT per treatment unit 2.9 3 (2-6) 0.9 2007 (98 Centers) Mean Median Range SD No cases treated/year 2016.0 1696 (470-7300) 1272.3 No FTE Rad Oncs per dept 8.5 7 (2-26) 5.3 No FTE Physicists per dept 5.2 4 (1-22) 3.4 No RTTs per dept 26.1 17 (3-120) 22.2 No cases per RO 258.0 248 (99-480) 84.5 No cases per Physicists 426.0 413 (124-827) 142.8 No cases per RTT 107.0 86 (34-734) 96.0 No RTT per treatment unit 2.4 2 (1-5) 1.0 1992 (50 Centers) Mean Median Range SD No cases treated/year 1452.0 (300-3600) 783.0 No FTE Rad Oncs per dept 6.0 (1-22) No FTE Physicists per dept (1-8) No RTTs per dept No cases per RO 316.0 263 (60-1243) No cases per Physicists 464.0 370 (166-1052 ) No cases per RTT 131.0 100 (36- 420) No RTT per treatment unit 2.8

Results from Facility Questionnaire

27 2013 (156 Centers) Mean Median Range SD

• No. Megavoltage units

5.3 4 (1-16) 3.0

• No. cases per Unit per year

468.6 450 (175-1733) 183.6

• No. cases per simulator/year

1622.9 1542 (350-7000) 1260.0 % centers with dedicated CT Sim 92 % centres with IMRT capability 94 % centres with SBRT capability 65 2007 (98 centers) Mean Median Range SD

• No. Megavoltage units

3.9 3 (1-12) 2.1

• No. cases per Unit per year

488.0 456 (192-1000) 149.7

• No. cases per simulator/year

1117.0 1038 (251-2750) 489.1 % centers with dedicated CT Sim 86 % centres with IMRT capability 79 % centres with SBRT capability 54 1992 (50 centers) Mean Median Range

• No. Megavoltage units

2.6

• No. cases per Unit per year

506.0 (234-1033)

• No. cases per simulator/year

1192.0 (300-2341) % centers with dedicated CT Sim 22

Conclusions (FQ)

• The standards set by the EORTC-ROG are met by a continually

improving number of centers, particularly in regard to staffing levels, treatment planning and machine use, helping to safeguard use of advanced technologies in EORTC-ROG clinical trials.

• Numbers of patients treated by ROs and RTTs decreasing
• Numbers of patients planned by Medical physicists decreasing
• EORTC centers are treating more patients annually
• Improving capacity of IMRT delivery and CT simulations

28

Results of BOA

• A total of 465 BOA-reports, performed over a time period of

8.5 years (May 2005 until December 2013) were assessed.

• These reports were made for 279 institutions, from 33

countries, which provided at least one BOA-report to EORTC for inclusion in a clinical trial involving RT.

• The results of 3171 beams , delivered by 755 different

treatment units were assessed. This included 18 results for Co-60 beams, 1790 (56%) for photon beams (of which 11 ‘stereotactic radiosurgery dosimetry’) and 1363 (44%) for electron beams.

29

Results of BOA

30

Results of BOA

31

• On average 4 beams (range, 1-65) and 2 treatment units

(range, 1-17) were tested during an audit.

• Most of the audits were performed by IROC, EQUAL and

different auditing bodies which can be brought back to the common denominator of national organizations.

Local national bodies ( like PTW Freiburg (Germany), SSRMP (Switzerland) etc.) 38% IROC (RPC) 35% Equal 19% IAEA 4% ARPANSA 3% AAPM 1%

Results of BOA

32

• Fourteen beams (0.4%), of which 10 electron and 4 photon

beams, were out of the range of acceptance of 5%, 8.5% were within the non-optimal range (3-5%) of acceptance and 91.1%

• f the beams were within the optimal limit of < 3%.

100 200 300 400 photons Electrons Measure of discordance between stated and measured dose (%)

Number of beams

Results of BOA

33

50 100 150 200 250 1-3 machine(s) 4-8 machines 9-17 machines

Number of BOA -reports

20 40 60 80 100 120

Number of BOA-reports

Results of BOA

Conclusions:

• Our analysis shows that the majority (91.9%) of center

present beam output variations within the 3% tolerance cutoff.

• Only 0.4% of all beam results were found discrepant in

respect to a ± 5% level. Although already over 90% of the beams are within the optimal level of agreement (≤ 3%), ideally these results should be optimized. Unfortunately, no temporal trend for improvement has been observed in our study.

34

THANK YOU

Questions?
