SLIDE 1

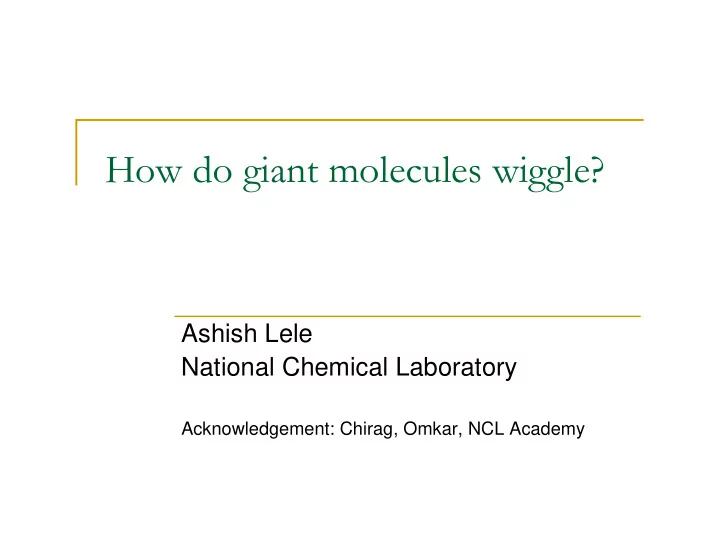

How do giant molecules wiggle?
Ashish Lele National Chemical Laboratory
Acknowledgement: Chirag, Omkar, NCL Academy
Contents
Giant molecules and their applications Unusual flow behaviour Solids, liquids and…. Wiggling motions
How do giant molecules wiggle? Ashish Lele National Chemical - - PowerPoint PPT Presentation
How do giant molecules wiggle? Ashish Lele National Chemical - - PowerPoint PPT Presentation
How do giant molecules wiggle? Ashish Lele National Chemical Laboratory Acknowledgement: Chirag, Omkar, NCL Academy Contents Giant molecules and their applications Unusual flow behaviour Solids, liquids and. Wiggling motions
SLIDE 2
SLIDE 3
Giant molecules
C C H H H X C C H H H X
n n
Polymers OR Macromolecules
SLIDE 4
Giant molecules
7300 >106 DNA 100 400,000 Silk 100 50,000 – 5,000,000 Polyethylene 10 720 Fullerene C60 2.8 78 Benzene 1.7 28 Ethylene 3.3 44 CO2 3.0 32 O2 1.5 2 H2
Molecular size (Å) Molecular weight (g/mol) Molecule
SLIDE 5
Long chains?
Hermann Staudinger 1881-1965
Proposed the concept of polymers in 1920. Colloidal chemists rejected the idea.
- Awarded Nobel Prize in Chemistry in 1953.
Rightfully called the father of polymer chemistry.
SLIDE 6
Can we live without them ?
SLIDE 7
Why are they so popular?
Excellent properties Easy to shape into products Cheap Reusable Good service life …..
We consumed 7 million tons in 2008 !! (Mutha et al, 2006)
SLIDE 8
How are they shaped?
Plastics Melt Shaping
heating flowing
SLIDE 9
How are they shaped?
SLIDE 10
How are they shaped?
SLIDE 11
How are they shaped?
SLIDE 12
Flow behaviour demos…
Rod climbing Extrudate swell Melt fracture Filament stretching Dilatency and yield stress
SLIDE 13
Is this solid or liquid?
SLIDE 14
Solids (Elastic)
x k F − =
Recovery (memory) Energy storage Hooke’s law
Homework: Can you render water elastic?
Robert Hooke 1635-1703
SLIDE 15
Molecular origin of elasticity
Bond stretching Enthalpic Bond rotation Entropic
SLIDE 16
Molecular origin of elasticity
R Nb T k F
B 2
3 =
0.1 0.2 0.3 0.4 2 4 6 8 10
R
probability distribution
N steps b R
SLIDE 17
Liquids (Viscous)
Zero recovery (no memory) Energy dissipation Newton’s law
dy dv A F η − =
Sir Isaac Newton 1642-1727
SLIDE 18
Viscoelasticity
Fading memory Short time elastic, long time viscous “Mountains flow before the Lord”
p
t De λ =
James Clerk Maxwell 1831-1879
SLIDE 19
Wiggling in solutions
Robert Brown 1773-1858
SLIDE 20
Wiggling in solutions
2 2
N T k b
B
ζ λ ≈
Rouse, P.E. Jr., 1953
Plucked string of a guitar
SLIDE 21
Wiggling in melts
3 2
~ N D L N T k D
c bead B c
= = λ ζ
Pierre de Gennes 1932-2007
SLIDE 22
Why are wiggling motions important?
Choosing the right polymer for an application. Choosing the right equipment for a polymer. Influence on solidification processes. Biological processes.
SLIDE 23
THANK YOU!
SLIDE 24
Rod climbing
SLIDE 25
Extrudate swell
SLIDE 26
Melt fracture
SLIDE 27
