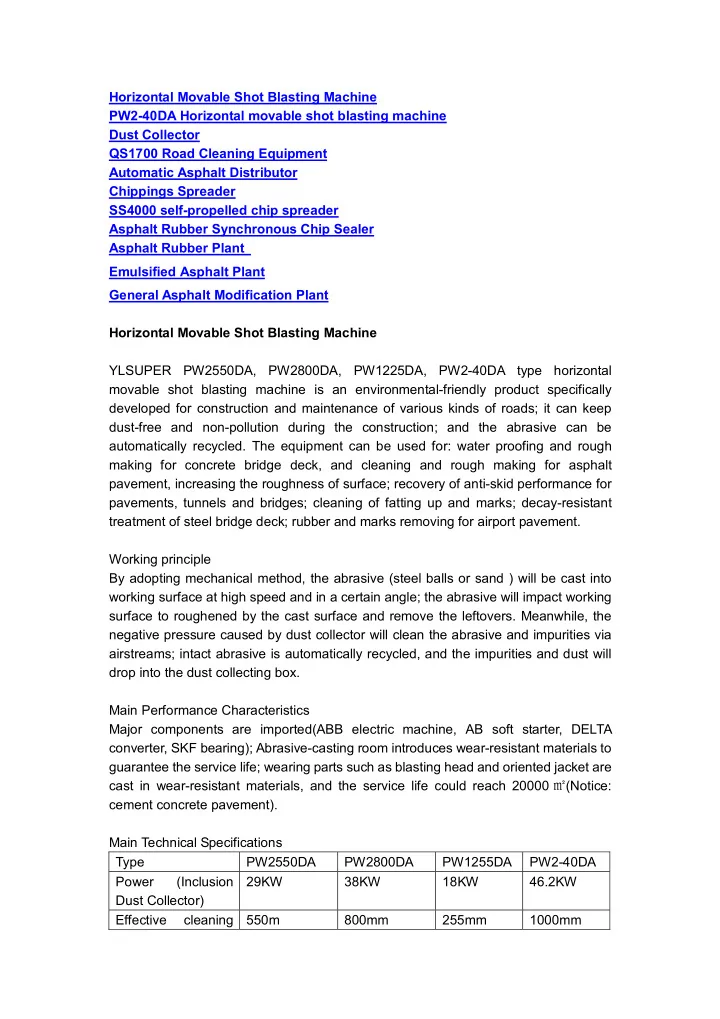

PW2-40DA Horizontal movable shot blasting machine PW2-40DA Horizontal movable shot blasting machine is an environmental-friendly product specifically developed for construction and maintenance of various kinds of roads; it can keep dust-free and non-pollution during the construction; and the abrasive can be automatically recycled. The equipment can be used for: water proofing and rough making for concrete bridge deck, and cleaning and rough making for asphalt pavement, increasing the roughness of surface; recovery of anti-skid performance for pavements, tunnels and bridges; cleaning of fatting up and marks; decay-resistant treatment of steel bridge deck; rubber and marks removing for airport pavement. Working principle By adopting mechanical method, the abrasive (steel balls or sand ) will be cast into working surface at high speed and in a certain angle; the abrasive will impact working surface to roughened by the cast surface and remove the leftovers. Meanwhile, the negative pressure caused by dust collector will clean the abrasive and impurities via airstreams; intact abrasive is automatically recycled, and the impurities and dust will drop into the dust collecting box. Main performance characteristics

Our horizontal movable shot blasting machine main components are imported(ABB electric machine, AB soft starter, DELTA converter, SKF bearing); Abrasive-casting room introduces wear-resistant materials to guarantee the service life; wearing parts such as blasting head and oriented jacket are cast in wear-resistant materials, and the service life could reach 2 0000 ㎡(Notice: cement concrete pavement). Main technical specifications 1 Product Type PW2-40DA 2 Power Triphase, 380V,50Hz 3 Gross Power (Include Dust Collector) 46.2 4 Wheel Horse Power（kw） 2×22 5 Effective Cleaning Width（mm） 1000 6 Cleaning Efficiency for Concrete Surface（㎡/h） ＞550 7 Travel Speed（m/min） 0.5-25 8 Walking Style Horizontal, Self-propelled 9 Outside Diameter（mm） 2270×1170×1435 10 Weight（kg） 1170 11 Dust Collector Type XC0408DC 12 Gross Power（kw） 7.7 13 Air Flow（m³/h） 1350 14 Ash Bucket Volume（L） 160 15 Filter Cartridge Number（pieces） 8 16 Pulse valve number（pieces） 3 17 Dust cleaning form Automatic blowback 18 Outside Diameter（mm） 2070×880×1470 19 Weight（kg） 560 20 Connection Tube Diameter（mm） 200 21 Connection Tube Length（m） 15

Dust Collector The XC0408D dust collector is a type of blowback dust collection equipment specially designed for PW2550DA and PW2800DA shot blasting machines, which can be used as strong cleaning equipment on pavements as well. And XC0406D dust collector is designed for PW1225DA shot blasting machine. Our dust collector is small-sized, portable and handy, which make it a preferred product of pavement cleaning. Main performance characteristics

The dust collector cleans dust via three-route blowback; Korean pulse valve is incorporated; sequential control principle is adopted to keep the cyclic circuit unblocked; imported dust-cleaning tubes are adopted to guarantee the wear-resistance and stability of linkage; imported filter paper is adopted for dust-cleaning effect; SKF bearing is adopted as the transmission bearing of fan to guarantee the stability and reliability of transmission. Main technical specifications Type XC0408DA/B XC0406D Gross power 6.2KW 6.2KW Power Triphase, 380V, 50Hz Triphase, 380V, 50Hz Diameter of connecting tube 150mm 150mm Air flow 1250 m³/h 1000 m³/h Appearance dimensions(L*W*H) 2070*880*1470mm 1295*855*1680mm Weight 560kg 430kg

QS1700 Road Cleaning Equipment QS1700 type road cleaning equipment, adopted advanced technologies at home and abroad, is a new designed equipment. The equipment is improved based on the structure of small loader, which is economical and practical. And it saved manpower cost with the professional and high efficiency cleaning equipment. At the same time, the equipment is environmental-friendly by using closed bucket, which can collect dust into bucket and dump it to garbage disposal points or direct loading. Main Features:

• 1. By adopting cleaning device and dust bucket, it can sweep and collect dust at the

same time.

• 2. Totally closed dust bucket leads to an environmental-friendly working place, and

static hydraulic drive leads to high working efficiency.

• 3. The equipment can be widely used to clean dust of roads, squires and airports etc.,

the cleaning width is 1700mm.

• 4. Special steel wire brush tablets are durable, high efficiency and easy to replace.

And also can be replaced by wire nylon mixed brush plate.

• 5. The sweeping width is adjustable by adjusting the bolt.

Main Technical Specificatons Type QS1700B QS1700C Cleaning Width 1700mm 1700mm Cleaning Speed 3-10km/h 3-10km/h Maximum Traveling Speed 30km/h 30km/h Weight 2960kg 2980kg Engine Power Four Cylinder Diesel/34kW Four Cylinders Diesel /47kW Brush Roll Drive Form Hydraulic motor straight-through Hydraulic motor straight-through

Appearance Dimension (L*W*H)mm 5950*2190*2700 5950*2190*2700 Automatic Asphalt Distributor The automatic asphalt distributor manufactured by our company can spray emulsified asphalt, cutback asphalt, heated asphalt, high-viscosity modified asphalt and other

• binders. This machine is highly automatic and easy to operate; it is a nice helper to all

kinds of construction and spraying works.

Main Performance Characteristics 1）The backup engine guarantees working stability; starts spraying right after running; 2）Improved heating system can not only heat quickly but also is energy-saving and environmental-friendly; 3）Optimized and improved asphalt spraying pipeline guarantees uniform spraying; 4）Tire water-jet system can effectively prevent tire from adhesion and attachment of asphalt. Main Technical Specifications Type JQ5091GLQ JQ5161GLQ JQ5251GLQ Chassis Type BJ3093DDPFD-S ZZ1161M5011C ND1255B44 Capacity of Asphalt Tank 6000L 8000L 13000L Maximum Distributing Width 6m 6m 6m Asphalt Distributing Amount 0.5～3 kg/m2 0.5～3 kg/m2 0.5～3 kg/m2 Thermal Capacity of Heating System 14-20×104kcal/h 14-20×104kcal/h 14-20×104kcal/h Mass while fully loaded: 9000kg 16000kg 25000kg Appearance Dimensions 7820×2496×3120mm 9000×2496×3430m m 9980×2495×3600m m Weight 6000kg 13640kg

Chippings Spreader Product Introduction Based on the adaptation of advanced techniques from abroad, and by taking full advantage of technical edge of our company, and also based on customers' construction experiences, the SS1631 Chippings Spreader is a new type of maintenance construction equipment manufactured by our company; performances rival all similar products at home and abroad. This product is used matching with the fully automatic asphalt distributor of our company, and it is ideal equipment for chip sealing. Main performance characteristics The combination of electric and pneumatic; no need for major alteration of dump truck; easy to disassemble. Installing selectable electrically adjusted material door and monitoring devices so as to realize the operation in the cab. Complete machine operates smoothly and sprays uniformly. Every single material door can be controlled separately for the convenience of spraying width adjustment. Fit for many types of trucks; can be modified with all kinds of dump trucks as required. Main Application： Chipping spreader is one of professional machinery that adopts layer spread method for asphalt road ,its main application is to spread certain grain size of stone chippings evenly on surface after spraying asphalt in the intention of constructing micro-surface

• r clay bound macadam pavement and so on,which is used with asphalt distributor

together,so it's an ideally professional machine for asphalt pavement. Main technical specifications Type SS1631D Maxim spreading width 3,100mm (can be customized according to machine type of customers) Quantity of controllable material doors 16 Material=aggregating specification S30～S3 (above S30 can custom-make) Spreading amount 3～30m3 /km2 Working speed 1～6km2/h Appearance Dimensions 2600×1700×1900mm Weight 800kg

SS4000 self-propelled chip spreader Our model SS4000 self-propelled chip spreader is used for spreading chips as underlying seal of higher-graded road and surface seal coat of lower-graded road construction, especially for large-scale continues road construction work. Main performance characteristics 1) Large spreading quantity to meet a variety of aggregate spreading requirements and high efficient equipment which can meet the large continuous construction. 2) An even spreading work can be ensured by controlling the roller speed and speed proportionally and the spreading amount can not be affected by the speed. 3) The auger speed and roller speed is synchronized, in favor of material transmission and separation prevention. 4) The travel system adopts power driven gear used in truck, which is featured by reliable performance and convenient maintenance. 5) Self-locking traction hook can realize the easy connection and disconnection between spreader and truck during continuous spraying. 6) The adopted high-power diesel engine has strong power and the margin of power can be adapted to spreading in all conditions and resist the dramatic change in loading. 7) Making use of the auto pneumatic control principle to make the brake and clutch controlling flexible, safe and reliable.

8) Adopting two independent braking systems to facilitate the safety of traveling. 9) Adopting advanced clutch with gas booster to greatly reduce the control force. Main Technical Specifications Asphalt Rubber Synchronous Chip Sealer Model SS4000 Aggregate Size(mm) 3-30 Spreading Width(mm) 250-4000 Spreading Rate( m3/1000m2) 2-22 Spreading Speed( km/h) 2.5-5

• Max. Travel Speed( km/h)

23 Total Mass weight(t) 12.5 Overall Dimension(L×W×H)(m m) Transporting Dimensions 7270×2860×2700 Working Dimensions 7660×4240×3660 Motor Model WD615.50 Rated Power (kw) 206 Rated Speed(r/min) 2200

The asphalt rubber synchronous chip sealer distributes asphalt binder and macadam simultaneously, which gives them most sufficient surface touch to obtain the biggest

• adhesion. The equipment, which is compact, handy and practical, is developed by

incorporating features of equipments of the same kind from the industry based on the asphalt rubber distributor and macadam spreader of our company. Main Performance Characteristics:

• 1. Compact structure; short turning radius; applicable to road construction in

mountainous and rural areas; high applicability.

• 2. Materials fall independently because of the gravity; low height to be easily operated

in height-limited areas including tunnels and culverts.

• 3. Diesel oil burner heats up asphalt via heat-conducting oil; temperature controlled

automatically.

• 4. Automatic control; excellent human-machine interface.
• 5. Recycling and spraying of asphalt are automatically controlled by the cab;

convenient to operate.

• 6. The built-in device can not only spray the emulsified asphalt, cutback asphalt, base

asphalt and modified asphalt, but also rubber (powder) asphalt. Main technical specifications: Product Type TSF0814 TSF0610 Chassis Type ZZ3317N4267C1 ZZ3257N4647C1 Asphalt Spraying Width 0.3～4.2m 0.3~3.8m Spraying Quantity 0.5～2.5kg/㎡ 0.5~2.5kg/㎡ Stone Spraying Width 0.3～4m 0.3~3.8m Asphalt Pot Cubage 8000L 6000L Stone Storage Capacity 14m³ 10 m³ Asphalt Heating Way Import Automatic Diesel Oil Burner Import Automatic Diesel Oil Burner Appearance Dimensions 11610×2496×3860mm 9838×2496×3840mm Weight 25000KG 18420KG

Asphalt Rubber Plant Based on a thorough research on many kinds of rubber asphalt plants in aspects including working principle, structure, construction technology and development trend,

we develop a type of portable asphalt rubber plant. The modular structures can be combined as needed. Heat conducting oil furnace, generator group and base asphalt tank are selectable to complete a set of rubber asphalt plant. Main Performance Characteristics of Asphalt Rubber Plant

• 1. High-capacity heat exchanger is applied to heat up base asphalt; temperature is

adjusted electronically to meet the production requirements.

• 2. Crumb rubber is weighed with electronic loadometer; feeding speed is adjusted by

spiral converter.

• 3. Base asphalt supply is controlled by variable frequency pump, measured with

flowmeter and weightometer. 4.Special asphalt pump imported from UAS makes the effect better and more durable

• 5. Drive mode: electricity-driven, with a gross power of 48kW.
• 6. Control mode: the combination of industrial control computer and PLC enables both

manual and automatic controls. The control is handy and reliable; the human-machine interface makes it friendlier.

• 7. The highly reliable high-speed hybrid shear system consisted of imported ceramic

bearing and Siemens electric machine is applied to guarantee the evenness of spreading.

• 8. The introduction of electric components from world-famous brands such ABB and

Schneider highly enhances the applicability and reliability.

• 9. The weighing system with sensors and meters of MCELL from America is accurate

and reliable.

• 10. The modular structure is portable and easy to assemble.

Main specifications of Asphalt Rubber Plant Type: AR150(AR50, AR100), stand configuration includes the principal machine and a reaction kettle Maximum output: 15(5,10)t/h, crumb rubber adding amount is 15%-22%(adjustable) Capacity of crumb rubber hopper: 0.3m3, fed with spiral

Measurement error for asphalt and crumb rubber: ≤0.5% Capacity of reaction kettle: 15m3, with a heat-cpmdictomg tray of 35m2 Appearance dimensions of reaction kettle (Length*width*height): 6090*2440*2700mm Emulsified Asphalt Plant The LR08AF type emulsified asphalt plant is one type of energy-saving and environmental-friendly production equipment developed by our company. It’s automatically controlled; adequate to continuous production; applicable to on-site production of all kinds of emulsified asphalt as well as cutback asphalt. Main Performance Characteristics

• 1. This equipment adopt weightometer can make the assistant added automatically,

many functions can be realized by PLC control system through liquid level sensor,temperature sensor, flowmeter and frequency changer as follow:liquid level

controlled automatically, water temperature controlled automatically,content of emulsion water and asphalt adjusted automatically 2.The equipment is compact and small-sized; it is applicable to on-site continuous production.

• 3. Equipped with high-efficient heat exchanger; it’s environmental-friendly and

energy-saving.

• 4. The high-efficient fine emulsifying machine equipped with specially-treated stators

and rotors has favorable wear-resistance and decay-resistance, which guarantee the effect and stability of emulsifying.

• 5. All materials that make contact with the emulsifying agent are made of stainless

steel, which makes it decay-resistant and applicable to production of all kinds of emulsified asphalts. Main Technical Specifications type LR05AF LF08AF LR10AF maxim eletric capacitance 32KW 42KW 49KW emulsifying macvhine power 15KW 22KW 30KW

• utput

4-6T/H 6-10T/H 10T/H weight 3.8T 4.5T 4T appearance dimensions 5600*2100*2450MM 5600*2100*2450MM 7200*2400*3170MM

General Asphalt Modification Plant The general asphalt modification plant we manufacture can not only be used for modified asphalt production, but also for asphalt rubber production. The plant consists

• f principal machine, modifier feeding system, additive feeding system and finished

goods storage bin. The principal machine is equipped with rapid heater, mixing tank, transition tank, colloid mill, electronic measurement device and control system. The process of asphalt modifying, which is controlled by computer, is automated and real-time monitored and displayed. The production record can be printed or searched for at any time. Main performance characteristics

• 1. A number of modifiers are applicable, such as SBS, EVA, PE, etc.
• 2. The asphalt can be heated up quickly; it’s energy-saving and efficient.
• 3. The proportion of modifier and asphalt can be set at any time as needed.
• 4. The yield can be set to any number less than the output in a period.
• 5. The modified asphalt has high quality; the milled modifier has small particle size

and is even.

• 6. The production process is automatically control, and the record can be inquired at

any time.

• 7. The measurement system is accurate, with a precision of less than 1%.
• 8. The overall design is to assemble big parts, which makes it portable and easy to

assemble. Main technical specifications Output: 25T/h Capacity of Colloid Mill: 60T/h Power of Primary Electric Machine: 160kW Gross Power of Principal Machine: 228kW Weight of Principal Machine: 22T Appearance Dimensions of Principal Machine: 12190×2440×2800mm Please feel free to contact me at any time Sales: Amanda Lee Mobile: 0086-15003857784 Skype: amandalee311 Email: amanda@ylmachine.cn MSN: amandaleeyilong@hotmail.com Web: http://cnyilong.en.alibaba.com
