High Performance Network Monitoring Challenges for Grids Les Cottrell , Presented at the Internation Symposium on Grid Computing 2006, Taiwan www.slac.stanford.edu/grp/scs/net/talk05/iscg-06.ppt Partially funded by DOE/MICS for Internet

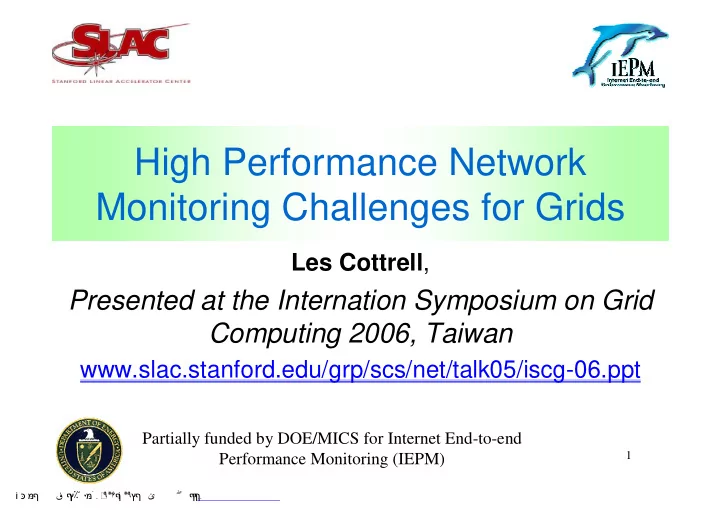

slide-1
SLIDE 1

1

High Performance Network Monitoring Challenges for Grids

Les Cottrell,

Presented at the Internation Symposium on Grid Computing 2006, Taiwan

www.slac.stanford.edu/grp/scs/net/talk05/iscg-06.ppt

Partially funded by DOE/MICS for Internet End-to-end Performance Monitoring (IEPM)

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-2
SLIDE 2

2

Why & Outline

  • Data intensive sciences (e.g. HEP) needs to move

large volumes of data worldwide

– Requires understanding and effective use of fast networks – Requires continuous monitoring

  • For HEP LHC-OPN focus on tier 0 and tier 1 sites, i.e.

just a few sites

  • Outline of talk:

– What does monitoring provide? – Active E2E measurements today and challenges – Visualization, forecasting, problem ID – Passive monitoring

  • Netflow,
  • SNMP,
  • Conclusions

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-3
SLIDE 3

3

Uses of Measurements

  • Automated problem identification & trouble

shooting:

– Alerts for network administrators, e.g.

  • Bandwidth changes in time-series, iperf, SNMP

– Alerts for systems people

  • OS/Host metrics
  • Forecasts for Grid Middleware, e.g. replica

manager, data placement

  • Engineering, planning, SLA (set & verify)
  • Also (not addressed here):

– Security: spot anomalies, intrusion detection – Accounting

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-4
SLIDE 4

4

  • Several NRENs, layer 2 & 3
  • Level of access an open issue

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-5
SLIDE 5

5

LHC-OPN: Logical view

  • The diagram to the right

is a logical representation of the LHC-OPN showing monitoring hosts

  • The LHC-OPN extends

to just inside the T1 “edge”

  • Read/query access

should be guaranteed

  • n LHC-OPN “owned”

equipment.

  • We also request RO

access to devices along the path to enable quick fault isolation

Courtesy: Shawn McKee

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-6
SLIDE 6

6

Active E2E Monitoring

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-7
SLIDE 7

7

E.g. Using Active IEPM-BW measurements

  • Focus on high performance for a few hosts needing to

send data to a small number of collaborator sites, e.g. HEP tiered model

  • Makes regular measurements with tools

– Ping (RTT, connectivity), traceroute – pathchirp, ABwE, pathload (packet pair dispersion) – iperf (single & multi-stream), thrulay, – Possibly bbftp, bbcp (file transfer applications)

  • Looking at GridFTP but complex requiring renewing certificates
  • Lots of analysis and visualization
  • Running at major HEP sites: CERN, SLAC, FNAL,

BNL, Caltech to about 40 remote sites

– http://www.slac.stanford.edu/comp/net/iepm- bw.slac.stanford.edu/slac_wan_bw_tests.html

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-8
SLIDE 8

8

IEPM-BW Measurement Topology

  • 40 target hosts in 13 countries
  • Bottlenecks vary from 0.5Mbits/s to 1Gbits/s
  • Traverse ~ 50 AS’, 15 major Internet providers
  • 5 targets at PoPs, rest at end sites

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-9
SLIDE 9

9

Ping/traceroute

  • Ping still useful (plus ca reste …)

– Is path connected/node reachable? – RTT, jitter, loss – Great for low performance links (e.g. Digital Divide), e.g. AMP (NLANR)/PingER (SLAC) – Nothing to install, but blocking

  • OWAMP/I2 similar but One Way

– But needs server installed at other end and good timers – Being built into IEPM-BW

  • Traceroute

– Needs good visualization (traceanal/SLAC) – Little use for dedicated λ layer 1 or 2 – However still want to know topology of paths

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-10
SLIDE 10

10

Packet Pair Dispersion

  • Send packets with known separation
  • See how separation changes due to bottleneck
  • Can be low network intrusive, e.g. ABwE only 20

packets/direction, also fast < 1 sec

  • From PAM paper, pathchirp more accurate than ABwE,

but

– Ten times as long (10s vs 1s) – More network traffic (~factor of 10)

  • Pathload factor of 10 again more

– http://www.pam2005.org/PDF/34310310.pdf

  • IEPM-BW now supports ABwE, Pathchirp, Pathload

Bottleneck Min spacing At bottleneck Spacing preserved On higher speed links

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-11
SLIDE 11

11

BUT…

  • Packet pair dispersion relies on accurate timing
  • f inter packet separation

– At > 1Gbps this is getting beyond resolution of Unix clocks – AND 10GE NICs are offloading function

  • Coalescing interrupts, Large Send & Receive Offload,

TOE

  • Need to work with TOE vendors

– Turn off offload (Neterion supports multiple channels, can eliminate offload to get more accurate timing in host) – Do timing in NICs – No standards for interfaces

  • Possibly packet trains, e.g. pathneck

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-12
SLIDE 12

12

Achievable Throughput

  • Use TCP or UDP to send as much data as can

memory to memory from source to destination

  • Tools: iperf (bwctl/I2), netperf, thrulay (from

Stas Shalunov/I2), udpmon …

  • Pseudo file copy: Bbcp and GridFTP also have

memory to memory mode

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-13
SLIDE 13

13

BUT…

  • At 10Gbits/s on transatlantic path Slow start

takes over 6 seconds

– To get 90% of measurement in congestion avoidance need to measure for 1 minute (5.25 GBytes at 7Gbits/s (today’s typical performance)

  • Needs scheduling to scale, even then …
  • It’s not disk-to-disk or application-to application

– So use bbcp, bbftp, or GridFTP

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-14
SLIDE 14

14

AND …

  • For testbeds such as UltraLight,

UltraScienceNet etc. have to reserve the path

– So the measurement infrastructure needs to add capability to reserve the path (so need API to reservation application) – OSCARS from ESnet developing a web services interface (http://www.es.net/oscars/):

  • For lightweight have a “persistent” capability
  • For more intrusive, must reserve just before make

measurement

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-15
SLIDE 15

15

Visualization & Forecasting

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-16
SLIDE 16

16

  • Some are seasonal
  • Others are not
  • Events may affect

multiple-metrics

  • Misconfigured windows
  • New path
  • Very noisy

Examples of real data

  • Seasonal effects

– Daily & weekly

Caltech: thrulay

Nov05 Mar06 800 Mbps

UToronto: miperf

Nov05 Jan06 250 Mbps

UTDallas

Pathchirp thrulay Mar-10-06 Mar-20-06 iperf 120 Mbps

  • Events can be caused by host or site congestion
  • Few route changes result in bandwidth changes (~20%)
  • Many significant events are not associated with route

changes (~50%)

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-17
SLIDE 17

17

Changes in netw ork topology (BGP) can result in dramatic changes in performance

Snapshot of traceroute summary table Samples of traceroute trees generated from the table ABwE measurement one/minute for 24 hours Thurs Oct 9 9:00am to Fri Oct 10 9:01am

Drop in performance (From original path: SLAC-CENIC-Caltech to SLAC-Esnet-LosNettos (100Mbps) -Caltech ) Back to original path Changes detected by IEPM-Iperf and AbWE Esnet-LosNettos segment in the path (100 Mbits/s)

Hour Remote host Dynamic BW capacity (DBC) Cross-traffic (XT) Available BW = (DBC-XT) Mbits/s Notes:

  • 1. Caltech misrouted via Los-Nettos 100Mbps commercial net 14:00-17:00
  • 2. ESnet/GEANT working on routes from 2:00 to 14:00
  • 3. A previous occurrence went un-noticed for 2 months
  • 4. Next step is to auto detect and notify

L

  • s
  • N

e t t

  • s

( 1 M b p s ) וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-18
SLIDE 18

18

Forecasting

  • Over-provisioned

paths should have pretty flat time series

– Short/local term smoothing – Long term linear trends – Seasonal smoothing

  • But seasonal trends (diurnal, weekly need to be

accounted for) on about 10% of our paths

  • Use Holt-Winters triple exponential weighted moving

averages

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-19
SLIDE 19

19

Alerting

  • Have false positives down to reasonable level,

so sending alerts

  • Experimental
  • Typically few per week.
  • Currently by email to network admins

– Adding pointers to extra information to assist admin in further diagnosing the problem, including:

  • Traceroutes, monitoring host parms, time series for RTT,

pathchirp, thrulay etc.

  • Plan to add on-demand measurements (excited about

perfSONAR)

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-20
SLIDE 20

20

In progress

  • Integrate IEPM-BW and PingER measurements

with MonALISA to provide additional access

  • Working to make traceanal a callable module

– Integrating with AMP

  • When comfortable with forecasting, event

detection will generalize

  • Looking at ARMA/ARIMA for forecasting

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-21
SLIDE 21

21

Passive - Netflow

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-22
SLIDE 22

22

Netflow et. al.

  • Switch identifies flow by sce/dst ports, protocol
  • Cuts record for each flow:

– src, dst, ports, protocol, TOS, start, end time

  • Collect records and analyze
  • Can be a lot of data to collect each day, needs lot cpu

– Hundreds of MBytes to GBytes

  • No intrusive traffic, real: traffic, collaborators, applications
  • No accounts/pwds/certs/keys
  • No reservations etc
  • Characterize traffic: top talkers, applications, flow lengths etc.
  • LHC-OPN requires edge routers to provide Netflow data
  • Internet 2 backbone

– http://netflow.internet2.edu/weekly/

  • SLAC:

– www.slac.stanford.edu/comp/net/slac-netflow/html/SLAC-netflow.html

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-23
SLIDE 23

23

Typical day’s flows

  • Very much work in

progress

  • Look at SLAC border
  • Typical day:

– ~ 28K flows/day – ~ 75 sites with > 100KB bulk-data flows – Few hundred flows > GByte

  • Collect records for several weeks
  • Filter 40 major collaborator sites, big (> 100KBytes) flows, bulk

transport apps/ports (bbcp, bbftp, iperf, thrulay, scp, ftp …)

  • Divide by remote site, aggregate parallel streams
  • Look at throughput distribution

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-24
SLIDE 24

24

Netflow et. al.

Peaks at known capacities and RTTs RTTs might suggest windows not optimized

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-25
SLIDE 25

25

How many sites have enough flows?

  • In May ’05 found 15 sites at SLAC border with > 1440

(1/30 mins) flows

– Enough for time series forecasting for seasonal effects

  • Three sites (Caltech, BNL, CERN) were actively

monitored

  • Rest were “free”
  • Only 10% sites have

big seasonal effects in active measurement

  • Remainder need

fewer flows

  • So promising

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-26
SLIDE 26

26

Mining data for sites

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-27
SLIDE 27

27

Multi months

  • Bbcp SLAC to Padova

Bbcp throughput from SLAC to Padova Fairly stable with time, large variance

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-28
SLIDE 28

28

Netflow limitations

  • Use of dynamic ports.

– GridFTP, bbcp, bbftp can use fixed ports – P2P often uses dynamic ports – Discriminate type of flow based on headers (not relying on ports)

  • Types: bulk data, interactive …
  • Discriminators: inter-arrival time, length of flow, packet length, volume
  • f flow
  • Use machine learning/neural nets to cluster flows
  • E.g. http://www.pam2004.org/papers/166.pdf
  • Aggregation of parallel flows (needs care, but not

difficult)

  • SCAMPI/FFPF/MAPI allows more flexible flow

definition

– See www.ist-scampi.org/

  • Use application logs (OK if small number)

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-29
SLIDE 29

29

More challenges

  • Throughputs often depend on non-network

factors:

– Host interface speeds (DSL, 10Mbps Enet, wireless) – Configurations (window sizes, hosts) – Applications (disk/file vs mem-to-mem)

  • Looking at distributions by site, often multi-

modal

  • Predictions may have large standard deviations
  • How much to report to application

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ

slide-30
SLIDE 30

30

Questions, More information

  • Comparisons of Active Infrastructures:

– www.slac.stanford.edu/grp/scs/net/proposals/infra-mon.html

  • Some active public measurement infrastructures:

– www-iepm.slac.stanford.edu/ – www-iepm.slac.stanford.edu/pinger/ – e2epi.internet2.edu/owamp/ – amp.nlanr.net/

  • Monitoring tools

– www.slac.stanford.edu/xorg/nmtf/nmtf-tools.html – www.caida.org/tools/ – Google for iperf, thrulay, bwctl, pathload, pathchirp

  • Event detection

– www.slac.stanford.edu/grp/scs/net/papers/noms/noms14224-122705- d.doc

וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףףِِ
