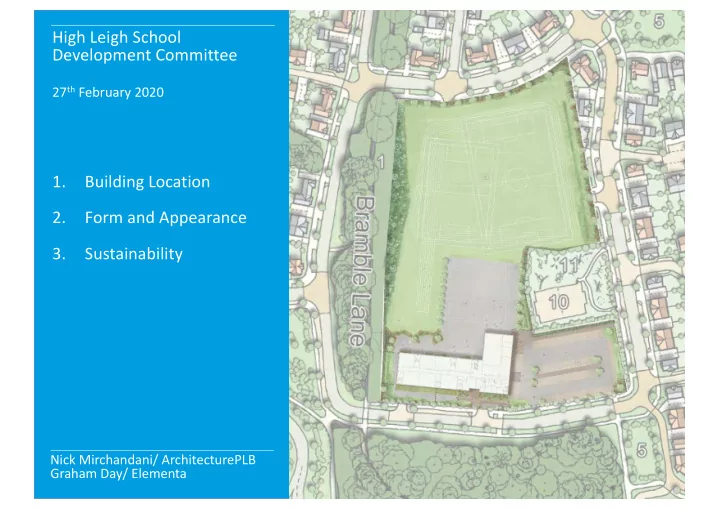

High Leigh School Development Committee

27th February 2020

1. Building Location 2. Form and Appearance 3. Sustainability

Nick Mirchandani/ ArchitecturePLB Graham Day/ Elementa

Building Location

Masterplan 1 form-entry primary school

1. L-shaped school site 2. Children’s play area 1 2

Enlarged site 2 form-entry primary school

Site enlarged to the north to accommodate greater pupil numbers Building moved away from confined corner

Proposed site layout 2 form-entry primary school

1 2 1. Main building entrance now directly faces the road 2. Deliveries and refuse to one side, well away from main entrance

Proposed site layout 2 form-entry primary school

4 3 3 1. Main building entrance now directly faces the road 2. Deliveries and refuse to one side, well away from main entrance 3. External classrooms now well away from residential neighbours 4. Improved connections between school and external play areas

Proposed site layout 2 form-entry primary school

5 6 1. Main building entrance now directly faces the road 2. Deliveries and refuse to one side, well away from main entrance 3. External classrooms now well away from residential neighbours 4. Improved connections between school and external play areas 5. Carpark now in discrete part of site, separate from pupil areas 6. Adjacent children’s play area no longer overshadowed

Proposed site layout 2 form-entry primary school

8 7 7 1. Main building entrance now directly faces the road 2. Deliveries and refuse to one side, well away from main entrance 3. External classrooms now well away from residential neighbours 4. Improved connections between school and external play areas 5. Carpark now in discrete part of site, separate from pupil areas 6. Adjacent children’s play area no longer overshadowed 7. All classrooms now orientated north or south, as preferred 8. Building on flatter part of the site; no need for retaining walls

Proposed site layout 2 form-entry primary school

1. Main building entrance now directly faces the road 2. Deliveries and refuse to one side, well away from main entrance 3. External classrooms now well away from residential neighbours 4. Improved connections between school and external play areas 5. Carpark now in discrete part of site, separate from pupil areas 6. Adjacent children’s play area no longer overshadowed 7. All classrooms now orientated north or south, as preferred 8. Building on flatter part of the site; no need for retaining walls 9. More welcoming frontage with low fencing to pavement

• 10. On-site attenuation at low point
• f site within and around carpark

10 9

Form and Appearance

• Form and Appearance

Revised elevations

Front (south) elevation Side (east) elevation

– Two-storey building – Flat roof to minimize height and allow future PV installation – Articulation to reduce visual mass – High quality facing brickwork in two different colours – Contrasting fibre-cement board to hall and early years – Double-height glazed entrance facade – Timber cladding to external stair – Extensive planting to boundaries

Form and Appearance Articulation and Materials

1 2 3 6 4 5

Form and Appearance Street frontage

Form and Appearance Main entrance

Sustainability

• SUDS to mitigate flood risk
• Water efficient fittings
• Leak detection

Sustainability | Water

• Electric car charging (20% of spaces)
• Bicycle storage
• Public transportation options

Sustainability | Transport

• Enhanced insulation
• Enhanced air tightness
• Exposed thermal mass
• Natural/hybrid ventilation
• LED lighting + occupancy/daylight

control

• Good daylighting
• Variable speed pumping

Sustainability | Energy

Sustainability | Recycling and Waste

• Materials with low

environmental impact

• “Whole life” impact

consideration

• Site waste management plan
• Provision for waste recycling

Sustainability | Biodiversity

• Ecologist appointed
• Enhancements to site

ecological value

• Management plan to maintain

ecology

Sustainability | Pollution

• Noise assessment
• Air quality assessment
• Use of refrigerants minimised
• Low NOX boilers

Thank you

Proposed site layout 2 form-entry primary school

Building moved away from confined corner

61.25 54.25 56.75

Masterplan Analysis

1. Main building entrance faces carpark and away from the road 2. Deliveries and refuse adjacent to entrance 1 2

Masterplan Analysis

1. Main building entrance faces carpark and away from the road 2. Deliveries and refuse adjacent to entrance 3. Connection to playground and playing field restricted 4. Classrooms furthest from playground 4 4 3

Masterplan Analysis

1. Main building entrance faces carpark and away from the road 2. Deliveries and refuse adjacent to entrance 3. Connection to playground and playing field restricted 4. Classrooms furthest from playground 5. Building tight to site boundaries 6. Hall overshadows adjacent children’s play area 5 6

Masterplan Analysis

1. Main building entrance faces carpark and away from the road 2. Deliveries and refuse adjacent to entrance 3. Connection to playground and playing field restricted 4. Classrooms furthest from playground 5. Building tight to site boundaries 6. Hall overshadows adjacent children’s play area 7. All classrooms face the road and require security/privacy fencing 8. External classrooms close to residential neighbours 7 8

Masterplan Analysis

1. Main building entrance faces carpark and away from the road 2. Deliveries and refuse adjacent to entrance 3. Connection to playground and playing field restricted 4. Classrooms furthest from playground 5. Building tight to site boundaries 6. Hall overshadows adjacent children’s play area 7. All classrooms face the road and require security/privacy fencing 8. External classrooms close to residential neighbours 9. Need for high retaining wall and security fencing around corner

• 10. Building sited at lowest point,

restricting on-site attenuation 10 9

Ground Floor Plan

First Floor Plan

Roof Plan

North and West Elevations

• Rear (north) elevation

Side (west) elevation

Materials precedents

1 2 3 4 5

Precedents

1 . Brick and fibre cement cladding

• Jupiter School,

Architecture PLB

• 2. Brick building simplicity and timber stair
• Jupiter

School, Architecture PLB

• 3. Grey and different colour cladding panels
• 4. Coloured metal surround to window and combination
• f grey and coloured cladding panels
• Park Brow

Community Primary School

• 5. Colour introduction to brick facade
• Leeds College of

Building Capmus, Fuse Architects

View from south west
