High Efficiency BHJ Solar Cells with IQE Approaching 100% fabricated with th P l ( the Poly (2,7 Carbazole) Copolymer, PCDTBT C b l ) C l PCDTBT Sung Heum Park Heeger Center for Advanced Materials, Gwangju Institute of Science and

slide-1

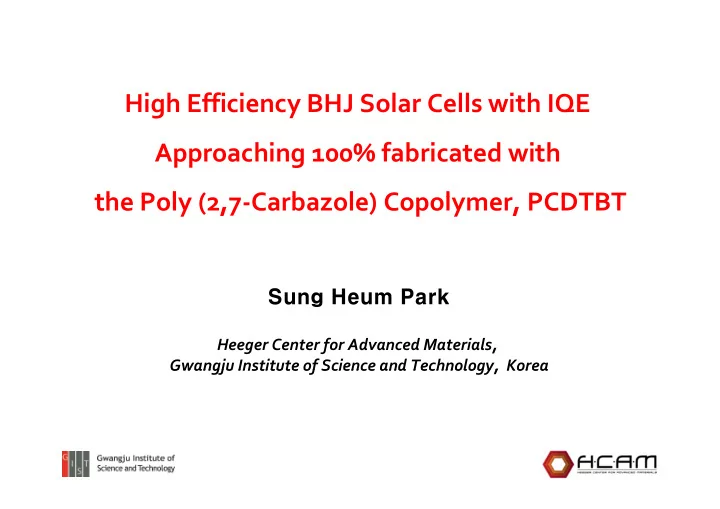

SLIDE 1

High Efficiency BHJ Solar Cells with IQE Approaching 100% fabricated with th P l ( C b l ) C l PCDTBT the Poly (2,7‐Carbazole) Copolymer, PCDTBT

Sung Heum Park

Heeger Center for Advanced Materials, Gwangju Institute of Science and Technology, Korea Gwangju Institute of Science and Technology, Korea

slide-2
SLIDE 2

i) Large area ii) Easy fabrication ii) Easy fabrication iii) Room temp. processibility iv)Thin film form v) Flexibility vi) Mass production (Spin cast, Ink‐jet printing method, etc.) Ink jet printing method, etc.) vii) Low cost

slide-3
SLIDE 3

Efficiency = Isc x Voc x FF / Power

  • Isc :

– Better harvest of solar spectrum p – Increase absorption in active layer – Improve Internal Quantum Efficiency

  • Voc :

– Higher HOMO – Lower LUMO – Increase internal Field

  • FF :
  • FF :

– Higher Carrier Mobility – Decrease Internal resistance Decrease Internal resistance

slide-4
SLIDE 4

0.8 1.0 PCDTBT PC BM 0 4 0.6

Coefficient

PC70BM 0 0 0.2 0.4

Extinction

TiO TiOx

300 400 500 600 700 800 900 1000 0.0

Wavelength (nm)

slide-5
SLIDE 5

6% 6% under AM 1.5 condition under AM 1.5 condition 17% 17% under green light condition under green light condition

slide-6
SLIDE 6

5

m2)

  • 5

ty (mA/cm

Light curent - dark current

  • 10

nt Densit

Light current Dark current

  • 4
  • 3
  • 2
  • 1

1

  • 20
  • 15

Curren Voltage (V)

Every photon absorbed leads to a separated pair of charge carriers!!! Every photogenerated mobile carrier is collected at the electrode!!!

slide-7
SLIDE 7
  • High efficiency BHJ solar cell has been demonstrated.

PCE ~ 6% under AM 1.5G PCE~ 17% with monochromatic radiation (532 nm)

  • IQE of device approaches 100%

Every photon absorbed leads to a separated pair of charge carriers and that every photogenerated mobile carrier is collected at the electrode that every photogenerated mobile carrier is collected at the electrode

“There is fundamentally no problem that cannot be overcome There is fundamentally no problem that cannot be overcome with regard to collecting charge from polymer solar cells”.
