High-accuracy, high-precision, high-resolution, source-specific monitoring of urban greenhouse gas emissions? Results to date from INFLUX Jocelyn Turnbull, National Isotope Centre, GNS Science, New Zealand and CIRES, University of Colorado,


slide-1
SLIDE 1

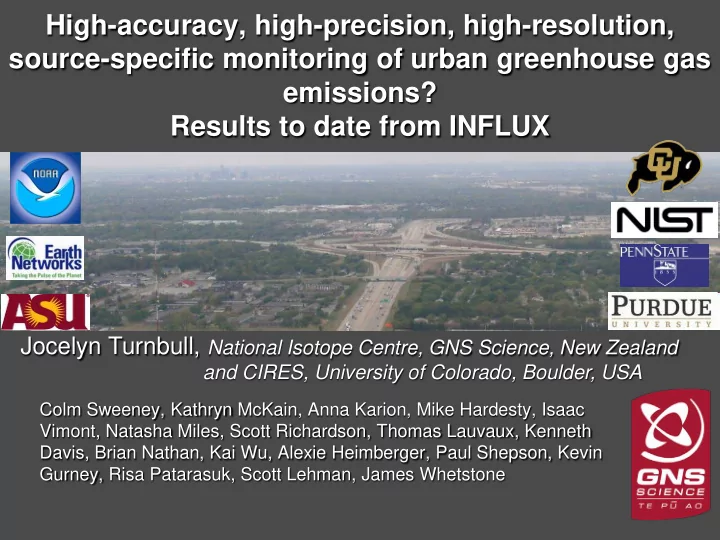

High-accuracy, high-precision, high-resolution, source-specific monitoring of urban greenhouse gas emissions? Results to date from INFLUX

Colm Sweeney, Kathryn McKain, Anna Karion, Mike Hardesty, Isaac Vimont, Natasha Miles, Scott Richardson, Thomas Lauvaux, Kenneth Davis, Brian Nathan, Kai Wu, Alexie Heimberger, Paul Shepson, Kevin Gurney, Risa Patarasuk, Scott Lehman, James Whetstone

Jocelyn Turnbull, National Isotope Centre, GNS Science, New Zealand

and CIRES, University of Colorado, Boulder, USA

slide-2
SLIDE 2

INFLUX motivation and goals

Indianapolis Flux Experiment (INFLUX)

  • Motivation

– Anthropogenic greenhouse gas (GHG) emissions are uncertain at local / regional scales, where emissions mitigation will happen. – Validation of emissions mitigation will require independent measurements. – Atmospheric GHG measurements can potentially provide such independent emissions estimates.

  • Goals

– Develop and assess methods of quantifying GHG emissions at the urban scale, using Indianapolis as a test bed. – Determine whole-city emissions of CO2 and CH4 – Distinguish biogenic vs. anthropogenic sources of CO2 – CO2ff source sector attribution – Quantify and reduce uncertainty in urban emissions estimates – Evaluate and improve bottom-up data products

slide-3
SLIDE 3

INFLUX toolbox

  • Stationary atmospheric observations:

– 12 GHG Towers with in situ CO2, CH4, CO – 6 flask samplers 14CO2, other trace gases – Doppler lidar – 4 eddy covariance flux towers

  • Mobile atmospheric observations:

– periodic aircraft flights (GHG, met, flasks) – periodic automobile GHG sampling

  • Emissions products:

– Hestia (250m resolution, Indianapolis) – ODIAC (1km resolution, global)

  • Modeling system:

– WRF-Chem, 1km, nested, with meteorological data assim. – Lagrangian Particle Dispersion Model. – Bayesian matrix inversion. – Modeled and directly observed GHG lateral boundary conditions.

slide-4
SLIDE 4

Picarro, CRDS sensors 12 measuring CO2 11 with CH4 5 with CO

INFLUX TOWER NETWORK Inversion-based flux estimates

Communications towers ~100 m AGL 6 NOAA automated flask samplers 50 species

slide-5
SLIDE 5

[CO2] at INFLUX towers

2011 2012 2013

  • Afternoon daily

[CO2]

  • Seasonal signal

is apparent

  • Significant
  • verlap between

sites (weather- driven variability)

Miles et al, in prep

slide-6
SLIDE 6

Model framework

X

Combination of tower surface footprints with prior CO2 emissions to generate modeled mixing ratios Inversion to optimize the Hestia prior emissions

Lauvaux et al, in press; Gurney et al., 2012

footprints Hestia bottom-up data product

slide-7
SLIDE 7

Inversion: Indianapolis whole-city CO2 emissions

Sept12 – Apr13 Indianapolis CO2 emissions: Hestia bottom-up: 4.6 MtC Inversion: 5.7 MtC +/- 0.2 MtC

Lauvaux et al, in press

slide-8
SLIDE 8

Impact of CO2ff observations on an inversion OSSE: CO2ff observations recover signal lost due to biological fluxes

Fossil flux only (no bio) Fossil and bio fluxes Fossil and bio fluxes with CO2ff obs

reduction in the prior error

Wu et al, in prep Transport errors (ppm) 0.1 0.5 1

slide-9
SLIDE 9

How can we constrain CO2ff?

Flask 14CO2 determines CO2ff BUT limited flask data (~ 6 samples/month) Need higher temporal resolution CO2ff

δCO2ff ∆14CO2

2011 2012 2013 2014 2015 2016

slide-10
SLIDE 10

In winter, δCO2 approximates δCO2ff

Flask measurements of 14CO2 to determine CO2ff In winter, δCO2 can be entirely explained by δCO2ff But not in summer!

Winter correlations Slope δCO2/δCO2ff (ppm/ppm) r2 All towers 1.1±0.1 0.8 Tower Two 0.9±0.2 0.8

1:1 line if all δCO2 is due to δCO2ff

Turnbull et al., 2015

δCO2ff (ppm) δCO2(ppm)

slide-11
SLIDE 11

CO as a proxy for CO2ff throughout the year

CO is co-emitted with CO2ff When emission ratio RCO is known, determine CO2ff from in situ CO at high resolution Determine emission ratio RCO from afternoon flask data Varies by tower – differing source mixture in footprints of each tower

RCO

(ppb/ppm)

All towers 8±1 T2 9±1 T3 6±2 T5 7±1 T9 8±2

Turnbull et al., 2015

slide-12
SLIDE 12

Derive diurnally varying RCO from Hestia bottom-up data product

Tower Two Tower Three Tower Five Tower Nine Bottom-up

Assign time-varying RCO based on Hestia bottom-up data product Upcoming refinement: convolve modelled footprints and Hestia for tower- and time-specific RCO

Turnbull et al., 2015

slide-13
SLIDE 13

Aircraft Mass balance CO2 flux estimates

wind probe Camera Picarro, cal system, PFP Air Inlets Low-cost pilot top-notch maintenance

slide-14
SLIDE 14

Mass Balance method : whole city CO2 flux determination from aircraft

Heimberger et al., in prep

slide-15
SLIDE 15

Use mass balance technique to determine whole-city emission flux for each flight date

Mass Balance whole city CO2 flux determination from aircraft

Heimberger et al., in prep

slide-16
SLIDE 16

Aircraft Mass Balance Method

Perpendicular wind speed Wind emissions Wind

Background CO2 Downwind CO2

CO2 flux Molar CO2 enhancement in air layer

References: White et al., 1976; Ryerson et al., 2001; Cambaliza et al., 2014

Layer depth

slide-17
SLIDE 17

Mass balance em ission rates

CO

Emission rate (mol/s) CO winter 2014 108 (16%) CO2 winter 2014 14,600 (17%) CO summer 2015 172 (64%)

Heimberger et al., in prep

slide-18
SLIDE 18

Aircraft flask-based emission ratios

CO2 vs CO2ff winter 1.2±0.1 ppm/ppm RCO 8±2 ppb/ppm Summer and winter 4-6 flasks per flight Consistent with tower ratios

slide-19
SLIDE 19

Mass balance em ission rates

CO

Emission rate (mol/s) CO winter 2014 108 (16%) CO2 winter 2014 14,600 (17%) CO summer 2015 172 (64%)

Heimberger et al., in prep

slide-20
SLIDE 20

Comparison of whole city flux estimates (preliminary)

Generally good agreement across methods Summer estimate appears too high – RCO biased by additional CO source? 1 2 3 4 5 6 7 8 9

CO2ff Hestia CO2ff inversion Total CO2 winter 2014 CO2ff from CO winter 2014 CO2ff from CO summer 2015

Flux (MtC/yr)

Hestia Inversion CO2 CO2ff CO2ff fall 2014 fall 2014 summer 2015 from CO2 from CO from CO

slide-21
SLIDE 21

Source of CO from oxidation of biogenic VOCs in summer?

CO stable isotopes partition emission sources

Winter: All CO derived from fossil fuel combustion Summer: 20-25% of CO from VOC oxidation Poster P-7 today Vimont et al., in prep

slide-22
SLIDE 22

Comparison of whole city flux estimates (preliminary)

Generally good agreement across methods Summer estimate appears too high – RCO biased by additional CO source? 1 2 3 4 5 6 7 8 9

CO2ff Hestia CO2ff inversion Total CO2 winter 2014 CO2ff from CO winter 2014 CO2ff from CO summer 2015 CO2ff from CO sum2015 corr

Flux (MtC/yr)

Hestia Inversion CO2 CO2ff CO2ff CO2ff fall 2014 fall 2014 summer 2015 summer 2015 from CO2 from CO from CO from CO*

slide-23
SLIDE 23

Conclusions

Top-down constraints on urban CO2ff emissions

  • Tower-based inversion increases CO2 flux relative to Hestia bottom-up data

– Next steps use flask/in situ CO to separately constrain CO2ff in inversion

  • Aircraft-based mass balance flux agrees with inversion

– In winter, CO2-based mass balance and flask/CO-based mass balance agree – Summer flask/CO-based mass balance much higher, appears to be due to contribution of CO from VOC oxidation.

  • All top-down methods suggest higher flux than Hestia bottom-up estimate
