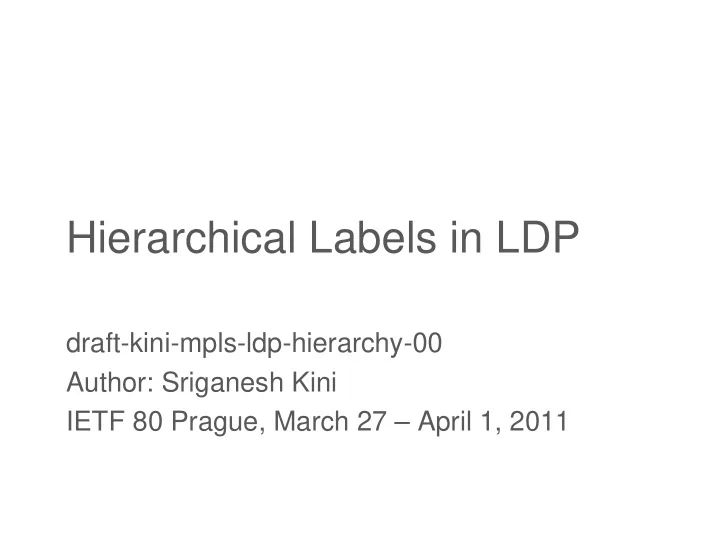

Hierarchical Labels in LDP

draft-kini-mpls-ldp-hierarchy-00 Author: Sriganesh Kini IETF 80 Prague, March 27 – April 1, 2011

SLIDE 2

Sriganesh Kini | IETF80 Prague | March 27 - April 1, 2011 | Page 2 (11)

Problem statement

› Typical LDP deployments advertise a unique label per FEC › When nexthop changes (e.g. due to failure), ILM and FTN entries need to be updated. › Under scaled scenarios this leads to slower convergence

– Detection time (Nexthop change) – Download time (Control to data plane)

SLIDE 3

Sriganesh Kini | IETF80 Prague | March 27 - April 1, 2011 | Page 3 (11)

Alternatives considered

› Scale IGP › Use another protocol to distribute FECs (e.g. BGP) › Targeted LDP

SLIDE 4

Sriganesh Kini | IETF80 Prague | March 27 - April 1, 2011 | Page 4 (11)

Solution

› Changes restricted to LDP › Include “Egress LSR Address” for a FEC in LDP

messages. The label is referred to as a hierarchical label
r H-Label.

› Transport the label mapping with H-Label to all LSRs in the

area. (Note: Label mapping to Egress LSR address is

unchanged) › Transport the metric info for a FEC in LDP. › Install LSP to the shortest-path to the FEC

SLIDE 5

Sriganesh Kini | IETF80 Prague | March 27 - April 1, 2011 | Page 5 (11)

Solution (contd)

› Use label hierarchy by stacking a label to the Egress above the label of the FEC › Under failure, downloading the changed nexthop to the egress results in traffic being restored

SLIDE 6

Sriganesh Kini | IETF80 Prague | March 27 - April 1, 2011 | Page 6 (11)

Solution characteristics

› Works with both link-state and non link-state IGPs › Enables IGP to carry minimal info

– Added side effect of IGP speed up due to carrying less state

› With PHP no extra labels required on data path

SLIDE 7

Sriganesh Kini | IETF80 Prague | March 27 - April 1, 2011 | Page 7 (11)

New/Changed TLVs

› Hierarchical Label TLV › Metric TLV › More Label TLV › Capability Parameter TLV

SLIDE 8

Sriganesh Kini | IETF80 Prague | March 27 - April 1, 2011 | Page 8 (11)

Messages and procedures

› Supports all current label distribution/control and retention modes

– Label Mappings received from the neighbor that has the nexthop to the Egress is chosen for advertisement to neighbors

› Metric comparison procedure

– Allows preference between different metric types

SLIDE 9

Sriganesh Kini | IETF80 Prague | March 27 - April 1, 2011 | Page 9 (11)

Example

› Pre-failure packet flow (with PHP)

A C B

FEC-1 FEC-1 FEC-n IP hdr FEC-1 Data

SLIDE 10

Sriganesh Kini | IETF80 Prague | March 27 - April 1, 2011 | Page 10 (11)

Example (contd)

› On failure when A updates FTN/ILM entry for egress B › Traffic to FEC-1 recovers
