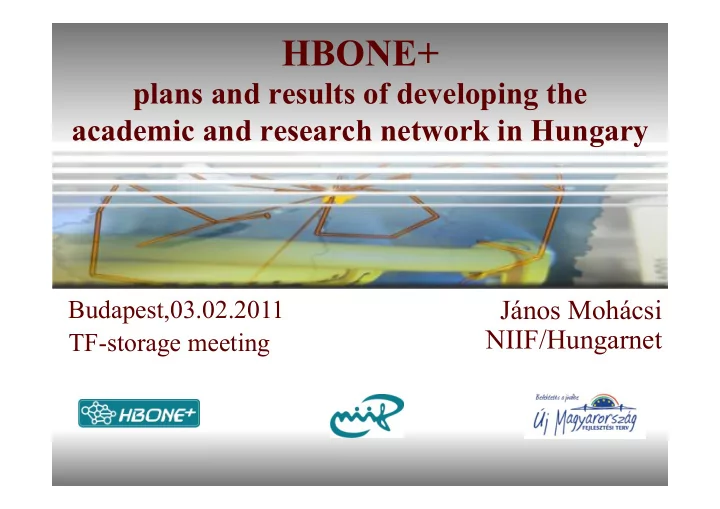

HBONE+ plans and results of developing the academic and research network in Hungary Jnos Mohcsi Budapest,03.02.2011 NIIF/Hungarnet TF-storage meeting Outline Nemzeti Informcis Infrastruktra Fejlesztsi Intzet NIIF program

slide-1
SLIDE 1

HBONE+

plans and results of developing the academic and research network in Hungary

János Mohácsi NIIF/Hungarnet

Budapest,03.02.2011 TF-storage meeting

slide-2
SLIDE 2

Nemzeti Információs Infrastruktúra Fejlesztési Intézet TF-Storage meeting 03.02.2011

Outline

  • NIIF program and service structure
  • NDP (ÚMFT) projects of NIIF –

the HBONE+ project

  • 2. oldal
slide-3
SLIDE 3

Nemzeti Információs Infrastruktúra Fejlesztési Intézet TF-Storage meeting 03.02.2011

Services and development areas of NIIF/Hungarnet

  • Network: HBONE, IPv6, VPN, multicast
  • Middleware: Directory, Shibboleth based AAI, CA/SCS, Eduroam
  • HPC: Supercomputing, ClusterGrid, storage
  • Applications:
  • Collaborative: Videoconferencing, VoIP, Video-on-Demand
  • Basic +Value added: webhosting, mail, Hungarian Electronic Library,

MOKKA, Subject Gateway (SZEZÁM)

slide-4
SLIDE 4

Nemzeti Információs Infrastruktúra Fejlesztési Intézet TF-Storage meeting 03.02.2011

NIIF/Hungarnet Services

A. Network Infrastructure

1. 10 Gbps domestic/international connectivity (HBONE/GEANT) 2. E2E accessibility (Optical/SDH/ADSL) 3. Technology (IPv6, QoS, MPLS, VPN, Multicast, Cache …) 4. Network & traffic monitoring/management 5. Hungarian “light” project: 10G on dark fibre connections since 2004 6. Traffic: 10 GE transmission on DWDM – aggregate 3-3 Gbps in/out (inc.DWS)

B. Network Services

1. Supercomputing (phys., chem., biol., geol., astron., technol. …) 2. Home working (R&D&E community) 3. VoIP 4. Videoconferencing 5. Subject gateways/portals 6. General services (virtual helpdesk, CSIRT, directories, PKI/CA …)

C. Network Applications

1. Distributed/integrated public collection databases/access 2. Tele-working, tele-teaching 3. Networked applications (health, environment, industry, economy …) 4. Grids (ClusterGrid, SuperGrid, int’l grid projects /EGEE, SEEGRID, KnowARC/)

  • 4. oldal
slide-5
SLIDE 5

Nemzeti Információs Infrastruktúra Fejlesztési Intézet TF-Storage meeting 03.02.2011

NIIF Program

  • Servicing – NIIF (I2F)founded in 1986

! All universities, research institutes, major museums, libraries, some hospitals

  • Resources:

! infrastructure + expertise + interest + int’l relations ! ~ 6...8 MEUR / yr (70 % govt., 20 % users, 10 % projects) ! ~ 45 NIIFI staff + part-time FTEs country-wide

  • Major Programs in NDP2 (ÚMFT):

! operative program for infrastructure development (TIOP, KMOP)

  • based on EU structural funds

! operative program for services development (TÁMOP targeting AAI, grid, video sharing portal) – based on EU cohesion funds

  • European Projects:

! GN3, 6DEPLOY, FEDERICA ! KnowARC, EGEE, HP-SEE, EMI

2009.01.21. 5

slide-6
SLIDE 6

Nemzeti Információs Infrastruktúra Fejlesztési Intézet TF-Storage meeting 03.02.2011

Network infrastructure - HBONE

slide-7
SLIDE 7

Nemzeti Információs Infrastruktúra Fejlesztési Intézet TF-Storage meeting 03.02.2011

NIIFI participation in NDP2

  • 7. oldal

TIOP 1.3.2 KMOP 4.2.1(A_2) TÁMOP 4.1.3 Central Hungary region Convergence regions Service development Infrastructure development

  • HBONE+ project: June 2009 - December 2011
  • NDP2/ÚMFT projects

TIOP-1.3.2-08/1-2009-0001 and KMOP-4.2.1/A_2-2009-0001

  • Support: ~4.2 MdFt (~ 14 mEUR)
  • TÁMOP 4.1.3: May 2008 – October 2010
  • Support: ~560 mFt (~ 1.5 mEUR)
slide-8
SLIDE 8

Nemzeti Információs Infrastruktúra Fejlesztési Intézet TF-Storage meeting 03.02.2011

HBONE+ network

  • Hybrid network infrastructure

! Dark fibre ! DWDM service – VOPN / dynamic lambda allocation

" Supporting alien wavelengths – to universities

! Backbone routers – Flexible IP/MPLS Metro Ethernet

  • Extension of distribution network

! Licensed Microwave systems - 34-200 Mbps

  • 8. oldal
slide-9
SLIDE 9

Nemzeti Információs Infrastruktúra Fejlesztési Intézet TF-Storage meeting 03.02.2011

Equipments and Network

  • Optical network:

! 79 site, ~3200km ! Backbone based on Hungarian Electricity Company ! Local loops

  • DWDM system - Alcatel-Lucent PSS-1830

! Optical connection: from users to users ! 80 channel system with 40 channel licensed ! Engineered for 40G/100G capability ! 10G ROADM backbone ! Operated by NIIFI

  • IP/MPLS system – Cisco ASR9000

! „Green” system ! Operated by NIIFI

  • State of the art technologies

! 40/100 GBps and IPv6

  • Total cost: 2.1 billion HUF ~ 7.8 MEUR
slide-10
SLIDE 10

Nemzeti Információs Infrastruktúra Fejlesztési Intézet TF-Storage meeting 03.02.2011

HBONE+ DF gerinc

  • 10. oldal
slide-11
SLIDE 11

Nemzeti Információs Infrastruktúra Fejlesztési Intézet TF-Storage meeting 03.02.2011 11

Dedicated HPC network

NIIF site, with HPC

HPC !

Szeged Dunaújváros Debrecen Sopron VH Pécs

2x 2x 2x 2x 2x

slide-12
SLIDE 12

Nemzeti Információs Infrastruktúra Fejlesztési Intézet TF-Storage meeting 03.02.2011

Hybrid Network Services

  • Lightpath Service

! Dedicated Network capacity for projects

" already 10 demands

! Point-to-point circuits – !oD

  • L2 VPN, managed Ethernet - Fine-

grained capacity provisioning – with routers

  • Traditional IP: IPv4/6, unicast/

multicast, L3 VPN, with QoS and SLA

12.

slide-13
SLIDE 13

Nemzeti Információs Infrastruktúra Fejlesztési Intézet TF-Storage meeting 03.02.2011

HBONE+ middleware

  • Virtualised AAI services –

for smaller institutions

  • Supporting federated

authentication and authorisation

  • European eduroam/

eduGAIN compatibility

  • Eduroam

! 20 large universities

  • HREF – Hungarian

Research and Education Federation /eduID ! 10 large universities

  • 13. oldal

Service

Home institute

Federation

Trust

slide-14
SLIDE 14

Nemzeti Információs Infrastruktúra Fejlesztési Intézet TF-Storage meeting 03.02.2011

HBONE+ HPC

  • Supercomputing:

! 3 universities in countryside + NIIFI center ! NUMA and cluster/MPP systems ! Dedicated network capacity between the centers ! min. 3 x 2-8 Tflops + NIIFI (1 TFlops) ! National research and academic usage ! Software stack:

" LRMS, HPC libraries " programming environments,

compilers, debuggers, profilers

! National + European integration

(Grid, KnowARC, DEISA -> PRACE)

  • 14. oldal
  • Storage:

! 2 further universities

! Dunaújváros, Sopron

! national storage grid ! initially min. 0.5 PByte capacity

slide-15
SLIDE 15

Nemzeti Információs Infrastruktúra Fejlesztési Intézet TF-Storage meeting 03.02.2011

Goals and requirements for HPC

  • Goal: provide state-of-the-art HPC capacity

and facility for Hungarian researchers, professors, and students

  • 10 years of experience with SUN E10/15/25K

SMP and grids

  • Requirements:

! 3x8 Tflops, ! Most advanced processors, ! Redundant QDR Infiniband internal links, 4x10GE external connectivity, ! >200 Tbyte disk/site, ! Energy efficiency (green computing)->water cooling (max 60 kW/site), ! Visualisation capability

  • 15. oldal
slide-16
SLIDE 16

Nemzeti Információs Infrastruktúra Fejlesztési Intézet TF-Storage meeting 03.02.2011

Result of the tender

  • Launch: 2011. Februar-March.
  • 4 sites:

! PTE (NUMA, SGI); ! DE (cluster/mpp, SGI); ! SZTE (cluster, HP); ! NIIFI (cluster, HP).

  • Accumulated capacity:

! Computing: 47.85 Tflops (100 x). ! Number of cores: 4780 (20 x). ! Memory: 8 Tbyte (20 x). ! Disk capacity: nettó 1033 Tbyte (50 x).

  • Total cost: ~ 1.0 billion HUF ~ 3.7 MEUR
  • 16. oldal
slide-17
SLIDE 17

Nemzeti Információs Infrastruktúra Fejlesztési Intézet TF-Storage meeting 03.02.2011

Storage system

  • 17. oldal
  • Distributed
  • Scalable
  • Energy efficient
slide-18
SLIDE 18

Nemzeti Információs Infrastruktúra Fejlesztési Intézet TF-Storage meeting 03.02.2011

Storage system

  • 18. oldal
  • Distributed
  • Scalable
  • Energy efficient
slide-19
SLIDE 19

Nemzeti Információs Infrastruktúra Fejlesztési Intézet TF-Storage meeting 03.02.2011

HBONE+ collaboration

  • Videoconferencing

! 30+2 fullHD VC room systems – installed at the universities ! Centrally manageable SIP/ H.323, fullHD MCU ! Desktop videoconferencing system

Integrated with the existing videoconferencing system

  • f NIIF/Hungarnet

! Web/Desktop

conferencing

! Wide platform support

  • 19. oldal
  • VOIP

! Upgrading the existing Voice gateways ! Supporting deployment of IP PBX systems

slide-20
SLIDE 20

Nemzeti Információs Infrastruktúra Fejlesztési Intézet TF-Storage meeting 03.02.2011

HBONE+ collaboration

  • HD Videoconferencing

! 30 x Polycom HDX 8000 + Polycom RMX 4000 MCU + management ! Installed and used

  • Desktop videoconferencing systems

! Vidyo Router/Gateway/Portal ! Installed and used

  • VoIP
  • Upgrading the existing Voice gateways

! 35 x Cisco 2811 Voice bundle replaced old Cisco 5350s

  • 20. oldal
slide-21
SLIDE 21

Nemzeti Információs Infrastruktúra Fejlesztési Intézet TF-Storage meeting 03.02.2011

  • 21. oldal

NIIF videoconferencing service

slide-22
SLIDE 22

Questions?

Mohácsi János mohacsi@niif.hu net-admin@niif.hu
