EEL4924 Electrical Engineering Design 2 (S09) Final Presentation Date: Aug 4, 2009 H b id S Hybrid Synth th Team: Synthesize Me Jamie Madaris Jamie Madaris Jack Nanney 8/10/2009 1 Project Overview j Analog Synthesizer 44

slide-1

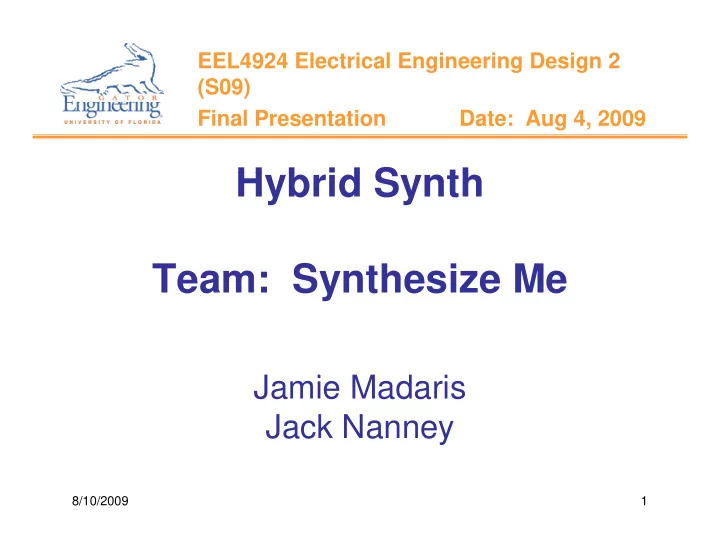

SLIDE 1

EEL4924 Electrical Engineering Design 2 (S09)

H b id S th

Final Presentation Date: Aug 4, 2009

Hybrid Synth Team: Synthesize Me

Jamie Madaris Jamie Madaris Jack Nanney

8/10/2009 1

slide-2
SLIDE 2

Project Overview j

  • Analog Synthesizer

– 44 User-Adjustable Features – MIDI-Compatible Content Highlights: – 2 Digitally-Created LFOs – 3 Independent Oscillators – 2 Independent Filters, with User-Defined Order Selection – ADSR

8/10/2009 2

slide-3
SLIDE 3

Progress to Date g

  • Soldered PC Boards

Soldered PC Boards

  • Tested Boards

B ilt i it l

  • Built circuit enclosures

8/10/2009 3

slide-4
SLIDE 4

Current Work

  • Create front panel attach pots/switches
  • Create front panel, attach pots/switches
  • Further testing, calibrations

8/10/2009 4

slide-5
SLIDE 5

Future Ideas for Improvement

  • Updating the technology to fit

Updating the technology to fit considerations such as cost and size.

  • “Touch Ups” on exterior package (Adding
  • Touch Ups on exterior package (Adding

color, knobs, etc.)

8/10/2009 5

slide-6
SLIDE 6

Updated Gantt Chart p

8/10/2009 6

slide-7
SLIDE 7

Overall Project Status j

Select One Status Select One Status Ahead of schedule Ahead of schedule O h d l O h d l On schedule On schedule Behind schedule Behind schedule

X

To stay on schedule we need to continue a steady work pace p

8/10/2009 7
