2018 U P D A T E

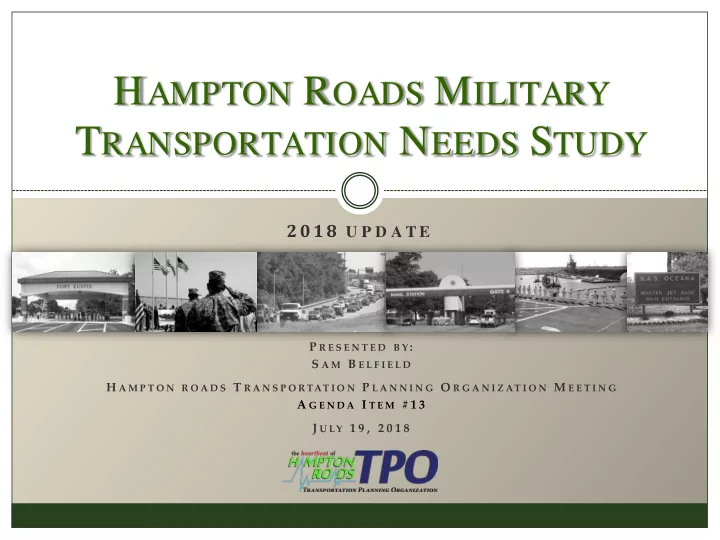

HAMPTON ROADS MILITARY TRANSPORTATION NEEDS STUDY

P R E S E N T E D B Y: S A M B E L F I E L D H A M P T O N R O A D S T R A N S P O R TAT I O N P L A N N I N G O R G A N I Z AT I O N M E E T I N G A G E N D A I T E M # 1 3 J U LY 1 9 , 2 0 1 8

slide-2
SLIDE 2

2 / 14

Study Objective

 The overall purpose of this planning effort is to determ ine m ilitary

transportation needs and to provide an efficient and safe transportation network for the m ilitary in Hampton Roads.

 It updates the data/ analysis in the original Military Transportation Needs Study

(2011-2013): Phases I and III.

 It identifies the m ajor Military and Supporting Sites and “Roadways

Serving the Military in Ham pton Roads”. It determ ines deficiencies within this roadway network in order to prioritize transportation projects and solutions that im prove m ilitary travel.

Phas ase I e I: High ghway ay Net etwork A Anal alysis Phas ase I e II: Militar ary C Commuter er S Survey ey Phase II III: Road adway ays Ser erving t g the e Militar ary an and Sea L ea Lev evel el Rise/ e/Storm S Surge ge

slide-3
SLIDE 3

3 / 14

Major Military Installations in Hampton Roads –

Personnel and Econom ic Im pacts

Military Installation Personnel (FY16) Econom ic Im pact in HR (FY16) Naval Station Norfolk

  • 75,803
  • $6.05 Billion

Naval Air Station (NAS) Oceana & Dam Neck Annex

  • 17,366
  • $1.36 Billion

Joint Expeditionary Base Little Creek – Fort Story (JEBLCFS)

  • 23,400
  • $1.16 Billion

Naval Support Activity (NSA) Hampton Roads

  • 11,424
  • $1.0 Billion

Norfolk Naval Shipyard

  • 12,906
  • $794 Million

Naval Weapons Station Yorktown

  • 3,081
  • $283 Million

Joint Base Langley-Eustis (JBLE)

  • 20,000
  • $2.1 Billion

Fifth Coast Guard District

  • 6,148

Sources : Navy Region Mid-Atlantic Hampton Roads Area FY 2016 (10/1/15-9/30/16) Economic Impact Report, November 2017 Joint Base Langley-Eustis, Economic Impact Analysis FY 2016

slide-4
SLIDE 4

4 / 14

LEGEND

STRAHNET Interstate Highway STRAHNET Connector STRAHNET Site

Prepared by: HRTPO Staff, August 2017

Strategic Rail Corridor Network (STRACNET) Railroad Non-Interstate STRAHNET Route Non-STRACNET Railroad

Strategic Highway Network (STRAHNET)

Hampton Roads

Definition Total minimum defense highway network to support defense emergency and are used for daily military cargo movement.

Data Source: SDDCTEA and FHWA

13 Total STRAHNET Sites

slide-5
SLIDE 5

5 / 14

37 Military and Supporting Sites

LEGEND

Other Intermodal Facility Other Military Site Strategic Highway Network (STRAHNET) Site

Prepared by: HRTPO Staff, Sept 2017

13 STRAHNET Sites 6 Other Intermodal Facilities 18 Other Military Sites

slide-6
SLIDE 6

6 / 14

Roadways Serving the Military

LEGEND

Other Intermodal Facility Other Military Site Strategic Highway Network (STRAHNET) Site

Prepared by: HRTPO Staff, Sept 2017

STRAHNET Roadway Non-STRAHNET Roadway Serving Military Site or Intermodal Facility Non-Roadway Serving the Military

slide-7
SLIDE 7

7 / 14

Severely Congested Roadways Serving the Military

20 16 PM Peak

LEGEND

Other Intermodal Facility Other Military Site Strategic Highway Network (STRAHNET) Site

Prepared by: HRTPO Staff, Sept 2017

Severely Congested Roadway (Level of Service E or F) Uncongested Roadway (Level of Service A-D) Non-Roadway Serving the Military

slide-8
SLIDE 8

8 / 14

Deficient Bridges on Roadways Serving the Military

N umber Percent Total Bridges (on Roadways Serving the Military) 625 Structurally Deficient Bridges 6 1% Functionally Obsolete Bridges 120 19%

Deficient Bridges 126 20%

LEGEND

Other Intermodal Facility Other Military Site Strategic Highway Network (STRAHNET) Site

Data sources: VDOT & FHWA (Data as of October 2017) Prepared by: HRTPO Staff, November 2017

Structurally Deficient Bridge Functionally Obsolete Bridge Non-Deficient Bridge

slide-9
SLIDE 9

9 / 14

Bridges & Tunnels with Vertical Clearances below Preferred Height on Roadways Serving the Military

LEGEND

Other Intermodal Facility Other Military Site Strategic Highway Network (STRAHNET) Site

Data sources: VDOT & FHWA (Data as of October 2017) Prepared by: HRTPO Staff, November 2017

Interstate Highways with Posted Vertical Clearance < 16 Feet Non-Interstate Highways with Posted Vertical Clearance < 14 Feet, 6 Inches

slide-10
SLIDE 10

10 / 14

Roadways Serving the Military with Lane Widths below 12 Feet

LEGEND

Other Intermodal Facility Other Military Site Strategic Highway Network (STRAHNET) Site

Data sources: VDOT & Google Maps Prepared by: HRTPO Staff, November 2017

STRAHNET Roadway with Average Lane Width < 12 Feet Non-STRAHNET Roadway with Average Lane Width < 12 Feet

slide-11
SLIDE 11

11 / 14

Potential Subm ergence of Roadways Serving the Military by 20 4 5

LEGEND

Data source for projected flooded areas: HRPDC Staff, Oct 2015 Prepared by: HRTPO Staff, Dec 2017

Roadway Submerged by 2.0 foot Relative Sea Level Rise Roadway Submerged by 2.0 feet Relative Sea Level Rise + 50-year Storm Surge Roadway Submerged by 2.0 feet Relative Sea Level Rise + 25-year Storm Surge Roadway – Not impacted Area Submerged by 2.0 feet Relative Sea Level Rise Area Submerged by 2.0 feet Relative Sea Level Rise + 25-year Storm Surge Area Submerged by 2.0 feet Relative Sea Level Rise + 50-year Storm Surge

slide-12
SLIDE 12

12 / 14

Recommendations

Update LRTP Project Prioritization Tool to include revised military and supporting sites and “Roadways Serving the Military in Hampton Roads” in this 2018 Study Update

Deficient Bridges

  • Rehabilitate or replace two Structurally Deficient bridges without identified

funding

  • Victory Blvd over Paradise Creek (Portsmouth)*

*Recently selected for VDOT State of Good Repair (SBR) for full funding FY2019-2024 SYIP

  • I-264 over First Colonial Rd (Virginia Beach)**

**After recent repairs by VDOT, this bridge is no longer classified as Structurally Deficient

Vertical Clearances below Military Preferences

  • As the HRBT is rehabilitated or new tubes are added, ensure that vertical

clearance meets or exceeds the 16-foot threshold (similar to MMMBT)

  • Use minimum of 14 feet, 6 inches as non-Interstate bridge and tunnel

structures are constructed or replaced (16 locations)

slide-13
SLIDE 13

13 / 14

Recommendations

Lane Widths below Military Preferences

  • Widen all “Roadways Serving the Military” to a minimum of 12 feet, giving

priority to STRAHNET roadways Roadways Vulnerable to Flooding

  • Consider sea level rise and potential storm surge impacts to “Roadways

Serving the Military”

slide-14
SLIDE 14

14 / 14

Recommended Action

 Consent Agenda Item #19J

  • Approve the final report for public distribution
