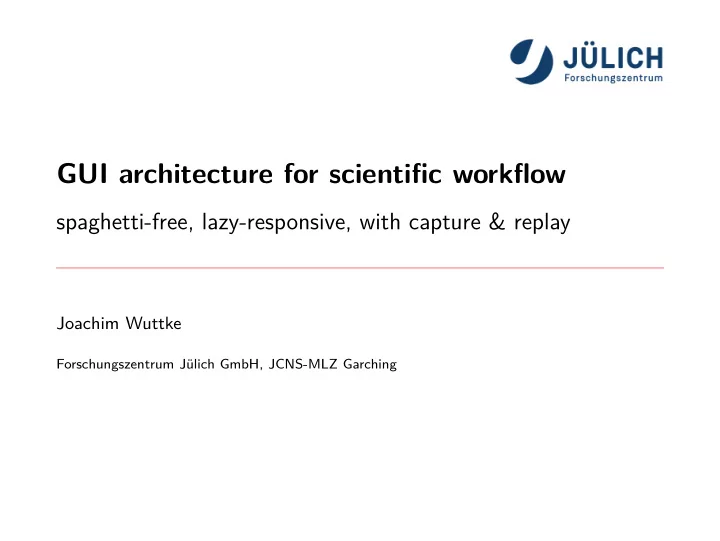

SLIDE 1
GUI architecture for scientifjc workfmow
spaghetti-free, lazy-responsive, with capture & replay
Joachim Wuttke
Forschungszentrum Jülich GmbH, JCNS-MLZ Garching
Google image search for “model view” 1
GUI architecture for scientifjc workfmow spaghetti-free, - - PowerPoint PPT Presentation
GUI architecture for scientifjc workfmow spaghetti-free, - - PowerPoint PPT Presentation
GUI architecture for scientifjc workfmow spaghetti-free, lazy-responsive, with capture & replay Joachim Wuttke Forschungszentrum Jlich GmbH, JCNS-MLZ Garching Google image search for model view 1
SLIDE 2
SLIDE 3
https://blogs.msdn.microsoft.com/erwinvandervalk 2
SLIDE 4
Qt5 model/view classes
view is based on QAbstractItemView
- QListView
- QTableView
- QTreeView
model inherits from QAbstractItemModel
- QAbstractListModel
- QAbstractProxyModel
- QAbstractTableModel
3
SLIDE 5
by Juanpe Bolivar (CppCon 2017) 4
SLIDE 6
by Juanpe Bolivar (CppCon 2017) 5
SLIDE 7
by Juanpe Bolivar (CppCon 2017) 6
SLIDE 8
by Juanpe Bolivar (CppCon 2017) 7
SLIDE 9
VIEW VIEW VIEWMODEL VIEWMODEL DATA
8
SLIDE 10
core gui VIEW VIEW VIEWMODEL VIEWMODEL DATA
9
SLIDE 11
core gui services VIEW VIEW VIEWMODEL VIEWMODEL LOGGER PARAMETER WRAPPERS DATA
10
SLIDE 12
core gui services VIEW VIEWMODEL LOGGER PARAMETER WRAPPERS DATA Python API user script
11
SLIDE 13
generated by Doxygen 12
SLIDE 14
generated by Doxygen 13
SLIDE 15
generated by Doxygen 14
SLIDE 16
GUI:
qApp gMainWindow settings widgets menu triggers, toggles
= global variable Core:
gSession settings data raw reduced metadata images parameters results 15
SLIDE 17
- prefer plain global variables over equivalent singletons
- prefer one global variable gSession over function calls like
f(session.Data, session.Parameters); which calls g(datafiles[iFile], parameterX , parameterZ); which calls h(datafile.metadata.A, parameterZ);
16
SLIDE 18
How to keep this up to date?
17
SLIDE 19
Signalling spaghetti (GUI ↔ Core) has its root in efgorts
- to restrict Core recomputation to data that have changed,
- to restrict GUI redrawing to Widgets that have changed.
Both are premature optimizations.
18
SLIDE 20
Signalling spaghetti (GUI ↔ Core) has its root in efgorts
- to restrict Core recomputation to data that have changed,
- to restrict GUI redrawing to Widgets that have changed.
Both are premature optimizations. They do not even preclude duplication of Core computations.
18
SLIDE 21
application view 1 view 2 data 1 data 2 data 3 data 4 parameter 19
SLIDE 22
application view 1 view 2 data 1 data 2 data 3 data 4 parameter 20
SLIDE 23
application view 1 view 2 data 1 data 2 data 3 data 4 parameter
declare invalid request refresh lazy evaluate
21
SLIDE 24
GUI:
qApp gMainWindow settings widgets menu triggers, toggles request recompute
Core:
gSession settings data raw reduced metadata images parameters results request redisplay 22
SLIDE 25
Bonus section: capture & replay
SLIDE 26
Logging
Why?
- to debug,
- to profjle,
- to document provenance,
and to replay
- tests during development,
- functional tests,
- user sessions, especially upon bug reports.
Also related:
- Undo/Redo.
23
SLIDE 27
Logging
How? By recording
- keyboard and mouse events,
- interrupts,
- user actions at widget level,
- GUI-to-core calls.
24
SLIDE 28
Logging
How? By recording
- keyboard and mouse events,
- interrupts,
- user actions at widget level,
- GUI-to-core calls.
24
SLIDE 29
application
control widgets command interpreter core command stack undo/redo log file text editor
test suite
test case test case test case test case test case test case GUI action textual command user tester 25
SLIDE 30
QAction QCheckButton QSpinBox QComboBox QTabWidget QDoubleSpinBox QLineEdit QDialog QFileDialog QcrTrigger QcrToggle QcrCheckButton QcrSpinBox QcrComboBox QcrTabWidget QcrDoubleSpinBox QcrLineEdit QcrModelessDialog QcrModalDialog QcrFileDialog QcrControl<bool> QcrControl<int> QcrControl<double> QcrControl<QString> QcrModal QcrMixin jugit.fz-juelich.de:mlz/libQCR 26
