Grouping pharmacovigilance terms with semantic distance M Dupuch 1 , - PowerPoint PPT Presentation

Context Objective Material Method Results and Discussion Conclusion and Perspectives Grouping pharmacovigilance terms with semantic distance M Dupuch 1 , 2 , M Lerch 3 , A Jamet 2 , 4 , MC Jaulent 1 , 2 , R Fescharek 5 and N Grabar 6 (1)

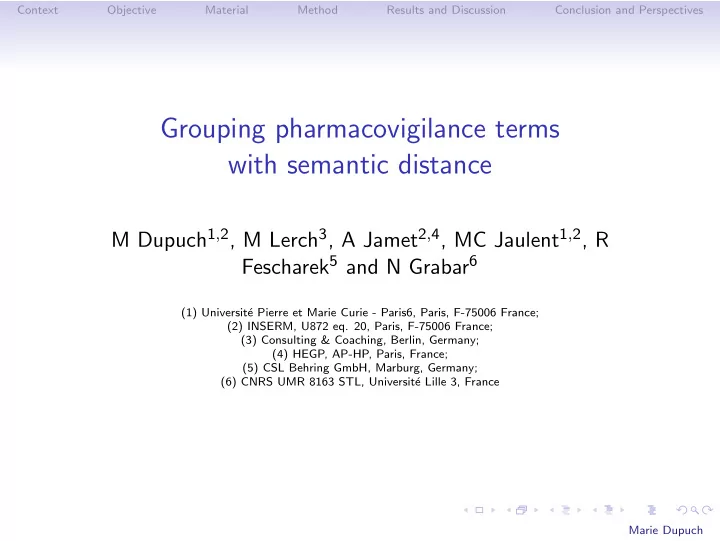

  1. Context Objective Material Method Results and Discussion Conclusion and Perspectives Grouping pharmacovigilance terms with semantic distance M Dupuch 1 , 2 , M Lerch 3 , A Jamet 2 , 4 , MC Jaulent 1 , 2 , R Fescharek 5 and N Grabar 6 (1) Universit´ e Pierre et Marie Curie - Paris6, Paris, F-75006 France; (2) INSERM, U872 eq. 20, Paris, F-75006 France; (3) Consulting & Coaching, Berlin, Germany; (4) HEGP, AP-HP, Paris, France; (5) CSL Behring GmbH, Marburg, Germany; (6) CNRS UMR 8163 STL, Universit´ e Lille 3, France Marie Dupuch

  2. Context Objective Material Method Results and Discussion Conclusion and Perspectives Plan of the presentation Context Objective Material Methods Results and Discussion Conclusion and Perspectives Marie Dupuch

  3. Context Objective Material Method Results and Discussion Conclusion and Perspectives Pharmacovigilance Pharmacovigilance: activity related to the collection, analysis and prevention of adverse drug reactions (ADRs) ADRs are coded with 2 terminologies: ⇒ MedDRA (Medical Dictionnary for Drug Regulatory Activities) WHO-ART (World Health Organization - Adverse Reaction Terminology) Signal: unexpected or not well documented relation between drugs and ADRs Exploitation of statistical methods for detection of signals (Bate & al, 1998;Meyboom & al, 2002) Exploitation of SMQs (Standardized MedDRA Queries) Groupings of terms associated to a given safety topic ⇒ Grouping of related cases of pharmacovigilance Marie Dupuch

  4. Context Objective Material Method Results and Discussion Conclusion and Perspectives Exploitation and evaluation of SMQs SMQs are created manually by experts Structure of MedDRA Scientific litterature ⇒ Long and tedious process Exploitation and evaluation of SMQs: Consequent filtering and evaluation of cases is required: High sensibility and over-inclusiveness (Mozzicato, 2007; Pearson & al, 2009) Silences: Important terms may not be included (Pearson & al, 2009) ⇒ Propose automatic methods for the creation of SMQs or of new groupings Marie Dupuch

  5. Context Objective Material Method Results and Discussion Conclusion and Perspectives Objective Hypothesis: exploitation of the semantic distance Depends on the number of edges (the shortest path) Disorder of trunk sp = 2 Subclass of Disorder of abdomen subclass of Abdominal sp = 1 abscsess Previous exploitation of semantic distance with pharmacovigilance terms: subsets of MedDRA terms (Bousquet & al, 2005) subsets of WHO-ART terms (Iavindrasana & al, 2006) ⇒ No evaluation of the groupings with the SMQs Objective: continue to adapt the semantic distance to PV terms Creation of groupings of terms and of new SMQs Exploitation of the whole set of MedDRA terms Comparison with the SMQs Marie Dupuch

  6. Context Objective Material Method Results and Discussion Conclusion and Perspectives Material MedDRA Level Expanded form Nb Terms SOC System Organ Class 26 HLGT High Level Group Terms 332 HLT High Level Terms 1,688 PT Prefered Terms 18,209 LLT Lowest Level Terms 66,587 Two kinds of material derived from MedDRA: ontoEIM resource SMQs Marie Dupuch

  7. Context Objective Material Method Results and Discussion Conclusion and Perspectives Material ontoEIM OntoEIM resource (Alecu & al, 2008): Projection of MedDRA terms on SNOMED CT Currently 46% of MedDRA terms are aligned ⇒ Finer-grained hierarchy of MedDRA terms ⇒ Formal definitions (FD) as extracted from SNOMED CT: Morphology M, topography T, causality C and expression E Arsenical keratosis (diagnosis ADR) ⇒ M: Squamous cell neoplasm; Morphologically abnormal structure ⇒ T: Skin structure; Structure of skin and or surface apithelium C: Arsenic AND OR arsenic compound E: Abnormal keratinization Marie Dupuch

  8. Context Objective Material Method Results and Discussion Conclusion and Perspectives Material SMQs SMQs (Standartized MedDRA Queries) Groupings of terms related to a safety topic Acute renal failure, Hepatic disorders, Thrombocytopenia ... Helpful for the searching of close pharmacovigilance cases Created manually by experts 84 SMQs exist currently SMQs include PT and LLT terms Gold standard: 9 SMQs (ADRs leading to hospitalization, vital prognosis and death) Acute renal failure, Agranulocytosis, Anaphylactic reaction, Cytopenia, Gastrointestinal haemorrhages, Peripheral neuropathy, Rhabdomyolysis, Severe cutaneous adverse reaction, Thrombocytopenia Marie Dupuch

  9. Context Objective Material Method Results and Discussion Conclusion and Perspectives Methods Tree-step method: 1 Optimisation of the alignment and of formal definitions 2 Computing of the semantic distance and grouping of terms 3 Evaluation of the generated groupings of terms Marie Dupuch

  10. Context Objective Material Method Results and Discussion Conclusion and Perspectives 1. Optimisation of the alignment and of formal definitions 46% of MedDRA terms are aligned with SNOMED CT 51 . 6% of PTs and 35 . 4% of LLTs ⇒ Optimize the alignment and improve the coverage T: Abdominal cavity structure PTs and LLTs aligned Abdominal PT abscess M: Abscess morphology dist OntoEIM Intra abdominal Abdominal LLT abscess phlegmon FD PT T: Abdominal cavity structure T: Abdominal cavity structure FD LLT M: Abscess morphology M: Abscess morphology T: Abdominal cavity structure PTs aligned; LLTs not Abdominal PT abscess M: Abscess morphology aligned +1 Intra abdominal +1 Abdominal +1 LLT abscess +1 phlegmon Transfer FD PTs ⇒ LLTs T: Abdominal cavity structure T: Abdominal cavity structure M: Abscess morphology M: Abscess morphology sp ( LLT ) = sp ( PT ) + 1 Marie Dupuch

  11. Context Objective Material Method Results and Discussion Conclusion and Perspectives 1. Optimisation of the alignment and of formal definitions T: Abdominal cavity structure LLTs aligned; PTs not Abdominal PT abscess M: Abscess morphology aligned −1 −1 T: Abdominal cavity structure Abdominal Transfer FD LLTs ⇒ PTs LLT phlegmon M: Abscess morphology sp ( PT ) = sp ( LLT ) − 1 Abdominal LLTs and PTs not PT abscess aligned Intra abdominal Abdominal LLT abscess phlegmon ⇒ Semantic distance not computed Improvement of the alignment of MedDRA terms: +10% for PTs (61.6%) +30% for LLTs (65.4%) Marie Dupuch

  12. Context Objective Material Method Results and Discussion Conclusion and Perspectives 2. Computing of semantic distance and grouping of terms Computing of the semantic distance (Rada et al, 1989) The shortest path between two concepts dist Rada = sp ( c 1 , c 2 ) The shortest path is the sum of all its edges Each edge is equal to 1 Parameters tested: One axis (ADRs) Three axes (ADR + FD) All SMQ terms Aligned SMQ terms Best grouping Merging of n best groupings pcc_D (Abdominal abscess, Pharyngeal abscess) = 4 pcc_T (Abdominal abscsess, Pharyngeal abscsess) = 10 pcc_M (Abdominal abscsess, Pharyngeal abscsess) = 0 pcc_D = 4 1 1 1 1 pcc_T = 10 1 1 1 1 1 1 1 1 1 1 T: Abdominal cavity structure T: Neck structure Abdominal Pharyngal abscess 0 abscess M: Abscess morphology M: Abscess morphology pcc_M = 0 sp ADR = 4, sp T = 10 et sp M = 0 Marie Dupuch

  13. Context Objective Material Method Results and Discussion Conclusion and Perspectives 2. Computing of semantic distance and grouping of terms Each axis is weighted (Petiot & al, 1996) � W i ∗ sp ( A i , B i ) i ∈{ ADR , M , T } dist ontoEIM ( A , B ) = � W j j ∈{ ADR , M , T } W ADR = 1, W M = 2 et W T = 1 ⇒ M is the most important Generation of semi-matrix dist ontoEIM between all PT and LLT terms dist ontoEIM ( Abdominal abscess , Pharyngeal abscess ) = 3 . 5 Grouping: distance < = 2 Marie Dupuch

  14. Context Objective Material Method Results and Discussion Conclusion and Perspectives 3. Evaluation of the generated groupings of terms Three evaluation measures: precision P : number of relevant grouped terms as a percentage of the total number of the grouped terms recall R : number of relevant grouped terms as a percentage of the number of terms in the corresponding SMQ f-measure F : the harmonic mean of P and R Association between the generated groupings and the SMQs ⇒ precision Marie Dupuch

  15. Context Objective Material Method Results and Discussion Conclusion and Perspectives Results and Discussion 100 100 100 max max max Precision Recall F−measure 80 80 80 min min min 60 60 60 40 40 40 20 20 20 0 0 0 1a−bc 1a−ba 3a−bc 3a−ba 1a−mc 1a−ma 3a−mc 3a−ma 1a−bc 1a−ba 3a−bc 3a−ba 1a−mc 1a−ma 3a−mc 3a−ma 1a−bc 1a−ba 3a−bc 3a−ba 1a−mc 1a−ma 3a−mc 3a−ma precision recall f-measure Merging of groupings: increasing of the overall performance 1 axis vs 3 axes: best performances with 1 axis incompleteness of the formal definitions Set of aligned terms: R and F increase but P decreases Min-max intervals very large: variability between the SMQs various strategies needed according to the safety topics Best results: 1 axis, merged groupings high precision (expectation of the experts) Marie Dupuch
