STABILITY FOR COUPLED PHYSICS IPs Global stability Giovanni Alessandrini for coupled physics inverse problems. Introduction A case study An example A priori assumptions Main Theorem Giovanni Alessandrini Stability for |u|

slide-1
SLIDE 1

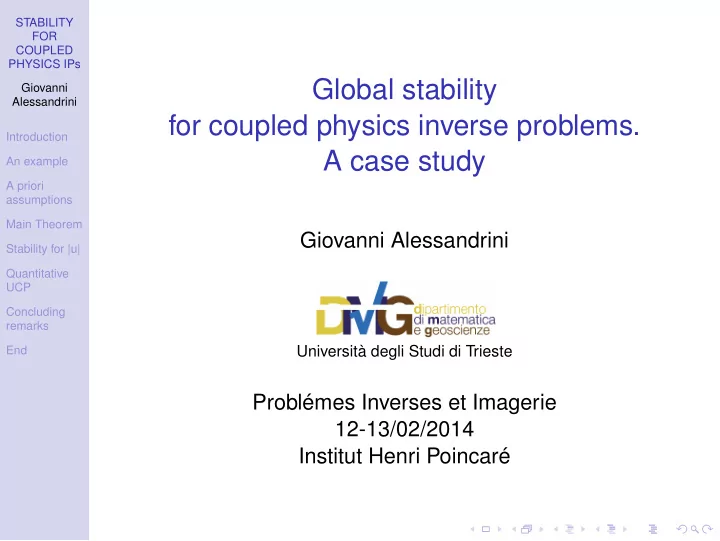

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Global stability for coupled physics inverse problems. A case study

Giovanni Alessandrini

Università degli Studi di Trieste

Problémes Inverses et Imagerie 12-13/02/2014 Institut Henri Poincaré

slide-2
SLIDE 2

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Introduction

Since the ’80s, a dominant theme in Inverse Problems has been: To image the interior of an object from measurements taken in its exterior

  • overdetermined boundary data,
  • scattering data.

With coupled physics IPs there is a shift to data associated to interior information.

slide-3
SLIDE 3

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Introduction

Since the ’80s, a dominant theme in Inverse Problems has been: To image the interior of an object from measurements taken in its exterior

  • overdetermined boundary data,
  • scattering data.

With coupled physics IPs there is a shift to data associated to interior information.

slide-4
SLIDE 4

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Introduction

Interior data may provide much better stability than inverse boundary problems, or inverse scattering problems. Available results require nondegeneracy conditions on the solutions of the involved direct problems:

  • Nonvanishing of solution.
  • Nonvanishing of gradients.
  • Nonvanishing of Jacobians.
  • Nonvanishing of augmented Jacobians.
slide-5
SLIDE 5

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Introduction

Interior data may provide much better stability than inverse boundary problems, or inverse scattering problems. Available results require nondegeneracy conditions on the solutions of the involved direct problems:

  • Nonvanishing of solution.
  • Nonvanishing of gradients.
  • Nonvanishing of Jacobians.
  • Nonvanishing of augmented Jacobians.
slide-6
SLIDE 6

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Introduction

Interior data may provide much better stability than inverse boundary problems, or inverse scattering problems. Available results require nondegeneracy conditions on the solutions of the involved direct problems:

  • Nonvanishing of solution.
  • Nonvanishing of gradients.
  • Nonvanishing of Jacobians.
  • Nonvanishing of augmented Jacobians.
slide-7
SLIDE 7

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Introduction

Interior data may provide much better stability than inverse boundary problems, or inverse scattering problems. Available results require nondegeneracy conditions on the solutions of the involved direct problems:

  • Nonvanishing of solution.
  • Nonvanishing of gradients.
  • Nonvanishing of Jacobians.
  • Nonvanishing of augmented Jacobians.
slide-8
SLIDE 8

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Introduction

Interior data may provide much better stability than inverse boundary problems, or inverse scattering problems. Available results require nondegeneracy conditions on the solutions of the involved direct problems:

  • Nonvanishing of solution.
  • Nonvanishing of gradients.
  • Nonvanishing of Jacobians.
  • Nonvanishing of augmented Jacobians.
slide-9
SLIDE 9

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Global stability

  • Question. Is it possible to obtain global stability from

measurements arising from arbitrary (nontrivial) solutions of the direct problem? The model problem A problem arising in microwave imaging coupled with ultrasound, Triki (2010). ∆u + qu = 0 in Ω Find q ≥ constant > 0 given the local energy qu2 and the boundary data u|∂Ω.

slide-10
SLIDE 10

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Global stability

  • Question. Is it possible to obtain global stability from

measurements arising from arbitrary (nontrivial) solutions of the direct problem? The model problem A problem arising in microwave imaging coupled with ultrasound, Triki (2010). ∆u + qu = 0 in Ω Find q ≥ constant > 0 given the local energy qu2 and the boundary data u|∂Ω.

slide-11
SLIDE 11

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Global stability

  • Question. Is it possible to obtain global stability from

measurements arising from arbitrary (nontrivial) solutions of the direct problem? The model problem A problem arising in microwave imaging coupled with ultrasound, Triki (2010). ∆u + qu = 0 in Ω Find q ≥ constant > 0 given the local energy qu2 and the boundary data u|∂Ω.

slide-12
SLIDE 12

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Global stability

  • Question. Is it possible to obtain global stability from

measurements arising from arbitrary (nontrivial) solutions of the direct problem? The model problem A problem arising in microwave imaging coupled with ultrasound, Triki (2010). ∆u + qu = 0 in Ω Find q ≥ constant > 0 given the local energy qu2 and the boundary data u|∂Ω.

slide-13
SLIDE 13

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

The full problem

Ammari, Capdeboscq, De Gournay, Rozanova-Pierrat, Triki (2011): div(a∇u) + k2qu = 0 in Ω Find a, q ≥ constant > 0 given the local energies qu2 , a|∇u|2 (with several u’s and k’s!). Here: u = electric field, q = electric permittivity, a−1 = magnetic permeability.

slide-14
SLIDE 14

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

The full problem

Ammari, Capdeboscq, De Gournay, Rozanova-Pierrat, Triki (2011): div(a∇u) + k2qu = 0 in Ω Find a, q ≥ constant > 0 given the local energies qu2 , a|∇u|2 (with several u’s and k’s!). Here: u = electric field, q = electric permittivity, a−1 = magnetic permeability.

slide-15
SLIDE 15

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Goals

  • Stability of global type.
  • Measurements for a single (nontrivial) solution u

possibly sign changing.

  • No spectral assumptions on ∆ + q.
slide-16
SLIDE 16

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Goals

  • Stability of global type.
  • Measurements for a single (nontrivial) solution u

possibly sign changing.

  • No spectral assumptions on ∆ + q.
slide-17
SLIDE 17

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Goals

  • Stability of global type.
  • Measurements for a single (nontrivial) solution u

possibly sign changing.

  • No spectral assumptions on ∆ + q.
slide-18
SLIDE 18

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Goals

  • Stability of global type.
  • Measurements for a single (nontrivial) solution u

possibly sign changing.

  • No spectral assumptions on ∆ + q.
slide-19
SLIDE 19

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

An example

In dimension n = 1, fix 0 < r < R and, for every k = 1, 2, . . ., set qk(x) = Ak if |x| < r , 1 if r ≤ |x| ≤ R , where Ak = π 2 + 2kπ 2 r −2 . A solution to uxx + qku = 0 in (−R, R) is uk(x) =

  • 1

√

Ak cos(√Akx)

if |x| < r , − sin(|x| − r) if r ≤ |x| ≤ R .

slide-20
SLIDE 20

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

An example

In dimension n = 1, fix 0 < r < R and, for every k = 1, 2, . . ., set qk(x) = Ak if |x| < r , 1 if r ≤ |x| ≤ R , where Ak = π 2 + 2kπ 2 r −2 . A solution to uxx + qku = 0 in (−R, R) is uk(x) =

  • 1

√

Ak cos(√Akx)

if |x| < r , − sin(|x| − r) if r ≤ |x| ≤ R .

slide-21
SLIDE 21

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

An example

we have q2ku2

2k − qku2 k∞ ≤ 2

whereas, for any p , 1 ≤ p ≤ ∞ q2k − qkp → ∞ .

slide-22
SLIDE 22

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

An example

we have q2ku2

2k − qku2 k∞ ≤ 2

whereas, for any p , 1 ≤ p ≤ ∞ q2k − qkp → ∞ .

slide-23
SLIDE 23

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

A priori assumptions

Given a bounded domain Ω ⊂ Rn with Lipschitz boundary (in quantitative form!), we consider one solution u ∈ W 1,2(Ω) ∩ C(Ω) to ∆u + qu = 0 in Ω where q ∈ L∞(Ω) is assumed to satisfy 0 < K −1 ≤ q ≤ K a.e. in Ω for a given K ≥ 1.

slide-24
SLIDE 24

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

A priori assumptions

Energy bound. E > 0 is given such that:

  • Ω

|∇u|2 + u2 ≤ E2 . Nontriviality of the data. H > 0 is given such that:

  • Ω

qu2 ≥ H2 > 0 . A priori data: K, E, H and Ω (diam(Ω), constants of its Lipschitz character). Notation: For every d > 0: Ωd = {x ∈ Ω|dist(x, ∂Ω) > d}.

slide-25
SLIDE 25

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

A priori assumptions

Energy bound. E > 0 is given such that:

  • Ω

|∇u|2 + u2 ≤ E2 . Nontriviality of the data. H > 0 is given such that:

  • Ω

qu2 ≥ H2 > 0 . A priori data: K, E, H and Ω (diam(Ω), constants of its Lipschitz character). Notation: For every d > 0: Ωd = {x ∈ Ω|dist(x, ∂Ω) > d}.

slide-26
SLIDE 26

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

A priori assumptions

Energy bound. E > 0 is given such that:

  • Ω

|∇u|2 + u2 ≤ E2 . Nontriviality of the data. H > 0 is given such that:

  • Ω

qu2 ≥ H2 > 0 . A priori data: K, E, H and Ω (diam(Ω), constants of its Lipschitz character). Notation: For every d > 0: Ωd = {x ∈ Ω|dist(x, ∂Ω) > d}.

slide-27
SLIDE 27

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

A priori assumptions

Energy bound. E > 0 is given such that:

  • Ω

|∇u|2 + u2 ≤ E2 . Nontriviality of the data. H > 0 is given such that:

  • Ω

qu2 ≥ H2 > 0 . A priori data: K, E, H and Ω (diam(Ω), constants of its Lipschitz character). Notation: For every d > 0: Ωd = {x ∈ Ω|dist(x, ∂Ω) > d}.

slide-28
SLIDE 28

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

The main Theorem

  • Theorem. Let q1, q2 and the corresponding solutions u1, u2

satisfy the a priori assumptions and suppose that q1u2

1 − q2u2 2L∞(Ω) ≤ ε ,

(1) for a given ε > 0 , and also |u1| − |u2|L∞(∂Ω) ≤ √ Kε . (2) Then, for every d > 0, there exists η ∈ (0, 1) and C > 0,

  • nly depending on d and on the a priori data such that

q1 − q2L2(Ωd) ≤ C

  • ε1/3 + ε

η , Note: If we know q1 = q2 near ∂Ω, then (1) ⇒ (2).

slide-29
SLIDE 29

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

The main Theorem

  • Theorem. Let q1, q2 and the corresponding solutions u1, u2

satisfy the a priori assumptions and suppose that q1u2

1 − q2u2 2L∞(Ω) ≤ ε ,

(1) for a given ε > 0 , and also |u1| − |u2|L∞(∂Ω) ≤ √ Kε . (2) Then, for every d > 0, there exists η ∈ (0, 1) and C > 0,

  • nly depending on d and on the a priori data such that

q1 − q2L2(Ωd) ≤ C

  • ε1/3 + ε

η , Note: If we know q1 = q2 near ∂Ω, then (1) ⇒ (2).

slide-30
SLIDE 30

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

The main Theorem

  • Theorem. Let q1, q2 and the corresponding solutions u1, u2

satisfy the a priori assumptions and suppose that q1u2

1 − q2u2 2L∞(Ω) ≤ ε ,

(1) for a given ε > 0 , and also |u1| − |u2|L∞(∂Ω) ≤ √ Kε . (2) Then, for every d > 0, there exists η ∈ (0, 1) and C > 0,

  • nly depending on d and on the a priori data such that

q1 − q2L2(Ωd) ≤ C

  • ε1/3 + ε

η , Note: If we know q1 = q2 near ∂Ω, then (1) ⇒ (2).

slide-31
SLIDE 31

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

The main Theorem

  • Theorem. Let q1, q2 and the corresponding solutions u1, u2

satisfy the a priori assumptions and suppose that q1u2

1 − q2u2 2L∞(Ω) ≤ ε ,

(1) for a given ε > 0 , and also |u1| − |u2|L∞(∂Ω) ≤ √ Kε . (2) Then, for every d > 0, there exists η ∈ (0, 1) and C > 0,

  • nly depending on d and on the a priori data such that

q1 − q2L2(Ωd) ≤ C

  • ε1/3 + ε

η , Note: If we know q1 = q2 near ∂Ω, then (1) ⇒ (2).

slide-32
SLIDE 32

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Main tools

Theorem A (Stability for |u|) There exists C > 0, only depending on K, E and Ω, such that

  • Ω

||u1| − |u2||3 ≤ Cε . Theorem B (Integrability of |u|−δ) For every d > 0, there exists p > 1, C > 0, only depending on K, E, H and Ω, such that

  • Ωd

|u1|−

2 p−1 ≤ C .

Note: This is a form of quantitative estimate of unique continuation.

slide-33
SLIDE 33

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Main tools

Theorem A (Stability for |u|) There exists C > 0, only depending on K, E and Ω, such that

  • Ω

||u1| − |u2||3 ≤ Cε . Theorem B (Integrability of |u|−δ) For every d > 0, there exists p > 1, C > 0, only depending on K, E, H and Ω, such that

  • Ωd

|u1|−

2 p−1 ≤ C .

Note: This is a form of quantitative estimate of unique continuation.

slide-34
SLIDE 34

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Main tools

Theorem A (Stability for |u|) There exists C > 0, only depending on K, E and Ω, such that

  • Ω

||u1| − |u2||3 ≤ Cε . Theorem B (Integrability of |u|−δ) For every d > 0, there exists p > 1, C > 0, only depending on K, E, H and Ω, such that

  • Ωd

|u1|−

2 p−1 ≤ C .

Note: This is a form of quantitative estimate of unique continuation.

slide-35
SLIDE 35

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Proof of the main theorem

(q1 − q2)u2

1 = q2(u2 2 − u2 1) + (q1u2 1 − q2u2 2) =

= q2(|u2| + |u1|)(|u2| − |u1|) + (q1u2

1 − q2u2 2)

hence

  • Ω

|q1 − q2|u2

1 ≤ K|u1| + |u2|L3/2(Ω)|u1| − |u2|L3(Ω) + |Ω|ε

and, by Theorem A,

  • Ω

|q1 − q2|u2

1 ≤ C(ε1/3 + ε) .

slide-36
SLIDE 36

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Proof of the main theorem

(q1 − q2)u2

1 = q2(u2 2 − u2 1) + (q1u2 1 − q2u2 2) =

= q2(|u2| + |u1|)(|u2| − |u1|) + (q1u2

1 − q2u2 2)

hence

  • Ω

|q1 − q2|u2

1 ≤ K|u1| + |u2|L3/2(Ω)|u1| − |u2|L3(Ω) + |Ω|ε

and, by Theorem A,

  • Ω

|q1 − q2|u2

1 ≤ C(ε1/3 + ε) .

slide-37
SLIDE 37

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Proof of the main theorem

Now, by Hölder’s inequality, for any δ > 0

  • Ωd

|q1 − q2|

δ δ+2 ≤

  • Ωd

|u1|−δ

  • 2

δ+2

Ω

|q1 − q2|u2

1

  • δ

δ+2

and choosing δ =

2 p−1, by Theorem B

  • Ωd

|q1 − q2|

δ δ+2 ≤ C

  • Ω

|q1 − q2|u2

1

  • δ

δ+2

. Recalling K −1 ≤ qi ≤ K we arrive at

  • Ωd

|q1 − q2|2 ≤ C

  • ε1/3 + ε
  • δ

δ+2 .

slide-38
SLIDE 38

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Proof of the main theorem

Now, by Hölder’s inequality, for any δ > 0

  • Ωd

|q1 − q2|

δ δ+2 ≤

  • Ωd

|u1|−δ

  • 2

δ+2

Ω

|q1 − q2|u2

1

  • δ

δ+2

and choosing δ =

2 p−1, by Theorem B

  • Ωd

|q1 − q2|

δ δ+2 ≤ C

  • Ω

|q1 − q2|u2

1

  • δ

δ+2

. Recalling K −1 ≤ qi ≤ K we arrive at

  • Ωd

|q1 − q2|2 ≤ C

  • ε1/3 + ε
  • δ

δ+2 .

slide-39
SLIDE 39

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Proof of the main theorem

Now, by Hölder’s inequality, for any δ > 0

  • Ωd

|q1 − q2|

δ δ+2 ≤

  • Ωd

|u1|−δ

  • 2

δ+2

Ω

|q1 − q2|u2

1

  • δ

δ+2

and choosing δ =

2 p−1, by Theorem B

  • Ωd

|q1 − q2|

δ δ+2 ≤ C

  • Ω

|q1 − q2|u2

1

  • δ

δ+2

. Recalling K −1 ≤ qi ≤ K we arrive at

  • Ωd

|q1 − q2|2 ≤ C

  • ε1/3 + ε
  • δ

δ+2 .

slide-40
SLIDE 40

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Stability for |u|

Denote Ni = {ui = 0} , i = 1, 2 . Let Ωj , j = 1, 2, . . . be the connected components of Ω \ (N1 ∪ N2). For each j we may split ∂Ωj = Γ0 ∪ Γ1 ∪ Γ2 , where Γ0 = ∂Ωj ∩ ∂Ω , Γ1 = ∂Ωj ∩ N1 , Γ2 = ∂Ωj ∩ N2 . By assumption, on Γ0 we have ||u1| − |u2|| ≤ √ Kε, while, on Γ1, q2u2

2 ≤ ε and on Γ2, q1u2 1 ≤ ε. Hence, on ∂Ωj we have

||u1| − |u2|| ≤ √ Kε ,

slide-41
SLIDE 41

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Stability for |u|

Denote Ni = {ui = 0} , i = 1, 2 . Let Ωj , j = 1, 2, . . . be the connected components of Ω \ (N1 ∪ N2). For each j we may split ∂Ωj = Γ0 ∪ Γ1 ∪ Γ2 , where Γ0 = ∂Ωj ∩ ∂Ω , Γ1 = ∂Ωj ∩ N1 , Γ2 = ∂Ωj ∩ N2 . By assumption, on Γ0 we have ||u1| − |u2|| ≤ √ Kε, while, on Γ1, q2u2

2 ≤ ε and on Γ2, q1u2 1 ≤ ε. Hence, on ∂Ωj we have

||u1| − |u2|| ≤ √ Kε ,

slide-42
SLIDE 42

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Stability for |u|

Denote Ni = {ui = 0} , i = 1, 2 . Let Ωj , j = 1, 2, . . . be the connected components of Ω \ (N1 ∪ N2). For each j we may split ∂Ωj = Γ0 ∪ Γ1 ∪ Γ2 , where Γ0 = ∂Ωj ∩ ∂Ω , Γ1 = ∂Ωj ∩ N1 , Γ2 = ∂Ωj ∩ N2 . By assumption, on Γ0 we have ||u1| − |u2|| ≤ √ Kε, while, on Γ1, q2u2

2 ≤ ε and on Γ2, q1u2 1 ≤ ε. Hence, on ∂Ωj we have

||u1| − |u2|| ≤ √ Kε ,

slide-43
SLIDE 43

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Stability for |u|

W.l.o.g. we may assume u1, u2 > 0 in Ωj. Set ϕ+ =

  • u1 − u2 − 2

√ Kε + , ϕ− =

  • u2 − u1 − 2

√ Kε + . Note that ϕ± ∈ W 1,2 (Ωj) ∩ C(Ωj) and use ψ±

i

= ϕ±ui as test functions in the weak formulation of ∆ui + qiui = 0. We arrive at

  • Ωj

(|u1| + |u2|)(|u1| − |u2|)2 ≤ C

  • Ωj

(|u1| + |u2|)ε , Adding up w.r.t. j, and using the energy bound,

  • Ω

||u1| − |u2||3 ≤

  • Ω

(|u1| + |u2|)(|u1| − |u2|)2 ≤ Cε ,

slide-44
SLIDE 44

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Stability for |u|

W.l.o.g. we may assume u1, u2 > 0 in Ωj. Set ϕ+ =

  • u1 − u2 − 2

√ Kε + , ϕ− =

  • u2 − u1 − 2

√ Kε + . Note that ϕ± ∈ W 1,2 (Ωj) ∩ C(Ωj) and use ψ±

i

= ϕ±ui as test functions in the weak formulation of ∆ui + qiui = 0. We arrive at

  • Ωj

(|u1| + |u2|)(|u1| − |u2|)2 ≤ C

  • Ωj

(|u1| + |u2|)ε , Adding up w.r.t. j, and using the energy bound,

  • Ω

||u1| − |u2||3 ≤

  • Ω

(|u1| + |u2|)(|u1| − |u2|)2 ≤ Cε ,

slide-45
SLIDE 45

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Stability for |u|

W.l.o.g. we may assume u1, u2 > 0 in Ωj. Set ϕ+ =

  • u1 − u2 − 2

√ Kε + , ϕ− =

  • u2 − u1 − 2

√ Kε + . Note that ϕ± ∈ W 1,2 (Ωj) ∩ C(Ωj) and use ψ±

i

= ϕ±ui as test functions in the weak formulation of ∆ui + qiui = 0. We arrive at

  • Ωj

(|u1| + |u2|)(|u1| − |u2|)2 ≤ C

  • Ωj

(|u1| + |u2|)ε , Adding up w.r.t. j, and using the energy bound,

  • Ω

||u1| − |u2||3 ≤

  • Ω

(|u1| + |u2|)(|u1| − |u2|)2 ≤ Cε ,

slide-46
SLIDE 46

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Integrability of |u|−δ

Lipschitz propagation of smallness (A. and Rosset ’98, A., Rondi, Rosset and Vessella 2009) If

  • Ω |∇u|2 + u2
  • Ω u2

≤ F then for any Bρ(x0) ⊂ Ω we have

  • Bρ(x0)

u2 ≥ C

  • Ω

|∇u|2 + u2 where C > 0 only depends on ρ, K, Ω and on F. Note: Under our a priori assumptions: F = KE2 H2 .

slide-47
SLIDE 47

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Integrability of |u|−δ

Lipschitz propagation of smallness (A. and Rosset ’98, A., Rondi, Rosset and Vessella 2009) If

  • Ω |∇u|2 + u2
  • Ω u2

≤ F then for any Bρ(x0) ⊂ Ω we have

  • Bρ(x0)

u2 ≥ C

  • Ω

|∇u|2 + u2 where C > 0 only depends on ρ, K, Ω and on F. Note: Under our a priori assumptions: F = KE2 H2 .

slide-48
SLIDE 48

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Integrability of |u|−δ

Doubling inequality (Garofalo and Lin ’86) There exists R = R(K) such that if r0 ≤ R and Br0(x0) ⊂ Ω then

  • B2r(x0)

u2 ≤ C

  • Br(x0)

u2 , ∀r < r0 4 where C > 0 only depends on r0 and on the a priori data.

slide-49
SLIDE 49

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Integrability of |u|−δ

Ap property (Garofalo and Lin ’86) For any d > 0 there exist p > 1, C > 0, only depending on d and on the a priori data, such that for every x0 ∈ Ωd and every r ≤ d/4

  • 1

|Br|

  • Br(x0)

u2 1 |Br|

  • Br(x0)

u−

2 p−1

p−1 ≤ C .

slide-50
SLIDE 50

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Concluding remarks

Quantitative estimates of unique continuation seem to be a necessary ingredient for stability estimates for IP with interior data, when available data depend on few solutions

  • f the direct problem, and few restrictions can be imposed
  • n such solutions.

Open issues may arise in investigating the vanishing rate of gradients or Jacobians.

slide-51
SLIDE 51

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Concluding remarks

Quantitative estimates of unique continuation seem to be a necessary ingredient for stability estimates for IP with interior data, when available data depend on few solutions

  • f the direct problem, and few restrictions can be imposed
  • n such solutions.

Open issues may arise in investigating the vanishing rate of gradients or Jacobians.

slide-52
SLIDE 52

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Concluding remarks

For equations with no zero order term, such as div(σ∇u) = 0 , with λ−1I ≤ σ ≤ λI, and if n ≥ 3, σ ∈ C0,1, estimates on the vanishing rate of |∇u|2 are available. If also a zero order term is present, e.g.: div(σ∇u) + qu = 0 , with |q| ≤ K, estimates on the vanishing rate are known for |∇u|2 + |u|2. The situation is not clear for |∇u|2 alone.

slide-53
SLIDE 53

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Concluding remarks

For equations with no zero order term, such as div(σ∇u) = 0 , with λ−1I ≤ σ ≤ λI, and if n ≥ 3, σ ∈ C0,1, estimates on the vanishing rate of |∇u|2 are available. If also a zero order term is present, e.g.: div(σ∇u) + qu = 0 , with |q| ≤ K, estimates on the vanishing rate are known for |∇u|2 + |u|2. The situation is not clear for |∇u|2 alone.

slide-54
SLIDE 54

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Concluding remarks

For equations with no zero order term, such as div(σ∇u) = 0 , with λ−1I ≤ σ ≤ λI, and if n ≥ 3, σ ∈ C0,1, estimates on the vanishing rate of |∇u|2 are available. If also a zero order term is present, e.g.: div(σ∇u) + qu = 0 , with |q| ≤ K, estimates on the vanishing rate are known for |∇u|2 + |u|2. The situation is not clear for |∇u|2 alone.

slide-55
SLIDE 55

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Concluding remarks

An example

uxx + qu = 0 on (0, +∞) , with q(x) = χ(0, π

2 )(x) ,

and u(x) = sin x if 0 < x ≤ π

2 ,

1 if x ≥ π

2 .

slide-56
SLIDE 56

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Concluding remarks

Further problems arise with Jacobians. Example (Laugesen ’96). ∀ε > 0 ∃Φ : ∂B → ∂B homeomorphism, such that |Φ(x) − x| < ε, ∀x ∈ ∂B and the solution U = (u1, u2, u3) to ∆U = 0, in B, U = Φ,

  • n

∂B. is not one-to-one.

slide-57
SLIDE 57

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Concluding remarks

Further problems arise with Jacobians. Example (Laugesen ’96). ∀ε > 0 ∃Φ : ∂B → ∂B homeomorphism, such that |Φ(x) − x| < ε, ∀x ∈ ∂B and the solution U = (u1, u2, u3) to ∆U = 0, in B, U = Φ,

  • n

∂B. is not one-to-one.

slide-58
SLIDE 58

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

Concluding remarks

Example (Jin and Kazdan ’91). ∃σ ∈ C∞(R3) , λ−1I ≤ σ ≤ λI and a solution U = (u1, u2, u3) to div(σ∇U) = 0 in R3 , such that detDU = 0, for x3 ≤ 0 , detDU > 0, for x3 > 0 .

slide-59
SLIDE 59

STABILITY FOR COUPLED PHYSICS IPs Giovanni Alessandrini Introduction An example A priori assumptions Main Theorem Stability for |u| Quantitative UCP Concluding remarks End

The end.

THANKS!
