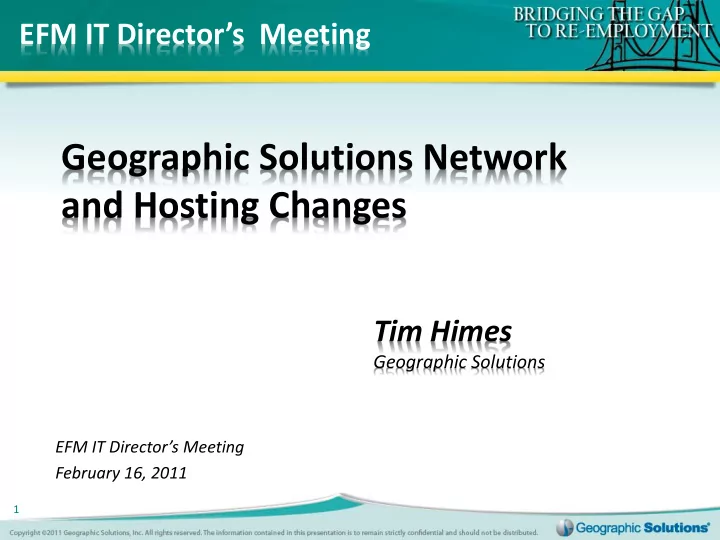

EFM IT Directors Meeting Geographic Solutions Network and Hosting Changes Tim Himes Geographic Solutions EFM IT Directors Meeting February 16, 2011 1 EFM IT Directors Meeting Overview Review of Ongoing and Planned

slide-1
SLIDE 1

1

Tim Himes

Geographic Solutions

EFM IT Director’s Meeting February 16, 2011

Geographic Solutions Network and Hosting Changes

EFM IT Director’s Meeting

slide-2
SLIDE 2

2

Overview

  • Review of Ongoing and Planned Infrastructure

Changes

  • Hosted Data Center Alignment
  • Projected Schedule of Events
  • Discussion

EFM IT Director’s Meeting

slide-3
SLIDE 3

3

  • New Florida Production Data Center
  • New California Production Data Center
  • DR Modernization and Move
  • New Replication Solution
  • Split Production Operations
  • Development, Test, and

Training remains in Palm Harbor

Infrastructure Improvements

slide-4
SLIDE 4

INTERNET Private Cloud

Production Data Center (California/ DR Florida) Sacramento County D/C 799 G St Sacramento, Ca 95814 Palm Harbor Corporate Data Center 1188 Omaha Circle Palm Harbor, Fl 34683

100 Mbs 100 Mbs 50 Mbs Ea 200 Mbs 200 Mbs 200 Mbs

Production Data Center (Tampa, Fl/ DR California) Peak 10 9417 Corporate Dr Tampa, FL 33634

1. Data center space and power provided by Peak 10 2. Internet provided by Level3 with separate Peak 10 mesh network backup 3. Dedicated private network provided by Level3

Dedicated private network Internet

1. Data center space and power provided by Sacramento County 2. Internet provided by separate Level3 with diverse route backup 3. Dedicated private network provided by Level3

Infrastructure Improvements

50 Mbs 50 Mbs

slide-5
SLIDE 5

5

Tampa, Florida Peak 10 Tier 3 Data Center

  • Purchase and Install Virtual Hosts
  • Retire/Replace 28 Production Servers with Virtual
  • Mix of Virtual and Physical Web Farms
  • New VNX 5700 Storage Area Network
  • Recover Point Replication
  • New 200 Mbs DIA Circuit
  • New 100 Mbs Dedicated Circuit
  • Dedicated 50Mbs Management Circuit

Infrastructure Improvements

slide-6
SLIDE 6

6

Sacramento, California County Tier 3 Data Center Infrastructure Improvements

  • Purchase and Install Virtual Hosts for 28 Virtual Servers
  • Add 15 New Servers to Current DR Equipment
  • Mix of Virtual and Physical Web Farms
  • New VNX 5700 Storage Area Network
  • Recover Point Replication
  • New 200 Mbs DIA Circuit
  • New 100 Mbs Dedicated Circuit
  • Dedicated 50Mbs Management Circuit
slide-7
SLIDE 7

7

Palm Harbor Florida Data Center

Security, Network, and Hosting Review

Cutout Caption

  • Purchase and Install Virtual Hosts to Support Virtualization
  • Retire/Replace 11 Servers with Virtual
  • Repurpose Storage Area Network
  • 200 Mbs DIA Circuit
  • Dedicated 50Mbs Management Circuit
  • Multiple Dedicated 50Mbs

Management Circuits

slide-8
SLIDE 8

8

Hosted Client Data Center Alignment

Clients

FL SC GA LA ND TX DC IN HI WY

Motherlode, Madera, San Benito Yolo, Santa Cruz, San Benito, NAPA, Monterey, Ventura, San Bernadino, Long Beach, Mendocino, Merced, Riverside, Sacramento, Sonoma, San Francisco, San Joaquin, San Luis Obispo, Santa Barbara, Tulare, Careers in the Valley, Oakland, Alameda, Richmond, Contra Costa, Golden Sierra, NCCC, Nortec, LA City

CA MS RI NH ILL VA MD PA VI AL Self Hosted Clients: CO, KS, ME, NE, NH, NM, TN, WV

Pacific Mountain Central Eastern Hawaii

  • Future Production Operations Split Between Fl and Ca, Missouri closed, DR for

Each Other, Palm Harbor Retained for Development, Test, and Training

slide-9
SLIDE 9

9

  • Facilities & Network vendor contracts Tampa

9/30 9/30

  • Initial equipment purchase contracts

9/30 9/30

  • Initial equipment delivered

10/20 11/16

  • Facilities & Network vendor contracts Sacramento

11/15 1/24

  • Second equipment purchase contract

11/18 12/29

  • Tampa facilities build complete

11/30 12/23

  • Second equipment buy delivered

12/1 1/17

  • Tampa equipment build complete

12/15 2/24

Data Center Schedule of Events

Key Activity Planned/Completed

slide-10
SLIDE 10

10

  • Sacramento facilities build complete

3/15

  • Tampa production migration complete

3/30

  • Sacramento equipment build complete

4/15

  • Sacramento production migration complete

5/15

  • New California system go live

7/2

Data Center Schedule of Events

Key Activity Planned/Completed

slide-11
SLIDE 11

11

  • Tampa facilities, equipment install, and network activated
  • EFM equipment and supporting software tested
  • Trial client production move to EFM equipment
  • EFM test system moved to new EFM equipment and tested
  • Final EFM system and code updates completed and tested
  • Replication established to keep new system up to date
  • Move scheduled and executed after hours – estimated 30

minutes to 1 Hour down time.

EFM Move Plans

Key Activities

slide-12
SLIDE 12

12

Questions
