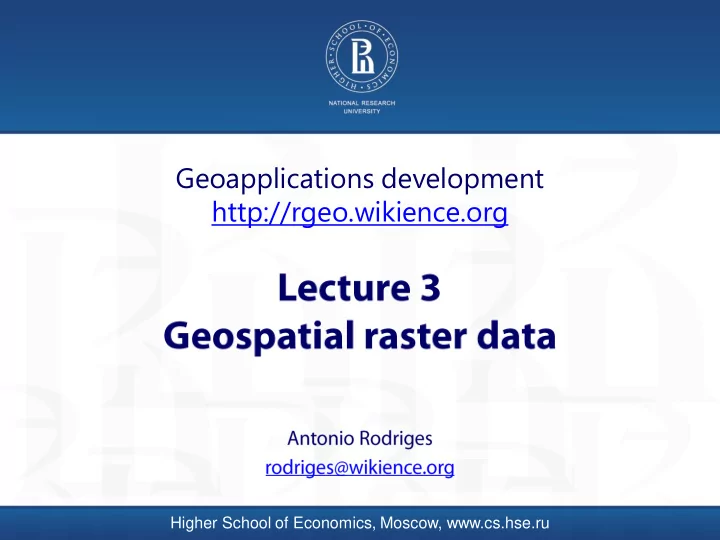

Geoapplications development http://rgeo.wikience.org Higher School of Economics, Moscow, www.cs.hse.ru 2 Agenda 3 Examples of geospatial raster data 4 Subset types 5 Java libs to read/write rasters

slide-1
SLIDE 1

Geoapplications development http://rgeo.wikience.org

Higher School of Economics, Moscow, www.cs.hse.ru

slide-2
SLIDE 2

Agenda

2

slide-3
SLIDE 3

Examples of geospatial raster data

3

slide-4
SLIDE 4

Subset types

4

slide-5
SLIDE 5

Java libs to read/write rasters

5

slide-6
SLIDE 6

Geospatial raster file formats (>150 supported by GDAL)

6

Arc/Info ASCII Grid ACE2 ADRG/ARC Digitilized Raster Graphics (.gen/.thf) Arc/Info Binary Grid (.adf) AIRSAR Polarimetric Azavea Raster Grid Magellan BLX Topo (.blx, .xlb) Bathymetry Attributed Grid (.bag) Microsoft Windows Device Independent Bitmap (.bmp) BPG (Better Portable Graphics) BSB Nautical Chart Format (.kap) VTP Binary Terrain Format (.bt) CALS Type I CEOS (Spot for instance) DRDC COASP SAR Processor Raster TerraSAR-X Complex SAR Data Product Convair PolGASP data USGS LULC Composite Theme Grid DirectDraw Surface Spot DIMAP (metadata.dim) ELAS DIPEx DODS / OPeNDAP First Generation USGS DOQ (.doq) New Labelled USGS DOQ (.doq) Military Elevation Data (.dt0, .dt1, .dt2) Arc/Info Export E00 GRID ECRG Table Of Contents (TOC.xml) ERDAS Compressed Wavelets (.ecw) ESRI .hdr Labelled Erdas Imagine Raw NASA ELAS ENVI .hdr Labelled Raster Epsilon - Wavelet compressed images ERMapper (.ers) Envisat Image Product (.n1) EOSAT FAST Format FIT FITS (.fits) Fuji BAS Scanner Image Generic Binary (.hdr Labelled) GeoPackage Oracle Spatial GeoRaster GSat File Format Graphics Interchange Format (.gif) WMO GRIB1/GRIB2 (.grb) GMT Compatible netCDF GRASS Raster Format GRASS ASCII Grid Golden Software ASCII Grid Golden Software Binary Grid Golden Software Surfer 7 Binary Grid GSC Geogrid Generic Tagged Arrays (.gta) TIFF / BigTIFF / GeoTIFF (.tif) NOAA .gtx vertical datum shift GXF - Grid eXchange File Hierarchical Data Format Release 4 (HDF4) Hierarchical Data Format Release 5 (HDF5) HF2/HFZ heightfield raster Erdas Imagine (.img) Image Display and Analysis (WinDisp) ILWIS Raster Map (.mpr,.mpl) Intergraph Raster IRIS ISCE raster USGS Astrogeology ISIS cube (Version 2) USGS Astrogeology ISIS cube (Version 3) JAXA PALSAR Product Reader (Level 1.1/1.5) Japanese DEM (.mem) JPEG JFIF (.jpg) JPEG-LS JPEG2000 (.jp2, .j2k) JPEG2000 (.jp2, .j2k) JPEG2000 (.jp2, .j2k) JPEG2000 (.jp2, .j2k) JPEG2000 (.jp2, .j2k) JPIP (based on Kakadu) KEA KMLSUPEROVERLAY KRO NOAA Polar Orbiter Level 1b Data Set (AVHRR) Erdas 7.x .LAN and .GIS FARSITE v.4 LCP Format Daylon Leveller Heightfield NADCON .los/.las Datum Grid Shift MBTiles OziExplorer .MAP In Memory Raster Vexcel MFF Vexcel MFF2 MG4 E Multi-r Meteo EUMET NLAPS NOAA NITF (. NetCD NTv2 D Northw Northw OGDI Br OZI OZ PCI .aux PCI Geo PCRast Geospat NASA Planet Portabl PostGI Netpb R Obje Rasdam Raster Swedis Raster ROI_PA Raster RadarSa Idrisi Ras Sentinel SAGA SAR CE

slide-7
SLIDE 7

Common data model (CDM)

7

slide-8
SLIDE 8

CDM architecture

8

slide-9
SLIDE 9

Geospatial raster types

9

  • http://modis-atmos.gsfc.nasa.gov/MOD04_L2/grids.html

http://meso-a.gsfc.nasa.gov/val/projects/gpm/swath/index.html

slide-10
SLIDE 10

Model VS Storage (1)

10

1 2 3 4 1 2 3 4 1 2 3 4

slide-11
SLIDE 11

Model VS Storage (2)

11

slide-12
SLIDE 12

Model: several rasters in a single file (1)

12

slide-13
SLIDE 13

Model: several rasters in a single file (2)

13

Product Period Datasets Format File name example AMIP/DOE Reanalysis 2 Year, 6 hours 1 NetCDF pres.sfc.1979.nc pres.sfc.1980.nc MODIS L3 Atmosphere Day, Day >600 HDF4 MOD08_D3.A2000061.051.2010273 210218.hdf MOD08_D3.A2000062.051.2010273 161753.hdf CFSR Month, 1 hour 1 Grib2

  • cnsst.l.gdas.198401.grb2
  • cnsst.l.gdas.198402.grb2

MERRA Day, 1..24 hrs 1.. HDF4 MERRA200.prod.assim.tavg1_2d_lnd _Nx. 20000718.hdf Aura satellite, OMI radiometer Day, Day 14 HDF5 OMI-Aura_L3- OMSO2e_2004m1001_v003- 011m0526t144250.he5

slide-14
SLIDE 14

raro@ubuntu-pelligrini:/mnt/hgfs/RS_DATA/Landsat8/LC81790212015146-SC20150806075046$ gdalinfo ./LC81790212015146LGN00_sr_band1.tif Driver: GTiff/GeoTIFF Files: ./LC81790212015146LGN00_sr_band1.tif Size is 8191, 8271 Coordinate System is: PROJCS["WGS 84 / UTM zone 37N", GEOGCS["WGS 84", DATUM["WGS_1984", SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]], AUTHORITY["EPSG","6326"]], PRIMEM["Greenwich",0], UNIT["degree",0.0174532925199433], AUTHORITY["EPSG","4326"]], PROJECTION["Transverse_Mercator"], PARAMETER["latitude_of_origin",0], PARAMETER["central_meridian",39], PARAMETER["scale_factor",0.9996], PARAMETER["false_easting",500000], PARAMETER["false_northing",0], UNIT["metre",1,AUTHORITY["EPSG","9001"]], AUTHORITY["EPSG","32637"]] Origin = (224385.000000000000000,6322515.000000000000000) Pixel Size = (30.000000000000000,-30.000000000000000) Metadata: AREA_OR_POINT=Area Band_1=band 1 surface reflectance Image Structure Metadata: INTERLEAVE=BAND Corner Coordinates: Upper Left ( 224385.000, 6322515.000) ( 34d27'55.58"E, 56d57'49.93"N) Lower Left ( 224385.000, 6074385.000) ( 34d43' 3.37"E, 54d44'27.51"N) Upper Right ( 470115.000, 6322515.000) ( 38d30'26.82"E, 57d 2'42.39"N) Lower Right ( 470115.000, 6074385.000) ( 38d32' 5.80"E, 54d48'56.61"N) Center ( 347250.000, 6198450.000) ( 36d33'23.03"E, 55d54'25.94"N) Band 1 Block=8191x1 Type=Int16, ColorInterp=Gray Description = band 1 surface reflectance

GDAL output in WKT for Landsat 8 Moscow scene don’t worry due to font size – we are looking closer on it just in several slides

14

http://www.geoapi.org/3.0/javadoc/org/o pengis/referencing/doc-files/WKT.html previous lesson

slide-15
SLIDE 15

Origin = (224385.000000000000000,6322515.000000000000000) Pixel Size = (30.000000000000000,-30.000000000000000) Metadata: AREA_OR_POINT=Area Band_1=band 1 surface reflectance Image Structure Metadata: INTERLEAVE=BAND

Corner Coordinates: Upper Left ( 224385.000, 6322515.000) ( 34d27'55.58"E, 56d57'49.93"N) Lower Left ( 224385.000, 6074385.000) ( 34d43' 3.37"E, 54d44'27.51"N) Upper Right ( 470115.000, 6322515.000) ( 38d30'26.82"E, 57d 2'42.39"N) Lower Right ( 470115.000, 6074385.000) ( 38d32' 5.80"E, 54d48'56.61"N) Center ( 347250.000, 6198450.000) ( 36d33'23.03"E, 55d54'25.94"N)

Band 1 Block=8191x1 Type=Int16, ColorInterp=Gray Description = band 1 surface reflectance

GDAL metadata for GeoTIFF

15

In this case GeoTIFF contains 1 band (raster), cell data type is 16-bit int. GeoTIFF is very popular for satellite data (along with HDF)

slide-16
SLIDE 16

NetCDF (1)

16

Stores multidimensional arrays

http://www.narccap.ucar.edu/users/user-meeting-08/handout/netcdf-diagram.png

slide-17
SLIDE 17

NetCDF (2)

17

Stores multidimensional arrays

https://trac.osgeo.org/gdal/raw- attachment/wiki/ADAGUC/ADAGUC_NetCDF_dimension_scales.jpg

slide-18
SLIDE 18

netcdf file:/d:/RS_DATA/…/wnd10m.gdas.201210.grib2 { dimensions: time = 745; lat = 880; lon = 1760; height_above_ground = 1; variables: float U-component_of_wind(time=745,height_above_ground=1, lat=880, lon=1760); :units = "m s-1"; :long_name = "U-component_of_wind @ height_above_ground"; :missing_value = NaNf; // float :GRIB_param_discipline = "Meteorological_products"; :GRIB_param_category = "Momentum"; :GRIB_generating_process_type = "Forecast"; :GRIB_product_definition_template = 0; // int :GRIB_product_definition_template_desc = "Analysis………/layer at a point in time"; :GRIB_level_type_name = "height_above_ground";

NetCDF metadata for CSFR climate reanalysis

18

Several lines were cut out due to space constraints

slide-19
SLIDE 19

NetCDF metadata

19

https://badc.nerc.ac.uk/help/formats/netcdf/netcdf_fig1.gif

slide-20
SLIDE 20

ISO 19123 Model

20

See paper in main readings…

slide-21
SLIDE 21

CF-CDM Model (netCDF)

21

See paper in main readings…

slide-22
SLIDE 22

HDF: now NetCDF-Java reads HDF

22

Main feature: hierarchical variable namespace Includes groups and variables HDF-EOS is the primary format for storing EOS satellite data EOS stands for Earth Observing System

slide-23
SLIDE 23

Subsetting data: point

23

  • 1. Define coordinates (lat, lon), e.g. in EPSG:4326
slide-24
SLIDE 24

Subsetting data: polygon

24

Quite tricky: usually rasterize the polygon to the grid resolution

slide-25
SLIDE 25

Main readings

25

slide-26
SLIDE 26

Additional readings

26

slide-27
SLIDE 27

Practical lesson 03

27

Subset GeoTIFF, HDF, NetCDF with Java libraries Tools: To feel data: HDF Viewer, Weather and Climate Toolkit (WCT) Java libraries: GDAL, GeoTools, NetCDF-Java Readings:

  • http://www.unidata.ucar.edu/software/thredds/current/netcdf-

java/tutorial/GridDatatype.html

  • http://www.smartjava.org/content/access-information-geotiff-using-java
  • http://gis.stackexchange.com/questions/73210/how-to-crop-an-image-based-
  • n-a-shapefile-using-geotools
  • http://docs.geotools.org/stable/tutorials/raster/image.html
slide-28
SLIDE 28

Practical lesson 03

28

Feel: play with subsetting NetCDF multidimensional array

slide-29
SLIDE 29

Practical lesson 03

29

Feel: browse HDF matrix

slide-30
