SLIDE 1

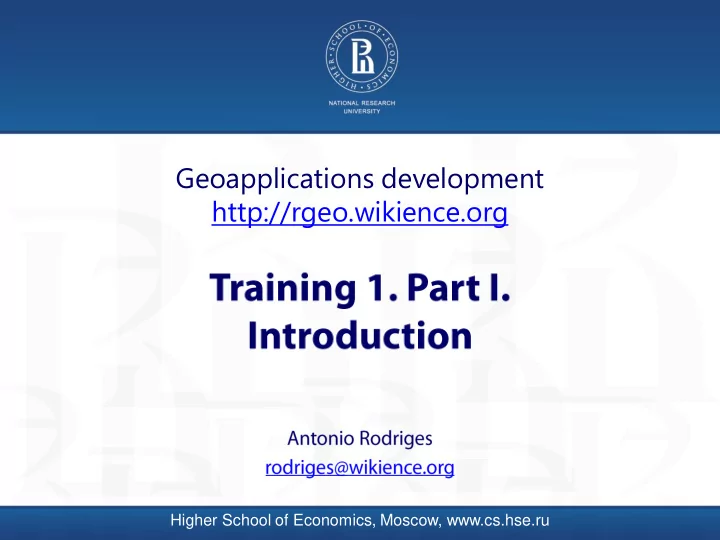

Geoapplications development http://rgeo.wikience.org

Higher School of Economics, Moscow, www.cs.hse.ru

SLIDE 2

Agenda

2

What is geospatial data?
How is it different from other types of data?
Examples of geospatial data
What is geoapplication?
Course goals & organization
Real-world examples: companies using geospatial data
Tentative projects to participate in
Main readings
Quiz
Practical lesson: 3D Globes

SLIDE 3

Geospatial data: 2 types (simplified)

3

VECTOR

What is raster data? http://help.arcgis.com/EN/arcgisdesktop/10.0/help/index.html#//009t00000002000000

RASTER matrix

SLIDE 4

The main difference from other data types (simplified)

4

RASTER matrix

A fundamental difference: the presence of spatial coordinates

each cell has (lat, lon, value)

(lat_i, lon_i) for each vertice

VECTOR

SLIDE 5

Is that all?

5

SLIDE 6

is there something strange here??

6

Hint: areas…

SLIDE 7

is Greenland larger than Africa??

7

Let us consult an Encyclopedia or Wikipedia

2,175,600 km2 World size ranking: 14 30,370,000 km2 World size ranking: 2

SLIDE 8

is Greenland larger than Africa??

8

https://takeitscienceblog.wordpress.com/2016/08/31/how-big-is-your-country/ http://geoffboeing.com/2015/08/map-projections-that-lie/

SLIDE 9

Distances

9

Two airplanes are flying … Plane A: (60ᵒN, 40ᵒE) → (60ᵒN, 30ᵒE) Plane B: (40ᵒN, 40ᵒE) → (40ᵒN, 30ᵒE) 40ᵒ - 30ᵒ = 10ᵒ Both traveled the same distance?

SLIDE 10

Everything is not so simple…

10

To name a few: * distances between two points with the same longitudes are different for different latitudes

SLIDE 11

A small caveat: circular/periodic axes

11

longitude range is [ –180 … +180 ] but what if I want to move 10 degrees eastward from 179 degrees? 179 + 10 = 189 …. actually -171

SLIDE 12

Lesson learned

12

Areas, shapes, angles, distances depend on…

SLIDE 13

Examples of geospatial data: vector

13

SLIDE 14

Geo prefix

14

→ → → → → →

SLIDE 15

Examples of geospatial data: raster & vector

15

More details are at: http://www.wikience.org/tropical-cyclones/wind-swaths/

SLIDE 16

Examples of geospatial data: satellite raster

16

SLIDE 17

Visualization examples

17

Much more examples are at: http://goworldwind.org/demos/

Video on terrain Analytic Surface Airspaces Extruded Shapes Scankort Denmark Data We can do more together during course work

NASA World Wind engine

SLIDE 18

18

Satellites, smartphones, GPS (1): basic theory: geographic coordinate systems, geocoding, vector and raster data types and operations (3): I/O with vector (SHP, KML, GeoJSON, WKT) and raster (GeoTIFF, NetCDF, HDF) formats (4): network protocols for geodata exchange: WCS, WFS, WMS, OPeNDAP (4): frameworks: Mina, Netty that is used by Twitter (3,4,5): spatial databases and servers: PostGIS, SciDB, GeoServer, TDS (5): software libraries for geodata processing: vector Java Topology Suite and raster ImageMagic, GDAL (6): visualizing geodata with NASA WorldWind, Mapbox, Leaflet, CartoDB

Course goals & organization

Topics cover technologies for a complete geospatial data management stack:

SLIDE 19

19

Course assessment

Code Description Contribution, % LP Lecture presence 20 PP Work during practical lessons 5 CW Control work 10 HA1 Home assignment 1 30 HA2 Home assignment 2 15 EX Exam 20 TT Total contribution

SLIDE 20

Geospatial technology stack (not exhaustive)

20

Storage Transmission Processing Visualization DBMS Files Almost all DBMS are geo-enabled

SHP, KML, GeoJSON, GeoTIFF, NetCDF, HDF network protocols WCS, WFS, WMS, OPeNDAP

Libraries in Java, Python, R, JavaScript, …

SLIDE 21

Geospatial theory stack (not exhaustive)

21

Notations Topology Processing GPS, WiFi, geohash, … Projections

ISO/IEC standard

SLIDE 22

The technologies and theory are building blocks for solving real-world tasks

22

SLIDE 23

The technologies and theory are building blocks for solving real-world tasks

23

Example task: Because of dramatic traffic increase, the town planners want to widen the main road and add a second lane. The lane width is 20 meters. Find properties that must be demolished. main road

new lane (its central line)

house tree

SLIDE 24

The solution (DBMS, WKT, Buffer, Topology, SQL, …)

24

LINESTRING (290 230, 330 250, 390 260, 440 260, 495 252, 535 238, 560 220, 580 190, 590 150)

main road house tree

new lane (its central line)

DBMS

SELECT a_geom, address, owner FROM city_database WHERE ST_Intersects ( ST_Buffer( ST_GeomFromText("LINESTRING (290 230,…) ",4326), 10), a_geom)

POLYGON ((325.5278640450004 258.94427190999915, 326.90755828109235, ….))

BUFFER (ST_Buffer)

WKT: ISO/IEC standard

SLIDE 25

Consumers of geospatial data
