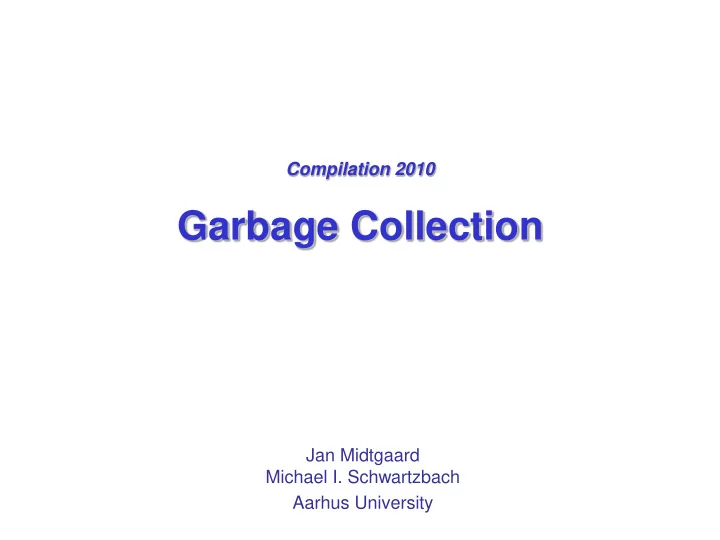

Garbage Collection Jan Midtgaard Michael I. Schwartzbach Aarhus - - PowerPoint PPT Presentation

Compilation 2010

Garbage Collection

Jan Midtgaard Michael I. Schwartzbach Aarhus University

2

Garbage Collection

The Garbage Collector

• A garbage collector is part of the runtime system
• It reclaims heap-allocated records (objects) that

are no longer in use

• A garbage collector should:
• reclaim all unused records
• spend very little time per record
• not cause significant delays
• allow all of memory to be used
• These are difficult and conflicting requirements

3

Garbage Collection

Life Without Garbage Collection

• Unused records must be explicitly deallocated
• This is superior if done correctly
• But it is easy to miss some records
• And it is dangerous to handle pointers
• Memory leaks in real life (ical v.2.1):

5 10 15 20 25 30 35

MB hours

4

Garbage Collection

Record Liveness

• Which records are still in use?
• Ideally, those that will be accessed in the future

execution of the program

• But that is of course undecidable...
• Basic conservative approximation:

A record is live if it is reachable from a stack location (local variable or local stack)

• Dead records may still point to each other

5

Garbage Collection

A Heap With Live and Dead Records

p q r 37 15 12 7 37 59 9 20

00017 00008 00042 00113 00249 00371 00738

6

Garbage Collection

The Mark-and-Sweep Algorithm

• Explore pointers starting from all stack locations

and mark all the records encountered

• Sweep through all records in the heap and

reclaim the unmarked ones

• Unmark all marked records
• Assumptions:
• we know the start and size of each record in memory
• we know which record fields are pointers
• reclaimed records are kept in a freelist

7

Garbage Collection

Pseudo Code for Mark-and-Sweep

function DFS(x) { if (x is a heap pointer) if (x is not marked) { mark x; for (i=1; i<=|x|; i++) DFS(x.fi) } } function Sweep() { p = first address in heap; while (p<last address in heap) { if (p is marked) unmark p; else { p.f1 = freelist; freelist = p; } p = next object pointer after p } } function Mark() { foreach (v in a stack frame) DFS(v); }

8

Garbage Collection

Marking and Sweeping (1/11)

p q r 37 15 12 7 37 59 9 20

00017 00008 00042 00113 00249 00371 00738

9

Garbage Collection

Marking and Sweeping (2/11)

p q r 37 15 12 7 37 59 9 20

00017 00008 00042 00113 00249 00371 00738

10

Garbage Collection

Marking and Sweeping (3/11)

p q r 37 15 12 7 37 59 9 20

00017 00008 00042 00113 00249 00371 00738

11

Garbage Collection

Marking and Sweeping (4/11)

p q r 37 15 12 7 37 59 9 20

00017 00008 00042 00113 00249 00371 00738

12

Garbage Collection

Marking and Sweeping (5/11)

p q r 37 15 12 7 37 59 9 20

00017 00008 00042 00113 00249 00371 00738

13

Garbage Collection

Marking and Sweeping (6/11)

p q r 37 15 12 7 37 59 9 20 freelist

00017 00008 00042 00113 00249 00371 00738

14

Garbage Collection

Marking and Sweeping (6/11)

p q r 37 15 12 7 37 59 9 20 freelist

00017 00008 00042 00113 00249 00371 00738

15

Garbage Collection

Marking and Sweeping (6/11)

p q r 37 15 12 7 37 59 9 20 freelist

00017 00008 00042 00113 00249 00371 00738

16

Garbage Collection

Marking and Sweeping (7/11)

p q r 37 15 12 7 37 59 20 freelist

00017 00008 00042 00113 00249 00371 00738

17

Garbage Collection

Marking and Sweeping (8/11)

p q r 37 15 12 7 37 59 20 freelist

00017 00008 00042 00113 00249 00371 00738

18

Garbage Collection

Marking and Sweeping (9/11)

p q r 37 15 12 7 37 59 20 freelist

00017 00008 00042 00113 00249 00371 00738

19

Garbage Collection

Marking and Sweeping (10/11)

p q r 37 15 12 7 37 59 20 freelist

00017 00008 00042 00113 00249 00371 00738

20

Garbage Collection

Marking and Sweeping (11/11)

p q r 37 15 12 7 37 59 20 freelist

00017 00008 00042 00113 00249 00371 00738

21

Garbage Collection

Analysis of Mark-and-Sweep

• Assume the heap has H words
• Assume that R words are reachable
• The cost of garbage collection is:

c1R + c2H

• The cost per reclaimed word is:

(c1R + c2H)/(H - R)

• If R is close to H, then this is expensive

22

Garbage Collection

Allocation

• The freelist must be searched for a record

that is large enough to provide the requested memory

• Free records may be sorted by size
• The freelist may become fragmented:

containing many small free records but none that is large enough

• Defragmentation joins adjacent free records

23

Garbage Collection

Pointer Reversal

• The DFS recursion stack could have size H
• It has at least size log(H)
• This may be too much (after all, memory is low)
• The recursion stack may be cleverly embedded in

the fields of the marked records

• This technique makes mark-and-sweep practical

24

Garbage Collection

The Reference Counting Algorithm

• Maintain a counter of the total number of

references to each record

• For each assignment, update the counters
• A record is dead when its counter is zero
• Advantages:
• catches dead records immediately
• does not cause long pauses
• Disadvantages:
• cannot detect cycles of dead records
• is rather expensive

25

Garbage Collection

Pseudo Code for Reference Counting

function Increment(x) { x.count++; } function Decrement(x) { x.count--; if (x.count==0) PutOnFreeList(x); } function PutOnFreelist(x) { Decrement(x.f1); x.f1 = freelist; freelist = x; } function RemoveFromFreelist(x) { for (i=2; i<=|x|; i++) Decrement(x.fi); }

26

Garbage Collection

The Stop-and-Copy Algorithm

• Divide the heap space into two parts
• Only use one part at a time
• When it runs full, copy live records to the other

part of the heap space

• Then switch the roles of the two parts
• Advantages:
• fast allocation (no freelist)
• avoids fragmentation
• Disadvantage:
• wastes half your memory

27

Garbage Collection

Before and After Stop-and-Copy

8 7 6 4 3 5

from-space to-space next limit

8 7 6 5 4 3

to-space from-space limit next

28

Garbage Collection

Pseudo Code for Stop-and-Copy

function Forward(x) { if (x  from-space) { if (x.f1  to-space) return x.f1; else for (i=1; i<|x|; i++) next.fi = x.fi; x.f1 = next; next = next + sizeof(x); return x.f1; } else return x; } function Copy() { scan = next = start of to-space; foreach (v in a stack frame) v = Forward(v); while (scan < next) { for (i=1; i<=|scan|; i++) scan.fi = Forward(scan.fi); scan = scan + sizeof(scan); } }

29

Garbage Collection

Stopping and Copying (1/13)

p q r 37 15 12 7 37 59 9 20

00017 00008 00042 00113 00249 00371 00738

from-space to-space

15

00017

30

Garbage Collection

Stopping and Copying (2/13)

p q r 37 15 12 7 37 59 9 20

00017 00008 00042 00113 00249 00371 00738

from-space to-space

15

00017

15

09000

31

Garbage Collection

Stopping and Copying (3/13)

p q r 37 15 12 7 37 59 9 20

00017 00008 00042 00113 00249 00371 00738

from-space to-space

15

00017

15

09000

32

Garbage Collection

Stopping and Copying (4/13)

p q r 37 15 12 7 37 59 9 20

00017 00008 00042 00113 00249 00371 00738

from-space to-space

15

00017

15

09000

37

09012

33

Garbage Collection

Stopping and Copying (5/13)

p q r 37 15 12 7 37 59 9 20

00017 00008 00042 00113 00249 00371 00738

from-space to-space

15

00017

15

09000

37

09012

34

Garbage Collection

Stopping and Copying (6/13)

p q r 37 15 12 7 37 59 9 20

00017 00008 00042 00113 00249 00371 00738

from-space to-space

15

00017

15

09000

37

09012

12

09024

35

Garbage Collection

Stopping and Copying (7/13)

p q r 37 15 12 7 37 59 9 20

00017 00008 00042 00113 00249 00371 00738

from-space to-space

15

00017

15

09000

37

09012

12

09024

36

Garbage Collection

Stopping and Copying (8/13)

p q r 37 15 12 7 37 59 9 20

00017 00008 00042 00113 00249 00371 00738

from-space to-space

15

00017

15

09000

37

09012

12

09024

37

Garbage Collection

Stopping and Copying (9/13)

p q r 37 15 12 7 37 59 9 20

00017 00008 00042 00113 00249 00371 00738

from-space to-space

15

00017

15

09000

37

09012

12

09024

20

00249

38

Garbage Collection

Stopping and Copying (10/13)

p q r 37 15 12 7 37 59 9 20

00017 00008 00042 00113 00249 00371 00738

from-space to-space

15

00017

15

09000

37

09012

12

09024

20

00936

39

Garbage Collection

Stopping and Copying (11/13)

p q r 37 15 12 7 37 59 9 20

00017 00008 00042 00113 00249 00371 00738

from-space to-space

15

00017

15

09000

37

09012

12

09024

20

00936

59

00948

40

Garbage Collection

Stopping and Copying (12/13)

p q r 37 15 12 7 37 59 9 20

00017 00008 00042 00113 00249 00371 00738

from-space to-space

15

00017

15

09000

37

09012

12

09024

20

00936

59

00948

41

Garbage Collection

Stopping and Copying (13/13)

p q r 37

to-space from-space

15

09000

37

09012

12

09024

20

00936

59

00948

42

Garbage Collection

Analysis of Stop-and-Copy

• Assume the heap has H words
• Assume that R words are reachable
• The cost of garbage collection is:

c3R

• The cost per reclaimed word is:

c3R/(H/2 - R)

• This has no lower bound as H grows

43

Garbage Collection

Recognizing Records and Pointers

• Earlier assumptions:
• we know the start and size of each record in memory
• we know which record fields are pointers
• For object-oriented languages, each record

already contains a pointer to a class descriptor

• For general languages, we must sacrifice a few

bytes per record

• For the stack frame:
• use a bit per stack location
• use a table per program point

44

Garbage Collection

Conservative Garbage Collection

• For mark-and-sweep, we may use a conservative

approximation to recognize pointers

• A word is a pointer if it looks like one (its value is

an address in the range of the heap space)

• This will recognize too many pointers
• Thus, too many records will be marked as live
• This does not work for stop-and-copy...

45

Garbage Collection

Triggering Garbage Collection

• A collection must be triggered when there is no

more free heap space

• But this may cause a long pause in the execution
• Collections may be triggered by heuristics:
• after a certain number of records have been allocated
• when only a certain fraction of the heap is free
• after a certain period of time
• when the program is not busy

46

Garbage Collection

Generational Collection

• Observation: the young die quickly!
• The collector should focus on young records
• Divide the heap into generations: G0, G1, G2, ...
• All records in Gi are younger than records in Gi+1
• Collect G0 often, G1 less often, and so on
• Promote a record from Gi to Gi+1 when it survives

several collections

47

Garbage Collection

Collecting a Generation

• How to collect the G0 generation:
• roots are no longer just stack locations, but also

pointers from G1, G2, ...

• it could be expensive to find those pointers
• fortunately they are rare, so we can remember them
• Ways to remember pointers:
• maintain a set of all updated records
• mark pages of memory that contain updated records

(using hardware or software)

48

Garbage Collection

Incremental Collection

• A garbage collector creates (long) pauses
• This is bad for real-time programs
• An incremental collector runs concurrently with

the program (in a separate thread)

• It must now handle simultaneous heap updates

49

Garbage Collection

The Tricoloring Algorithm

• Records are colored black, grey, or white
• visited and all direct children visited
• visited, but not all direct children visited
• not visited
• The program may update the heap as it pleases,

but must maintain an invariant: no black record points to a white record

50

Garbage Collection

Function Tricolor() { color all records white; color all roots grey; while (more grey records) { x = a grey record; for (i=1; i<=|x|; i++) if x.fi is white then color x.fi grey; color x black; } reclaim all white records; }

Pseudo Code for Tricoloring

51

Garbage Collection

Maintaining the Invariant

• Two possibilities: Write barriers and read barriers
• Write barriers:

x.fi = y; black2grey(x).fi = y;

• Read barriers:

x.fi = y; x.fi = white2grey(y);

• Requires synchronizations between the running

program and the collector

52

Garbage Collection

Garbage Collection in Java

• Sun's HotSpot VM uses by default:
• two generations: "nursery" and "old objects"
• the nursery is collected using stop-and-copy
• the old objects are collected using mark-and-sweep in

a version that also compacts the live records

• For real-time applications:
• use option -Xincgc
• a more sophisticated incremental algorithm
• 10% slower
• but with shorter pauses

53

Garbage Collection

Finalizers

• If an object has a finalize() method, it will be

invoked before the object is reclaimed by the garbage collector

• But there is no guarantee how soon this happens
• This method may actually resurrect the object
• Typically, the garbage collector needs an extra

pass to find out if the dead really stay dead

54

Garbage Collection

Interacting With the Garbage Collector

• Trigger the garbage collector manually:
• System.gc();
• The java.lang.ref package allows variations
• f the pointer concept:
• SoftReference
• WeakReference

55

Garbage Collection

Soft References

• The garbage collector may reclaim an
• bject that has soft references but no
• rdinary (strong) references
• This is typically used for caching:

SoftReference sr; ... Image img = (sr == null)? null : sr.get() ; if (img == null) { img = getImage("huge.gif"); sr = new SoftReference(img); } display(img); img = null;

56

Garbage Collection

Weak References

• The garbage collector will reclaim an object that

has weak references but no strong or soft references

• This is used in java.util.WeakHashMap,

where keys are automatically removed when they are no longer in use
