Functionality Test of Bare Modules for the Phase I Upgrade of CMS - - PowerPoint PPT Presentation

Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector Presentation of Master Thesis, 23.10.2015 Bojan Hiti INSTITUT F UR EXPERIMENTELLE KERNPHYSIK (EKP), KIT www.kit.edu KIT University of the State of


slide-1
SLIDE 1

INSTITUT F ¨ UR EXPERIMENTELLE KERNPHYSIK (EKP), KIT

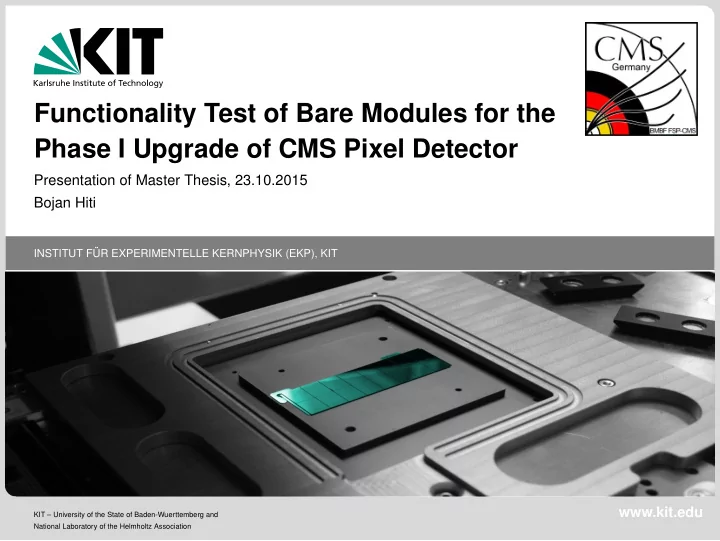

Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector

Presentation of Master Thesis, 23.10.2015 Bojan Hiti

KIT – University of the State of Baden-Wuerttemberg and National Laboratory of the Helmholtz Association

www.kit.edu

slide-2
SLIDE 2

Outline

Motivation for the Phase I Upgrade Structure of pixel modules and bump bonding technology Bare module production at KIT and motivation for the functionality test Bare module probe station setup Test routines on bare modules Evaluation of test reliability Production yields and conclusion

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 2/17

slide-3
SLIDE 3

CMS Pixel Phase I Upgrade

LHC Run 2:

13 TeV center of mass energy for pp 2 × 1034 cm−2s−1 instantaneous luminosity (doubled design luminosity)

Increased luminosity challenging for the CMS pixel detector

Particle rate up to 600 MHz cm−2 (Run 1: 115 MHz cm−2) Significant data loss with the current pixel detector due to buffer

  • verflows (up to 50 % data loss in the innermost layer)

For this reason a new pixel detector will be installed in CMS during the Phase I Upgrade (2016/2017) and will be used until Phase II

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 3/17

slide-4
SLIDE 4

CMS Pixel Phase I Upgrade

Detector changes in the Phase I Upgrade:

New readout chip (ROC) Additional layer 4 Layer 1 closer to the interaction point

→ reduced beam pipe diameter

Power supplies moved outside of the active volume

Institutes involved in Phase I: PSI (CH), CERN, INFN (I), DESY (D), KIT & RWTH Aachen (D) KIT will produce one half of the modules required for barrel layer 4

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 4/17

slide-5
SLIDE 5

CMS Pixel Detector Module

Smallest building block of the pixel detector 350 modules for Phase-I-Upgrade will be produced at KIT (4/day)

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 5/17

slide-6
SLIDE 6

CMS Pixel Detector Module

Smallest building block of the pixel detector 350 modules for Phase-I-Upgrade will be produced at KIT (4/day) Intermediate step in module assembly:

Bare module: Sensor and 16 ROCs

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 5/17

slide-7
SLIDE 7

Bump Bonding

Hybrid detector design: sensor and ROCs manufactured on separate chips Electrical interconnections on pixel level required → bump-bonding (BB) Bump-bonding: vertical interconnections via solder balls (size ∼ 30 µm) 4160 solder bumps per ROC 66 560 bumps per module 99 % good BB connections per ROC for class A module required

Bare Module: REWORK of defect ROCs still possible Early discovery of bonding issues

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 6/17

slide-8
SLIDE 8

Bare Module Production at KIT

Process taking place in a class ISO 10000 clean room

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 7/17

slide-9
SLIDE 9

Bare Module Production at KIT

Process taking place in a class ISO 10000 clean room Process steps:

Cleaning of electrical components

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 7/17

slide-10
SLIDE 10

Bare Module Production at KIT

Process taking place in a class ISO 10000 clean room Process steps:

Cleaning of electrical components Optical inspection of sensors and bumped ROCs

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 7/17

slide-11
SLIDE 11

Bare Module Production at KIT

Process taking place in a class ISO 10000 clean room Process steps:

Cleaning of electrical components Optical inspection of sensors and bumped ROCs Flip-chip bonding

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 7/17

slide-12
SLIDE 12

Bare Module Production at KIT

Process taking place in a class ISO 10000 clean room Process steps:

Cleaning of electrical components Optical inspection of sensors and bumped ROCs Flip-chip bonding Bare module test Eventual reworking

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 7/17

slide-13
SLIDE 13

Bare Module Production at KIT

Process taking place in a class ISO 10000 clean room Process steps:

Cleaning of electrical components Optical inspection of sensors and bumped ROCs Flip-chip bonding Bare module test Eventual reworking Reflow soldering

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 7/17

slide-14
SLIDE 14

Bare Module Production at KIT

Process taking place in a class ISO 10000 clean room Process steps:

Cleaning of electrical components Optical inspection of sensors and bumped ROCs Flip-chip bonding Bare module test Eventual reworking Reflow soldering

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 7/17

slide-15
SLIDE 15

Principles of the Bare Module Test

Electrical test of bare modules based on injection of internal calibration signals in the ROC During the test, a temporary electrical connection to wire-bond pads

  • n the ROC needed (wire-bond pads remain intact):

Needle Card Custom readout board (DTB) – ROC powering and readout via needle card connection Additionally: −150 V bias voltage applied → bias needle

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 8/17

slide-16
SLIDE 16

Bare Module Probe Station Setup

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 9/17

slide-17
SLIDE 17

Bare Module Probe Station Setup

Probe station for the electrical test of bare modules built from scratch NI LabWindows based control software (GUI) Pixel eXpert Analysis Readout (pXar) – software for running electrical tests Driving to test positions and execution of electrical test automated Module positioning via pattern recognition Operator input required for the confirmation of steps and evaluation

  • f results

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 10/17

slide-18
SLIDE 18

Electrical Test

Tests conducted on a bare module:

I-V curve – discover sensors with increased leakage current Pretest – set ROC currents and configure internal calibration signals Pixel alive – discover dead pixel unit cells Bump bond test - find missing bump bonds

Bare modules classified in three quality classes: A (best), B and C (worst), depending on the test outcome Compared to other production centers, KIT bumps have larger size

→ Direct application of the standard bump bond test not reliable → A custom bump bond test had to be developed → Another bump bond developed in parallel at DESY, used at KIT for

cross checking

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 11/17

slide-19
SLIDE 19

Electrical Test

Pixel Alive: check responsiveness of pixel unit cells

10 calibration signals injected directly into the preamplifier Pixels with no hits identified as dead

hits

N

1 2 3 4 5 6 7 8 9 10

PixelAlive

column 10 20 30 40 50 row 20 40 60 80

PixelAlive Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 12/17

slide-20
SLIDE 20

Electrical Test

Pixel Alive: check responsiveness of pixel unit cells BB-test step 1: Set optimal amplifier threshold on ROC level

Run a noise scan (no signal injection) Vary threshold level and count noisy pixels Minimal threshold with less than 5 noisy pixels selected

vthrcomp

100 105 110 115 120 125 130

noisy pixels

10 0 noisy pixels selected threshold 8 noisy pixels 102 103 Low threshold

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 12/17

slide-21
SLIDE 21

Electrical Test

Pixel Alive: check responsiveness of pixel unit cells BB-test step 1: Set optimal amplifier threshold on ROC level BB-test step 2: 100 calibration signals injected via air gap capacitance into the sensor and collected through the bump-bond

Measure pixel efficiency – fraction of received triggers (cut 50 %)

Efficiency [%]

10 20 30 40 50 60 70 80 90 100 Efficiency Map CalDel = 150 column 10 20 30 40 50 row 20 40 60 80 Efficiency Map CalDel = 150

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 12/17

slide-22
SLIDE 22

Test Duration

Also ROCs with a weak needle contact, which have to be retested

Insert Module + Alignment I-V curve Test 16 ROCs

  • drive to ROC
  • pretest, pixelalive
  • bump-bonding test

Manually test ”bad” ROCs Fill database entries

5 min 5 min 16 × 4 min 5 min per ROC or more 5 min

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 13/17

slide-23
SLIDE 23

Comparison with X-ray Measurements

X-ray test: independent verification of the bump bond test Signals generated by full absorption of X-ray photons Only possible on a fully built module (no more reworking)

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 14/17

slide-24
SLIDE 24

Results up to September 2015

32 full modules tested by X-ray Maximal number of missing bumps on a full module: 20 (Reminder: 41 missing bumps per ROC still allowed for grade A) Excellent bump bonding yield

defects

N 2 4 6 8 10 12 14

modules

N 1 2 3 4 5 6 7 8

X-ray test (cut 3): pixel defects X-ray test (cut 3): pixel defects

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 15/17

slide-25
SLIDE 25

Bump bond test reliability

Bump bond test reliability estimated by comparison to the X-ray test:

Unidentified X-ray defects – appeared functional on the bare module Overestimated X-ray defects – falsely declared as defect

defects

N 1 2 3 4 5

modules

N 5 10 15 20 25 UndetectedIX-rayIdefects

DESYIBBItest KITIBBItest

=I0.06

DESY

b =I0.08

KIT

b

defects

N 2 4 6 8 10

modules

N 2 4 6 8 10 12 14 16 18

DESYrBBrtest KITrBBrtest

=r0.24

DESY

a =r0.42

KIT

a

Overestimatedrdefects

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 16/17

slide-26
SLIDE 26

Conclusion and Outlook

CMS pixel detector will be replaced with a new one at the end of 2016 Monitoring of bare modules quality important during the production process Bare module probe station was developed and can test up to four bare modules per day Bump bond test developed and works with a sufficient reliability By September 2015 48/350 production bare modules tested: 45 A, 1 B, 2 C, 10 had to be reworked

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 17/17

slide-27
SLIDE 27

Backup

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 1/0

slide-28
SLIDE 28

ROC psi46digV2.1respin

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 2/0

slide-29
SLIDE 29

ROC psi46digV2.1respin Schematics

Pixel Unit Cell

VwllPr VwllSh comparator VthrComp trimming Vtrim sample & hold DC token pixel row address 9 bit hold delay VhldDel PH buffer 80× row address buffer 80×9 bit write read FIFO serializer sdout– sdout+ Double column address + – PHOffset PHscale Vcomp_ADC 8 bit 80 MHz SAR ADC

Controller & interface block Double column periphery

Trim bits reset bump pad VCal CalDel Vcomp Vsh sensor sensor calib calib VIColOr VIbias_bus Vana Vana top metal pad time stamp buffer 24×8 bit clock trigger WBC token in token

  • ut

160 MHz PLL clock 23 bit 6 bit 4 bit programmable DAC Vdig CtrlReg

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 3/0

slide-30
SLIDE 30

Probe Station: Mechanics

Module positioned with 4-axis positioning stage with precision 10 µm ROC0 and ROC7 positions obtained by pattern recognition, others

  • btained by linear interpolation:

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 4/0

slide-31
SLIDE 31

pXar GUI

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 5/0

slide-32
SLIDE 32

Pretest

Time synchronization of the internal charge injection with the 25 ns clock (”Tornado plot”) 2-D scan of threshold/injection delay in a single pixel Optimal working point selected

noise threshold

CalDel 50 100 150 200 250 VthrComp 50 100 150 200 250

0.5 1 1.5 2 2.5 3 3.5 4 4.5 5

50 DAC units working point VthrComp CalDel low threshold

time signal low thr Δt high thr

t1 t2

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 6/0

slide-33
SLIDE 33

KIT Bump-Bond Test

Charge injection pulses not simultaneously fired in entire ROC → Scan different delays to find the best value (CalDel Scan) Best efficiency at any CalDel used as criteria for each pixel

column 10 20 30 40 50 row 10 20 30 40 50 60 70

10 20 30 40 50 60 70 80 90 100

column 10 20 30 40 50 row 10 20 30 40 50 60 70

10 20 30 40 50 60 70 80 90 100

column 10 20 30 40 50 row 10 20 30 40 50 60 70

10 20 30 40 50 60 70 80 90 100 BBeffMapBest_C0_(V0) 100 100 100

Efficiency_map_CalDel_=_110 Efficiency_map_CalDel_=_150 Efficiency_map_CalDel_=_90

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 7/0

slide-34
SLIDE 34

Charge Injection Mechanism

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 8/0

slide-35
SLIDE 35

DESY Bump-Bond Test

Based on measuring the threshold range of each pixel, for which it detects calibration signals Pixels with missing bumps have a smaller plateau width – discrimination possible

50 100 150 200 2 4 6 8 10

threshold too high

Ntrig

Single pixel plateau

plateau width saturation by noise

VthrComp 250 20 40 60 80 100 1 10

2

10 Plateau width distribution

3 missing bumps

plateau width cut 35

Npix

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 9/0

slide-36
SLIDE 36

High Voltage Filtering

Bias voltage needs to be filtered to ensure low noise in the signal Low pass RC filter placed on the chuck

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 10/0

slide-37
SLIDE 37

Comparison with X-ray Measurements

Bojan Hiti – Functionality Test of Bare Modules for the Phase I Upgrade of CMS Pixel Detector October 23, 2015 11/0

Full Module M4509 Missidentified BB: 24
