Fuel Economy and Performance of Mild Hybrids with Ultracapacitors Simulations and Vehicle Test Results The 5th International Symposium on Large EC Capacitor Technology and Application (ECCAP) Long Beach, California June 9-10, 2009 Jeff


slide-1

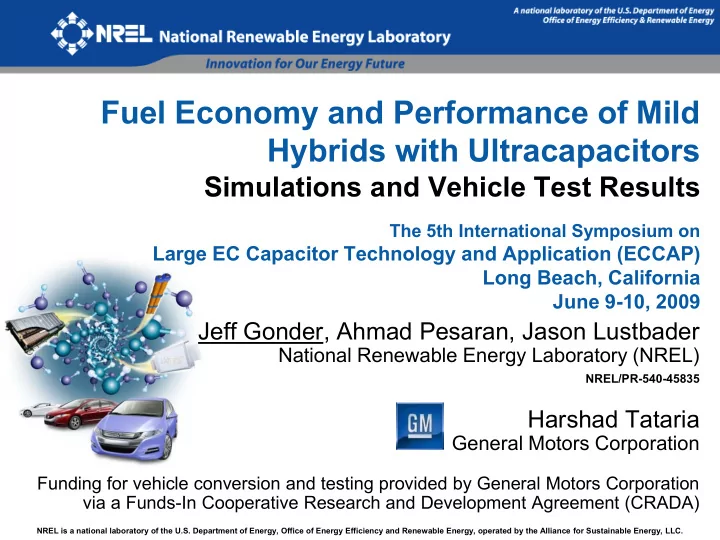

SLIDE 1

NREL is operated by the Alliance for Sustainable Energy, LLC

Fuel Economy and Performance of Mild Hybrids with Ultracapacitors

Simulations and Vehicle Test Results

The 5th International Symposium on

Large EC Capacitor Technology and Application (ECCAP) Long Beach, California June 9-10, 2009

Jeff Gonder, Ahmad Pesaran, Jason Lustbader

National Renewable Energy Laboratory (NREL)

NREL/PR-540-45835

Harshad Tataria

General Motors Corporation

Funding for vehicle conversion and testing provided by General Motors Corporation via a Funds-In Cooperative Research and Development Agreement (CRADA)

NREL is a national laboratory of the U.S. Department of Energy, Office of Energy Efficiency and Renewable Energy, operated by the Alliance for Sustainable Energy, LLC.

slide-2
SLIDE 2

National Renewable Energy Laboratory Innovation for Our Energy Future

2

Presentation Outline

  • Background
  • Project Overview and Objectives
  • Details of Project Phases

– System design – Hardware bench-top evaluation – Vehicle conversion – Vehicle test results – Comparison with NiMH vehicle

  • Summary

2

slide-3
SLIDE 3

National Renewable Energy Laboratory Innovation for Our Energy Future

3

Background:

In 2007-2008, NREL performed analysis in support of USABC*/ DOE for revisiting the energy storage requirements for HEVs

Simulate midsize HEV platform Use a range of ESS** sizes (different energy content cases)

Observe fuel and ESS energy usage for each case:

Energy out for electric launch/assist Cumulative ESS Wh to vehicle Energy return from charging/regen. In-use “Energy Window” defined by (max – min) for the particular cycle Charge sustaining

  • ver cycle

(no net energy use)

* USABC = United States Advanced Battery Consortium; DOE = U.S. Department of Energy ** ESS = Energy Storage System

Approach:

Total energy “Available” energy Energy window

slide-4
SLIDE 4

National Renewable Energy Laboratory Innovation for Our Energy Future

4

Most additional savings with expansion out to ≈150 Wh

Background:

Simulation results for USABC showed similar fuel consumption

  • vs. energy window trends for various drive cycles

Sizeable fuel savings (≈half) with window ≤50 Wh

ESS Energy Window (Wh)

slide-5
SLIDE 5

National Renewable Energy Laboratory Innovation for Our Energy Future

5

3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 100 200 300 400 500 600 700 Energy Window (Wh) Fuel Consumption (L/100km) Fuel Economy (mpg) 58.81 47.04 39.20 33.60 29.40 26.14 23.52 21.38 78.41

  • Data analysis confirmed in-use energy window <200 Wh in all charge

sustaining tests for these vehicles and drive cycles

Charge Sustaining (CS) Not Charge Sustaining UDDS US 06 HWFT MT SS Speeds Prius Camry Escape Accord

Background:

Results consistent with production HEV dyno test data*

* Mike Duoba, ANL provided access to some of the raw dynamometer test data ** SOC = State of Charge

Larger total (“nominal”) energy in these vehicles’ batteries used for:

  • Extreme cycle requirements (e.g.,

mountain driving)

  • Achieving longer cycle life from

reduced SOC** swings)

6 8 9 10 11 5 4 3 7

slide-6
SLIDE 6

National Renewable Energy Laboratory Innovation for Our Energy Future

6

  • Hybridization can result in sizable fuel economy improvement even with

a small energy window ESS

  • Significant fuel savings could be achieved with a 150 Wh high power

ESS, with fuel savings tapering off at energy windows >200 Wh

  • Reasons for large total “nominal” energy in present production HEVs

– Infrequent drive cycle use (e.g., long up/downhill grades) – Achieving longer cycle life from reduced SOC swings – Energy comes along with sizing for power requirements (particularly at cold temperatures)

  • Required over-sizing to achieve cycle life and power capability

contributes to battery cost

– Power dominates cost in HEV (high P/E ratio) batteries

  • Ultracapacitors should be considered (acceptable energy, low-temp.

performance, long cycle and calendar life and potential of lower $/kW)

Background:

Observations from the USABC/DOE HEV energy window study

slide-7
SLIDE 7

National Renewable Energy Laboratory Innovation for Our Energy Future

7

Ultracapacitor Conversion and Vehicle Testing Project

  • NREL discussed with GM the rationale of demonstrating a mild

hybrid with Ucaps instead of batteries

– Reasonable fuel economy – Lower long-term projected costs – Superior cycle life – Better cold temperature performance

  • A project plan was formulated to replace batteries with Ucaps in a

mild hybrid vehicle and evaluate its fuel economy and performance

  • GM supported the project and provided funding, a vehicle, and

technical support beginning in summer 2008

  • Objective

– Evaluate use of ultracapacitors instead of batteries in a Saturn Vue BAS (belt alternator starter) Hybrid

slide-8
SLIDE 8

National Renewable Energy Laboratory Innovation for Our Energy Future

Could Ucaps provide similar fuel economy benefit?

8

Production “Mild” BAS HEV System with NiMH Batteries Provides Significant Fuel Economy Benefit

8

Conventional HEV

* Caveat: Window sticker difference does not necessarily equate to hybridization improvement. Data from www.fueleconomy.gov (using updated EPA numbers), accessed April 23, 2009. 2009 Model 2009 Model

≈ +25% mpg*

Could Ucaps provide similar fuel economy benefit? – YES!

slide-9
SLIDE 9

National Renewable Energy Laboratory Innovation for Our Energy Future

9

Project Approach

9

System Design Ucap Energy Storage System Design Study Hardware Bench-top Evaluation Hardware Acquisition and Bench-top Verification Vehicle Conversion Acquiring Vehicle and Integration of Ucap System into Vehicle Vehicle Test Results & NiMH Comparison Baseline Testing; Ucap System In-Vehicle Performance Testing; Modeling; Trade-Off Analysis

  • f Different System Designs

Project Phase Related Activities

slide-10
SLIDE 10

National Renewable Energy Laboratory Innovation for Our Energy Future

10

Analysis of Dyno Data* on a 2007 Vue Hybrid Indicated Energy Use ≈50 Wh or Less

Driving Energy Analysis (UDDS cycle example)

Energy window * From the aforementioned DOE-sponsored testing at ANL

slide-11
SLIDE 11

National Renewable Energy Laboratory Innovation for Our Energy Future

11 11

  • Direct NiMH replacement

– No additional DC/DC converter (surrounding components rated ≈25-48 V) – Ability to test single and two (in parallel) module configurations – Paired with a spare Energy Storage Control Module (ESCM) – stock NiMH remains in vehicle; can toggle between it and the Ucaps

  • Vehicle interface via bypass Rapid Control Prototyping (RCP)

– Custom Ucap state estimator bypasses code in ECU for stock NiMH

System Design: Selected off-the-shelf Maxwell 48 V, 165 F modules (each ≈35 Wh usable)

* Electronics, mounting brackets, etc. excluded from volume, but included in this mass comparison.

NiMH*: 15.4 L, 24.7 kg Ucap*: 11.2 L, 14.8 kg

slide-12
SLIDE 12

National Renewable Energy Laboratory Innovation for Our Energy Future

12

  • Confirmed electrical performance

– Detailed characterization testing on first module (capacity, voltage)

  • Characterized thermal behavior of the passively cooled module
  • Obtained data set for vehicle Ucap state estimator validation

12

Performed Ultracapacitor Bench-top Evaluation

slide-13
SLIDE 13

National Renewable Energy Laboratory Innovation for Our Energy Future

13 13

Ucap Module Testing and Instrumentation

Cooling mostly by heat conduction to ambient

  • Equipment

– ABC-1000: 420 V, 1000 A, 125 kW – Environmental Chamber:

  • 45°C – 190°C, 64 ft3

– Independent DAQ system: National Instruments

  • Instrumentation
  • K-type thermocouples
  • Voltage on every cell (fused)
  • Tests
  • Voltage range chosen for

application: 24 V – 47 V

  • Multiple cycles and

temperatures evaluated

  • Based on FreedomCAR

Ultracapacitor Test Manual

slide-14
SLIDE 14

National Renewable Energy Laboratory Innovation for Our Energy Future

14 14

Module Electrical Characterization:

Performed as expected

Module Capacity [Ah] Capacity [Wh] 1 1.047 ± 0.005 37.2 ± 0.2 2 1.042 ± 0.005 37.3 ± 0.2 3 1.035 ± 0.005 36.7 ± 0.2

  • Break-in cycling did not have a

measurable effect over the first 615 cycles

  • Capacity was stable at 1.045 Ah

from 24 V–47 V for the first two modules (module 3 was slightly lower)

  • ESR of 6.1 mΩ ± 0.4 mΩ measured

at 25°C on a 100 A pulse

  • Good cold temperature performance

measured

  • Cell voltage range stayed under 0.1

V during US06 bench top cycle

  • Also confirmed stable replacement

NiMH module performance at the rated capacity

24 V – 47 V

slide-15
SLIDE 15

National Renewable Energy Laboratory Innovation for Our Energy Future

15 15

Cycle Start

100A Square Wave Cycle: Aggressive upper bound US06 Bench Cycle: Anticipated usage Center Cell

(Max temp location)

Terminal Cells

(Min temp location)

Temperature Performance Summary (25 C ambient) No heating problems anticipated in application

slide-16
SLIDE 16

National Renewable Energy Laboratory Innovation for Our Energy Future

16 16

  • Controls for Ucap state estimation, safety, etc.

implemented via rapid control prototyping (RCP) with dSpace MicroAutoBox (MABx)

  • Pertinent instrumentation, new NiMH battery

and Ucap system all installed

  • Electronic control unit (ECU) calibration

adjustments and in-vehicle data acquisition via ETAS hardware/INCA software

Integration of Ucap System into the Vue Hybrid

* Support from Jim Yurgil (GM) greatly appreciated

slide-17
SLIDE 17

National Renewable Energy Laboratory Innovation for Our Energy Future

17

In-Vehicle Testing: Repeated for both baseline NiMH case and Ucap case(s) with adjusted calibrations

  • On-road

– Shakedown testing and calibration setting

  • Ambient (24°C) dyno tests

– City (FTP) cycle – Highway (HFET) cycle – US06 cycle

  • Very cold (-20°C) dyno tests

– City (-20°C FTP) cycle

  • Acceleration comparison

– 0-60 mph – 40-60 mph

17

slide-18
SLIDE 18

National Renewable Energy Laboratory Innovation for Our Energy Future

On-road Shakedown Testing and Calibration Setting Good performance achieved

18 18

Speed (kph) Volts (V) BSE R (ohms) BSE C (F) Volt range: 38 - 47 V (18 Wh for this 1Ucap config.) Speed (kph) BSE Resistance (ohms) BSE Capacitance (F)

1Ucap Configuration Over Repeated Test Loop

slide-19
SLIDE 19

National Renewable Energy Laboratory Innovation for Our Energy Future

19

In-Vehicle Ucap Temperature and Cell Voltage Performance Consistent with Bench Observations

19

Volts (V) Temp ( C) Primary Ucap Cell Voltages (V) Secondary Ucap Cell Voltages (V) Secondary Ucap Thermocouple Probes ( C) Primary Ucap Thermocouple Probes ( C)

1Ucap Configuration Over Same Repeated Test Loop

slide-20
SLIDE 20

National Renewable Energy Laboratory Innovation for Our Energy Future

20

NiMH vs. Ucap In-Vehicle Power Output Shown for second (hot start) UDDS in FTP-75 test

20

200 400 600 800 1000 1200 1400

  • 20

20 40 60 80 100 Time (s) Speed (mph), Power (kW) and SOC Speed ESS Power SOC 500 1000 1500

  • 20

20 40 60 80 100 Time (s) Speed (mph), Power (kW) and SOC Speed ESS Power SOC

1Ucap Configuration NiMH Configuration 35 Wh System

Provided same in-vehicle mpg

slide-21
SLIDE 21

National Renewable Energy Laboratory Innovation for Our Energy Future

21

NiMH vs. Ucap Voltage and Cumulative Energy Comparison Shown for second (hot start) UDDS in FTP-75 test

21

200 400 600 800 1000 1200 1400

  • 40
  • 20

20 40 60 80 Time (s) Speed (mph), ESS Volts (V) and Energy (Wh) Speed ESS Volts ESS Cumulative Wh Profile 500 1000 1500

  • 40
  • 20

20 40 60 80 Time (s) Speed (mph), ESS Volts (V) and Energy (Wh) Speed ESS Volts ESS Cumulative Wh Profile

1Ucap Configuration NiMH Configuration

slide-22
SLIDE 22

National Renewable Energy Laboratory Innovation for Our Energy Future

22

Voltage Histogram Comparison Shown for second (hot start) UDDS in FTP-75 test

22

25 30 35 40 45 50 5 10 15 20 25 30 35 40 45 50 Voltage (V) Fraction of Time (%) 25 30 35 40 45 50 5 10 15 20 25 30 35 40 45 50 Voltage (V) Fraction of Time (%)

1Ucap Configuration NiMH Configuration

45 V = 2.50 V/cell 47 V = 2.61 V/cell

slide-23
SLIDE 23

National Renewable Energy Laboratory Innovation for Our Energy Future

23

Dyno Testing Comparison for All Three Configurations, FTP Drive Cycle (24 C ambient)

23

slide-24
SLIDE 24

National Renewable Energy Laboratory Innovation for Our Energy Future

24

Dyno Testing Comparison for All Three Configurations Highway and US06 Drive Cycles (24 C ambient)

24

slide-25
SLIDE 25

National Renewable Energy Laboratory Innovation for Our Energy Future

Very Cold Dyno Testing Comparison

Lowered temperature calibrations enabled a difference in operation

25

1st UDDS (“cold” start) 2nd UDDS (“hot” start) Combined

Caveat: Did not test NiMH with lowered temperature calibrations (may obtain same result)

slide-26
SLIDE 26

National Renewable Energy Laboratory Innovation for Our Energy Future

26

Acceleration Performance Comparison: No difference between NiMH and Ucap configurations

26

slide-27
SLIDE 27

National Renewable Energy Laboratory Innovation for Our Energy Future

27

Summary

  • BAS system provides significant benefit (25% window sticker mpg rise*)
  • Designed a low-energy Ucap HEV conversion (no additional DC/DC)
  • Performed bench hardware evaluation and verified module performance
  • Implemented Saturn Vue BAS HEV conversion with ability to switch

between three energy storage configurations

  • Found Ucap HEV performance comparable to stock NiMH HEV

– Achieved same fuel economy (generally only using 18-25 Wh) – Matched driving performance

  • Room to optimize design

– Controls tuning and motor sizing – Take advantage of cold temp capability

27

Ucap HEV performed equal or better than the stock Saturn Vue BAS battery HEV

* Caveat: Window sticker difference does not necessarily equate to hybridization improvement.

slide-28
SLIDE 28

National Renewable Energy Laboratory Innovation for Our Energy Future

28

Potential Next Steps

  • Further experimentation with this test bed

– Evaluate higher power motor – Examine air conditioning and/or mountain driving impacts – Test a smaller/custom Ucap module (decrease number of Ucap cells and/or F/cell) – Further optimize calibration settings – Artificially force a smaller Wh operating window (by modifying vehicle controls) and observe any fuel economy drop off

  • Examine a different platform
  • Expand platform-specific vehicle modeling to further explore

the design space

slide-29
SLIDE 29

National Renewable Energy Laboratory Innovation for Our Energy Future

29

Acknowledgements

  • GM

– Jim Yurgil, Damon Frisch – Mike Reynolds, Andrew Namou – Mark Verbrugge, Shawn Hawkins – Bret Detrick (on-site with dSPACE)

  • Maxwell

– Michael Everett, John Miller – Uday Deshpande

  • NREL

– Mark Mihalic, John Ireland – Kristin Day, Charlie King

  • Department of Energy

– David Howell (funding for initial USABC/ DOE simulations laid the groundwork for the vehicle conversion project)

29
