From Tests to Spec (and Back) A report on work that other people have done but where a lot still remains to be done. Juhan Ernits Kberneetika Instituut hel ilusal talvisel peval Kokl (05.02.2005) The Setting We assume, that we are

slide-1
SLIDE 1

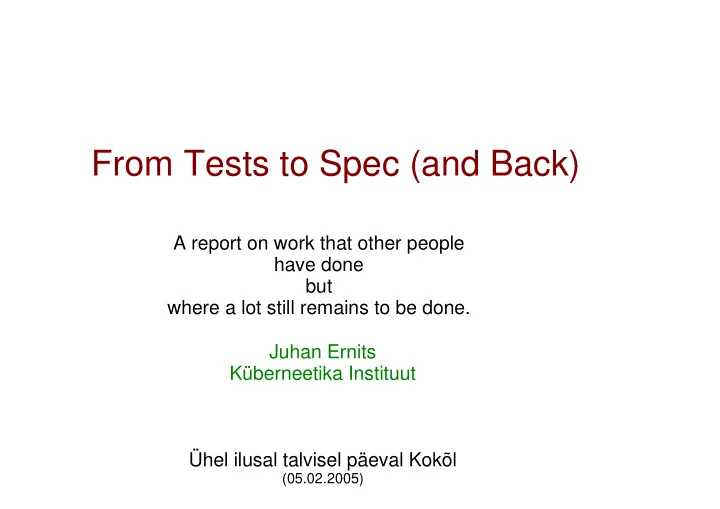

From Tests to Spec (and Back)

Juhan Ernits Küberneetika Instituut A report on work that other people have done but where a lot still remains to be done. Ühel ilusal talvisel päeval Kokõl

(05.02.2005)

slide-2
SLIDE 2

The Setting

We assume, that we are interested in programs that work as intended. Observational estimate of the current state of matters:

There are lots of programs out there. Most of them do not have formal specifications but some

  • f them behave more or less as expected.

Some programs have test suites. Fewer programs are attributed with annotations. Most programs are actually checked whether they fulfil their initial intention by end users.

slide-3
SLIDE 3

Verification

Given a program and spec, build a model of the program and use logic model checking for checking the correspondence. The checker either returns “OK” or “Error” together with a trace to the error state

Program

Logic Model Checking [](P

  • <>S)

OK

State 1: State 2: State 3: State 4: State 5: ...

Error!

slide-4
SLIDE 4

Some Issues in Verification

Verification needs the desired properties to be defined in some formal way. But the properties are

  • ften

Unspecified; Specified in prose (which is difficult to parse); Specified ambiguously, e.g. “the program should work correctly”.

There are other issues but they are not relevant here.

slide-5
SLIDE 5

Test Suites

More and more software builders pay attention to assembling test suites for automatically testing their products. The difference between testing and verification:

Testing explores some scenarios and specifies expected

  • utcome;

Verification explores all scenarios regarding some specific property.

What if we say that the test suite is representative of the properties that we are interested in?

slide-6
SLIDE 6

An approach by J. Yang and D. Evans

Program Test Suite Execution Traces

Testing

Inferred Properties Candidate Property Patterns Inference

slide-7
SLIDE 7

Temporal Properties

Let us consider just one class of properties, e.g. temporal properties. Temporal properties are about the order of events in a system. E.g.

A file should be opened before it is read from. When the subscriber picks up the phone, dial-tone is always generated.

We assert that temporal properties are hard to write manually in formal ways, e.g. using temporal logic.

slide-8
SLIDE 8

Temporal Logic (cont.)

We assert that temporal properties are hard to write in formal ways, e.g. using temporal logic. You disagree? Try writing down a formula for

“P triggers S between Q (e.g., end of system initialization) and R (start of system shutdown)”

slide-9
SLIDE 9

Temporal Logic (cont.)

We assert that temporal properties are hard to write in formal ways, e.g. using temporal logic. You disagree? Try writing down a formula for

“P triggers S between Q (e.g., end of system initialization) and R (start of system shutdown)” []((Q & !R & <>R) -> (P -> (!R U (S & !R))) U R)

slide-10
SLIDE 10

Property Patterns (Dwyer et al.)

Property Patterns Occurrence

  • ✁
✂ ✄ ✁

Absence Universality Existence Bounded Existence Precedence Response Chain Precedence Chain Response

This classification is a result of reading 500+ natural language specifications of real programs. The patterns are like templates (in temporal logic) where one can plug in specific P-s, Q-s, R-s and S-s, i.e. specific events.

slide-11
SLIDE 11

Response Pattern

Property Patterns Occurrence

  • ✁
✂ ✄ ✁

Absence Universality Existence Bounded Existence Precedence Response Chain Precedence Chain Response

A state/event P must always be followed by a state/event Q within a scope Or as a Quantified Regular Expression [-P]* (P [-S]* S [-P]*)* SPPSPS

  • SPSP
slide-12
SLIDE 12

Refined Response Pattern (Yang et al.)

MultiEffect PSS MultiCause PPS EffectFirst SPS Alternating PSPS OneCause SPSS OneEffect SPPS CauseFirst PPSS

For each combination of two events Decide if they satisfy CauseFirst, OneCause, or OneEffect Find the strictest pattern

Response SPPSPS

/\ /\ /\ /\

Stricter

slide-13
SLIDE 13

Find the Strictest Pattern

All Traces CauseFirst + + + OneCause +

  • OneEffect

+ + + Trace 1: PSPS Trace 2: PPS

For any two events determine the strictest pattern: CauseFirst /\ OneEffect -> MultiCause

  • J. Yang et al.
slide-14
SLIDE 14

Implementation

The traces are generated by running the test suites on an instrumented program. The program is instrumented at all method entry and exit points. The current implementation is a 900 line Perl program. This approach should have alternative implementations!

Program Instrumented Program

Instrumentation

Test Suite Execution Traces

Testing

Inferred Properties Candidate Property Patterns

Inference

slide-15
SLIDE 15

Results and Perspective

By using this approach it is possible to

compare the temporal behaviour of different implementations of the same specification. compare different versions of some program to reveal differences in temporal behaviour. use this in conjuction with verification to improve test suites. automatically specify certain system call patterns of

  • perating systems???
slide-16
SLIDE 16

Compare Different Versions of a Program

Inferred Properties 1 Different Properties Difference Analyzer Inferred Properties 2 Shared Properties Program Version 1 Program Version 2 Dynamic Inference

  • J. Yang
slide-17
SLIDE 17

Example: OpenSSL

A widely used implementation of the Secure Socket Layer protocol Yang et al. looked at 6 different versions:

[0.9.6, 0.9.7, 0.9.7a-d]

The focus is on the handshake protocol. Manually instrumented server Modified client Executed each version of a server with 1000 randomly generated clients.

  • J. Yang
slide-18
SLIDE 18

SR_CLNT_HELLO SW_SRVR_HELLO SW_CERT SW_KEY_EXCH SW_CERT_REQ SW_SRVR_DONE SR_CERT SR_KEY_EXCH SR_CERT_VRFY SR_FINISHED SW_CHANGE SW_FINISHED BEFORE+ACCEPT SW_FLUSH OK SW_FLUSH

Client Server

  • J. Yang
slide-19
SLIDE 19

Inferred Alternating Patterns

  • SW_SRVR_DONE→

SR_CERT

  • SW_CERT→

SW_KEY_EXCH

  • SR_KEY_EXCH→

SR_CERT_VRFY 0.9.7d 0.9.7c 0.9.7b 0.9.7a 0.9.7 0.9.6 Documented improvement Fixed bug Race condition

7 alternating patterns same for all versions J.Yang

slide-20
SLIDE 20

Other Approaches to Automatic Spec Extraction

Value relationships between variables Machine learning approach that discovers specifications a program must satisfy when interacting with an API Extraction of thread behaviour out of program code ...

slide-21
SLIDE 21

Conclusion

Automatically inferring temporal properties has yielded practical results. Even simple property patterns reveal interesting properties. A lot still remains to be done! Like

Looking at different property patterns; Building a property difference analyser (for program evolution); Improvement of test suites in conjunction with verification technology.

slide-22
SLIDE 22

References

Jinlin Yang and David Evans, Dynamically inferring temporal properties. Proceedings of the ACM-SIGPLAN-SIGSOFT workshop on Program analysis for software tools and engineering. 2004. Matthew B. Dwyer, George S. Avrunin, James C. Corbett, Patterns in property specifications for finite-state verification. Proceedings of the 21st international conference on Software engineering. 1999. Jinlin Yang and David Evans, Automatically Inferring Temporal Properties for Program Evolution. Software Reliability Engineering, 2004. ISSRE 2004. Jinlin Yang's home page: http://www.cs.virginia.edu/~jy6q

slide-23
SLIDE 23

Thank you!
