BETO-Concepts Wall Systems from France Introduction Betoconcepts (the Company) was incorporated in France over 2 decades ago Hundreds of Betoconcept walls are built world-wide Modern Plaza Sdn Bhd is Betoconcepts sole agent for South

slide-1
SLIDE 1

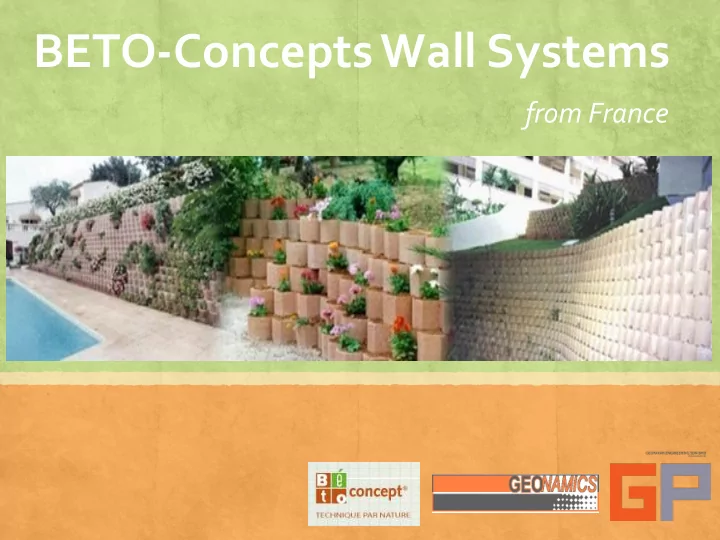

BETO-Concepts Wall Systems

from France

slide-2
SLIDE 2

Introduction

  • Betoconcepts (the Company) was incorporated in France over 2

decades ago

  • Hundreds of Betoconcept walls are built world-wide
  • Modern Plaza Sdn Bhd is Betoconcepts sole agent for South East

Asia

  • Geonamics, with our associated company Geopakar are the

design and builders for Modern Plaza Sdn Bhd

slide-3
SLIDE 3

Geonamics / Geopakar

  • Geopakar has been providing concrete structural repair

services and Beto-concept walls construction for > 15 years.

  • Weng Soon (Director – Geopakar / Engineer) has

supervised some of following projects:

Project Excerpts

  • Taman Wawasan Water Front at Putrajaya
  • Sri Plentong Industry Park
  • Batu Pahat Munchy’s Factory
  • Sri Alam (Phase 4A3)
  • Castcade (Betoflor ) at Nusa Damai, Pasir Gudang
slide-4
SLIDE 4

Completed projects

Taman Wawasan Water Front at Putrajaya Batu Pahat Munchy’s Factory Sri Plentong Industry Park

slide-5
SLIDE 5

What is Beto-wall?

  • Beto-concept is a French / internationally patented method of

building a wall

  • Beto-concept walls are dry build and interlocking, like a LEGO

set

  • Interlocking system provides mutual reinforcement and gives

the wall great stability

Beto-blocks LEGO blocks

slide-6
SLIDE 6

Advantages of Beto-walls

Compared to traditional reinforced concrete walls

  • Cheaper and easier to build, no need for

extensive manpower or expensive steel reinforcements

  • Environmentally and design friendly:

plants and flowers can be grown out of each module.

  • Colors for individual blocks can be

customized

slide-7
SLIDE 7

Advantages of Beto-walls

Compared to traditional reinforced concrete walls (cont’d)

  • Effective sound-proofing as the

merlons prevent sound rebounding and disperse sound

  • With strategic plant growth, forms a

very effective acoustic wall

  • Effective and efficient retaining wall

system

merlons

slide-8
SLIDE 8

Applications for Beto-walls

Because of all its advantages, Beto-concept walls are good for:

  • Retaining walls
  • Decorative walls
  • Sound proof walls
  • Drainage
  • Golf courses
  • Commercial &

residential development

slide-9
SLIDE 9

METHOD S METHOD STATEME TEMENTS NTS & & WORK SEQUE ORK SEQUENCE NCE FOR FOR ERECTION ERECTION OF OF

BET BETOFL OFLOR OR

RET RETAINING WALL AINING WALL

slide-10
SLIDE 10

STAGE 1: Excavation of foundation

slide-11
SLIDE 11

STAGE 2: Installation of firstcourse

slide-12
SLIDE 12

STAGE 3: Backfilling of sand

slide-13
SLIDE 13

STAGE 4: Laying of geotextiles

slide-14
SLIDE 14

STAGE 5: Laying of next courses of blocks

slide-15
SLIDE 15

STAGE 6: Re-profiling slope (retaining walls)

slide-16
SLIDE 16

STAGE 7: Completed wall

slide-17
SLIDE 17

COMPARISON

BETWEEN R.C. RETAINING WALL & BETOFLOR RETAINING WALL

slide-18
SLIDE 18

PROPOSED R.C. RETAINING WALL AT JALAN KELULI 7, PASIR GUDANG

slide-19
SLIDE 19

PROPOSED BETOFLOR RETAINING WALL AT JALAN KELULI 7, PASIR GUDANG

slide-20
SLIDE 20

COMPLETED BETOFLOR RETAINING WALL AT JALAN KELULI 7, PASIR GUDANG

slide-21
SLIDE 21

COMPARISON ON NO. PROCESS WORKS Sequence

ITEM R.C RETAINING WALL BETOFLOR RETAINING WALL Mobilization of piling machine Excavation of foundation Piling works Installation of formwork Cutting of pile Casting of wall base Excavation of foundation Fabrication of reinforcement for base Installation of formwork for base Casting of wall base Removal of formwork Fabrication of reinforcement for wall Installation Block Installation of formwork Backfilling and infilling of sand Casting of wall Laying of geotextile Removal of formwork Laying of next course of block Repeat the work sequence until work complete Reprofiling of slope WORK DURATION 2 MONTH 1 MONTH Foundation Works Constuct Wall

REDUCTION OF 5 PROCESS MEANS COST AND TIME

SAVING !!

slide-22
SLIDE 22

COMPARISON ON MATERIAL COST

Quantities Amount Quantities Amount 1 Concrete, m3 1,082 153,578 181 21,378 2 Steel Bar, m T12 15,921 18,983

  • T16

21,594 42,358

  • T20

9,272 17,118

  • T25

9,882 40,046

  • BRC , m2
  • 1,120

6,284 3 Plywood for Formwork, m 3,619 24,126 55 368 4 Betotitan, pcs

  • 17,934

103,120 5 Geotextile, m2

  • 5,084

33,550 6 Backfill, m3 568 12,219 1,993 43,252 TOTAL 308,428 207,952 R.C. Wall, G30 Betoflor, G20 Item Material

RC RETAINING WALL = BETOFLOR RETAINING WALL = RM 308,428 RM 207,952 SAVE RM100,476 Save up to

30%

slide-23
SLIDE 23

Summary

1.UNCOMPROMISED STRUCTURAL INTEGRITY. 2.UNSURPASSED AESTHETIC. 3.UNCHALLENGED COST SAVING. 4.FLEXIBILITY & VERSATILITY. 5.MINIMUM EXCAVATION. 6.HOLLOW-CORE WALL SYSTEM.

We look forward to be able to collaborate with you.
