Sardinia 2005, Tenth International Waste Management and Landfill Symposium S. Margherita di Pula, Cagliari, Italy; 3 - 7 October 2005 FRAMEW ORK FOR THE ESTI MATI ON OF MSW UNI T W EI GHT PROFI LE by D. ZEKKOS, J. BRAY, E. KAVAZANJIAN, Jr. ,


slide-1
SLIDE 1

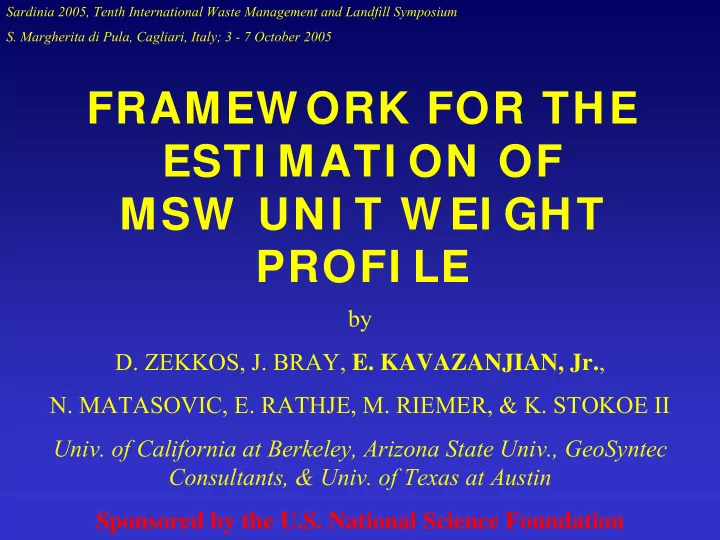

FRAMEW ORK FOR THE ESTI MATI ON OF MSW UNI T W EI GHT PROFI LE

Sardinia 2005, Tenth International Waste Management and Landfill Symposium

  • S. Margherita di Pula, Cagliari, Italy; 3 - 7 October 2005

by

  • D. ZEKKOS, J. BRAY, E. KAVAZANJIAN, Jr.,
  • N. MATASOVIC, E. RATHJE, M. RIEMER, & K. STOKOE II
  • Univ. of California at Berkeley, Arizona State Univ., GeoSyntec

Consultants, & Univ. of Texas at Austin Sponsored by the U.S. National Science Foundation

slide-2
SLIDE 2

Significant Uncertainty in Current MSW Unit Weight Estimates

Augello et al. 1998

slide-3
SLIDE 3

MSW Unit Weight Is Important

  • Large range of MSW unit

weight, e.g. 5 - 15 kN/m3”

– Differ by factor of 3!

  • Liner interface strength

depends on overburden stress

  • Landfill capacity estimates

depend on MSW unit weight

  • Seismic performance

depends on MSW unit weight profile

0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.01 0.1 1 10 Period, sec PSA, g's

Rock mot ion MSW surface- Kavazanjian et al. 1995 MSW surface- const ant unit weight 5% damping

slide-4
SLIDE 4

Methods to Evaluate MSW Unit Weight

  • 1. Landfill Records and Post-Placement Surveys
  • 2. Unit Weight Measured from Conventional Geotechnical

Sampling

  • 3. In-Situ Large-Scale Test Pits or Large-Diameter

Boreholes

(mimics sand cone density tests with calibrated gravel)

slide-5
SLIDE 5

In-Situ Large-Diameter Borehole Method

Developed by Kavazanjian and Matasovic for OII Landfill

waste waste waste

V W = γ

  • 1. Auger and collect waste 2. Weigh waste collected over interval (Wwaste)
  • 3. Place tremie pipe in borehole 4. Fill with gravel of known unit weight (Vwaste)
slide-6
SLIDE 6

Data from reliable in-situ large-scale methods available in Zekkos et al. (2005) Berkeley Geotechnical report

20 40 60 5 10 15 20 25 Total unit weight, kN/ m 3 Depth, m

1 2 3 4 5 6 7 8 9 10 11

(1) Santo Tirso, Portugal (Gom es et al. 2002); (2) OI I , California, USA (Matasovic and Kavazanjian, 1998); (3) Azusa, California, USA (Kavazanjian et al, 1996); (4) Tri-Cities, California, USA (this study); (5) no nam e older landfill (Oweis and Khera, 1998); (6) no nam e younger landfill (Oweis and Khera, 1998); (7) Hong Kong, China (Cowland et al. 1993); (8) Central Mayne landfill, USA (Richardson and Reynolds, 1991); (9) 11 Canadian landfills (Landva & Clark, 1986); (10) Valdem ingom ez, Spain (Pereira et al. 2002); (11) Cherry I sland landfill, Delaware, USA (Geosyntec, 2003);

Kavazanjian et al. (1995)

Large Scatter in Reliable MSW Unit Weight Data

slide-7
SLIDE 7

Characteristic MSW Unit Weight Profile Exists

Tri-Cities 10 20 30 40 50 60 10 20 30 Depth, m 10 20 30 40 50 60 10 20 30 Azusa 10 20 30 10 20 30 "Younger" "older" 10 20 30 10 20 30 10 20 30 10 20 30 Depth, m Cherry Island 10 20 30 40 50 60 10 20 30 OII Geosyntec (2003), Matasovic and Kavazanjian (1998), Kavazanjian et al (1996), Oweis and Khera (1998), Zekkos et al (2005)

  • Need landfill-specific data
  • Model can be developed to capture change with depth
slide-8
SLIDE 8

200 400 600 800 12 17 22 Unit w eight, kN / m

3

Mean effective stress, kPa

Kavazanjian 1999

Compaction Level (& waste composition) Determines Initial MSW Unit Weight Confining Stress Determines Variation

  • f MSW Unit Weight

with Depth

5.0 10.0 15.0 0.00 0.20 0.40 0.60 0.80 Total energy per target volum e of m aterial (Joule/ cm 3) Total unit weight, kN/ m 3

W=4.5kgr, h=80 cm,t=7.5cm W=4.5kgr, h=40 cm, t=7.5 cm W=5.4kgr, h=80 cm, t=5 cm W=1 0kgr, h=80 cm, t=5 cm W=1 0kgr, h=80 cm, t=7.5 cm

(Tri-Cities Landfill data)

slide-9
SLIDE 9

Model calibration against field & lab

z z

i

⋅ + + = β α γ γ

Hyperbolic Relationship

9 10 11 12 13 14 15 16 400 300 200 100

Normal stress, kPa Unit weight, kN/m

3

Looser specimen, γi=10.3 kN/m

3

Denser specimen, γi=12.9 kN/m

3

10 20 30 40 50 60 70 10 11 12 13 Unit weight , kN / m3 Energy to MSW (com paction and/ or confinem ent) L H Depending on initial unit weight, increase in depth produces large

  • r small increase in unit weight
slide-10
SLIDE 10

Characteristic MSW Unit Weight Profiles

10 20 30 40 50 60 5 10 15 20 Tot al unit weight , kN/ m3 Depth, m low t ypical high OII landfill Azusa landfill "Older" landfill in New Jersey compact ion effort and soil cover increasing compact ion effort and soil cover

slide-11
SLIDE 11

RECOMMENDATIONS FOR PRACTICE

(A) Design based on a comprehensive investigation Step 1: Measure MSW unit weight near surface using test pits Step 2: Measure MSW unit weight at greater depths using large-diameter boreholes Step 3: Develop MSW unit weight profile using hyperbolic model

slide-12
SLIDE 12

(B) Estimates based on a limited investigation

  • Step 1: Estimate MSW unit weight near the surface using test

pits, landfill records, or published values (γi ~ 13 kN/m4)

  • Step 2: Use design charts to estimate α and β parameters

(β = 0.4 m3/kN and α = 3 m4/kN )

0.0 0.2 0.4 0.6 0.8 1.0 1.2 4 6 8 10 12 14 16 DESIGN CHART 1: ESTIMATION OF β - PARAMETER

I n c r e a s e d c

  • m

p a c t i

  • n

e f f

  • r

t & s

  • i

l c

  • v

e r ( l a b ) Near surface unit weight, γi , kN / m

3

β - parameter, m

3 / kN

Field data Tri-Cities OII Azusa "Older" "Younger" Cherry Island

2 4 6 8 10 12 0.0 0.2 0.4 0.6 0.8 1.0 1.2

Field data range Laboratory data A3-1L A3-3L A3-7L A3-8L A3-12L Increased compaction effort & soil cover (lab) DESIGN CHART 2: ESTIMATION OF α - PARAMETER β - parameter, m

3 / kN

α - parameter, m

4 / kN

z z

i

⋅ + + = β α γ γ

slide-13
SLIDE 13

(C) Design of a new landfill

Use MSW unit weight profiles for low, typical, or high compaction effort and soil cover

10 20 30 40 50 60 5 10 15 20 Tot al unit weight , kN/ m3 Depth, m low t ypical high OII landfill Azusa landfill "Older" landfill in New Jersey compact ion effort and soil cover increasing compact ion effort and soil cover

slide-14
SLIDE 14

Conclusions

  • Comprehensive MSW unit weight database has been developed
  • A characteristic MSW unit weight profile exists for each landfill
  • A hyperbolic model can capture the dependence of MSW unit

weight on its composition, compaction effort, and confining stress

  • The developed model was calibrated with reliable in-situ landfill

unit weight data as well as large-scale laboratory data.

  • Landfill-specific data are important for establishing the near

surface (initial) unit weight of MSW

  • Hyperbolic model can extend near surface data to greater depths

z z

i

⋅ + + = β α γ γ

slide-15
SLIDE 15

Thank you

Additional information available at the Geoengineer website at: http://www.geoengineer.org
