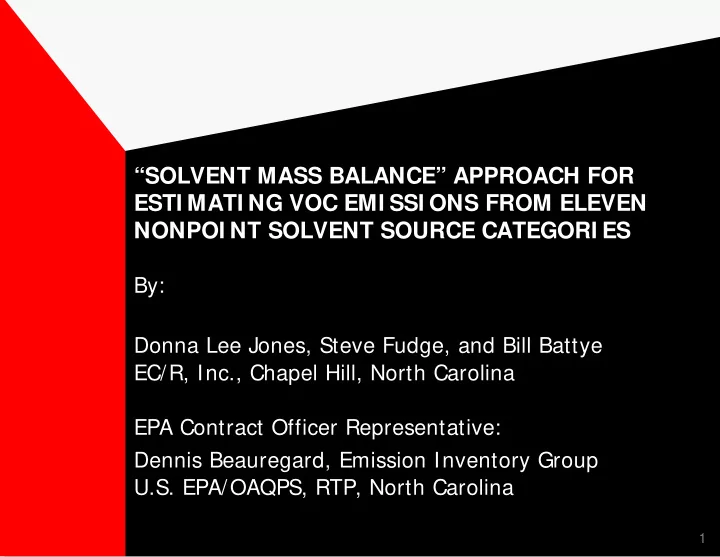

“SOLVENT MASS BALANCE” APPROACH FOR ESTI MATI NG VOC EMI SSI ONS FROM ELEVEN NONPOI NT SOLVENT SOURCE CATEGORI ES

By: Donna Lee Jones, Steve Fudge, and Bill Battye EC/R, Inc., Chapel Hill, North Carolina EPA Contract Officer Representative: Dennis Beauregard, Emission Inventory Group U.S. EPA/OAQPS, RTP, North Carolina

slide-2
SLIDE 2

2

SOLVENT MASS BALANCE Material Balance Technique

Project Goal: Estimate nonpoint solvent emissions for 11 solvent source categories for inclusion in the National Emission Inventory (NEI)

slide-3
SLIDE 3

3

11 SOLVENT NONPOI NT SOURCE CATEGORI ES

1. Architectural Surface Coating 2. Automobile Refinishing 3. Consumer and Commercial Products 4. Dry Cleaning 5. Graphic Arts 6. Industrial Adhesive and Sealants 7. Industrial Coating Operations 8. Pesticide Application 9. Process Solvents (and other operations

  • 10. Surface Cleaning (degreasing)
  • 11. Traffic Paints
slide-4
SLIDE 4

4

SOLVENT MASS BALANCE APPROACH Today’s Presentation

  • Describe the 10 steps in the

Solvent Mass Balance procedure

  • Compare Solvent Mass Balance

estimates for 1999 and 2002 vs. Existing 1999 NEI and State- submitted Estimates for 2002

slide-5
SLIDE 5

5

SOLVENT MASS BALANCE APPROACH Basic Methodology

  • Start with solvent purchases on the

national level from solvent market reports.

  • Assign solvent to source categories.
  • Distribute national solvent to the

states/counties.

slide-6
SLIDE 6

6

SOLVENT MASS BALANCE APPROACH 10 Steps

1. Obtain national solvent utilization data from available marketing reports (The Freedonia Group) for the most recent and/or target year. 2. Distribute solvent into source categories using market descriptors provided with the market data.

slide-7
SLIDE 7

7

SOLVENT MASS BALANCE APPROACH 10 steps (continued)

3. “Grow” the solvent data to target years (1999 and 2002), if needed, using other market data, e.g., solvent market projections by broad industry group and/or source category.

slide-8
SLIDE 8

8

SOLVENT MASS BALANCE APPROACH 10 steps (continued)

4. Assign solvent data to nonpoint source classification codes (SCCs), and identify nonpoint-to-point SCC correlation.

slide-9
SLIDE 9

9

SOLVENT MASS BALANCE APPROACH 10 steps (continued)

5. Identify spatial surrogates for each source category: e.g., employment (by NAICS) and/or population. 6. Use spatial surrogates to distribute the solvent consumption by SCC to the state/county level.

slide-10
SLIDE 10

10

SOLVENT MASS BALANCE APPROACH 10 steps (continued)

7. Apply national regulatory program controls that result in the destruction of solvent at nonpoint sources. 8. Obtain uncontrolled point source emissions on the county and/or facility level.

slide-11
SLIDE 11

11

SOLVENT MASS BALANCE APPROACH 10 steps (continued)

9. Back-out uncontrolled point source emissions from controlled emissions and control device efficiency, if necessary.

slide-12
SLIDE 12

12

SOLVENT MASS BALANCE APPROACH 10 steps (continued)

  • 10. Subtract uncontrolled point

source emissions (by point SCC) from total solvent consumption (by nonpoint SCC) at the state/county level to obtain nonpoint solvent emissions.

slide-13
SLIDE 13

13

SOLVENT MASS BALANCE APPROACH Step 1 – Detail

  • 1. National solvent utilization data
  • Detailed chemical-specific solvent

use available for all but four (4) “paint and coating” source categories:

– Architectural Surface Coating – Automobile Refinishing – Industrial Coating – Traffic Paints

slide-14
SLIDE 14

14

SOLVENT MASS BALANCE APPROACH Step 1 – Detail (cont.)

  • 1. National solvent utilization data

(continued)

  • Only total “paint and coating“ solvent use

is available in Freedonia.

  • The fraction of solvent used in each

“paint and coating” source category is available from National Paint and Coating Association reports.

slide-15
SLIDE 15

15

SOLVENT MASS BALANCE APPROACH Step 2- Detail

  • 2. Distribute solvent into source

categories using market descriptors provided with the market data.

  • Identify by North American Industrial

Classification System (NAICS) codes.

slide-16
SLIDE 16

16

SOLVENT MASS BALANCE APPROACH Step 3 - Detail

  • 3. “Grow” the solvent data to target

years (1999 and 2002)

  • Growth rates were small for most source

categories and ranged from -2.2 to 1.2%.

  • Exception is Dry Cleaning, with a -12.5%

growth rate to 1999 and -0.61% rate from 1999 to 2002.

slide-17
SLIDE 17

17

SOLVENT MASS BALANCE APPROACH Step 4 - Detail

4. Assign solvent data to nonpoint SCCs . . . .

  • Solvent consumption is divided

equally among the nonpoint SCCs identified for each solvent source category.

slide-18
SLIDE 18

18

SOLVENT MASS BALANCE APPROACH Step 4 - Detail (cont.)

  • 4. …and identify nonpoint-to-point

SCC correlation.

  • Five solvent source categories had

no point source components: − Architectural Surface Coating − Automobile Refinishing − Consumer and Commercial − Pesticides − Traffic Paints

slide-19
SLIDE 19

19

SOLVENT MASS BALANCE APPROACH Step 5 - Detail

5. Identify spatial surrogates for each source category: e.g., employment (by NAICS) and/or population.

  • Spatial surrogates determined for

each source category, as follows:

slide-20
SLIDE 20

20

SPATI AL SURROGATES USED Solvent Mass Balance

  • Architectural Surface Coating

– Painting and Wall Covering Contractors 23521 (60%)b – Population (40%)b

  • Automobile Refinishing

– Couriers and Messengers 492; Auto Equipment Rental and Leasing 5321; Auto Repair and Maintenance 8111

slide-21
SLIDE 21

21

SPATI AL SURROGATES USED Solvent Mass Balance

  • Consumer and Commercial Products

– Population (100%)

  • Dry Cleaning

– Coin-op 81231; Dry Clean Services 81232; Linen and Uniform 81233

slide-22
SLIDE 22

22

SPATI AL SURROGATES USED Solvent Mass Balance

  • Graphic Arts

– Paperboard Container 3222; Printing 32311

  • Pesticide Application

– Crop Production 111 (50%) – Population (50%)

slide-23
SLIDE 23

23

SPATI AL SURROGATES USED Solvent Mass Balance

  • Industrial Adhesive and Sealants

– Wood Products 3212; Paperboard 32221; Paper Bag, Treated Paper 32222; Sanitary Paper 322291; Printing 32311; Plastics and Rubber 326; Motor Vehicle Body 336211; Building Materials/Supplies 4441; Auto Repair and Maintenance 8111

slide-24
SLIDE 24

24

SPATI AL SURROGATES USED Solvent Mass Balance

  • Industrial Coating Operations

– Logging 1133; Wood Mfg 321xx; Pulp&Paper 322x; Chemical Mfg 325; Plastics and Rubber 326; Pottery, Plumbing Mfg 32711; Glass 327212; Concrete 32739; Metal 332xx; Computer&Electron. Mfg 334xx; Electr. Equip Mfg 335xx; Transp.

  • Equip. Mfg 336xx; Furniture Mfg 337xx,

Misc Mfg 339xx; Couriers 492; Cables 5132; Telecomm. 5133; Auto Rental 5321; Auto Repair 8111; Electronic Repair 811x

slide-25
SLIDE 25

25

SPATI AL SURROGATES USED Solvent Mass Balance

  • Surface Cleaning

– Metal 331,332; Machinery 333; Computers 334; Electrical 335; Transport Equip Mfg 336; Furniture 337; Misc Mfg 339; Auto Parts 441; Transportation 483, 484, 485, 488; Auto Repair 8111; Electronic Repair 8112

slide-26
SLIDE 26

26

SPATI AL SURROGATES USED Solvent Mass Balance

  • Process Solvents

– Chem Mfg 325; Computer & Electron. Mfg 334

  • Traffic Paints

– Highway and Street Construction 23411

slide-27
SLIDE 27

27

SOLVENT MASS BALANCE APPROACH Step 7- Detail

  • 7. National destructive solvent

controls?

  • No potentially-applicable regulations

require destructive controls and/or apply to nonpoint emission sources:

− CAA 183(e) VOC Rules: Architectural,

Automobile Refinishing, and Consumer Products;

− NESHAP: Degreasing and Dry Cleaning

slide-28
SLIDE 28

28

SOLVENT MASS BALANCE APPROACH Step 8 - Detail

8. Obtain uncontrolled point source emissions on the county/facility level

  • 1999 and 2002 NEI Point Source data.
slide-29
SLIDE 29

29

SOLVENT MASS BALANCE APPROACH Step 9 - Detail

9. Back-out uncontrolled point source emissions from controlled emissions and control device efficiency, if necessary.

  • Use reported control efficiency (CE),

default CE from EPA for specific control devices, or overall default CE

  • f 70 percent.
slide-30
SLIDE 30

30

SOLVENT MASS BALANCE (SMB) ESTI MATES

1999 2002 SMB Solvent Consumption Estimates 1 2 3 4 Million Tons VOC Point Nonpoint Total 1999 = 3.7 Total 2002 = 3.6

slide-31
SLIDE 31

31

SOLVENT MASS BALANCE APPROACH

U.S. Solvent Consumption 2002

Architectural

0.42

11.7%

Auto Refinishing

0.04

1.1%

Consumer&Com

1

27.8%

Dry Cleaning

0.02

0.6%

Graphic Arts

0.52

14.4%

Adhesives & Sealants

0.2

5.6%

Industrial Solvent

0.39

10.8%

Pesticides

0.12

3.3%

Process Solvent

0.72

20.0%

Surface Cleaning

0.14

3.9%

Traffic

0.03

0.8%

Architectural Auto Refinishing Consumer&Com Dry Cleaning Graphic Arts Adhesives & Sealants Industrial Solvent Pesticides Process Solvent Surface Cleaning Traffic

Circle = 3.6 million tons

slide-32
SLIDE 32

32

COMPARI SON TO 1999 NEI AND 2002 STATE DATA

1999 2002 Year 1 2 3 4 Million Tons VOC Solvent Mass Balance 1999 NEI 37 States 2002 Both Ratio's = 1.2

slide-33
SLIDE 33

33

STATE-SUBMI TTALS FOR 2002

Dry Surf Adh Proc Pest Arch C&C Auto Traf Grph Ind

5 7 10 10 12 24 27 29 29 30 31 Number of States Submitting Data 5 10 15 20 25 30 35 1000 Tons VOC

slide-34
SLIDE 34

34

COMPARED TO 37 STATE-SUBMI TTED ESTI MATES FOR 2002

A r c h i t e c t u r a l A u t

  • R

e f i n i s h C

  • n

s u m e r D r y C l e a n i n g G r a p h i c A r t s A d h e s & S e a l I n d u s t r i a l S

  • l

v P e s t i c i d e s P r

  • c

e s s S

  • l

v S u r f a c e C l e a n i n g T r a f f i c

Solvent Nonpoint Source Categories

100 200 300 400 500 600 700

Thousands Million Tons VOC

37 State-submiited Solvent Mass Balance

Total VOC Emissions Estimates for 2002 for 37 States "Solvent Mass Balance" = 1.84 million tons 37 State-submiited Estimates = 1.48 million tons

slide-35
SLIDE 35

35

2002 SMB ESTI MATES VS. 37 STATE-SUBMI TTED

HIGHER ESTIMATE: SOLVENT MASS BALANCE

  • Consumer and Commercial Products
  • Graphic Arts
  • Process Solvents
slide-36
SLIDE 36

36

2002 SMB ESTI MATES VS. 37 STATE-SUBMI TTED

HIGHER ESTIMATE: STATE-SUBMITTED

  • Industrial Coating Operations
  • Pesticide Application
  • Automobile Refinishing
slide-37
SLIDE 37

37

2002 SMB ESTI MATES VS. 37 STATE-SUBMI TTED

SIMILAR ESTIMATES

  • Architectural Surface Coatings
  • Dry Cleaning
  • Industrial Adhesives and Sealants
  • Surface Cleaning
  • Traffic Paints
slide-38
SLIDE 38

38

2002 SMB ESTI MATES VS. 37 STATE-SUBMI TTED HIGHER SOLVENT MASS BALANCE ESTIMATE

  • California
  • Tennessee
  • Texas
slide-39
SLIDE 39

39

2002 SMB ESTI MATES VS. 37 STATE-SUBMI TTED

SOLVENT MASS BALANCE HIGHER ESTIMATE--For California

  • Architectural Surface Coatings (9X)
  • Consumer and Commercial Products (9X)
  • Graphic Arts (12X)
slide-40
SLIDE 40

40

2002 SMB ESTI MATES VS. 37 STATE-SUBMI TTED

SOLVENT MASS BALANCE HIGHER ESTIMATE--For Texas

  • Consumer and Commercial Products (7x)
  • Graphic Arts (19x)
  • Industrial Coating (11)
slide-41
SLIDE 41

41

2002 SMB ESTI MATES VS. 37 STATE-SUBMI TTED

HIGHER STATE-SUBMITTED ESTIMATE

  • Florida
  • Georgia
slide-42
SLIDE 42

42

2002 SMB ESTI MATES VS. 37 STATE-SUBMI TTED

HIGHER STATE-SUBMITTED ESTIMATE: Florida

  • Industrial Coating (x5)
slide-43
SLIDE 43

43

2002 SMB ESTI MATES VS. 37 STATE-SUBMI TTED

HIGHER STATE-SUBMITTED ESTIMATE: Georgia

  • Automobile Refinishing (x7)
  • Industrial Coating (x5)
slide-44
SLIDE 44

44

SOLVENT MASS BALANCE--

POTENTI AL I MPROVEMENTS

  • Develop a methodology to allocate

solvent use to the individual SCCs within each solvent nonpoint source category that reflects true solvent use.

  • Develop a methodology to account

for regional programs that reduce solvent use in local areas.
