1 PROPOSED REMEDIAL ACTION PLAN SOLVENT FINISHERS Jericho, NY Site No. 130172 March 15, 2015 2 Solvent Finishers Public Meeting Agenda ! March 15, 2016 at 7 p.m. ! ! Introduction, Public Participation Bill Fonda, Citizen Participation

slide-1
SLIDE 1

1

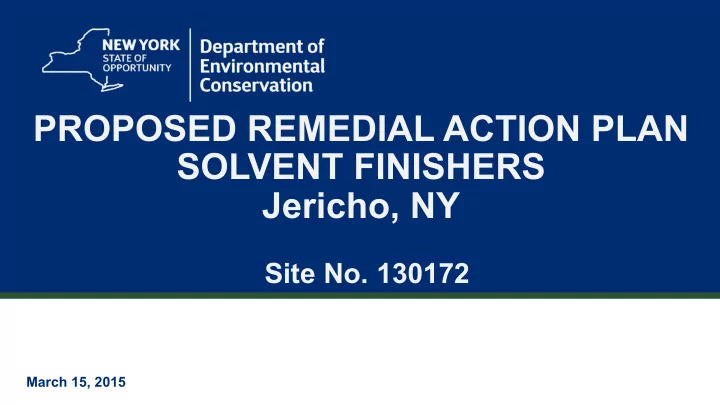

PROPOSED REMEDIAL ACTION PLAN SOLVENT FINISHERS Jericho, NY

Site No. 130172

March 15, 2015

slide-2
SLIDE 2

2

Solvent Finishers

Public Meeting Agenda! March 15, 2016 at 7 p.m.!

!

Introduction, Public Participation Bill Fonda, Citizen Participation Specialist, NYSDEC Region 1 ! Site Background and Proposed Remedy! Robert DeCandia, Environmental Engineer II, NYSDEC! ! Health Assessment ! Jacquelyn Nealon, Public Health Specialist 3, NYS Dept. of Health ! Questions and Answers! Bill Fonda, Citizen Participation Specialist, NYSDEC Region 1 !

slide-3
SLIDE 3

3

Introductions

NYS Dept. of Environmental Conservation Bill Fonda, Citizen Participation Specialist NYS Dept. of Environmental Conservation Project Manager Robert DeCandia, Environmental Engineer II NYS Dept. of Health Project Manager Jacqueline Nealon, Public Health Specialist 3

slide-4
SLIDE 4

4

MEETING TOPICS

Site Location and Description Brief Site History Nature and Extent of Contamination Interim Remedial Measure (IRM) Proposed Remedy Questions and Answers

slide-5
SLIDE 5

Site Location

slide-6
SLIDE 6
slide-7
SLIDE 7

7

Site Description

Currently zoned light industrial Current tenants are Rubies Costume with no current solvent use Neighbors are a mix of light industrial, commercial, school, and residential Depth to groundwater is 80 ft bgs and flows north to south LI sands, sporadic clay lens at varying depths and clay about 200 ft bgs

slide-8
SLIDE 8

8

Site History

1966 Manufacturer of artificial leather and plastics 1977-1985 Use as an industrial dry cleaner 11,000 gallons of PCE annually to clean large fabric rolls 1985 Manufactured imprinted and embroidered sportswear

slide-9
SLIDE 9

9

Site History

1997 Nassau County tests discharge results: 20,000,000 ppb PCE into drywell

hold and haul tank installed for waste

1998 Cesspool/drywell cleanouts; excavations to 42 ft. 59 tons of soil was removed and disposed off-site 2008 Site Characterization conducted by NYSDEC Contamination found 2011 SSF Remedial Investigation

slide-10
SLIDE 10

10

Remedial Investigation

Soil Groundwater Soil Vapor soil gas sub-slab Indoor Air

slide-11
SLIDE 11

11

Contaminants of Concern

Primary VOC Contaminants

  • Perchloroethene (PCE) (dry cleaning fluid)
  • Trichloroethene (TCE)
slide-12
SLIDE 12

12

On-site Soil Results

Soil Contamination

slide-13
SLIDE 13
slide-14
SLIDE 14

14

Investigation Sample locations

slide-15
SLIDE 15

PCE Shallow Plume 80-180 ft bgs

slide-16
SLIDE 16

PCE Deep Plume 200-325 ft bgs

slide-17
SLIDE 17

17

Plume Cross Sections

slide-18
SLIDE 18

18

Plume'Cross'Sec.on'A1A

slide-19
SLIDE 19

19

Plume'Cross'Sec.on'B1B

slide-20
SLIDE 20

20

Plume'Cross'Sec.on'C1C

slide-21
SLIDE 21

21

Plume'Cross'Sec.on'D1D

slide-22
SLIDE 22

22

Plume'Cross'Sec.on'E1E

slide-23
SLIDE 23

23

slide-24
SLIDE 24

AS/SVE IRM

slide-25
SLIDE 25

25

Proposed Remedy Elements

  • Remedial Design
  • Air Sparge/Soil Vapor Extraction
  • In-Situ Chemical Oxidation
  • Enhanced Bioremediation
  • Vapor Mitigation
  • Institutional Controls
  • Site Management
slide-26
SLIDE 26

26

Proposed Remedy

slide-27
SLIDE 27

27

Solvent Finishers Comment Period

The New York State Department of Environmental Conservation is accepting public comments on the proposed remedial alternative through March 26, 2016. Please state your comments during the public meeting or send them in to: ! Thank you for attending our meeting!

slide-28
SLIDE 28

28

Thank You

Robert D DeCandia Jr., PE Environmental Engineer 2 NYSDEC 12th Floor, 625 Broadway Albany, NY 12233 rob.decandia@dec.ny.gov 518-402-9621 Comments by March 26, 2016

Connect with us: Facebook: www.facebook.com/NYSDEC Twitter: twitter.com/NYSDEC Flickr: www.flickr.com/photos/nysdec

slide-29
SLIDE 29

29

slide-30
SLIDE 30

30

slide-31
SLIDE 31

31

slide-32
SLIDE 32

32

Remedial Alternative Costs

slide-33
SLIDE 33

33

Alternative Evaluation Criteria

Threshold Criteria

▪ Protection of Human each of the ▪ Compliance with SCGs

Primary Balancing Criteria ▪ Long-term Effectiveness and Permanence.

▪ Reduction of Toxicity, Mobility or Volume. ▪ Short-term Effectiveness. ▪ Implementability ▪ Cost-Effectiveness

Modifying Criterion. ▪ Community Acceptance.

slide-34
SLIDE 34

34

CDM’s Combined Alternatives (On-site Off-siteGW Distal Plume)

Alt ON-Site Off-site GW Distal Plume 1 No Action No Action No Action 2 AS/SVE & EIBAR EIBAR MNA & IC 3 AS/SVE & ISTR EIBAR MNA & IC 4 AS/SVE & P&T EIBAR MNA & IC 5 AS/SVE & ISTR ISCO MNA & IC 6 AS/SVE & ISCO EIBAR MNA & IC

AS/SVE= air sparge with soil vapor extraction EIBAR= Enhanced In-Situ Biological and/or Abiotic Remediation MNA= monitored natural attenuation ISTR= in situ thermal treatment P&T= pump and treat ISCO= in situ chemical oxidation

slide-35
SLIDE 35

35

Groundwater

On-site

  • PCE: 5.8 to 300,000 µg/L
  • TCE: 7.4 to 9,900 µg/L

Off-site

  • PCE: 5.5 to 81,000 µg/L
  • TCE: 5 to 89 µg/L
