FRA-Uploader as key function GEOSS-AP WG: Ocean Observation and Society Toward realization of Blue Planet in AP region Tokyo Japan 26-28 May 2014 The 7 th GEOSS Asia-Pacific Symposium Fisheries Research Agency National Research Institute


slide-1
SLIDE 1

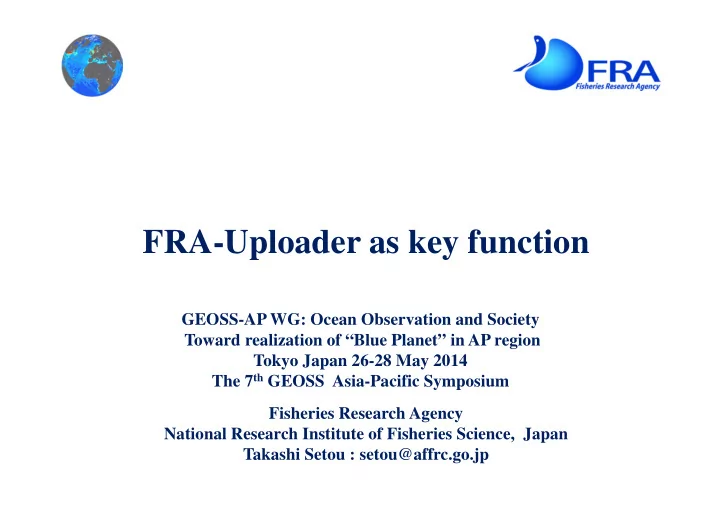

FRA-Uploader as key function

GEOSS-AP WG: Ocean Observation and Society Toward realization of “Blue Planet” in AP region Tokyo Japan 26-28 May 2014 The 7th GEOSS Asia-Pacific Symposium Fisheries Research Agency National Research Institute of Fisheries Science, Japan Takashi Setou : setou@affrc.go.jp

slide-2
SLIDE 2

Table of Contents

■Monitoring system by Japanese Fisheries Institute

  • History of the system
  • Today’s routine observations

■New monitoring system by Japanese Fisheries Institute

・Japanese Fisheries Institute (JFI) includes 1) Fisheries Agency, 2) Fisheries Research Agency, 3) Prefectural Fisheries Institute ,and 4) National Fisheries University ・JPFI means Japanese Prefectural Fisheries Institute.

■Real Time data distribution system FRA-uploader

  • Development of the FRA-uploader
  • Incorporation of data using FRA-uploader
slide-3
SLIDE 3

Observation density (1°×1°) from 1900 to 2012 in WOD13

Highly Observed Regions US coast ・ Equatorial ・ EU coast ・ Japan Coast

slide-4
SLIDE 4

Profile numbers from 1900 to 2012 in WOD13

1963: Serious damage to Fishery due to Abnormal cooling around Japan.

Rapid Change of Japan’s at 1964

slide-5
SLIDE 5

For sound development of Fishery, we need to clarify some relationship between

  • cean and Fish. For the

purpose, we have to maintain to observe and investigate ecology, fishing condition, and some ocean condition.

Civil Servants in Ministry of Agricultural and Commerce in Japan about 1910

Japanese monitoring routine has

  • ver 100year history!!

Beginning of monitoring system by Japanse Fisheries Institutes

slide-6
SLIDE 6

Contours of SST Contours of SSS Ocean Condition in text fishing Condition in text Yellow tail, Marlin, bluefin tuna etc.

Oceanographic Chart for April 1937

slide-7
SLIDE 7

Japanese common squid

Migration Spawning Fishing

Today’s routine observations by Japanese Fisheries Institutes

slide-8
SLIDE 8

Table of Contents

■Monitoring system by Japanese Fisheries Institute

  • History of the system
  • Today’s routine observations

■New monitoring system by Japanese Fisheries Institute ■Real Time data distribution system FRA-uploader

  • Development of the FRA-uploader
  • Incorporation of data using FRA-uploader

・Japanese Fisheries Institute (JFI) includes 1) Fisheries Agency, 2) Fisheries Research Agency, 3) Prefectural Fisheries Institute ,and 4) National Fisheries University ・JPFI means Japanese Prefectural Fisheries Institute.

slide-9
SLIDE 9

Real Time Data distribution system FRA-uploader

Motivation A few years ago, in order to provide ocean forecast information to Fishers, we had a plan to develop ocean forecast system FRA-JCOPE using JPFI monitoring data with great help of

  • JAMSTEC. However, we had no system for distribute these data in

REALTIME.

FRA-JCOPE from 2007

  • FRA: Fisheries Research Agency
  • JCOPE( Japan Coastal Ocean

predictability Experiment) by JAMSTEC

FRA-uploader from 2007

slide-10
SLIDE 10

What is FRA-uploader ?

What is FRA-uploader ? It is a windows software for distributing of FRA and JPFI monitoring data. Who use it ? Researchers and Staffs in Japanese Prefectural Fisheries Institute and Fisheries Research Agency How to use it ? Next slide. When use it ? After observation. Where use it ? On some PC with Internet

・FRA:Fisheries Research Agency in Japan ・JPFI :Japanese Prefectural Fisheries Institute.

slide-11
SLIDE 11

After Prefectural fisheries researchers get off R/V, 1. Set the FRA-uploader CD-R and execute FRA-uploader.

  • 2. Set the digital data of
  • bservation data.
  • 3. Select CTD data files and drag

it to the box of FRA-uploader.

  • 4. Push the sending button and

the data send to Ocean Forecast system and GTS via internet. Only a few steps !!

How to use FRA-uploader !!

slide-12
SLIDE 12

In-situ data in 2013

(●ARGO+●GTSPP) without Japanese Prefectural Fisheries Institute

  • +●+◆Prefectural Research

Institute via FRA-uploader

17

Increase of available in-situ data by FRA-uploader: Spatial distribution We became able to exploit Japanese in-situ data by FRA-uploader.

slide-13
SLIDE 13

Registration of Real Time GTSPP data in N.W. pacific

■:JF Prefectural inst. ■:ARGO ■:other

18

Start of Prefectural data Input by FRA‐uploader !!

Increase of available in-situ data by FRA-uploader: Time Series

slide-14
SLIDE 14

Technical issues of FRA-uploader, bother us.

Change of the Instruments The reason why FRA-uploader can correctly and easily operate is that each instrumental information such as text format of SBE9 , SBE8,・・・・ are incorporated in FRA-uploader in advance. If some institute use another instrument, FRA-uploader can not correctly operate at all. How to demonstrate QC about coastal data?

In mixed water region east of Japan and coastal area, it is difficult to demonstrate QC of data because temperature and salinity in the coastal region fluctuate sharply and we can not distinguish error or not.

slide-15
SLIDE 15

Table of Contents

■Monitoring system by Japanese Fisheries Institute

  • History of the system
  • Today’s routine observations

■New monitoring system by Japanese Fisheries Institute ■Real Time data distribution system FRA-uploader

  • Development of the FRA-uploader
  • Incorporation of data using FRA-uploader

・Japanese Fisheries Institute (JFI) includes 1) Fisheries Agency, 2) Fisheries Research Agency, 3) Prefectural Fisheries Institute ,and 4) National Fisheries University ・JPFI means Japanese Prefectural Fisheries Institute.

slide-16
SLIDE 16

A buoy location: With Fixed net type Server and Website http://buoy.nrifs.affrc.go.jp/

New monitoring system by Fisheries Research Agency

Temperature example

  • n the website at 2013 Jul.

Data transfer via mobile phone automatically to FRA server Ex: We can know the temperature elevation (due to Kuroshio approach) in REALTIME on the website.
