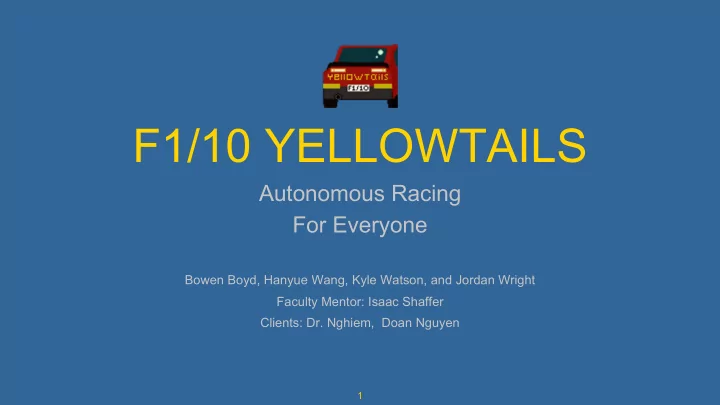

F1/10 YELLOWTAILS

Autonomous Racing For Everyone

Bowen Boyd, Hanyue Wang, Kyle Watson, and Jordan Wright Faculty Mentor: Isaac Shaffer Clients: Dr. Nghiem, Doan Nguyen

1

slide-2
SLIDE 2

Introduction

What makes these cars run?

  • NVIDIA Jetson / LiDar
  • Robotic Operating System (ROS)

Clients Goals

  • Flagstaff’s F1/10 Robo-Racing Project

Clients

  • Dr. Nghiem
  • Assistant Professor
  • Director of ICONS Lab

Doan Nguyen

  • Graduate Research

Assistant

2

slide-3
SLIDE 3

Problem Statement

3

  • 1. Overly Complicated
  • 2. Disconnected Configuration
  • 3. No emergency Stop
slide-4
SLIDE 4

Solutions Overview

  • 2. Configuration

Window

  • 3. Kill Switch

System

An Interactable System For High School Students!

4

  • 1. Driver

System

slide-5
SLIDE 5

Key Requirements

5

Functional

  • Configuration System
  • Communication Tool Kit
  • Console
  • Emergency Stop Button

Environmental

  • ROS
  • Ubuntu
  • NVIDIA Jetson
  • Raspberry Pi
slide-6
SLIDE 6

Implementation Overview

6

slide-7
SLIDE 7

Architectural Software Overview

7

slide-8
SLIDE 8

Prototype Review

8

slide-9
SLIDE 9

Prototype Review

9

slide-10
SLIDE 10

Challenges and Resolutions

10

  • 1. Online Communications
  • Since the switch to go online we no longer have great

interaction as a team and with clients.

  • 2. Saving Configuration Data
  • Using Save button in file
  • 3. Using SSH to communicate and control car:
  • Bash screen command
slide-11
SLIDE 11

Fall Schedule

11

slide-12
SLIDE 12

Spring Schedule

12

slide-13
SLIDE 13

Testing Plan

13

Unit Testing

  • Make sure to validate all methods

work like they are supposed to.

Integration Testing

  • Test to make sure that all

methods work together.

Usability Testing

  • Have EE 499 Class go through

and use our GUI to see how usable it is.

slide-14
SLIDE 14

Solution

  • Graphical User Interface for

Better Accessibility

Conclusion

Big Picture

  • Self-driving cars are the

future!

Problem

  • Autonomous F1/10

program is currently inaccessible to HS students

Graphical User Interface

14

slide-15
SLIDE 15

Thank you!

15

For more information please visit our website at the following QR code:
