ARCHITECTURAL STRUCTURES: FORM, BEHAVIOR, AND DESIGN

ARCH 331

• DR. ANNE NICHOLS

SPRING 2019

fourteen

system assemblies & load tracing

Load Tracing 1 Lecture 14 Architectural Structures ARCH 331

lecture

reed.tamu.edu Load Tracing 2 Lecture 14 Foundations Structures ARCH 331 F2008abn

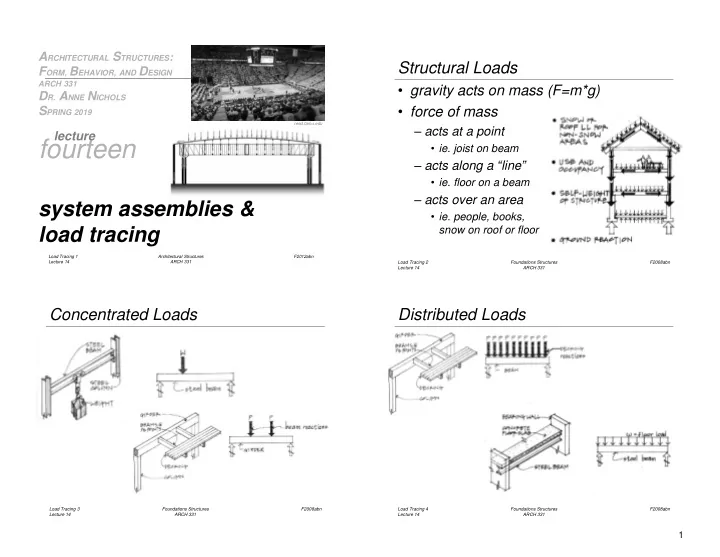

Structural Loads

• gravity acts on mass (F=m*g)
• force of mass

– acts at a point

• ie. joist on beam

– acts along a “line”

• ie. floor on a beam

– acts over an area

• ie. people, books,

snow on roof or floor

Load Tracing 3 Lecture 14 Foundations Structures ARCH 331 F2008abn

Concentrated Loads

Load Tracing 4 Lecture 14 Foundations Structures ARCH 331 F2008abn

Distributed Loads

2

Load Tracing 5 Lecture 14 Foundations Structures ARCH 331 F2008abn

Equivalent Force Systems

• replace forces by resultant
• place resultant where M = 0
• using calculus and area centroids

dx w(x) x L

loading loading L

A dA wdx W   

 

dx y x

el

x

F2008abn Load Tracing 6 Lecture 14 Foundations Structures ARCH 331

Area Centroids

• Table 6.1 – pg. 304

b h

3 b

right triangle only Load Tracing 7 Lecture 14 Foundations Structures ARCH 331 F2008abn

Equivalent Load Areas

• area is width x “height” of load
• w is load per unit length
• W is total load

x x/2 W x/2 x 2x/3 W/2 x/3 x x/2 W x/6 x/3 W/2 W x w   w w 2 2 W x w   w 2w

Load Tracing 8 Lecture 14 Foundations Structures ARCH 331 F2008abn

Distributed Area Loads

• w is also load per unit area

w

3

Load Tracing 9 Lecture 14 Foundations Structures ARCH 331 F2008abn

Load Tracing

• how loads are

transferred

– usually starts at top – distributed by supports as actions – distributed by tributary areas

Load Tracing 10 Lecture 14 Foundations Structures ARCH 331 F2008abn

Load Tracing

• areas see distributed

area load

• beams or trusses

see distributed line loads

• “collectors” see

forces

– columns – supports

Load Tracing 11 Lecture 14 Foundations Structures ARCH 331 F2008abn

Load Tracing

tributary area

Load Tracing 12 Lecture 14 Foundations Structures ARCH 331 F2008abn

Load Tracing

• tributary load

– think of water flow – “concentrates” load of area into center

 

width tributary area load w        

width

4

F2008abn Load Tracing 13 Lecture 14 Foundations Structures ARCH 331

Load Tracing

Patcenter Rogers 1986

www.columbia.edu F2008abn Load Tracing 14 Lecture 14 Foundations Structures ARCH 331

Load Tracing

Alamillo Bridge Calatrava 1992

http://en.structurae.de Load Tracing 15 Lecture 14 Foundations Structures ARCH 331 F2008abn

Load Paths

• floors and framing

Load Tracing 16 Lecture 14 Foundations Structures ARCH 331 F2008abn

Load Paths

• wall systems

5

Load Tracing 17 Lecture 14 Foundations Structures ARCH 331 F2008abn

Load Paths

• openings & pilasters

Load Tracing 18 Lecture 14 Foundations Structures ARCH 331 F2008abn

Load Paths

• foundations

Load Tracing 19 Lecture 14 Foundations Structures ARCH 331 F2008abn

Load Paths

• deep foundations

Load Tracing 20 Lecture 14 Foundations Structures ARCH 331 F2008abn

Spans

• direction
• depth

6

Load Tracing 21 Lecture 14 Foundations Structures ARCH 331 F2008abn

Levels

• determine span at top level
• find half way to next element
• *include self weight
• look for “collectors”
• repeat
• one:

Load Tracing 22 Lecture 14 Foundations Structures ARCH 331 F2008abn

Levels

• two:
• three:

F2012abn

Irregular Configurations

• tracing still ½ each side

Load Tracing 23 Lecture 14 Architectural Structures ARCH 331 Load Tracing 23 Lecture 14 Foundations Structures ARCH 331 F2008abn

Slabs

• edge support
• linear and uniform distribution

7

Load Tracing 24 Lecture 14 Foundations Structures ARCH 331 F2008abn

Girders and Transfer

• openings

– no load & no half way

• girder actions at beam supports

+ + + +

F2008abn Load Tracing 58 Lecture 14 Foundations Structures ARCH 331

Sloped Beams

• stairs & roofs
• projected live load
• dead load over length
• perpendicular load to beam:
• equivalent distributed load:



 cos w w  



 cos w . adj w 

F2012abn

Framing Diagrams

• beam lines and “dots”
• breaks & ends

Load Tracing 27 Lecture 14 Architectural Structures ARCH 331 Spanning direction of decking or reinforcement Load Tracing 25 Lecture 14 Foundations Structures ARCH 331 F2008abn

• purpose

– retain soil or other material

• basic parts

– wall & base – additional parts

• counterfort
• buttress
• key

Retaining Walls

8

Load Tracing 26 Lecture 14 Foundations Structures ARCH 331 F2008abn

Retaining Wall Types

• “gravity” wall

– usually unreinforced – economical & simple

• cantilever retaining wall

– common

Load Tracing 27 Lecture 14 Foundations Structures ARCH 331 F2008abn

Retaining Wall Loads

• gravity

W =   V

• fluid pressure

p = ’  h P = ½ p h at h/3

• friction

F =   N

• soil bearing pressure, q



Load Tracing 28 Lecture 14 Foundations Structures ARCH 331 F2008abn

Retaining Wall Equilibrium

• sliding - overcome friction?
• overturning at toe (o) - overcome mass?
• P

R W

2 5 1

g

• verturnin

   . M M SF

resist

2 25 1   



. F F SF

sliding resist horizontal

Fresist

Load Tracing 29 Lecture 14 Foundations Structures ARCH 331 F2008abn

• want resultant of load from pressure inside

the middle third of base (kern)

• triangular stress block with pmax
• x = 1/3 x width of stress
• equivalent force location:

Pressure Distribution

3 2 3 x x p x W

max

   a W x W pmax 2 3 2  

 

when a is fully stressed

9

Load Tracing 30 Lecture 14 Foundations Structures ARCH 331 F2008abn

Wind Pressure

• distributed load
• “collected” into V
• lateral loads

must be resisted

V

Load Tracing 31 Lecture 14 Foundations Structures ARCH 331 F2008abn

Bracing Configurations
