Ford SRH-148 Transit MR Type II Ambulance Conversion This document is the exclusive property of MEDIX Specialty Vehicles, Inc. and considered on loan to those to whom MEDIX has distributed it. Ford Transit MR Van Type II Ambulance

slide-1

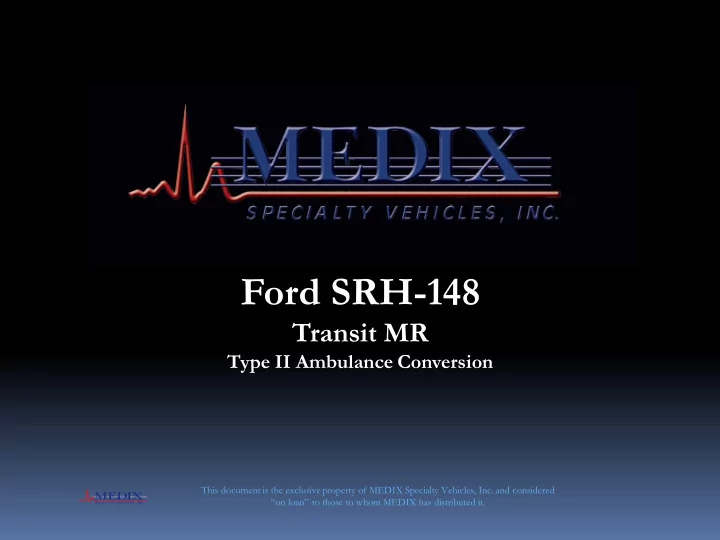

SLIDE 1

Ford SRH-148

Transit MR

Type II Ambulance Conversion

This document is the exclusive property of MEDIX Specialty Vehicles, Inc. and considered “on loan” to those to whom MEDIX has distributed it.

slide-2
SLIDE 2

Ford Transit MR Van

Type II Ambulance Conversion

We hope this “walk-around” of the Medix SRH-148 Type II by MEDIX Specialty Vehicles, Inc. will assist you in making an informed choice about purchasing a Ford Type II Ambulance. MEDIX Specialty Vehicles, Inc. is an experienced manufacturer of Ford

  • Ambulances. In 2001 MEDIX received

Certification from Ford Special Vehicle Engineering QVM Program to perform modifications to the Ford SuperDuty Cargo Van and has been re-Certified each year since. The QVM Certification is the hallmark of a responsible ambulance manufacturer.

slide-3
SLIDE 3

Ford Transit MR Van

Type II Ambulance Conversion

slide-4
SLIDE 4

Ford Transit MR Van

Type II Ambulance Conversion

slide-5
SLIDE 5

Ford Transit MR Van

Type II Ambulance Conversion

slide-6
SLIDE 6

Ford Transit MR Van

Type II Ambulance Conversion Overall Height 100” GVWR – 9,000 lbs. Wheel Base 148” Completed Vehicle Weight- 7,260 lbs. Usable Payload- 1,740 lbs.

slide-7
SLIDE 7

Ford Transit MR Van

Type II Ambulance Conversion Aisle Width 37” Interior Headroom 68.5” Floor Length 130”

slide-8
SLIDE 8

The Chassis

Tilt Steering Wheel; Power Windows & Mirrors; Dual Captain’s Chairs w/tilt back; AM/FM/CD Radio w/4-spkrs; molded floor matting 235/65R16C BSW Tires & Spare in Underbody Hanger Fuel Fill at Streetside Entry Door

slide-9
SLIDE 9

Environmental Systems

HVAC Unit w/Ducted Air Free Blow system with 36K BTU Heat- 32K BTU Cool 450 CFM multi-speed fan, Thermostatic Control Multi-Speed Exhaust Vent & Fan

slide-10
SLIDE 10

Electrical Cabinet

Power Distribution & Control

20Amp Shoreline Inlet

Inverter Access Panel * A/A Controls

slide-11
SLIDE 11

Power Distribution & Control

Front Console- Switch Control Panel; Siren Control Overhead Map Book/Report Book Storage Slots

  • ptional
slide-12
SLIDE 12

Flip Up Rear Bumper / Step

Power Distribution & Control

CPI Thru-the-Bumper Mounted Siren Speakers

slide-13
SLIDE 13

Rear Switch Control Panel w/HVAC thermostat control Rear Action Area

Power Distribution & Control

125 VAC Duplex Outlets 12 VDC Outlets w/covers

slide-14
SLIDE 14

Emergency Lighting

Light Bar - Optional (1) Whelen 7x3 White LED on Center Front (4) Whelen 7x3 Red LED on Front (4) Whelen M9VR, (2) Each Side (2) Whelen 7x3 Red LED Outboard Upper Rear (2) Whelen 7x3 Amber LED Inboard Upper Rear (2) Whelen Red/Amber Micron Upper Door Facing with Rear Doors Open Whelen M2WR Red LED Front Fenders Intersectors Whelen LINZ6R Red LED Grille Lights

slide-15
SLIDE 15

Patient Compartment Interior

Aisle Width- 30” w/ Std ALS Cabinet ALS Cabinet- 3 levels of storage; bottom can be enclosed for locking drug box.

slide-16
SLIDE 16

High back EVS 1760 Technician’s Seat w/ Type II Lap/Shoulder belt Steel Transverse O2 Storage Base

Patient Compartment Interior

slide-17
SLIDE 17

Stair Chair Cabinet

Patient Compartment Interior

Main Center Cabinets Storage Cabinet and Inverter Area Below Action Area

slide-18
SLIDE 18

(8) Whelen LED Dome Lights (2) Fold-down IV Hangers Formed SS Overhead Grab Rail

Patient Compartment Interior

Space for the Patient, Space for the Medic

slide-19
SLIDE 19

Curbside wall w/Optional EVS V-4 Restraints

Patient Compartment Interior

Rear access Back board storage slot

Shown with Standard Cargo Net

slide-20
SLIDE 20
  • Stainless steel threshold

w/safety grip tape

  • OEM Step well trim
  • SS Side Entry Threshold w/Safety Grip
  • Aluminum grip strut, flip-up bumper

step

Protective & Safety Surfaces

slide-21
SLIDE 21

Paint, Decals, Lettering Warranties

Paint Stripe- Optional Star-of-Life Decals- Optional Lettering- Optional Electrical Warranty- 72 Months/72,000 Miles Limited Warranty- 12 Months/12,000 Miles Paint (if applicable)- 48 Months

Contact MEDIX

3008 Mobile Drive  Elkhart, IN 46514 U.S.A. Ph- 574.266.0911 Fx- 574.266.6669 sales@medixambulance.com techsupport@medixambulance.com www.medixambulance.com

slide-22
SLIDE 22

Due to on-going product improvements and changing requirements of the ambulance industry, Medix Specialty Vehicles Inc. reserves the right to change this specification and related product without prior notice and without obligation to change prior product or parts.
