An Electromagnetic Payload Launcher for Marine Applications Chris Watts, Technology Acquisition Lead, Babcock DST Strictly Private and Confidential Introduction Electromagnetic launch using Linear Induction Motors (LIMs) to launch a

slide-1
SLIDE 1

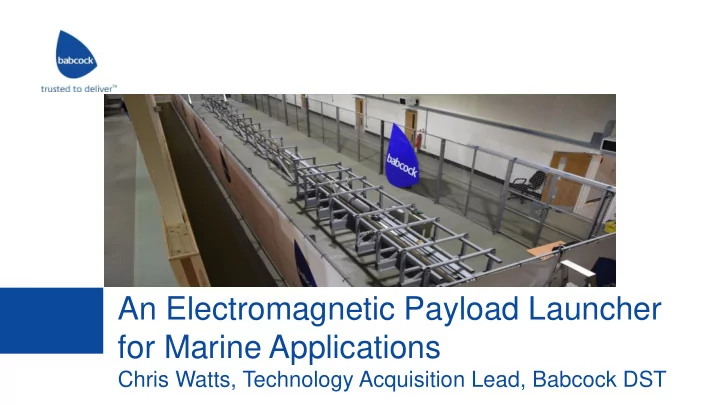

An Electromagnetic Payload Launcher for Marine Applications

Chris Watts, Technology Acquisition Lead, Babcock DST

slide-2
SLIDE 2

www.babcockinternational.com Strictly Private and Confidential 2

Introduction

An Electromagnetic Payload Launcher for Marine Applications

  • Electromagnetic launch – using Linear Induction Motors (LIMs) to launch a payload
  • Ability to launch a range of

different payloads

  • Adaptable to varying launch

requirements and conditions

  • Specific focus on EM fields

generated in the payload area – modelled and verified with experimental testing

  • Test rig designed and built to demonstrate performance and compliance to

applicable standards

  • Simulation and FEA model used for design and performance prediction
slide-3
SLIDE 3

www.babcockinternational.com Strictly Private and Confidential 3

EM Launch Benefits

Simple – control system uses COTS components, DOL or standard motor drives

An Electromagnetic Payload Launcher for Marine Applications

Low maintenance – minimal to zero requirement, with no high pressure systems Controllable – exit speed and acceleration can be controlled to suit the specific payload and conditions High reliability – only one moving part coupled with mature linear motor technology Adaptable – can be scaled to launch payloads of varying size and mass

slide-4
SLIDE 4

www.babcockinternational.com Strictly Private and Confidential 4

Underwater Defence Applications

An Electromagnetic Payload Launcher for Marine Applications

  • Torpedo launch
  • Mine launch
  • Acoustic countermeasures
  • Submerged signal ejectors
  • UUV launch
  • Special forces deployment
slide-5
SLIDE 5

www.babcockinternational.com Strictly Private and Confidential 5

Safe Energy Density Levels

BR2924 identified as worst-case Applicable standards:

  • MIL-HDBK-240A (HERO)
  • BR2924 (surface &

underwater)

  • DEF Stan 59-411
  • JSP 482 Edition 4
  • STANAG 4234

An Electromagnetic Payload Launcher for Marine Applications

slide-6
SLIDE 6

www.babcockinternational.com Strictly Private and Confidential

Launcher: Launch payload at required exit velocity Features: Linear motors, DC brake, low friction rails Payload: Dummy payload to represent lightweight torpedo Features: Accelerometer mounted externally Catcher: Arresting the payload after launch Features: High friction rails, modular structure

6

Test Rig

  • Full scale test rig used to launch a dummy payload of identical dimensions and mass to a

lightweight torpedo

  • Aim to demonstrate electromagnetic compliance with applicable standards, specifically

BR2924, using EM field measurement equipment on the test rig over multiple launches

An Electromagnetic Payload Launcher for Marine Applications

slide-7
SLIDE 7

www.babcockinternational.com Strictly Private and Confidential 7

Ansys Maxwell FEA Model

An Electromagnetic Payload Launcher for Marine Applications

slide-8
SLIDE 8

www.babcockinternational.com Strictly Private and Confidential 8

Ansys Maxwell Performance Prediction

An Electromagnetic Payload Launcher for Marine Applications

slide-9
SLIDE 9

www.babcockinternational.com Strictly Private and Confidential 9

Ansys Maxwell Flux Density Areas

1. LIM teeth 2. Back iron 3. C beams housing the LIMs 4. Airgap 5. Actuation fin 6. Payload 7. Payload internal volume

An Electromagnetic Payload Launcher for Marine Applications

slide-10
SLIDE 10

www.babcockinternational.com Strictly Private and Confidential 10

Ansys Maxwell Flux Density Magnitude

An Electromagnetic Payload Launcher for Marine Applications

slide-11
SLIDE 11

www.babcockinternational.com Strictly Private and Confidential 11

Ansys Maxwell Flux Density Plots

An Electromagnetic Payload Launcher for Marine Applications

slide-12
SLIDE 12

www.babcockinternational.com Strictly Private and Confidential 12

Ansys Maxwell Flux Density Plots

An Electromagnetic Payload Launcher for Marine Applications

slide-13
SLIDE 13

www.babcockinternational.com Strictly Private and Confidential 13

Launch Video

www.babcockinternational.com An Electromagnetic Payload Launcher for Marine Applications

slide-14
SLIDE 14

www.babcockinternational.com Strictly Private and Confidential 14

Measured Launch Parameters

An Electromagnetic Payload Launcher for Marine Applications

Measured parameters Current, Acceleration, Velocity Simulated parameters Current, Acceleration, Velocity

slide-15
SLIDE 15

www.babcockinternational.com Strictly Private and Confidential 15

Measuring EM Fields

This enables a full-load launch with measurement of EM fields in the area of interest

An Electromagnetic Payload Launcher for Marine Applications

Test rig reconfigured for EM fields measurement

  • Bespoke method of measuring fields using off-the-shelf equipment
  • Pusher bracket on actuation fin turned around
  • Payload positioned in front of the fin instead of above it
  • Field probes placed above the LIMs and the fin where payload would normally be
slide-16
SLIDE 16

www.babcockinternational.com Strictly Private and Confidential 16

Analysis of EM Fields Data

Measured fields in comparison to limit based on BR2924

An Electromagnetic Payload Launcher for Marine Applications

slide-17
SLIDE 17

www.babcockinternational.com Strictly Private and Confidential 17

Conclusions

  • Proven ability to launch payload at specified exit speed
  • Demonstrated consistent and reliable operation – over

100 launches completed with no maintenance

  • Impact on power supply determined by overall system

level capabilities (energy storage could be provided)

  • Proven adaptability for various payloads and launch
  • requirements. i.e. torpedo variants, UUVs
  • Ability to accurately predict performance using FEA

model and simulation techniques

  • Demonstrated that EM fields generated by the launcher

are below threshold of applicable standards

An Electromagnetic Payload Launcher for Marine Applications

slide-18
SLIDE 18

www.babcockinternational.com Strictly Private and Confidential 18

Further Work

  • Continue to improve the model and

simulation techniques to aid with further development and accurately predict performance characteristics

  • Investigate alternative interface and

release mechanisms for a wide range

  • f payloads
  • Investigate system application under

water using modelling techniques to simulate submerged LIMs

An Electromagnetic Payload Launcher for Marine Applications

  • Develop roadmap for underwater concept design, considering a range of possible

payloads (e.g. heavyweight torpedoes, mines, countermeasures, UUV)

slide-19
SLIDE 19

www.babcockinternational.com 19 An Electromagnetic Payload Launcher for Marine Applications
