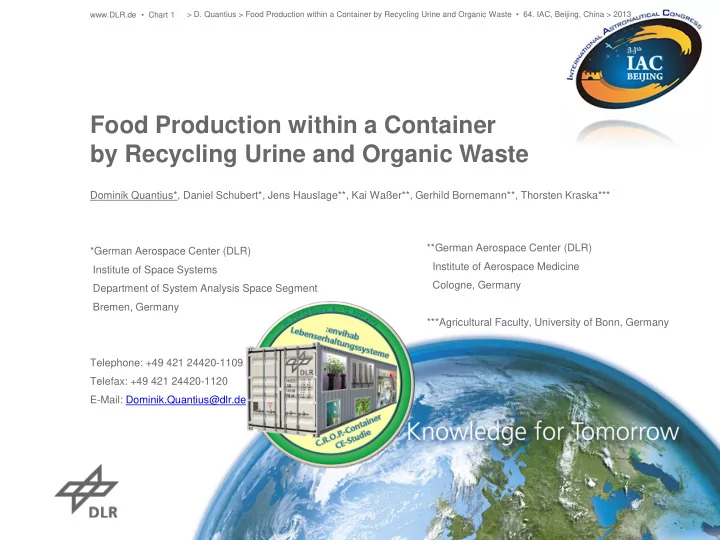

Food Production within a Container by Recycling Urine and Organic Waste

Dominik Quantius*, Daniel Schubert*, Jens Hauslage**, Kai Waßer**, Gerhild Bornemann**, Thorsten Kraska*** *German Aerospace Center (DLR) Institute of Space Systems Department of System Analysis Space Segment Bremen, Germany Telephone: +49 421 24420-1109 Telefax: +49 421 24420-1120 E-Mail: Dominik.Quantius@dlr.de

www.DLR.de • Chart 1 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

**German Aerospace Center (DLR) Institute of Aerospace Medicine Cologne, Germany ***Agricultural Faculty, University of Bonn, Germany

slide-2
SLIDE 2

Content

  • Study Goals
  • Concurrent Engineering Study
  • Container Design
  • Outlook

www.DLR.de • Chart 2 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

slide-3
SLIDE 3

Study Goals

  • Design an accessible shipping container in which a food production

system is integrated with the following units:

  • Higher plant segment
  • Bio-filter system
  • Urine segment

www.DLR.de • Chart 3 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

slide-4
SLIDE 4

Study Goals

  • Layout of the CROP-system including subsystems for the container
  • Dimensioning of units (size, power, cycle of materials (water, urine,

fertilizer, biowaste)), sensors, tanks, pumps;

design driver: maximize plant area!

  • Accommodation of units
  • Requirements for the container (e.g. isolation, windows, structure)
  • Operation scenario
  • Risk and cost evaluation

www.DLR.de • Chart 4 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

slide-5
SLIDE 5

Concurrent Engineering … is not …

www.DLR.de • Chart 5 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

  • Conventional Design / Engineering Processes

Centralized Engineering: Sequential Engineering (with iterations):

Configuration Thermal Power iteration Power Light Configuration Thermal Project Manager/ Systems Engineer

slide-6
SLIDE 6

Concurrent Engineering

www.DLR.de • Chart 6 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

Concurrent Design / Engineering Process The five key elements:

  • Interdisciplinary expert team
  • CE - process
  • Integrated Design Model
  • Facility / Infrastructure
  • Tools (e.g. S/W; Multi-Media)

Project Manager/ Systems Engineer Configuration Power Light Thermal

slide-7
SLIDE 7

Concurrent Engineering

www.DLR.de • Chart 7 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

slide-8
SLIDE 8

Concurrent Engineering

www.DLR.de • Chart 8 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

slide-9
SLIDE 9

Design

www.DLR.de • Chart 9 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

2,49 m Height

slide-10
SLIDE 10

Design

www.DLR.de • Chart 10 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

Plant Compartment

Options:

  • Aeroponic (no!)
  • Deep water (no!)
  • NFT (no!)
  • Flooding (optional)
  • Continuous flow (yes!)
  • Drip irrigation (optional)
slide-11
SLIDE 11

Design

www.DLR.de • Chart 11 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

Plant Compartment

Magnet valves

Input

  • utput

Cage holders Removable grow lid

Irrigation of Grow Channels

80 mm x 160 mm x 3000 mm

slide-12
SLIDE 12

Design

www.DLR.de • Chart 12 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

Plant Compartment

50 mm LED- & Cooling System 300 mm Shoot Zone 80 mm Root Zone 100 mm Canopy Free Zone 30 mm ITEM Structure Element Total: 560 mm per Grow Level

slide-13
SLIDE 13

Design

www.DLR.de • Chart 13 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

Plant Compartment

⇒ 1 x CROP Container ⇒ 2 x Plant Rows (left & right) / CROP Container ⇒ 4 x Levels / Plant Row ⇒ 3 x Segments / Plant Row ⇒ 2 x Grow Channels / Segment ⇒ 10 x Micro-Tina / Grow Channel 1 x 2 x 4 x 3 x 2 x 10 = 480 Mirco-Tina plants => 43 m² Total Grow Area

slide-14
SLIDE 14

Design

www.DLR.de • Chart 14 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

Plant Compartment

⇒ 1 x CROP Container ⇒ 2 x Plant Rows (left & right) / CROP Container ⇒ 4 x Levels / Plant Row ⇒ 3 x Segments / Plant Row ⇒ 2 x Grow Channels / Segment ⇒ 10 x Micro-Tina / Grow Channel 1 x 2 x 4 x 3 x 2 x 10 = 480 Mirco-Tina plants => 43 m² Total Grow Area 21600 fruits

slide-15
SLIDE 15

Design

www.DLR.de • Chart 15 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

Tomato "Micro Tina" White Cabbage "Kalorama" Growth period 91 days 100 days Space demand 30 x 30 x 30 cm³ 30 x 30 x 30 cm³ Amount of plants 480 480 Crop per day 1858 g 15034 g N-demand per day 1,858 g 30,067 g NO3-demand per day 8,122 g 133,155 g Urea demand per day 3,931 g 64,494 g Urine demand per day 0,3 l 4,3 l (15 g Urea/l) Plant Compartment

slide-16
SLIDE 16

Design

www.DLR.de • Chart 16 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

Air Mgmt. & Water Recovery CO2 Bottles Control Systems LED Heat Exchanger & Feed pumps “CROP” Filter System Autoclave Working Table, Storage Area, Sink

Service Compartment

Main Irrigation Mix Tank (incl. feed pump) Fresh Water (from Air Mgmt.) “CROP” Fertilizer Tank Waste Water Filter & UV Sterilization Unit

slide-17
SLIDE 17

Filter Design

www.DLR.de • Chart 17 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

Service Compartment

„C.R.O.P.“ * biofilter:

  • Microbiologic habitat
  • Small anaerobic zones
  • Dynamic adaption to nutrition source
  • Cultivation of synergetic microorganisms
  • Low energy demand (only pump power)
  • can handle micro pollutants
  • Restart capability
  • Oxidative decontamination

*Combined Regenerative Organic-Food Production

Urea

Nitrate

Nitrosomonas Nitrobacter

slide-18
SLIDE 18

Filter Design

www.DLR.de • Chart 18 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

Service Compartment

Urea

Nitrate

Nitrosomonas Nitrobacter Urea → Ammonia → Nitrite → Nitrate (Carbon / Fat  CO2)  Filtration performance (solution with 21% urine + 6l lava): 2,8 g/day nitrate

slide-19
SLIDE 19

Filter Design

www.DLR.de • Chart 19 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

  • Works also for shredded bio-waste (white cabbage):

Service Compartment

slide-20
SLIDE 20

ECS Design

www.DLR.de • Chart 20 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

Service Compartment

slide-21
SLIDE 21

ECS Design

www.DLR.de • Chart 21 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

Service Compartment

slide-22
SLIDE 22

Light Design

www.DLR.de • Chart 22 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

  • Trade between:

LED LEP (Plasma)

  • specific spectra
  • continuous spectrum
  • UV possible
  • no UV
  • better for space flight

Service Compartment

slide-23
SLIDE 23

Light Design

www.DLR.de • Chart 23 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

  • LED design:

Service Compartment

1 LED bar per 3m 6 LED bar per plant row and level Total: 48 LED bars

LED Reflector Cooling

slide-24
SLIDE 24

Power Design

www.DLR.de • Chart 24 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

Service Compartment

slide-25
SLIDE 25

Outlook

www.DLR.de • Chart 25 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

slide-26
SLIDE 26

www.DLR.de • Chart 26 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

Outlook

slide-27
SLIDE 27

Outlook

www.DLR.de • Chart 27 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

slide-28
SLIDE 28

Outlook

www.DLR.de • Chart 28 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

slide-29
SLIDE 29

Thanks to the study team… …and you for your Friday attention!

www.DLR.de • Chart 29 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

slide-30
SLIDE 30

www.DLR.de • Chart 30 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

Backup Slides:

slide-31
SLIDE 31

Design

www.DLR.de • Chart 31 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

Plant Compartment

Zyklus 1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91

1 2 3 4 5 6 7 8 9 10 11 12 13

  • -> Abreife & Ernte
  • -> Wachstum bis Reife (Micro-Tina)
  • -> Aussaat bis pflanzfertig bei 22-24°C
  • Plant Cycle:

14 days germination 58 days shoot phase 19 days maturation/ harvesting

slide-32
SLIDE 32

Design

www.DLR.de • Chart 32 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

Air Tubes Output Air Tubes Input Grow Segment Grow Segment Grow Segment

Plant Compartment

slide-33
SLIDE 33

Design

www.DLR.de • Chart 33 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

Plant Compartment

Air Tubes Input Nutrients INPUT (orange) LED Cooling “cold” (purple) Waste Water OUTPUT (pink) LED Cooling “hot” (green) Waste Water Tanks & Pumps

slide-34
SLIDE 34

Design

www.DLR.de • Chart 34 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

  • per week/harvest:

40 Plants Micro Tina 40 Plants White Cabbage 1 Plant Micro Tina 1 Plant White Cabbage Amount of crop 1800 pieces 40 pieces 45 pieces 1 piece Wet mass of crops 12,42 kg 116,00 kg 0,31 kg 2,90 kg Nitrogen consumption 12,42 g 232,00 g 0,31 g 5,80 g Nitrate demand 55,00 g 1027,43 g 1,38 g 25,69 g Urea demand 26,64 g 497,64 g 0,67 g 12,44 g Urine demand 1,77 l 33,18 l 0,04 l 0,83 l

Plant Compartment

slide-35
SLIDE 35

Design

www.DLR.de • Chart 35 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

Service Compartment

1000 2000 3000 4000 5000 6000 7000 16.05.2012 21.05.2012 26.05.2012 31.05.2012 05.06.2012 10.06.2012 15.06.2012 20.06.2012 mg/1000ml Datum Nitrat: Konz. im Becken 9-16 Neustart

Bacterial titer (aerob): 22° 1,00E+09/ml 36° 9,00E+06/ml Bacterial titer (aerob): 22° 4,86E+02/ml 36° 3,28E+02/ml 6.6% syn. Urine 6.6% syn. Urine

1000 2000 3000 4000 5000 6000 7000 16.05.2012 21.05.2012 26.05.2012 31.05.2012 05.06.2012 10.06.2012 15.06.2012 20.06.2012 mg/1000ml Datum Nitrat: Konz. im Becken 1+8 Nullprobe
slide-36
SLIDE 36

Light Design

www.DLR.de • Chart 36 > D. Quantius > Food Production within a Container by Recycling Urine and Organic Waste • 64. IAC, Beijing, China > 2013

  • Light output: 500 µmol/m2/s at the top of the plant during 16 hours
  • During 77 days: plants between 5 and 20 cm height
  • Light spectrum: include UVA 315 - 400 nm
  • Minimum covered area at a 40 cm distance: 15 cm x 3m

Service Compartment

slide-37
SLIDE 37

380l Prozess Plan

Urin Bio Waste

30l

Lagerung Hydroponic Maintank

30l

Umkehrosmose Fleischwolf

30l

Urine Tank

CROP B CROP U

N 1 l NPK 10l

P H

150l 380l Luft- entfeuchtung

Schwimmerschalter Tauchpumpe

P

380l

Pure Water

65l

P P P

Misch- roboter

P P P P P P

Druckpumpe

P

H2O

P P P P

UV

FF FF

P

65l

P P

Dosierpumpe

UV UV

FF FF

UV Sterilisation Feinfilter

EC EC EC EC EC

Leitwertfühler

EC

P P P

Schmutzwasserpumpe

FF

UV

P
