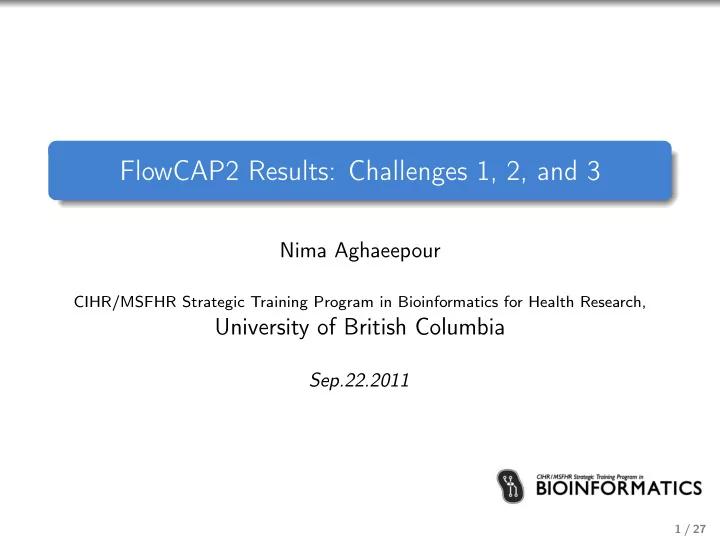

FlowCAP2 Results: Challenges 1, 2, and 3

Nima Aghaeepour

CIHR/MSFHR Strategic Training Program in Bioinformatics for Health Research,

University of British Columbia

Sep.22.2011

1 / 27

Problem Statement

Binary Classification Goal: evaluate the ability of computational pipelines in finding cell populations that can discriminate between two classes:

1: HEU vs UE 2: AML vs normal 3a: ENV vs GAG 3b: Responders vs non-responders

Participants identify the cell populations that are different across the two classes.

2 / 27

Problem Statement

10 20 30 40 0.0 0.2 0.4 0.6 0.8 Samples Probabilities

UE HEU

How does it generalize to previously unseen samples?

3 / 27

Problem Statement

Binary Classification Two classes.

1

HEU vs UE

2

AML vs normal

3

ENV vs GAG

4

Responders vs non-responders

Participants identify the cell populations that are different across the two classes. Results will be tested on independent samples.

4 / 27

Evaluation Metrics (e.g., for AML)

True(T), False(F), Positive(P) Negative(N) TP: An AML case marked as AML by a participants. FP: A normal case marked as AML by a participants. FN: An AML case marked as normal by a participants. TN: A normal case marked as normal by a participants. Accuracy Accuracy: (TP + TN)/(TP + TN + FP + FN) Sensitivity and Specificity Sensitivity: TP/(TP + FN) Specificity: TN/(FN + FP) F-measure F-measure: 2 ∗ Sensitivity ∗ Specificity/(Sensitivity + Specificity)

Should not be mistaken with FlowCAP1’s F-measure.

5 / 27

Challenge 1: HIV Exposed Uninfected vs UnExposed Infants

6 / 27

Challenge 1: HEU vs UE

Table 1: Challenge 1: HEUvsUE

Sensitivity Specificity Accuracy F-measure 2DhistsSVM 0.50 0.50 0.50 0.50 flowBin 0.00 0.48 0.45 0.00 flowType 0.58 0.60 0.59 0.59 flowType-FeaLect 0.33 0.38 0.36 0.36 PBSC 0.55 0.55 0.55 0.55 PramSpheres 0.36 0.36 0.36 0.36 SWIFT 0.67 0.62 0.64 0.64 Note: FLOCK has been renamed to PBSC.

7 / 27

HEU vs UE Random: 0.5 How can some of them be worst than random? Have we been able to find something meaningful?

Cross-validation Holdout validation (using other time points).

Algorithms F−measures SWIFT flowType PBSC 2DhistsSVM PramSpheres flowType−FeaLect flowBin 0.0 0.1 0.2 0.3 0.4 0.5 0.6

8 / 27

Challenge 1: HEU vs UE

10 20 30 40 0.0 0.2 0.4 0.6 0.8 Samples Probabilities

UE HEU

9 / 27

Challenge 1: HEU vs UE

10 20 30 40 0.0 0.2 0.4 0.6 0.8 Samples Probabilities

UE HEU

10 / 27

Challenge 1: HEU vs UE

SampleNumber MisClassifications 1 2 3 4 5 6 UE HEU

11 / 27

Challenge 2: AML vs normal subjects

12 / 27

AML Three perfect classification of 360 patients.

Algorithms F−measures 0.70 0.75 0.80 0.85 0.90 0.95 1.00 flowPeakssvm flowType−FeaLect SPADE 2DhistsSVM EMMIXCYTOM flowType RandomSpheres flowBin PBSC

13 / 27

Challenge 2: AML

Table 2: Challenge 2: AML

Sensitivity Specificity Accuracy F-measure 2DhistsSVM 1.00 0.99 0.99 1.00 EMMIXCYTOM 0.95 0.99 0.99 0.97 PBSC 0.75 0.97 0.94 0.85 flowBin 1.00 0.92 0.92 0.96 flowPeakssvm 1.00 1.00 1.00 1.00 flowType 0.95 0.99 0.99 0.97 flowType-FeaLect 1.00 1.00 1.00 1.00 RandomSpheres 0.95 0.99 0.99 0.97 SPADE 1.00 1.00 1.00 1.00

14 / 27

Challenge 2: AML

50 100 150 200 250 300 350 0.0 0.2 0.4 0.6 0.8 1.0 Samples Probabilities

Normal AML

15 / 27

Challenge 2: AML

50 100 150 200 250 300 350 0.0 0.2 0.4 0.6 0.8 1.0 Samples Probabilities

Normal AML

16 / 27

Challenge 2: AML

SampleNumber MisClassifications 2 4 6 8 10 12 normal aml

17 / 27

Challenge 2: AML

400 600 800 1000 100 200 300 400 FS Lin SS Log

0.9%

Normal

400 600 800 1000 100 200 300 400 FS Lin SS Log

21%

AML

400 600 800 1000 100 200 300 400 FS Lin SS Log

17%

Outlier

This dataset, perhaps, requires analysis of one marker at a time. Potential challenge for FlowCAP3: a dataset in which multiple markers should be used to find a rare cell populations.

18 / 27

Challenge 3a: Identification

• f Antigen Stimulation Group

19 / 27

HVTNa Six perfect classifiers for 40 patients.

F−measures 0.75 0.80 0.85 0.90 0.95 1.00 flowCore−flowStats flowType−FeaLect Kmeanssvm PRAMS SPADE SWIFT PBSC PramSpheres flowType

20 / 27

Challenge 3: HVTNa

Table 3: Challenge 3: HVTNa

Sensitivity Specificity Accuracy F-measure PBSC 0.95 0.95 0.95 0.95 flowType 0.88 0.76 0.81 0.82 flowType-FeaLect 1.00 1.00 1.00 1.00 flowCore-flowStats 1.00 1.00 1.00 1.00 Kmeanssvm 1.00 1.00 1.00 1.00 PRAMS 1.00 1.00 1.00 1.00 PramSpheres 0.90 0.90 0.90 0.90 SPADE 1.00 1.00 1.00 1.00 SWIFT 1.00 1.00 1.00 1.00

21 / 27

Challenge 3: HVTNa

SampleNumber MisClassifications 0.0 0.5 1.0 1.5 2.0 GAG ENV

22 / 27

Challenge 3b: Identification

• f Responders and

Non-Responders in Intracellular Cytokine Staining of Post-HIV Vaccine Antigen Stimulated T-cells

23 / 27

HVTNb Maximum of 0.8 F-measure against cytokine reposes measured by a human across 80

• samples. Has the human

been wrong?

Algorithms F−measures 0.0 0.2 0.4 0.6 0.8 flowCore−flowStats SPADE SWIFT PBSC

24 / 27

Challenge 3: HVTNb

Table 4: Challenge 3: HVTNb

Sensitivity Specificity Accuracy F-measure PBSC 0.27 0.89 0.81 0.42 flowCore-flowStats 0.79 1.00 0.96 0.88 SPADE 0.67 0.99 0.93 0.80 SWIFT 0.43 0.98 0.83 0.60

25 / 27

Challenge 3: HVTNb

1 4 7 10 14 18 22 26 30 34 38 42 3 6 9 12 16 20 24 28 32 36 40 SampleNumber MisClassifications 1 2 3 4 − +

26 / 27

Acknowledgements

FlowCAP CC Ryan Brinkman, Raphael Gottardo, Tim Mosmann, Richard Scheuermann Upenn Wade Rogers CFRI Tobias Kollman FHCRC Steve De Rosa UBC Holger Hoos FlowCAP Participants Funding FlowCAP is supported by NIH/NIBIB grant (EB008400). The FlowCAP summits are supported by NIH/NIAID. 27 / 27
