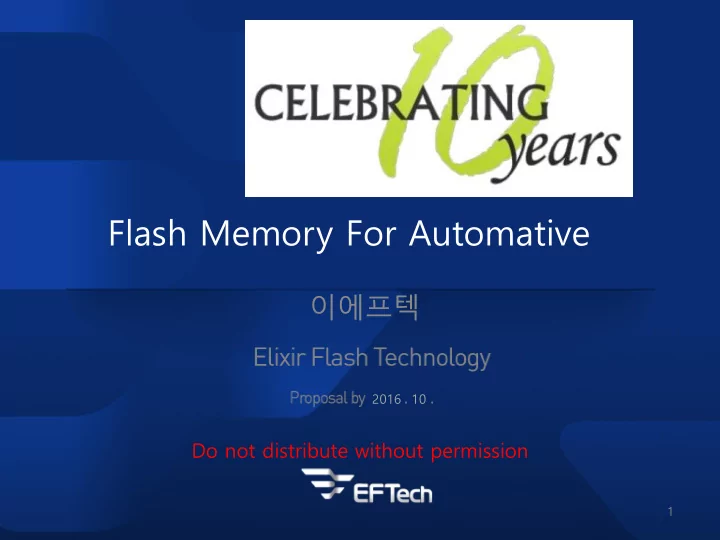

Flash Memory For Automative

2016 10

1

Do not distribute without permission

2007년 시작

2

2011년 6th

3

2015년 9th

4

Automotive Flash

5

NAND for Automotive

• More storage requires NAND

– Navigation, ADAS, Infotainment and Black-box

• NAND is acceptable for the dashboard or a head unit

– Under -20C to 85

• Data retention on high temperature is critical issue

장치의 장착위치 저장온도 동작온도 직사광선 노출 안됨 85C 75C 직사광선 노출 근처 95C 85C 직사광선 노출 115C 105C

Data retention loss

• For 19nm MLC (Multi-Level Cell) NAND the acceleration factors for retention

degradation are 6.5 at 55°C and a fatal 168 at 85°C which means that stored data is definitely corrupted after a few months without additional countermeasures.

출처:

AEQ-Q100

• High Temp Program/Erase Endurance Cycling
• 85C, cycling for 15% of product life time : 1/3 time on full area, 3/1

time on 10% area, 1/3 time on the rest of area (90%)

– High Temp Data Retention(HTDR)

• Example) 150C bake 40 hr

– High Temp Operating Life (HTOL)

• 90C R/W for 408 hours OR 70C R/W for 1000 hours
• High speed
• Low Temp Program/Erase Endurance Cycling procedure
• 55C, cycling for 15% of product life time

– Low Temp Data Retention(HTDR) procedure

Customer Requirement

테스트명 시나리오 High Temp 85C, Read/Write, 2000Hours Low Temp

• 25C, Read/Write, 100Hours

Cross Temp

• 25~85C 1000cycle, Read/Write

High Temp+SPOR 85C 2000Hours with SPOR 5K

EFTech Industrial eMMC/SD Tester

• Test solution for industrial eMMC/SD

– Smart test cases and monitor/control GUI program – Chamber & test board

• Working temperature test with high speed interface

– AP based chamber solution for 128 para

– Working temperature : -40C to 120C

• Industrial Tester overview

– Functional/power-cycle test – endurance/retention test with burn-in – Performance benchmark

10

Recent Test Result for automotive SD

• All Sdcards of 5 makers could not pass our room temp

SPOR test

– Power cycle test fails within 100 ~ 1K – Write/read timeout with SPOR

• Recommendation : Buy S-Sdcard or T-Sdcard on Gmarket !!

System Configuration of NAND application

• Navigation : Map-SD and OS-embedded flash

– eMMC on Wince/linux – MLC NAND + S/W FTL + Wince/linux

• Is it Strong FTL ?
• Driver Monitoring system

– SoC + SLC NAND in one chip package

Automotive & Robotics

• New Market & New Challenge

13

ABB Industrial Robot Softbank PePe

New S/W Tech

14

Endurance(X) : Retention(Y) : Performance(Z) Target Specific Requirement

15

Q&A : lauren@elixirflash.com
