First Lecture: Higgs Boson Theory and Introduction Eilam Gross 1 Eilam Gross, WIS, SUSY16 About your Lecturer Eilam Gross, eilam.work@gmail.com Prof of Particle Physics @ the Weizmann Institute of Science, Rehovot, Israel

slide-1

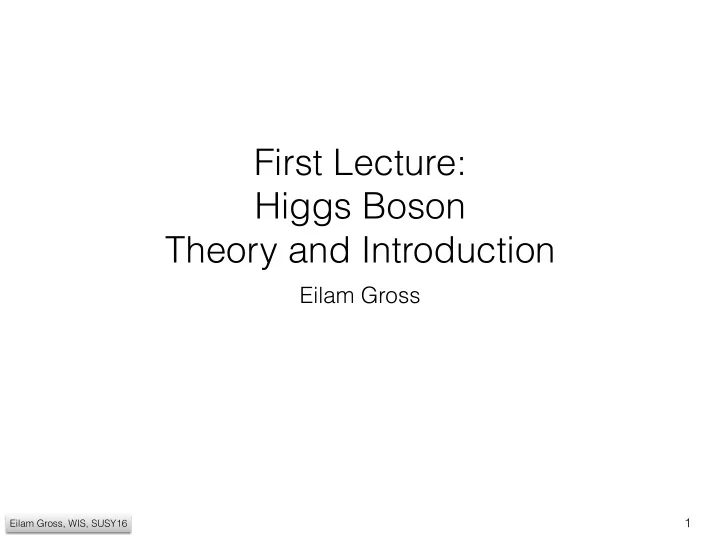

SLIDE 1

Eilam Gross, WIS, SUSY16


 First Lecture: Higgs Boson
 Theory and Introduction

Eilam Gross

1

slide-2
SLIDE 2

Eilam Gross, WIS

About your Lecturer

  • Eilam Gross, eilam.work@gmail.com
  • Prof of Particle Physics @ the Weizmann Institute of Science, Rehovot,

Israel

  • Member of the ATLAS collaboration @ CERN
  • Main Interests :
  • DATA Analysis (statistics of HEP)
  • Higgs Physics (Standard Model and Beyond the Standard Model)

2

slide-3
SLIDE 3

1895 To the useless electron

Eilam Gross, Weizmann Institute of Science 16

slide-4
SLIDE 4

1 8 9 5

$ 1

slide-5
SLIDE 5

2 0 1 2

~$6,000,000,000

slide-6
SLIDE 6

6

slide-7
SLIDE 7

Eilam Gross, WIS

A Detector

7

Ensemble of measured interactions in a given proton–proton bunch crossing makes up an “event”

slide-8
SLIDE 8

AT L A S

slide-9
SLIDE 9

3000 Physicists Driven by Curiosity

slide-10
SLIDE 10

A R A R E T- S H I R T

1 1 1 1 5 1 2 This is the most incredible thing that happened to me in my lifetime Peter Higgs 4 July 2012

slide-11
SLIDE 11

eilam gross, WIS

S M H I G G S T H EO R Y

slide-12
SLIDE 12

eilam gross, WIS

Quantum fields are used to create and annihilate particles at (x,t) In order to “create” a particle

  • ne needs to invest an energy

equals to its mass E=mc2 The transition of a particle from one (x,t) to another, is called radiation

Fields and Particles

12

slide-13
SLIDE 13

eilam gross, WIS

QED was developed in
 the first half of the 20th
 century to describe the interaction of
 matter with light (photons and electrons) QED is based on the phase U(1) symmetry
 (which ensures conservation of electric charge). The photon is the guardian of
 the local gauge symmetry.

The symmetry requires that the photon be massless.

The symmetry ensures the renormalizability of the theory, the theory is free of infinities
 (i.e. the theory “does not predict

particles doing things more often than always”)

(QED) Field Theory

13

ψγ µDµψ = ψγ µ∂µψ + ieψγ µAµψ ψ → eieθ(x,t )ψ

slide-14
SLIDE 14

eilam gross, WIS

Spontaneous Symmetry Breaking

Spontaneously Symmetry Breaking was first introduced by Ginzburg & Landau (1950)
 (in an attempt to explain
 superconductivity) The physics of the system
 (Lagrangian) posses some
 exact symmetry, but the
 vacuum (ground state) breaks
 this symmetry

14

slide-15
SLIDE 15

eilam gross, WIS

Spontaneous Symmetry Breaking Higgs Potential

15

slide-16
SLIDE 16

eilam gross, WIS

Spontaneous Symmetry Breaking

Nambu (1960) proposed for the first time that SSB is

the source of fermion masses in elementary particle physics: “the existence of such a condensate (scalar field) would break the symmetry of the model..... in particle physics, would be a non-Abelian group containing the U(1) group associated with electric charge conservation as a subgroup”

16

slide-17
SLIDE 17

eilam gross, WIS

Spontaneous Symmetry Breaking

Goldstone, Salam and Weinberg (1962) prove formally that massless Bosons must occur whenever a symmetry is broken (Goldstone Theorem). No such massless Bosons were observed experimentally.

17

slide-18
SLIDE 18

eilam gross, WIS

Spontaneous Symmetry Breaking

Peter Higgs (Phys. Lett. July 1964) develops the mechanism by which the massless Goldstone Boson is “eaten” by the photon and the photon becomes massive -> short range (weak) interaction

18

The photon eats
 the Goldstone Boson
 and acquires mass.

slide-19
SLIDE 19

eilam gross, WIS

Eilam Gross

82

slide-20
SLIDE 20

eilam gross, WIS

The Higgs Mechanism

Higgs sends a 3 pages paper to Physics
 Letter, the paper is rejected. Higgs adds an epilogue to the paper: “it is worth noting that an essential feature of this type of theory is the prediction of incomplete multiplets of scalar and vector bosons” and sends the revised version to PRL. Higgs: “The referee who, I discovered later, was Nambu, drew my attention to a paper by Englert and Brout that they had just published in Physical Review Letters”. Higgs is asked to cite Englert & Brout and the paper is accepted (August 1964)

20

slide-21
SLIDE 21

eilam gross, WIS

The Higgs Mechanism

Higgs (in a snail mail to me):

21

slide-22
SLIDE 22

eilam gross, WIS

The Higgs Mechanism

Higgs (in a snail mail to me):


In my first paper I outlined how to evade the Goldstone theorem.



Englert & Brout showed how a gauge field interaction turns Goldstone massless bosons (elementary OR composite) into helicity-0 states of massive spin-1

  • particles. They strated from Feynmann diagrams and

didn’ t discuss the remaining massive spin-0 particles.



In my second paper I used Lagarangian field theory explicitly with elementary scalar fields (a‘ la Goldstone) coupled to a gauge field, so the massive spin-0 boson was an obvious feature, to which I drew attention.

22

slide-23
SLIDE 23

eilam gross, WIS

The Birth of the Standard Model

Glashow (1961) suggests that the symmetry of the
 Electro-Weak interaction is SU(2)xU(1) and is broken to U(1) em. But Glashow puts the masses of the force carriers by hand and his theory is therefore non-renormalizable Weinberg (1967) implements Higgs mechanism to
 Glashow’ s SU(2)xU(1) and writes the second most quoted paper in the history of particle phsyics (>9000 citations). Weinberg predicts that the mass of the weak interaction force carriers is mW=80 GeV and mZ=90 GeV , but it took another 14 years to confirm it experimentally. Yet, the mass of the Higgs Boson was NOT predicted by theory

  • nly its existence! (and it took 47 years to discover it)

23

slide-24
SLIDE 24

eilam gross, WIS

How Elementary Particles Acquire Mass

24

gφψψφψ → gφψψ (H + v)ψ = gφψψ Hψ + gφψvψψ mψ = gφψv gφψ ∼ mψ

V




 The coupling of the Higgs to
 particles is proportional to the
 particles’ mass

slide-25
SLIDE 25

eilam gross, WIS

How Elementary Particles Acquire Mass

25

gφψψφψ → gφψψ (H + v)ψ = gφψψ Hψ + gφψvψψ mψ = gφψv gφψ ∼ mψ




 The coupling of the Higgs to
 particles is proportional to the
 particles’ mass The Higgs Boson production
 and decay is determined
 by its coupling The Higgs Boson will therefore
 decay with a higher probability
 to the heaviest particle
 kinematically available The Higgs Mass is unknown!

slide-26
SLIDE 26

eilam gross, WIS

The Standard Model: Quarkd & Leptons

26

slide-27
SLIDE 27

eilam gross, WIS, November 2011

Branching Ratios

27

slide-28
SLIDE 28

eilam gross, WIS

Higgs Production

The Higgs Boson is a quanta of the Higgs field. To produce a Higgs Boson one needs an energy which at least equals its (unknown) mass Protons and electrons are easy to produce and accelerate. Allas, the Higgs hardly couples to electrons or the light quarks which make the proton (up and down quarks)

28

slide-29
SLIDE 29

T H E 1 9 7 6 I G N O B E L PA P E R

slide-30
SLIDE 30

eilam gross, WIS

Higgs @ LEP

30

slide-31
SLIDE 31

eilam gross, WIS

Higgs @ LEP

31

May 1981 - the LEP (Large Electron Positron Collider) project is approved November 1989 - first collision recorder by OPAL @LEP November 2000, 11 years after, the LEP collider is shut dow The Higgs was not discovered up to
 the maximum energy mass available
 at LEP, and a lower bound
 was put on its mass,
 mH>ECM-MZ-> mH>114 GeV

slide-32
SLIDE 32

L E P L E G A C Y - 1 1 5 G E V H I G G S ? H A R D T O G I V E U P O N T H AT O N E … . .

CERN-EP/2001-095 18-Dec-2001

slide-33
SLIDE 33

L E P L E G A C Y - 1 1 5 G E V H I G G S ? H A R D T O G I V E U P O N T H AT O N E … . .

CERN-EP/2001-095 18-Dec-2001

slide-34
SLIDE 34

eilam gross, WIS

L H C L A RG E H A D RO N CO L L I D E R

slide-35
SLIDE 35

eilam gross, WIS

First LHC Birds

In 1977, during talks about the LEP1983 project, it was already mentioned that the “new” tunnel could also host a hadron (pp) collider in the large future 1983 - A “dirty” Hadron collider can actually make a great discovery.
 UA1 and UA2 @CERN discover
 the W and the Z 1991 December CERN
 council: “LHC is the right
 machine… for the future


  • f CERN”

1997 December CERN
 council approve the single
 stage 14 TeV LHC for
 completion in 2005

35

1st UA1 Z, April 1983

slide-36
SLIDE 36

eilam gross, WIS

Higgs Production @ the LHC

Higgs hardly couples to u & d quarks (which make protons)

36

slide-37
SLIDE 37

eilam gross, WIS, November 2011

Higgs Production @ the LHC

Higgs hardly couples to u & d quarks (which make protons) To produce a Higgs Boson in P-P collisions 4 processes are used: ggF , VBF , Associate Production and ttH

37

ggF

slide-38
SLIDE 38

eilam gross, WIS, November 2011

Higgs Production @ the LHC

Higgs hardly couples to u & d quarks (which make protons) To produce a Higgs Boson in P-P collisions 4 processes are used: ggF , VBF , Associate Production and ttH

38

VBF

slide-39
SLIDE 39

eilam gross, WIS, November 2011

Higgs hardly couples to u & d quarks (which make protons) To produce a Higgs Boson in P-P collisions 4 processes are used: ggF , VBF , Associate Production and ttH

Higgs Production @ the LHC

39

AP

slide-40
SLIDE 40

eilam gross, WIS, November 2011

Higgs hardly couples to u & d quarks (which make protons) To produce a Higgs Boson in P-P collisions 4 processes are used: ggF , VBF , Associate Production and ttH

Higgs Production @ the LHC

40

ttH

slide-41
SLIDE 41

eilam gross, WIS, November 2011

Higgs Production



 is x10
 then
 is even
 smaller, yet distinct
 is the smallest and also difficult

41

[GeV]

H

M 100 200 300 400 500 1000 H+X) [pb]

  • (pp
  • 2

10

  • 1

10 1 10 = 7 TeV s

LHC HIGGS XS WG 2010

H ( N N L O + N N L L Q C D + N L O E W )

  • p

p qqH (NNLO QCD + NLO EW)

  • pp

WH (NNLO QCD + NLO EW)

  • pp

ZH (NNLO QCD +NLO EW)

  • pp

ttH (NLO QCD)

  • pp
slide-42
SLIDE 42

eilam gross, WIS, November 2011

Higgs Decay Modes

42

slide-43
SLIDE 43

eilam gross, Bonn, December 2011

43

H->bb H->ZZ->4q

For a channel to be usable, we must be able to trigger it Most efficient and clean triggers are photon or lepton based

slide-44
SLIDE 44

eilam gross, WIS, November 2011

The Killing Trigger

For a channel to be usable, we must be able to trigger it Most efficient and clean triggers are photon or lepton based

44

Channel Trigger γγ

Diphoton

ττ

Single lepton (+isolated jet),Dilepton

WH

Single lepton

ZH

Single lepton (ATLAS,CMS); Dielectron (CMS)

WW (lνlν) 0-jet

Single lepton (ATLAS, CMS); Dilepton (CMS)

1-jet

Single lepton (ATLAS, CMS); Dilepton (CMS)

VBF*

Single lepton, dilepton

WW** (lνqq) 0-jet

Single lepton

1-jet

Single lepton

ZZ (llll)

Single lepton (ATLAS);
 Single lepton (early data), dilepton (CMS)

ZZ (llνν)

Single lepton (ATLAS); Dilepton (CMS)

ZZ (llqq)

Single lepton

ZZ (llττ) *

Dilepton

* CMS only / ** ATLAS only

slide-45
SLIDE 45

eilam gross, Bonn, December 2011

45

Trigger ripped off the jet channels

slide-46
SLIDE 46

eilam gross, Bonn, December 2011

pp

80 µb−1 total (x2) 20 µb−1 60 µb−1 inelastic Jets R=0.4 nj ≥ 1 0.1 < pT < 2 TeV nj ≥ 2 0.3 < mjj < 5 TeV

γ

fid. pT > 25 GeV pT > 100 GeV

W

fid. nj ≥ 0 nj ≥ 1 nj ≥ 2 nj ≥ 3 nj ≥ 4 nj ≥ 5 nj ≥ 6 nj ≥ 7

Z

fid. nj ≥ 0 nj ≥ 1 nj ≥ 2 nj ≥ 3 nj ≥ 4 nj ≥ 0 nj ≥ 1 nj ≥ 2 nj ≥ 3 nj ≥ 4 nj ≥ 5 nj ≥ 6 nj ≥ 7

t¯ t

fid. total nj ≥ 4 nj ≥ 5 nj ≥ 6 nj ≥ 7 nj ≥ 8

t

tot. s-chan t-chan 2.0 fb−1 Wt

VV

tot. ZZ WZ ZZ WZ WW ZZ WZ WW

γγ

fid.

H

fid. H→γγ VBF H→WW ggF H→WW H→ZZ→4ℓ H→ττ total

Vγ

fid. Zγ Zγ W γ

t¯ tW

tot.

t¯ tZ

tot.

t¯ tγ

fid.

Zjj

EWK fid. Zγγ nj = 0 tot. Wγγ nj = 0 tot. VVjj EWK fid. W ±W ± WZ

σ [pb]

10−3 10−2 10−1 1 101 102 103 104 105 106 1011

Theory LHC pp √s = 7 TeV Data 4.5 − 4.9 fb−1 LHC pp √s = 8 TeV Data 20.3 fb−1 LHC pp √s = 13 TeV Data 0.08 − 3.2 fb−1

Standard Model Production Cross Section Measurements

Status: June 2016

ATLAS Preliminary Run 1,2

√s = 7, 8, 13 TeV

Elecroweak measurements are Higgs backgrounds

Good agreement with theory , W, Z, tt become a challenge for theory Systematics dominate

Higgs cross section same order of magnitude as Di-Boson production (WW,WZ,ZZ)

46

slide-47
SLIDE 47

eilam gross, Bonn, December 2011

ATLAS+CMS Channels Weight

Distinct mass regions γγ, lνlν, 4l, llνν+llqq

47

H->γγ H->WW->lυlυ H

  • >

Z Z

  • >

4 l H->ZZ->llυυ
