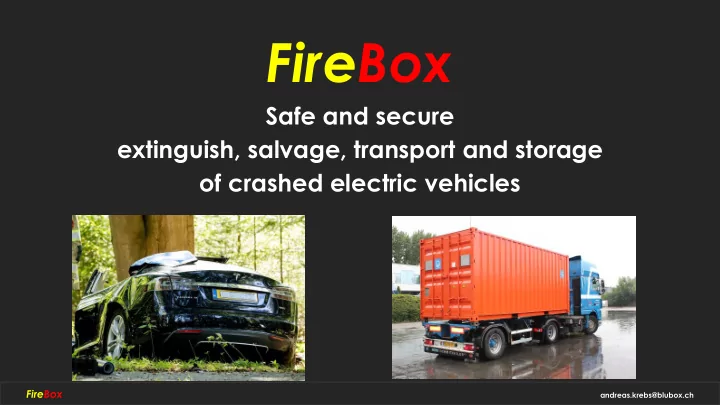

FireBox Safe and secure extinguish, salvage, transport and storage of crashed electric vehicles FireBox andreas.krebs@blubox.ch The FireBox consists of : Salvage container with Extinguisher N-EXT extinguish system FireBox

SLIDE 1

FireBox

andreas.krebs@blubox.ch

FireBox

Safe and secure extinguish, salvage, transport and storage

f crashed electric vehicles

SLIDE 2

FireBox

andreas.krebs@blubox.ch

The FireBox consists of:

Salvage container with extinguish system

Extinguisher N-EXT

SLIDE 3

FireBox

andreas.krebs@blubox.ch

Salvage with the FireBox Extinguish with N-EXT at the accident site Store in the FireBox

FireBox – a 20ft Container with 2 Extinghuish Systems

Transport in the FireBox

SLIDE 4

FireBox

andreas.krebs@blubox.ch

Field report : Accident E-vehicle, NL, 2016

Fire outbreak inside the car, 3 hours after the crash. The reason was unknown.

SLIDE 5

FireBox

andreas.krebs@blubox.ch

Cells from the car were spread in the surrounding and suddenly started to burn.

Field report : Accident E-vehicle, NL, 2016

SLIDE 6

FireBox

andreas.krebs@blubox.ch

Field report : Accident E-vehicle, CH, 2017

Crashed vehicle was stored and transported secure in the FireBox

SLIDE 7

FireBox

andreas.krebs@blubox.ch

Field report : Accident E-vehicle, AT, 2017

Message on Facebook: Fire of an electric vehicle on the S16, Pians, 17.10.2017 A fire of an electric vehicle after an accident shortly before the entrance of the Pianner tunnel. The driver

f the electric vehicle crashed against concrete

bulkheads and was only slightly injured. The firefighting - which could only be done under heavy respiratory protection - was difficult as the vehicle repeatedly caught fire. It was only after cutting the power supply from the high-performance battery that made the fire fighters win and extinguish the fire. Since lithium batteries are used, the manufacturer recommends that crashed vehicles are left "quarantined" for 48 hours in order a restart of a fire can be extinguished. The Arlbergschnellstraße had to be closed for around 2 hours. The fire department Landeck was with 5 vehicles and 35 fire fighters on site.

SLIDE 8

FireBox

andreas.krebs@blubox.ch

Field report : Accident E-vehicle, AT, 2017

SLIDE 9

FireBox

andreas.krebs@blubox.ch

Damaged Batteries are still active!

Text Old or damaged Batteries are still active! A damage

r defect

can start up a fire, at anytime!

SLIDE 10

FireBox

andreas.krebs@blubox.ch

Extinguish a Lithium Batteries Fire Outdoors

SLIDE 11

FireBox

andreas.krebs@blubox.ch

Extinguish Tests with Lithium Batteries in the FireBox

Batteries stored in barrels – Burned batteries – The FireBox after the fire

SLIDE 12

FireBox

andreas.krebs@blubox.ch

Extinguish a Lithium Batteries Fire with the FireBox

SLIDE 13

FireBox

andreas.krebs@blubox.ch

Why do Lithium Batteries start to burn?

Set on fire by:

Mechanical damage
Short circuit
Overheating
Electro-chemical reaction

What is burned off:

Electrolyte
Aluminum foil
Metal oxides
Plastics

SLIDE 14

FireBox

andreas.krebs@blubox.ch

Components of a EV Battery

Lithium Ion Battery

1. Battery cage
2. Battery module
3. Battery control unit
4. High voltage plug
5. Cooling water connection
6. Cell control unit

SLIDE 15

FireBox

andreas.krebs@blubox.ch

The Electric Vehicule

No combustion engine
Battery weight 200 - 350 kg. In

the Tesla Model S up to 750 kg.

The battery is usually on the

bottom of the floor panel

Voltage up to 1000 Volts

SLIDE 16

FireBox

andreas.krebs@blubox.ch

The FireBox

The FireBox is equipped with :

a fire alarm system, with alarm signal
an automatic aerosol extinguishing system
a sprinkler system with Storz connection
a connection to the main fire alarm panel

SLIDE 17

FireBox

andreas.krebs@blubox.ch

Secure Storage of Lithium Batteries

Originally the FireBox was developed for the storage of lithium batteries.

SLIDE 18

FireBox

andreas.krebs@blubox.ch

E-Vehicles: Outlook 2030

End of 2016, 10'724 electric vehicles were on the road in Switzerland. (0.24% of

PVs)

3'525 more than last year. (+ 47%)
Due to the legislation and the current reports on diesel, a further increase has to

be expected.

The European Union estimates that in 2030 at least 15% of electric vehicles will

be on the road.

This would be about 1,000,000 electric vehicles in Switzerland.

SLIDE 19

FireBox

andreas.krebs@blubox.ch

Safe and rapid Salvage of Electric Vehicles with the FireBox

SLIDE 20

FireBox

andreas.krebs@blubox.ch

Safe and rapid Salvage of Electric Vehicles

MODITECH information system for fire service, rescue and breakdown service

SLIDE 21

FireBox

andreas.krebs@blubox.ch

Safe and rapid Salvage of Electric Vehicles

Service and emergency circuit breaker and the first responder loop

SLIDE 22

FireBox

andreas.krebs@blubox.ch

Safe and rapid Salvage of Electric Vehicles with the FireBox

SLIDE 23

FireBox

andreas.krebs@blubox.ch

Safe and rapid Salvage of Electric Vehicles with the FireBox

SLIDE 24

FireBox

andreas.krebs@blubox.ch

Secure Transport of Electric Vehicles

The FireBox with a surveillance and armed fire extinguishing system

SLIDE 25

FireBox

andreas.krebs@blubox.ch

Secure Storage of Electric Vehicles

SLIDE 26

FireBox

andreas.krebs@blubox.ch

Overview FireBox

Safe and secure extinguish, salvage, transport and storing

f crashed electric vehicles

extinguish salvage transport store
