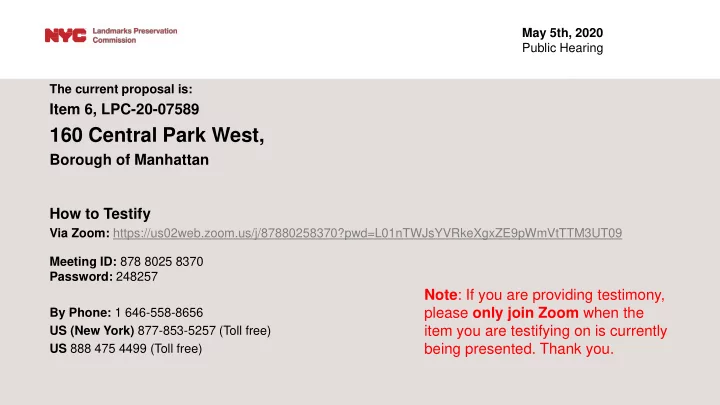

May 5th, 2020 Name of Landmark Building Type of Presentation Month xx, year Public Hearing The current proposal is: Item 6, LPC-20-07589 160 Central Park West, Borough of Manhattan How to Testify Via Zoom:

slide-1
SLIDE 1

Name of Landmark Building Type of Presentation Month xx, year

May 5th, 2020 Public Hearing The current proposal is:

Item 6, LPC-20-07589

160 Central Park West,

Borough of Manhattan How to Testify

Via Zoom: https://us02web.zoom.us/j/87880258370?pwd=L01nTWJsYVRkeXgxZE9pWmVtTTM3UT09 Meeting ID: 878 8025 8370 Password: 248257 By Phone: 1 646-558-8656 US (New York) 877-853-5257 (Toll free) US 888 475 4499 (Toll free)

Note: If you are providing testimony, please only join Zoom when the item you are testifying on is currently being presented. Thank you.

slide-2
SLIDE 2

FOURTH UNIVERSALIST CHURCH

160 Central Park West, New York, NY 10023

ACCESSIBLE RAMP

PHOTOGRAPHIC SURVEY

01/03/2020 AS NOTED SLH

PH-1

1 OF 1 THOMAS A. FENNIMAN

ARCHITECT

ONE UNION SQUARE WEST NEW YORK, NY 10003 TEL: 212.414.0250

SEAL: REVISION: TITLE: DATE: SCALE: PROJECT #: DRAWN BY: SHEET NUMBER: NYC DOB NUMBER: PAGE NUMBER:

47105

  • LPC ISSUE: 2/4/20.

PROJECT: D.O.B. NUMBER:

HISTORIC PHOTOGRAPH - CIRCA 1899

CENTRAL PARK WEST FACADE LOOKING SOUTH

1

HISTORIC (TAX) PHOTOGRAPH - CIRCA 1940

CENTRAL PARK WEST FACADE LOOKING NORTH

2

HISTORIC PHOTOGRAPH - CIRCA 1899

INTERIOR - SHOWING SALVAGED STONE UNITS

3

EXISTING STREET VIEW - CENTRAL PARK WEST

4

FOOTPRINT OF PROPOSED RAMP & STAIR

CENTRAL PARK WEST FACADE

5

FOOTPRINT OF PROPOSED RAMP & STAIR

CENTRAL PARK WEST FACADE

6

COMPONENTS OF FORMER STONE GUARDRAIL AT INTERIOR

HISTORIC FABRIC

9

COMPONENTS OF FORMER STONE GUARDRAIL AT INTERIOR

HISTORIC FABRIC

10

COMPONENTS OF FORMER STONE GUARDRAIL AT INTERIOR

HISTORIC FABRIC

11

EXISTING VIEW - SIDE GARDEN

INTERIOR

7

EXISTING VIEW - SIDE GARDEN

LOOKING EAST ALONG WEST 76th STREET

8

SALVAGE STONE GUARDRAIL (Two Units) FOR REUSE

INTERIOR

12

EXISTING MECHANICAL VAULT IN POOR CONDITION

SOUTH SIDE OF CENTRAL PARK WEST

13

EXISTING VIEW AT ENTRY DOOR

CENTRAL PARK WEST

14

DETAIL VIEW OF VAULT DECKING IN POOR CONDITION

15

DETAIL VIEW OF VAULT DECKING IN POOR CONDITION

16

slide-3
SLIDE 3

1

HISTORIC PHOTOGRAPH - CIRCA 1899

CENTRAL PARK WEST FACADE LOOKING WEST

2

HISTORIC (TAX) PHOTOGRAPH - CIRCA 1940

CENTRAL PARK WEST FACADE LOOKING NORTH

slide-4
SLIDE 4

3

HISTORIC (TAX) PHOTOGRAPH - CIRCA 1899

INTERIOR - SHOWING SALVAGED STONE UNITS

slide-5
SLIDE 5

EXISTING STREET VIEW

4

CENTRAL PARK WEST FACADE

slide-6
SLIDE 6

5

FOOTPRINT OF PROPOSED RAMP & STAIR

CENTRAL PARK WEST FACADE

slide-7
SLIDE 7

6

FOOTPRINT OF PROPOSED RAMP & STAIR

CENTRAL PARK WEST FACADE

slide-8
SLIDE 8

EXISTING VIEW - APPROACH TO MAIN ENTRANCE

7

CENTRAL PARK WEST FACADE LOOKING SOUTH

slide-9
SLIDE 9

8

EXISTING VIEW - SIDE GARDEN

WEST 76th STREET FACADE LOOKING EAST

slide-10
SLIDE 10

COMPONENTS OF FORMER STONE GUARDRAIL at INTERIOR

9

HISTORIC FABRIC

slide-11
SLIDE 11

10

COMPONENTS OF FORMER STONE GUARDRAIL at INTERIOR

HISTORIC FABRIC

slide-12
SLIDE 12

COMPONENTS OF FORMER STONE GUARDRAIL at INTERIOR

11

HISTORIC FABRIC

slide-13
SLIDE 13

12

SALVAGE STONE GUARDRAIL (Two Units) FOR REUSE

INTERIOR

slide-14
SLIDE 14

EXISTING MECHANICAL VAULT IN POOR CONDITION

13

CENTRAL PARK WEST FACADE LOOKING SOUTH

slide-15
SLIDE 15

14

EXISTING VIEW at ENTRY DOOR

CENTRAL PARK WEST FACADE LOOKING NORTH

slide-16
SLIDE 16

DETAIL VIEW OF VAULT DECKING IN POOR CONDITION

15

CENTRAL PARK WEST FACADE

slide-17
SLIDE 17

16

DETAIL VIEW OF VAULT DECKING IN POOR CONDITION

CENTRAL PARK WEST FACADE

slide-18
SLIDE 18

OFFICE ENTRANCE UP 2 risers UP 4 risers UP 4 risers

(E) AREAWAY (E) AREAWAY

SITE PLAN

Scale: 1/8" = 1'-0"

1

(E) REFUSE STORAGE

(E) GARDEN

UP 3 risers

SCHOOL UPPER ROOF at 3rd FLOOR SCHOOL LOWER ROOF at 2nd FLOOR

W 7 6 t h S T R E E T C E N T R A L P A R K W E S T

SCHOOL [4 West 76th Street] ENTRANCE

1 A200 ENTRANCE

West 76th Street ENTRANCE 8 West 76th Street [adj. 5 story bldg] 151 Central Park West [adj. 12.5 story bldg] REAR COURTYARD OF 151 Central Park West

PROPERTY LINE PROPERTY LINE ENTRANCE

2 A-400

IMPRACTICAL RAMP LOCATION REQUIRING 29 FEET OF RUN. DETRACTS FROM TOWER MASONRY AT CORNER.

CATCH BASIN LAMP POST MAIL BOX

OPTIONAL RAMP LOCATION REQUIRING 31 FEET OF RUN. MAKES ADA ACCESS AT AN UNDESIRABLE ENTRY POINT (BACK OF HOUSE) VERSUS PROPOSED ACCESS POINT AT NARTHEX. DISTURBS SIGNIFICANT AMOUNT OF EXISTING GARDEN AREA PROPOSED ADA RAMP & ENLARGED STAIR LANDING AT NARTHEX ENTRANCE.

THOMAS A. FENNIMAN

ARCHITECT

ONE UNION SQUARE WEST NEW YORK, NY 10003 TEL: 212.414.0250

REVISION: TITLE: DATE: SCALE: PROJECT #: DRAWN BY: SHEET NUMBER: NYC DOB NUMBER: PAGE NUMBER:

47105

PROJECT: D.O.B. NUMBER: SEAL:

FOURTH UNIVERSALIST SOCIETY

160 Central Park West, New York, NY 10023

ACCESSIBLE RAMP

1 OF 4 01/20/20 AS NOTED SLH

A-100.00

COVER SHEET & ROOF PLAN

  • LPC ISSUE: 2/4/20.

BUILDING DATA: BIN#: 1078199 BLOCK: 1128 LOT: 33

W 7 6 t h S T C E N T R A L P A R K W W 7 5 t h S T

CENTRAL PARK WEST CENTRAL PARK WEST NR # 90NR00905 LANDMARK DISTRICT: HISTORIC DISTRICT: ZONING: R10A, R8B MAP: 8C LOCATION PLAN:

slide-19
SLIDE 19

CENTRAL PARK WEST FACADE - EAST ELEVATION - EXISTING

Scale: 1/8" = 1'-0"

1 C

ENTRANCE ENTRANCE FIRST FLOOR

THOMAS A. FENNIMAN

ARCHITECT

ONE UNION SQUARE WEST NEW YORK, NY 10003 TEL: 212.414.0250

REVISION: TITLE: DATE: SCALE: PROJECT #: DRAWN BY: SHEET NUMBER: NYC DOB NUMBER: PAGE NUMBER:

47105

PROJECT: D.O.B. NUMBER: SEAL:

FOURTH UNIVERSALIST SOCIETY

160 Central Park West, New York, NY 10023

ACCESSIBLE RAMP

2 OF 4 03/25/15 AS NOTED SLH

A-200.00

EXISTING CPW FACADE

  • LPC ISSUE: 2/4/20.
slide-20
SLIDE 20

CENTRAL PARK WEST FACADE - EAST ELEVATION - PROPOSED

Scale: 1/8" = 1'-0"

1 C

ENTRANCE ENTRANCE FIRST FLOOR PROPOSED NEW ACCESSIBLE RAMP LOCATION 3 A400

THOMAS A. FENNIMAN

ARCHITECT

ONE UNION SQUARE WEST NEW YORK, NY 10003 TEL: 212.414.0250

REVISION: TITLE: DATE: SCALE: PROJECT #: DRAWN BY: SHEET NUMBER: NYC DOB NUMBER: PAGE NUMBER:

47105

PROJECT: D.O.B. NUMBER: SEAL:

FOURTH UNIVERSALIST SOCIETY

160 Central Park West, New York, NY 10023

ACCESSIBLE RAMP

3 OF 4 03/25/15 AS NOTED SLH

A-201.00

PROPOSED CPW FACADE

  • LPC ISSUE: 2/4/20.
slide-21
SLIDE 21

CENTRAL PARK WEST ELEVATION AS PROPOSED

Scale: 1/2" = 1'-0"

3 PLAN AS PROPOSED

Scale: 1/2" = 1'-0"

2

SIDEWALK STEP #1 STEP #2

SECTION

Scale: 1/2" = 1'-0"

4

151 C.P.W.adj. prop.

DEMOLITION AS PROPOSED

Scale: 1/2" = 1'-0"

1

(E) SIDEWALK VAULT PROPERTY LINE PROPERTY LINE (E) AREAWAY AT 151 CPW (N) LIMESTONE PLATFORM & STEP TO MATCH (E) COLOR & TEXTURE. 5

  • 5
  • 6
  • 6
  • 4
  • 4
  • RAMP

LANDING RAMP 1" SLOPE (N) LIMESTONE PLATFORM & STEP TO MATCH (E) COLOR & TEXTURE. (N) PAINTED STEEL RAILINGS EACH SIDE OF RAMP & STAIR. (N) PAINTED STEEL RAILINGS EACH SIDE OF RAMP & STAIR; COLOR & FINISH tbd. REMOVE & SALVAGE (E) LIMESTONE STEP. RELOCATE (E) AIR VENT PIPE. REMOVE FOOTRPINT OF (E) CONCRETE SIDEWALK AS SHOWN. REMOVE (E) DETERIORATED STONE BAND. REMOVE (E) DETERIORATED CAST IRON VAULT PANELS & METAL GRATING. SALVAGE SECTIONS FOR REUSE AS DECORATIVE SIDELIGHTS. LINE OF SIDEWALK VAULT BELOW. 1" slope

SECTION

Scale: 1/2" = 1'-0"

5 SECTION [SIDEWALK VAULT BELOW]

Scale: 1/2" = 1'-0"

6

4" min. varies 6" (N) LIMESTONE LANDING/STEP TO MATCH (E) COLOR & FINISH. (N) PAINTED STEEL RAILINGS EACH SIDE OF RAMP & STAIR. (E) SIDEWALK. (N) CONCRETE FOOTING AT EXTENDED LANDING. 1'-0" 3'-0" 1:12 1:12 max slope SALVAGED LIMESTONE UNITS TO BE REUSED, SET w/ SST PINS; min. TWO (2) p/STONE. (N) PAINTED STEEL RAILINGS EACH SIDE OF RAMP & STAIR. THREE (3) (N) W8x21s. min. 4'-0"

  • .c. POCKET INTO (E) MASONRY.

(N) STRUCTURAL [Fc=3KSI] CONCRETE SLAB OVER 1-1/2" GALV. METAL DECK w/ #4 EPOXY COATED REBARS at 12" O.C. (N) 1/8" thk STEEL VENTILATION HOOD w/ LOUVERS. (N) 1/2"x8" PAINTED, STEEL BEARING PLATE. (N) BITUMINOUS WATERPROOFING MEMBRANE. SALVAGED LIMESTONE UNITS TO BE REUSED, SET w/ SST PINS; min. TWO (2) p/STONE. (N) LIMESTONE BASE STONE. (N) LIMESTONE BASE STONE. (E) STONE (N) STONE LEVEL

T U R N I N G C I R C L E

(E) PLUMBING VENT TO BE SALVAGED & REMOUNTED 12" HIGHER. (N) LIMESTONE STEPS RELOCATED AIR VENT PIPE. RELOCATED AIR VENT PIPE. MODIFY & REPURPOSE CAST IRON VAULT GLASS SECTIONS AS NEW INFILL SIDELIGHTS.

5'-0" 2'-0" 6'-3" 2'-0" 9'-10" 5'-0" 3'-10" 3'-10" 1'-0"

(N) DOOR ACTUATOR. RELOCATED (E) INTERCOM. 34" max. to centerline

  • f operable part

48" max. to centerline

  • f operable part

FOURTH UNIVERSALIST SOCIETY

160 Central Park West, New York, NY 10023

BARRIER-FREE ACCESS

DETAIL PLANS & ELEVATIONS

01/20/20 AS NOTED SLH

A-400.00

4 OF 4 THOMAS A. FENNIMAN

ARCHITECT

ONE UNION SQUARE WEST NEW YORK, NY 10003 TEL: 212.414.0250

SEAL: REVISION: TITLE: DATE: SCALE: PROJECT #: DRAWN BY: SHEET NUMBER: NYC DOB NUMBER: PAGE NUMBER:

47100

  • PROJECT:

D.O.B. NUMBER:

LPC ISSUE: 2/4/20.

slide-22
SLIDE 22

Name of Landmark Building Type of Presentation Month xx, year

May 5th, 2020 Public Hearing The current proposal is:

Item 6, LPC-20-07589

160 Central Park West,

Borough of Manhattan How to Testify

Via Zoom: https://us02web.zoom.us/j/87880258370?pwd=L01nTWJsYVRkeXgxZE9pWmVtTTM3UT09 Meeting ID: 878 8025 8370 Password: 248257 By Phone: 1 646-558-8656 US (New York) 877-853-5257 (Toll free) US 888 475 4499 (Toll free)

Note: If you are providing testimony, please only join Zoom when the item you are testifying on is currently being presented. Thank you.
