Feinstaub und Lunge Klinische Aspekte und Aktuelles aus der Forschung Barbara Rothen-Rutishauser Chair BioNanomaterials Adolphe Merkle Institute University of Fribourg Marly, Switzerland BIOCOMBUST Universitt Freiburg, Deutschland -

slide-1
SLIDE 1

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

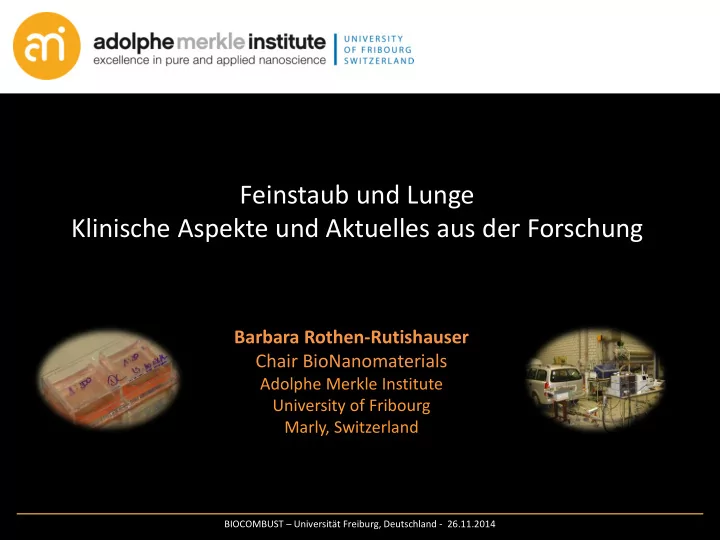

Feinstaub und Lunge Klinische Aspekte und Aktuelles aus der Forschung

Barbara Rothen-Rutishauser Chair BioNanomaterials

Adolphe Merkle Institute University of Fribourg Marly, Switzerland

slide-2
SLIDE 2

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

The Adolphe Merkle Institute in Fribourg (CH)

Polymer Chemistry & Materials (Weder) BioNanomaterials (Fink/Rothen) Surface Science (2015) Soft Matter Physics (Steiner)

Assembly (Lattuada) Scattering (Balog) Macromolecular Chemistry (Nico Bruns)

slide-3
SLIDE 3

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Particulate Matter 10 (PM10)

www.swissinfo.ch

slide-4
SLIDE 4

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

What is PM10?

www.eea.europa.eu

slide-5
SLIDE 5

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

PM10 limit values – CH/D

Luftqualitätsstandards für PM2,5 Zielwert: 25 µg/m3 als Jahresmittelwert, sollte ab 1.1.2010 erreicht sein Grenzwert Stufe 1: 25 µg/m3 als Jahresmittelwert, der ab 1.1.2015 einzuhalten ist Grenzwert Stufe 2: 20 µg/m3 Jahresmittelwert, der ab 1.1.2020 einzuhalten ist

www.umweltbundesamt.de

slide-6
SLIDE 6

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Interaction of PM10 with the lung

http://www.heise.de/ http://www.rudolf-jetter.de http://specialcomm ent.wordpress.com/ http://www.g-o.de/ http://www.spiegel.de/

10µm 8µm 6µm 4µm 2µm 1µm 0.1µm

<1 µm Alveoli Bronchioli Bronchi Trachea Naso- pharynx Particle size Location The smaller the particles and the less water-soluble a gas is the deeper they penetrate into the lung Particles < 30 µm Particles < 10 µm SO2, NO2, Ozon Particles < 2-3 µm NO2, Ozon

  • Dr. P. Straehl, BAFU, Abt. Luft-reinhaltung und NIS and Dr. Regula Rapp, Swiss TPH

http://www.autobild.de/

slide-7
SLIDE 7

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

The human lung- Microscopic

Alveoli Interalveolar Septa

  • E. Weibel, Uni Bern
  • P. Gehr, Uni Bern

0.5mm 10µm

slide-8
SLIDE 8

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

The human lung- Air-blood barrier

Red blood cell Epithelium (Typ I cell) Endothelium Basal lamina Alveolus (Air) Capillary

  • P. Gehr, Uni Bern

1µm

500 millions alveoli Diameter 1/4mm Gas exchange reion 80-90% Surface 140 m2 Capillary volume 210cm3 Air-blood barrier <1µm

Gehr et al. Resp Physiol (1978) Ochs and Weibel. Fishman´s Pulmonary Diseases and Disorders, New York (2008)

http://www.reinischkogel.at/ http://www.agello.it/

slide-9
SLIDE 9

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

The human lung- Clearing mechanisms

Conducting airways Mucociliar transport (fast, minutes) Lung parenchyma The immune system (Slow, days-weeks)

Macrophages: Professional phagocytotic cells Dendritic cells: Professional antigen-presenting cells

  • P. Gehr, Uni Bern

Epithelial cells Dendritic cells

Photos courtesy P. Stumbles / S. Napoli (Blank et al. Exp Rev Resp Med 2008)

slide-10
SLIDE 10

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

The human lung- Clearing mechanisms

Boehringer Ingelheim Burkhardt, Pathology, University of Bern Boehringer Ingelheim University of Bern

Healthy and diseased lung

slide-11
SLIDE 11

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Translocation of nanoparticles

Nanoparticle can translocate across the lung tissue barrier => secondary organs via the blood circulation ⇒ Liver ⇒ Kidney ⇒ Heart ⇒ Brain ⇒ Fetus

Mills et al. 2009 Nat Clin Pract Cardiovasc Med Muehlfeld et al. 2008 Swiss Med Wkly Semmler-Behnke et al. 2007 Environ Health Perspect Peters et al. 2006 Part Fibre Toxicol Ryman-Rasmussen et al. 2009 Nat Nanotech Wick et al. 2010 Environ Health Perspect

  • P. Gehr, Uni Bern

1µm

slide-12
SLIDE 12

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

PM2.5- daily mortality and hospital admissions

A systematic review and meta-analysis of 110 peer-reviewed time series studies => Adverse health effects of short-term exposure to PM2.5: 10 µg/m3 increment associated with 1.04% (95% CI 0.52% to 1.56%) increase in the risk

  • f death

Atkinson et al. Thorax 2014

slide-13
SLIDE 13

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

European Study of Cohorts for Air Pollution Effects (ESCAPE)

Association of long-term exposure to ambient air pollution with lung function in adult participants from five cohorts ⇒ 10 µg/m3 increase in NO2 exposure was associated with lower levels of FEV1 ⇒ increase of 10 µg/m3 in PM10 was associated with a lower level

  • f FEV1

Adam et al. EJR 2014 (in press)

slide-14
SLIDE 14

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Chronic effects of PM10 exposure

bei 500‘000 Personen der amerikanischen Krebsstudie, 1982-2002

  • 10

10 20 30 Zusätzliche Sterblichkeit pro 1 0 µg Feinstaub in % Alle Ursachen Herz- Lungenkrankheiten Lungenkrebs übrige Todesursachen Pope 2002

+ 6 % + 9% + 14% Pope et al., J. Am. Med. Assoc., 2002

slide-15
SLIDE 15

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Chronic effects of PM10 exposure

slide-16
SLIDE 16

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Models to study risk assessment of PM10

Epidemiology:

The study of the distribution and determinants of disease frequency in human populations and the application of this study to control health problems

http://publichealth.jbpub.com/ Overview of epidemiologic study design

Animal experiments:

in vivo testing

http://www.aboutanimaltesting.co.uk/using-animals-testing-pros-versus-cons.html

Cell culture experiments:

in vitro testing

Rothen-Rutishauser et al. Exp Opin Drug Metabol Toxicol 2008

german.china.org.cn http://de.wikipedia.org/wiki/Tierversuch

The Ames test:

in vitro testing with bacteria

Ames et al. Proc Nat Acad Sci USA 1973

slide-17
SLIDE 17

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Realistic risk assessment systems

Definition of realistic: ”resembling or simulating real life”

dictionary.com www.sott.net

Cell responses

Anatomy, Uni Bern

slide-18
SLIDE 18

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Macrophage Dendritic cell Epithelial cells

(A549/16HBE14o-/primary cells)

Rothen-Rutishauser et al. Am J Respir Cell Mol Biol 2005; Blank et al. Am J Respir Cell Mol Biol 2007 Rothen-Rutishauser et al. Review, Exp Opin Drug Metab Toxicol 2008 Lehmann et al. Eur J Pharm Biopharm 2010

3D human epithelial airway barrier model

slide-19
SLIDE 19

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Air-liquid cultures

Blank et al. J Aerosol Med 2006; Blank et al. Am J Respir Cell Mol Biol 2007

slide-20
SLIDE 20

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Exhaust emission exposure system

  • S. Steiner

Müller et al. Environ Sci Technol 2009 Müller et al. Tox Env Chem 2012

Control measuerement unit

slide-21
SLIDE 21

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Flow pattern in the exposure chambers

Müller et al. Environ Sci Technol 2009 Supporting Info FröhlichI et al. lnt. J Mol Sci 2014

slide-22
SLIDE 22

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Realistic in vitro dose levels

Ambient urban exposure and occupational exposure

5 mg/m3 (maximum level allowed by Occupational Safety and Health Administration (OSHA)) 3x10-5-5x10-3 μg per h per cm2 of lung tissue 2-300 particles per h per (epithelial) cells

slide-23
SLIDE 23

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Particle deposition

2000 4000 6000 8000 10000 12000 14000 16000 18000 1 2 3 4 5 6 7

2 4 6 8 10 12 14

TNF-α in supernatants [ng / mL]

16 18 Control Reference chamber Control Reference chamber DEP Low dose DEP High dose

2-300 Partikel per h per (Epithelial) cell

Paur et al. J Aerosol Sci 2011

1.7 x 107 Particle / cm2 => 134 Particle /cell

Müller et al. Environ Sci Technol 2009; Steiner et al. Tox Letters 2012

*

7.48 x 107 Particle / cm2 => 587 Particle /cell

200µm

slide-24
SLIDE 24

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

  • Opel Astra X20DTL, 35 km/h
  • Fuel: low sulfur diesel

(>10mg/kg, Greenergy SA)

  • Lube oil

(V10.237, Motorex)

  • Exhaust dilution 1:10

=> Without filter => With a silicon carbide Diesel particle filter

Filter von Peugeot, Filterhersteller Ibiden

Müller et al. Environ Sci Technol 2009 Steiner et al. Tox Letters 2012

Ohne Filter Mit Dieselpartikelfilter

Effect of non-catalyzed diesel particle filter

slide-25
SLIDE 25

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Exhaust characterisation

5 10 15 20 25 30 35 40 CO (ppm) HC (ppm) NOx (ppm) NO2 (ppm) NO (ppm) Verdünnung

Without Filter

Steiner et al. 2013 Atmos Environ

slide-26
SLIDE 26

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Exhaust characterisation

5 10 15 20 25 30 35 40 CO (ppm) HC (ppm) NOx (ppm) NO2 (ppm) NO (ppm) Verdünnung

Without Filter With DEP-Filter

Steiner et al. 2013 Atmos Environ

slide-27
SLIDE 27

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Particle size distribution

1.00E+00 1.00E+01 1.00E+02 1.00E+03 1.00E+04 1.00E+05 1.00E+06 1.00E+07 1.00E+08 10 100 1000

counts dN/dlog Dp [1/cm3] d [nm]

Particle size distribution

0.5µm

Steiner et al. 2013 Atmos Environ

Without Filter

slide-28
SLIDE 28

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Particle size distribution

1.00E+00 1.00E+01 1.00E+02 1.00E+03 1.00E+04 1.00E+05 1.00E+06 1.00E+07 1.00E+08 10 100 1000

counts dN/dlog Dp [1/cm3] d [nm]

Particle size distribution

0.5µm

Steiner et al. 2013 Atmos Environ

Without Filter With DEP-Filter

slide-29
SLIDE 29

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Control in the incubator Clean air 6h Without filter 6h With diesel particle filter 6h

No cytotoxicity (LDH assay)

Steiner et al. 2013 Atmos Environ

Cell morphology and cytotoxicity

slide-30
SLIDE 30

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Antioxidative response

0.2 0.4 0.6 0.8 1 1.2 Standard Roh-Abgas DPF TBHP Standard Roh-Abgas DPF TBHP

Total reduced glutathione (GSH), an anti-oxidant molecule

Reference Exhaust 2h 6h Without filter With diesel particle filter

=> Oxidative stress

  • S. Steiner

n=3-6

* * * *

Steiner et al. 2013 Atmos Environ

slide-31
SLIDE 31

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Pro-inflammatory response

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 Standard Roh-Abgas DPF LPS Standard Roh-Abgas DPF LPS

Tumor necrosis factor - alpha

2h 6h

=> (pro-)inflammatory reactions

  • S. Steiner

* *

n=3-6

Reference Exhaust Without filter With diesel particle filter

Steiner et al. 2013 Atmos Environ

slide-32
SLIDE 32

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Models to study risk assessment of PM10

Epidemiology:

The study of the distribution and determinants of disease frequency in human populations and the application of this study to control health problems

http://publichealth.jbpub.com/ Overview of epidemiologic study design

Animal experiments:

in vivo testing

http://www.aboutanimaltesting.co.uk/using-animals-testing-pros-versus-cons.html

Cell culture experiments:

in vitro testing

Rothen-Rutishauser et al. Exp Opin Drug Metabol Toxicol 2008

german.china.org.cn http://de.wikipedia.org/wiki/Tierversuch

The Ames test:

in vitro testing with bacteria

Ames et al. Proc Nat Acad Sci USA 1973

slide-33
SLIDE 33

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Comparison of tests

Ames test (bacteria) Human lung cell model

Steiner et al. Env Sci Technol 2014

slide-34
SLIDE 34

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Ames test – human lung cells

Clift et al. Nanotoxicology 2013; Steiner et al. Env Sci Technol 2014

slide-35
SLIDE 35

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Conclusions

  • The Ames test in combination with organic extracts is not

a reliable method to assess the risk of exhaust emission

  • Realistic cell culture models combined with a controlled

deposition of nanomaterials at the air-liquid interface of lung cells

  • Stable and reproducible system to study the effect of

exhaust emissions in vitro under realistic conditions

  • => Differentation between gaseous compounds and particles
slide-36
SLIDE 36

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Conclusions

⇒ Diesel particle filter significantly reduces (pro-)inflammation in vitro ⇒ However, the gaseous components also need to be reduced by filter technology

Without filter (Gas and particles) With filter (Gas) Cytotoxicity No No Oxidative stress (GSH and HMOX1) ↑ ↑ Pro-inflammatory reactions (TNFa, IL8) ↑ No

slide-37
SLIDE 37

BIOCOMBUST – Universität Freiburg, Deutschland - 26.11.2014

Outlook: Reliable and versatile system

Two-stroke scooter exhaust Cytotoxicity and pro-inflammatory reactions

Müller et al. 2010 Environ Sci Technol

DEP and CeO2 co-exposures CeO2 reduces oxidative stress effects

  • bserved upon DEP exposure

Steiner et al. 2012 Tox Letters

B0, B20, B100 Reduced cell response only for B20

Steiner et al. 2013 Atmos Environ http://ec.europa.eu/energy/renewables/biofuels/

slide-38
SLIDE 38

Acknowledgments

Institute of Anatomy, University Bern Peter Gehr Former team members EngToxDi Team Jan Czerwinski Pierre Comte Andreas Mayer Norbert Heeb The BioNano-Group Adolphe Merkle Foundation Technion – Israel Institute of Technology Haifa - Israel Josue Sznitman Jana Tenenbaum-Katan

Acknowledgments

Sandro Steiner Loretta Müller
